Features
Maximum Continuous Load Current: 2500 mA
at V IN of 2.5 V Boosting V OUT to 3.3 V
Maximum Pulse Load Current of 3.5 A for GSM PAs
(1 Slot) and PMIC support simultaneously, V IN=3.1 V,
V OUT=3.4 V
Up to 97% Efficient
4 External Components: 2520 case 0.47 µH Inductor
and 0603 Case Size Input and Output Capacitors
Input Voltage Range: 2.5 V to 5.5 V
Fixed Output Voltage Options: 3.0 V to 5.0 V
True Bypass Operation w hen V IN > Target V OUT
Integrated Synchronous Rectifier
True Load Disconnect
The FAN48623 is a boost regulator designed to provide a
minimum output voltage from a single-cell Li-Ion battery,
even w hen the battery voltage is below system minimum.
The output voltage regulation is guaranteed up to a
maximum load current of 2500 mA. The regulator transitions
smoothly betw een Bypass and normal Boost Mode. The
device can be forced into Bypass Mode to reduce quiescent
current.

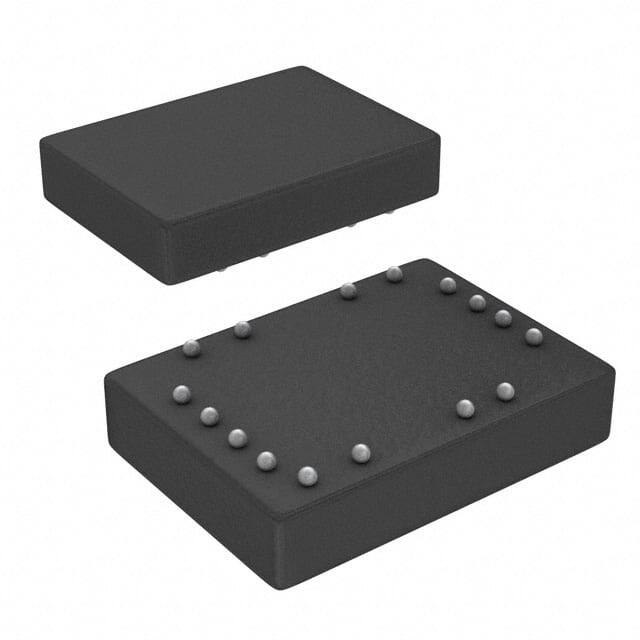

The FAN48623 is available in a 16-bump, 0.4 mm pitch,
Wafer-Level Chip-Scale Package (WLCSP).
Forced Bypass Mode
V SEL Control to Optimize Target V OUT
Short-Circuit Protection (SCP)
VOUT
VIN
Low Operating Quiescent Current
Battery
16-Bump, 1.81 mm x 1.81 mm, 0.4 mm Pitch, WLCSP
Applications
Boost for Low -Voltage Li-ion Batteries,
Brow nout
Prevention, System PMIC LDOs Supplies, and
2G/3G/4G RF PA Supplies
The FAN48623 allow s systems to take advantage of new
battery chemistries that can supply significant energy w hen
the battery voltage is low er than the required voltage for
system pow er ICs. By combining built-in pow er transistors,
synchronous rectification, and low supply current, this IC
provides a compact solution for systems using advanced LiIon battery chemistries.
Smart Phones, Tablets, Portable Devices
+
CIN
L1
Description
0.47µH
COUT
10µF
2x22µF
SW
FAN48623
VSEL
SYSTEM
LOAD
PGND
AGND
EN
PG
BYP
Figure 1.
Typical Application
Ordering Information
Part Number
Output
Operating
Voltage (1)
Temperature
VSEL0 / VSEL1
Package
Packing
Device
Marking
FAN48623UC315X
3.150 / 3.330
JK
FAN48623UC32JX
3.20 / 3.413
JD
FAN48623UC33X
3.300 / 3.489
FAN48623UC35X
FAN48623UC36FX
3.5 / 3.7
JE
-40°C to 85°C
16-Ball, 4x4 Array, 0.4 mm Pitch, 250 µm Ball,
Wafer-Level Chip-Scale Package (WLCSP)
Tape &
Reel
JF
3.64/ 3.709
JG
FAN48623UC50X
5.000 / 5.286
JL
FAN48623UC50GX
5.000 / 5.190
JM
Note:
1. Other output voltages are available on request. Please contact a ON Semiconductor Semiconductor representative.
© 2013 Semiconductor Components Industries, LLC
October-2017,Rev . 2
Publication Order Number:
FAN48623/D
FAN48623 — 2500 mA Synchronous TinyBoost® Regulator with Bypass Mode
FAN48623 — 2500 mA, Synchronous TinyBoost®
Regulator with Bypass Mode
Q3B Q3A
VIN
CIN
Q3
L1
BYPASS
CONTROL
Q1B
Q1A
VOUT
SW
COUT
Q1
Q2
Synchronous
Rectifier
Control
GND
VSEL
EN
MODULATOR
LOGIC
AND CONTROL
BYP
PG
Figure 2.
Block Diagram
Table 1. Recommended Components
Component
Description
Vendor
L1
0.47 µH, 20%, 5.3 A, 2520
Toko: DFE252010P- R47M
Parameter
Typ.
Unit
L
0.47
µH
DCR (Series R)
27
mΩ
CIN
10 µF, 20%, 10 V, X5R, 0603
TDK: C1608X5R1A106M
C
10
µF
COUT
2 x 22 µF, 20%, 10 V, X5R, 0603
TDK: C1608X5R1A226M080A C
C
44
µF
www.onsemi.com
2
FAN48623 — 2500 mA Synchronous TinyBoost® Regulator with Bypass Mode
Typical Application
EN
PG
A1
A2
VSEL
NC
B1
B2
BYP
NC
C1
C2
AGND
D1
Figure 3.
VIN
A4
A3
A2
A1
B4
B4
B3
B2
B1
C4
C4
C3
C2
C1
D4
D4
D3
D2
D1
A4
A3
VOUT
B3
SW
C3
PGND
D2
D3
Top-Through View (Bum ps Dow n)
Figure 4.
Bottom View (Bum ps Up)
Pin Definitions
Pin #
Name
Description
A1
EN
Enable. When this pin is HIGH, the circuit is enabled.
A2
PG
Pow er Good. This is an open-drain output. PG is actively pulled LOW if output falls out of
regulation due to overload or if thermal protection threshold is exceeded.
A3, A4
VIN
Input Voltage. Connect to Li-Ion battery input pow er source.
B1
VSEL
Output Voltage Select. When boost is running, this pin can be used to select the output voltage.
B3, B4
VOUT
Output Voltage. Place COUT as close as possible to the device.
C1
BYP
Bypass. This pin can be used to activate Forced Bypass Mode. When this pin is LOW, the bypass
sw itches (Q3 and Q1) are turned on and the IC is otherw ise inactive.
C3, C4
SW
Sw itching Node. Connect to inductor.
D1
AGND
Analog Ground. This is the signal ground reference for the IC. All voltage levels are measured
w ith respect to this pin. AGND should be connected to PGND at a single point.
D2 — D4
PGND
Pow er Ground. This is the pow er return for the IC. The COUT bypass capacitor should be returned
w ith the shortest path possible to these pins.
B2, C2
NC
No Internal Connection. Note: Bumps are present and should be tied to PGND.
www.onsemi.com
3
FAN48623 — 2500 mA Synchronous TinyBoost® Regulator with Bypass Mode
Pin Configuration
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above
the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended
exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum
ratings are stress ratings only.
Symbol
V IN
Parameter
Min.
Max.
Unit
-0.3
6.5
V
6.0
V
V IN Input Voltage
V OUT
V OUT Output Voltage
V SW
SW Node Voltage
DC
-0.3
6.0
Transient: 10 ns, 3 MHz
-1.0
8.0
Other Pins
ESD
Electrostatic Discharge
Protection Level
(2)
-0.3
6.5
Human Body Model, ANSI/ESDA/JEDEC JS-001-2012
2.0
Charged Device Model per JESD22-C101
1.5
V
V
kV
TJ
Junction Temperature
-40
+150
°C
TSTG
Storage Temperature
-65
+150
°C
+260
°C
TL
Lead Soldering Temperature, 10 Seconds
Note:
2. Lesser of 6.5 V or V IN + 0.3 V.
Recommended Operating Conditions
The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended operating
conditions are specified to ensure optimal performance to the datasheet specifications. ON Semiconductor does not
recommend exceeding them or designing to absolute maximum ratings.
Symbol
Parameter
Min.
Max.
Unit
V IN
Supply Voltage
2.5
4.5
V
IOUT
Output Current
0
2500
mA
TA
Ambient Temperature
-40
+85
°C
TJ
Junction Temperature
-40
+125
°C
Thermal Properties
Junction-to-ambient thermal resistance is a function of application and board layout. This data is measured w ith four-layer ON
Semiconductor evaluation boards (1 oz copper on all layers). Special attention must be paid not to exceed junction
temperature TJ(max) at a given ambient temperate TA.
Symbol
θJA
Parameter
Junction-to-Ambient Thermal Resistance
www.onsemi.com
4
Typical
Unit
60
°C/W
FAN48623 — 2500 mA Synchronous TinyBoost® Regulator with Bypass Mode
Absolute Maximum Ratings
Unless otherw ise noted and per Figure 1 minimum and maximum values are from V IN=2.5 V to 4.5 V and TA=-40°C to +85°C.
Typical values are at V IN = 3.0 V and TA = 25°C for all output voltage options.
Symbol
IQ
Parameter
V IN Quiescent Current
Conditions
Min. Typ. Max. Unit
Automatic Bypass Mode, V OUT_TARGET =3.3 V,
V IN=3.6 V
140
190
µA
Boost Mode, V OUT=3.3 V, V IN=3.0 V
135
180
µA
Shutdow n, EN=0 V, V IN=3.0 V
4.0
12.0
µA
Forced Bypass Mode, V IN=3.6 V
6.0
12.0
µA
0.5
1.0
µA
ILK
V OUT to V IN Reverse Leakage
V OUT=5.0 V, EN=0 V, V IN=0 V
ILK_OUT
V IN to V OUT Leakage Current
V OUT=0 V, EN=0 V, V IN=4.2 V
0.1
1.5
µA
V UVLO
Under-Voltage Lockout
V IN Rising
2.20
2.35
V
V UVLO_HYS
Under-Voltage Lockout Hysteresis
V IH
Logic Level High EN, VSEL, BYP
V IL
Logic Level Low EN, VSEL, BYP
RLOW
IPD
200
mV
1.05
V
0.4
V
Logic Control Pin Pull Dow ns
(LOW Active)
BYP, VSEL, EN
300
kΩ
Weak Current Source Pull-Dow n
BYP, VSEL, EN
100
nA
2.5 V ≤ V IN ≤ V OUT_TARGET -100 mV, DC, 0 to
2500 mA
-1.0
4.0
%
2.5 V ≤ V IN ≤ V OUT_TARGET -100 mV, DC, PWM
(CCM) Operation
-1.0
2.5
%
Boost Valley Current Limit
V IN=2.5 V, V OUT=3.3 V
4.7
IV_LIM_SS
Boost Valley Current Limit During
Soft Start
tSS
Soft-Start EN HIGH to Regulation
tRST
FAULT Restart Timer
V REG
IV_LIM
Output Voltage Accuracy
5.3
A
V IN=2.5 V, V OUT=3.3 V
2.6
A
50 Ω Load, V OUT_TARGET = 3.3 V (Time from
EN Rising Edge to 90% of V OUT_TARGET)
300
µs
20
ms
Note:
3. Minimum and Maximum limits are verified by design, test, or statistical analysis. Typical (Typ.) numbers are not verified,
but represent typical results.
www.onsemi.com
5
FAN48623 — 2500 mA Synchronous TinyBoost® Regulator with Bypass Mode
Electrical Specifications
98%
98%
96%
96%
94%
94%
Efficiency
Efficiency
Unless otherw ise specified, TA = 25°C; circuit and components according to Figure 1.
92%
92%
90%
90%
-40C
2.5 VIN
88%
88%
2.7 VIN
+25C
+85C
3.0 VIN
86%
86%
0
500
1000
1500
2000
0
2500
500
Figure 5.
1000
1500
2000
2500
Load Current (mA)
Load Current (mA)
Efficiency vs. Load Current and Input
Voltage, V OUT=3.15 V
Figure 6. Efficiency vs. Load Current and Tem perature,
V IN=3.0 V, V OUT=3.15 V
98%
98%
96%
96%
94%
Efficiency
Efficiency
94%
92%
90%
88%
92%
90%
86%
-40C
2.5 VIN
84%
88%
2.7 VIN
+25C
3.0 VIN
+85C
82%
86%
0
500
1000
1500
2000
2500
0
500
Load Current (mA)
Figure 7.
1000
1500
2000
2500
Load Current (mA)
Figure 8.
Efficiency vs. Load Current and
Tem perature, V IN=3.0 V, V OUT=3.3 V
Efficiency vs. Load Current and Input
Voltage, V OUT=3.3 V
98%
98%
96%
96%
94%
Efficiency
Efficiency
94%
92%
90%
88%
92%
90%
2.5 VIN
2.7 VIN
3.0 VIN
3.3 VIN
86%
84%
-40C
88%
+25C
+85C
82%
86%
0
500
1000
1500
2000
2500
Load Current (mA)
Figure 9.
0
500
1000
1500
2000
2500
Load Current (mA)
Efficiency vs. Load Current and Input
Voltage, V OUT=3.5 V
www.onsemi.com
6
Figure 10.
Efficiency vs. Load Current and
Tem perature, V IN=3.0 V, V OUT=3.5 V
FAN48623 — 2500 mA Synchronous TinyBoost™ Regulator with Bypass Mode
Typical Characteristics
(Continued)
Unless otherw ise specified, TA = 25°C; circuit and components according to Figure 1.
96%
96%
94%
94%
92%
92%
Efficiency
Efficiency
90%
88%
86%
90%
84%
88%
2.5 VIN
82%
-40C
3.0 VIN
86%
3.6 VIN
80%
+25C
+85C
4.2 VIN
78%
84%
0
500
1000
1500
2000
2500
0
500
Load Current (mA)
Figure 11.
1000
1500
2000
Efficiency vs. Load Current and Input
Voltage, V OUT=5.0 V
Figure 12.
4.0%
Efficiency vs. Load Current and Tem perature,
V IN=3.6 V, V OUT=5.0 V
4.0%
2.5 VIN
+25C
3.0%
3.0 VIN
Output Regulation
Output Regulation
-40C
2.7 VIN
3.0%
2.0%
1.0%
0.0%
-1.0%
+85C
2.0%
1.0%
0.0%
-1.0%
-2.0%
-2.0%
0
500
1000
1500
2000
0
2500
500
Figure 13.
1000
1500
2000
2500
Load Current (mA)
Load Current (mA)
Output Regulation vs. Load Current and
Input Voltage, V OUT=3.15 V
Figure 14. Output Regulation vs. Load Current and
Tem perature, V IN=3.0 V, V OUT=3.15 V
4.0%
4.0%
-40C
2.5 VIN
2.7 VIN
3.0%
+25C
3.0%
3.0 VIN
Output Regulation
Output Regulation
2500
Load Current (mA)
2.0%
1.0%
0.0%
-1.0%
+85C
2.0%
1.0%
0.0%
-1.0%
-2.0%
-2.0%
0
500
1000
1500
2000
2500
0
Load Current (mA)
Figure 15.
500
1000
1500
2000
2500
Load Current (mA)
Output Regulation vs. Load Current and
Input Voltage, V OUT=3.3 V
Figure 16. Output Regulation vs. Load Current and
Tem perature, V IN=3.0 V, V OUT=3.3 V
www.onsemi.com
7
FAN48623 — 2500 mA Synchronous TinyBoost™ Regulator with Bypass Mode
Typical Characteristics
Unless otherw ise specified, TA = 25°C; circuit and components according to Figure 1.
4.0%
4.0%
2.5 VIN
2.7 VIN
3.0 VIN
3.3 VIN
+25C
3.0%
+85C
Output Regulation
Output Regulation
3.0%
-40C
2.0%
1.0%
0.0%
-1.0%
2.0%
1.0%
0.0%
-1.0%
-2.0%
-2.0%
0
1000
500
1500
2000
2500
0
500
Load Current (mA)
Figure 17.
1000
1500
2000
2500
Load Current (mA)
Output Regulation vs. Load Current and Input
Voltage, V OUT=3.5 V
Figure 18. Output Regulation vs. Load Current and
Tem perature, V IN=3.0 V, V OUT=3.5 V
4.0%
4.0%
2.5 VIN
3.0%
4.2 VIN
2.0%
1.0%
0.0%
-1.0%
+25C
3.0%
3.6 VIN
Output Regulation
Output Regulation
-40C
3.0 VIN
+85C
2.0%
1.0%
0.0%
-1.0%
-2.0%
-2.0%
0
500
1000
1500
2000
2500
0
500
Load Current (mA)
Figure 19.
1000
1500
2000
Output Regulation vs. Load Current and Input
Voltage, V OUT=5.0 V
Figure 20. Output Regulation vs. Load Current and
Tem perature, V IN=3.6 V, V OUT=5.0 V
220
200
-40C
-40C
+25C
+25C
200
Quiescent Current (uA)
180
Quiescent Current (uA)
2500
Load Current (mA)
+85C
160
140
+85C
180
160
140
120
120
100
2.5
3.0
3.5
4.0
2.5
4.5
3.0
3.5
4.0
4.5
5.0
5.5
Input Voltage (V)
Input Voltage (V)
Figure 21. Quiescent Current vs. Input Voltage and
Tem perature, V OUT=3.15 V, Auto Bypass
Figure 22. Quiescent Current vs. Input Voltage and
Tem perature, V OUT=5.0 V, Auto Bypass
www.onsemi.com
8
FAN48623 — 2500 mA Synchronous TinyBoost™ Regulator with Bypass Mode
Typical Characteristics (Continued)
Unless otherw ise specified, TA = 25°C; circuit and components according to Figure 1.
5
12
-40C
Max Continuous Load (A)
+85C
Quiescent Current (uA)
4.5
3.3VOUT, 25C
4
3.3VOUT, 60C
+25C
10
8
6
4
3.3VOUT, 85C
3.5
5.0VOUT, 25C
3
5.0VOUT, 60C
5.0VOUT, 85C
2.5
5.2VOUT, 25C
2
5.2VOUT, 60C
5.2VOUT, 85C
1.5
1
2
0.5
0
0
2.5
3.0
3.5
4.0
4.5
2.5
3.0
3.5
4.0
4.5
Input Voltage (V)
Input Voltage (V)
Figure 23. Quiescent Current vs. Input Voltage and
Tem perature, V OUT=3.3 V, Forced Bypass
Figure 24. Typical Maxim um Continuous Load vs. Input
Voltage, Tem perature and Output Voltage
40
2,500
2,000
Frequency(kHz)
Ripple (mV)
30
20
10
1,500
1,000
2.5 VIN
2.5 VIN
500
2.7 VIN
2.7 VIN
3.0 VIN
3.0 VIN
0
0
0
500
1000
1500
2000
2500
0
500
Figure 25.
1000
1500
2000
2500
Load Current (mA)
Load Current (mA)
Figure 26. Frequency vs. Load Current and Input
Voltage, V OUT=3.15 V
Output Ripple vs. Load Current and
Input Voltage, V OUT=3.15 V
40
2,500
2,000
Frequency(kHz)
Ripple (mV)
30
20
1,500
1,000
2.5 VIN
10
2.5 VIN
2.7 VIN
500
3.0 VIN
2.7 VIN
3.0 VIN
0
0
0
500
1000
1500
2000
2500
0
Figure 27.
500
1000
1500
2000
2500
Load Current (mA)
Load Current (mA)
Output Ripple vs. Load Current and
Input Voltage, V OUT=3.3 V
Figure 28.
www.onsemi.com
9
Frequency vs. Load Current and Input
Voltage, V OUT=3.3 V
FAN48623 — 2500 mA Synchronous TinyBoost™ Regulator with Bypass Mode
Typical Characteristics (Continued)
Unless otherw ise specified, TA = 25°C; circuit and components according to Figure 1.
3,000
50
2.5 VIN
3.0 VIN
3.6 VIN
4.2 VIN
2,500
Frequency(kHz)
Ripple (mV)
40
30
20
10
2,000
1,500
2.5 VIN
1,000
3.0 VIN
3.6 VIN
500
4.2 VIN
0
0
0
500
1000
1500
2000
0
2500
500
Figure 29.
1000
1500
2000
2500
Load Current (mA)
Load Current (mA)
Output Ripple vs. Load Current and Input
Voltage, V OUT=5.0 V
Figure 30.
Frequency vs. Load Current and Input
Voltage, V OUT=5.0 V
VOUT (2V/div)
VOUT (1V/div)
IIN (500mA/div)
IIN (500mA/div)
EN (2V/div)
EN (2V/div)
100µs/div
PG (5V/div)
Figure 31.
100µs/div
PG (5V/div)
Startup, 50 Ω Load, V IN=2.5 V, V OUT=3.15 V
Figure 32.
Startup, 50 Ω Load, V IN=3.0 V, V OUT=5.0 V
VOUT (1V/div)
IL (2A/div)
IL (2A/div)
VOUT (1V/div)
PG (2V/div)
5ms/div
50µs/div
PG (2V/div)
Figure 33.
Overload Protection, V IN=3.0 V, V OUT=5.0 V
Figure 34.
www.onsemi.com
10
Output Fault, V IN=3.0 V, V OUT=3.3 V
FAN48623 — 2500 mA Synchronous TinyBoost™ Regulator with Bypass Mode
Typical Characteristics (Continued)
Unless otherw ise specified, TA = 25°C; circuit and components according to Figure 1
3.3V
VOUT (200mV/div)
VOUT (200mV/div)
IOUT (1A/div)
IOUT (1A/div)
100µs/div
100µs/div
Figure 35.
5.0V
Load Transient, 150-2000 m A, 10 µs Edge,
V IN=3.0 V, V OUT=3.3 V
Figure 36.
Load Transient, 150-1000 m A, 10 µs Edge,
V IN=3.6 V, V OUT=5.0 V
VOUT (50mV/div)
VOUT (200mV/div)
3.2V
3.0V
VIN(200mV/div)
2.7V
VIN(200mV/div)
20µs/div
Figure 37.
3.3V
20µs/div
Line Transient, 3.0-3.6 V IN, 10 µs Edge,
500 m A Load, V OUT=3.3 V
Figure 38.
VOUT (100mV/div)
VSEL (2V/div)
20µs/div
Figure 39.
V SEL Step, V IN=3 V, V OUT=3.3 V, 500 m A Load
www.onsemi.com
11
Line Transient, 2.7-3.0 V IN, 10 µs Edge,
500 m A Load, V OUT=3.3 V
FAN48623 — 2500 mA Synchronous TinyBoost™ Regulator with Bypass Mode
Typical Characteristics (Continued)
FAN48623 is a synchronous boost regulator, typically
operating at 2.5 MHz in Continuous Conduction Mode
(CCM), w hich occurs at moderate to heavy load current and
low V IN voltages. At light load, the regulator operates at
Discontinuous Conduction Mode (DCM) to maintain high
efficiency.
w ith boost valley current limited to 50% of nominal level at
Boost Mode.
During SS Mode, V OUT is ramped up by stepping the internal
reference. If V OUT fails to reach the voltage required during
the SS ramp sequence w ithin 64 µs, a fault state is declared.
FAN48623 uses a current-mode modulator to achieve
excellent transient response and smooth transitions betw een
CCM and DCM operation.
Boost Mode (BST)
The regulator includes a Bypass Mode that automatically
activates w hen V IN is above the boost regulator’s set point.
If V IN is above V OUT_TARGET w hen the SS Mode successfully
completes, the device transitions directly to BPS Mode.
Table 2. Operating States
Table 4. EN and BYP Logic Table
Mode
Description
Invoked When
LIN
Linear Startup
V IN > V OUT
SS
Soft-Start Mode
V IN V OUT_TARGET
Startup and Shutdown (EN Pin)
Table 3. Boost Startup Sequence
LIN1
LIN2
SS
Entry
Exit
End Timeout
(µs)
Mode
V IN > V UVLO, V OUT > V IN-300 mV
EN=1
TIMEOUT
LIN2
V OUT > V IN-300 mV
SS
TIMEOUT
FAUL
T
V OUT=V OUT_TARGET
BST
LIN1 Exit
LIN1 or
LIN2 Exit
Bypass Mode (BPS)
EN
0
1
BYP
Mode
VOUT
0
Shutdow n
0
1
Shutdow n
0
0
Forced Bypass
V IN
1
Auto Bypass
V OUT_TARGET or V IN
(if V IN > V OUT_TARGET)
FAULT State
If EN is LOW, all bias circuits are off and the regulator is in
Shutdow n Mode. During shutdow n, current flow is prevented
from VIN to VOUT, as w ell as reverse flow from VOUT to
VIN. During startup, keep DC current draw below 500 mA
until the device successfully executes startup. It is
recommended not to connect EN directly to VIN but use a
GPIO voltage of 1.8 V to set the logic for the EN pin. The
follow ing table describes the startup sequence.
Start
Mode
This is a normal operating state of the regulator.
The regulator enters the FAULT state under any of the
follow ing conditions:
SS
V OUT fails to achieve the voltage required to advance from
LIN state to SS state.
V OUT fails to achieve the voltage required to advance from
SS state to BST state.
Boost valley current limit triggers for 2 ms during the BST
state.
V IN to V OUT voltage drop exceeds 160 mV during BPS
state.
V IN < V UVLO
512
If a fault is triggered, the regulator stops sw itching and
presents a high-impedance path betw een VIN and VOUT.
After w aiting 20 ms, an automatic restart is attempted.
1024
Power Good
Linear Startup (LIN)
When EN is HIGH and V IN > V UVLO, the regulator attempts to
bring V OUT w ithin 300 mV of V IN using the internal fixed
current source from V IN (Q3). The current is limited to the
LIN1 (~1 A) set point.
If V OUT reaches V IN-300 mV during LIN1 Mode, SS Mode is
initiated. Otherw ise, LIN1 times out after 512 µs and LIN2
Mode is entered.
Pow er good is defined as a 0-FAULT, 1-POWER GOOD,
open-drain output. The Pow er Good pin (PG) signals w hen
the regulator has successfully completed soft-start w ith no
faults occurring. Pow er Good also functions as a w arning
flag for high die temperature.
PG is released HIGH w hen the soft-start sequence is
successfully completed.
Any FAULT state causes PG to be de-asserted.
PG is not asserted during Forced Bypass exit to Boost
Mode until the soft-start sequence is successfully
completed.
In LIN2 Mode, the current source is incremented to
approximately 2 A. If V OUT fails to reach V IN-300 mV after
1024 µs, a fault state is declared.
Soft-Start Mode (SS)
Upon successful completion of the LIN Mode (V OUT>V IN300 mV), SS Mode begins and the regulator starts sw itching
www.onsemi.com
12
FAN48623 — 2500 mA Synchronous TinyBoost™ Regulator with Bypass Mode
Circuit Description
Forced Bypass
When the die temperature exceeds 125°C, PG de-asserts
and the output remains regulated. PG is re-asserted w hen
the device cools by approximately 20°C.
The regulator shuts dow n if the die temperature exceeds
150°C. Restart occurs w hen the IC has cooled by
approximately 20°C.
Forced Bypass Mode is activated by pulling BYP pin LOW.
Forced Bypass Mode initiates w ith a current limit on Q3 and
then proceeds to the Bypass Mode w ith both Q1 and Q3 fully
enhanced. To prevent reverse current to the battery, the
device w aits until output discharges below V IN before
entering Forced Bypass Mode.
Automatic Bypass
After the transition is complete, most of the internal circuitry
is disabled to minimize quiescent current. OCP, UVLO and
OTP are inactive in Forced Bypass Mode.
In normal operation, the device automatically transitions from
Boost Mode to Bypass Mode if V IN goes above V OUT_TARGET.
In Bypass Mode, the device fully enhances both Q1 and Q3
to provide a very low impedance path from VIN to VOUT.
Entry into the Bypass Mode is triggered w hen V IN >
V OUT_TARGET and no sw itching has occurred during the past
10 µs. To soften the entry into Bypass Mode, Q3 is driven as
a linear current source for the first 5 µs. Bypass Mode exit is
triggered w hen V OUT reaches V OUT_TARGET. During Automatic
Bypass Mode, the device is short-circuit protected by voltage
comparator tracking the voltage drop from V IN to V OUT; if the
drop exceeds 160 mV, a fault state is declared.
By pulling BYP pin HIGH, the part transitions from Forced
Bypass Mode to Boost Mode. During the transition, Q1 is off
and Q3 is driven as a linear current source for the first 5 µs
before entering Boost Mode.
.
With sufficient load to enforce CCM operation, the Bypass
Mode to Boost Mode transition occurs at the target V OUT.
The Bypass Mode exit threshold has a 50 mV hysteresis
imposed at V OUT to prevent cycling betw een modes. The
corresponding input voltage at the transition point is:
VIN ≤ VOUT + ILOAD • (DCR L + R DS( ON)P ) || R DS( ON)BYP − 50mV
(1)
The Bypass Mode entry threshold has a 30 mV hysteresis
imposed at V OUT to prevent cycling betw een modes. The
transition from Boost Mode to Bypass Mode occurs at the
target V OUT+30 mV. The corresponding input voltage is:
VIN ≥ VOUT + ILOAD • (DCR L + R DS( ON)P ) + 30mV
(2)
www.onsemi.com
13
FAN48623 — 2500 mA Synchronous TinyBoost™ Regulator with Bypass Mode
Over-Temperature
Output Capacitance (COUT)
Output Voltage Ripple
Stability
Output voltage ripple is inversely proportional to COUT.
During tON, w hen the boost sw itch is on, all load current is
supplied by COUT. Output ripple is calculated as:
(4)
The effective capacitance (CEFF ) of small, high-value,
ceramic capacitors decrease as bias voltage increases, as
illustrated in Figure 40.
24
ILOAD
COUT
(3)
and
V
tON = tSW • D = tSW • 1 − IN
V
OUT
20
Capacitance (uF)
VRIPPLE ( P − P ) = tON •
16
(4)
therefore:
V
VRIPPLE ( P − P ) = tSW • 1 − IN
VOUT
12
8
ILOAD
•
COUT
(5)
and
4
tSW =
0
0
1
2
3
4
5
6
7
8
9
10
DC Bias(V)
Figure 40. CEFF for 22 µ F, 0603, X5R, 10 V-Rated
Capacitor (TDK C1608X5R1A226M080AC)
Stable operation is guaranteed w ith the minimum value of
CEFF (CEFF(MIN) ), as outlined in Table 5.
Table 5. Minimum CEFF Required for Stability
Operating Conditions
1
fSW
(6)
As can be seen from Equation (5), the maximum V RIPPLE
occurs w hen V IN is at minimum and ILOAD is at maximum.
Voltage at VOUT
For applications w here a foreign voltage source could be
applied at VOUT, care should be taken to ensure V OUT never
exceeds the Absolute Maximum Rating.
Layout Recommendations
CEFF(MIN) (µF)
The layout recommendations below highlight various layers
using different colors.
0 to 2500
9
0 to 2500
6
To minimize spikes at V OUT, COUT must be placed as close as
possible to PGND and VOUT, as show n in Figure 41.
VOUT (V)
ILOAD (mA)
3.15
5.0
Note:
4. CEFF varies w ith manufacturer, material, and case size.
Inductor Selection
For thermal reasons, it is suggested to maximize the pour
area for all planes other than SW. Especially the ground pour
should be set to fill all available PCB surface area and tied to
internal layers w ith a cluster of thermal vias.
Recommended nominal inductance value is 0.47 µH.
The FAN48623 employs valley-current limiting. Peak
inductor current can reach 6.5 A for a short duration during
overload conditions. Saturation effects cause the inductor
current ripple to become higher under high loading as only
the valley of the inductor current ripple is controlled.
Startup Inrush Current Limit
Input current limiting is in effect during soft-start, w hich limits
the current available to charge COUT and any additional
capacitance on the V OUT line. If the output fails to achieve
regulation w ithin the set limit, a FAULT occurs, causing the
circuit to shut dow n then restart after 20 ms. If the total
combined output capacitance is very high, the circuit may not
start on the first attempt, but eventually achieves regulation if
no load is present. If a high-current load and high
capacitance are both present during soft-start, the circuit
may fail to achieve regulation and continually attempts softstart, only to have the output capacitance discharged by the
load w hen in a FAULT state.
Figure 41.
Layout Recom m endation
Refer to the section below
recommendations for each layer.
www.onsemi.com
14
for
detailed
layout
FAN48623 — 2500 mA Synchronous TinyBoost™ Regulator with Bypass Mode
Application Information
Connect AGND directly to
GND layer through a via.
VOUT trace should be as wide
and as short as possible, for
low impedance.
The ground area should
be made as large as
possible to help
dissipate heat.
Put as many as possible vias
connected to ground plane(layer 2),
to help dissipate heat.
Figure 42.
Top Layer
Figure 43.
Layer 2 should be a solid ground layer, to shield VOUT
from capacitive coupling of the fast edges of SW node.
Logic signals can be routed on this layer.
Layer 2
SW trace should be as wide and as short as
possible, and be isolated with GND area
from any other sensitive traces.
Figure 44.
Layer 3
www.onsemi.com
15
FAN48623 — 2500 mA Synchronous TinyBoost™ Regulator with Bypass Mode
VIN trace should go
through CIN before going
to VIN pins.
Product
D
E
X
Y
FAN48623UC315X
1.810 ±0.030
1.810 ±0.030
0.305
0.305
FAN48623UC32JX
1.810 ±0.030
1.810 ±0.030
0.305
0.305
FAN48623UC33X
1.810 ±0.030
1.810 ±0.030
0.305
0.305
FAN48623UC35X
1.810 ±0.030
1.810 ±0.030
0.305
0.305
FAN48623UC36FX
1.810 ±0.030
1.810 ±0.030
0.305
0.305
FAN48623UC50X
1.810 ±0.030
1.810 ±0.030
0.305
0.305
FAN48623UC50GX
1.810 ±0.030
1.810 ±0.030
0.305
0.305
www.onsemi.com
16
FAN48623 — 2500 mA Synchronous TinyBoost™ Regulator with Bypass Mode
Product-Specific Dimensions
0.03 C
F
A
E
2X
B
0.40
A1
BALL A1
INDEX AREA
D
0.40
(Ø0.21)
Cu Pad
(Ø0.30) Solder
Mask Opening
0.03 C
2X
RECOMMENDED LAND PATTERN
(NSMD PAD TYPE)
TOP VIEW
0.06 C
0.625
0.547
0.05 C
C
SEATING
PLANE
D
SIDE VIEWS
0.005
Ø0.260±0.02
16X
0.40
D
C
B
0.40
(Y) ±0.018
A
F
1 2 3 4
(X) ±0.018
BOTTOM VIEW
Figure 45.
0.378±0.018
0.208±0.021
E
C A B
NOTES
A. NO JEDEC REGISTRATION APPLIES.
B. DIMENSIONS ARE IN MILLIMETERS.
C. DIMENSIONS AND TOLERANCE PER
ASME Y14.5M, 1994.
D. DATUM C IS DEFINED BY THE
SPHERICAL CROWNS OF THE BALLS.
E. PACKAGE NOMINAL HEIGHT IS
586 ± 39 MICRONS (547-625 MICRONS).
F. FOR DIMENSIONS D,E,X, AND Y SEE
PRODUCT DATASHEET.
G. DRAWING FILNAME: MKT-UC016AF rev1
16-Ball, 4x4 Array, 0.4 m m Pitch, 250 µm Ball, Wafer-Level Chip-Scale Package (WLCSP)
www.onsemi.com
17
FAN48623 — 2500 mA Synchronous TinyBoost™ Regulator with Bypass Mode
Physical Dimensions
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA
Phone: 303-675-2175 or 800-344-3860 Toll Free USA/Canada
Fax : 303-675-2176 or 800-344-3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
N. Amer ican Technical Support: 800-282-9855 Toll Free
USA/Canada.
Eur ope, Middle East and Afr ica Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81-3-5817-1050
www.onsemi.com
18
ON Semiconductor Website: www.onsemi.com
Or der Literature: http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
FAN48623 — 2500 mA Synchronous TinyBoost™ Regulator with Bypass Mode
ON Semiconductor and the ON Semiconductor logo are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States
and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON
Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent-Marking.pdf. ON Semiconductor reserves the right to make changes without further
notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON
Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special,
consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and
safety requirements or standards, regardless of any supportor applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON
Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals”
must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON
Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with
a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any
such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against
all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or
unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
工商网监
湘ICP备2023018690号
