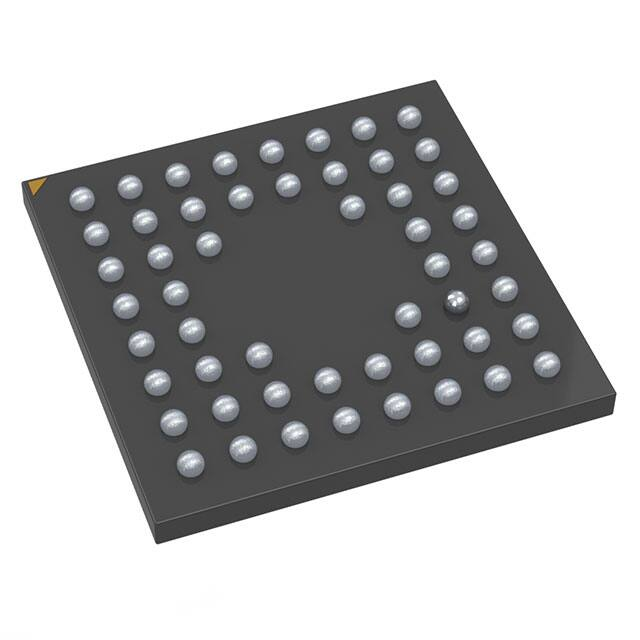

MT9V024IA7XTR

MT9V024: 1/3-Inch Wide-VGA Digital Image Sensor Features 1/3-Inch Wide-VGA CMOS Digital Image Sensor MT9V024 Datasheet, Rev. F For the latest datasheet revision, please visit www.aptina.com Features Table 1: • Array format: Wide-VGA, active 752H x 480V (360,960 pixels) • Global shutter photodiode pixels; simultaneous integration and readout • RGB Bayer, Monochrome, or RCCC: NIR enhanced performance for use with non-visible NIR illumination • Readout modes: progressive or interlaced • Shutter efficiency: >99% • Simple two-wire serial interface • Real-time exposure context switching - dual register set • Register lock capability • Window size: User programmable to any smaller format (QVGA, CIF, QCIF). Data rate can be maintained independent of window size • Binning: 2 x 2 and 4 x 4 of the full resolution • ADC: On-chip, 10-bit column-parallel (option to operate in 12-bit to 10-bit companding mode) • Automatic controls: Auto exposure control (AEC) and auto gain control (AGC); variable regional and variable weight AEC/AGC • Support for four unique serial control register IDs to control multiple imagers on the same bus • Data output formats: – Single sensor mode: 10-bit parallel/stand-alone 8-bit or 10-bit serial LVDS – Stereo sensor mode: Interspersed 8-bit serial LVDS • High dynamic range (HDR) mode Value Optical format 1/3-inch 4.51mm(H) x 2.88mm(V) 5.35mm diagonal 752H x 480V 6.0m x 6.0m Monochrome, color RGB Bayer or RCCC pattern Global shutter 27 Mp/s 27 MHz 752 x 480 60 fps (at full resolution) 10-bit column-parallel 4.8 V/lux-sec (550nm) >55dB linear; >100dB in HDR mode 3.3V +0.3Vall supplies)
