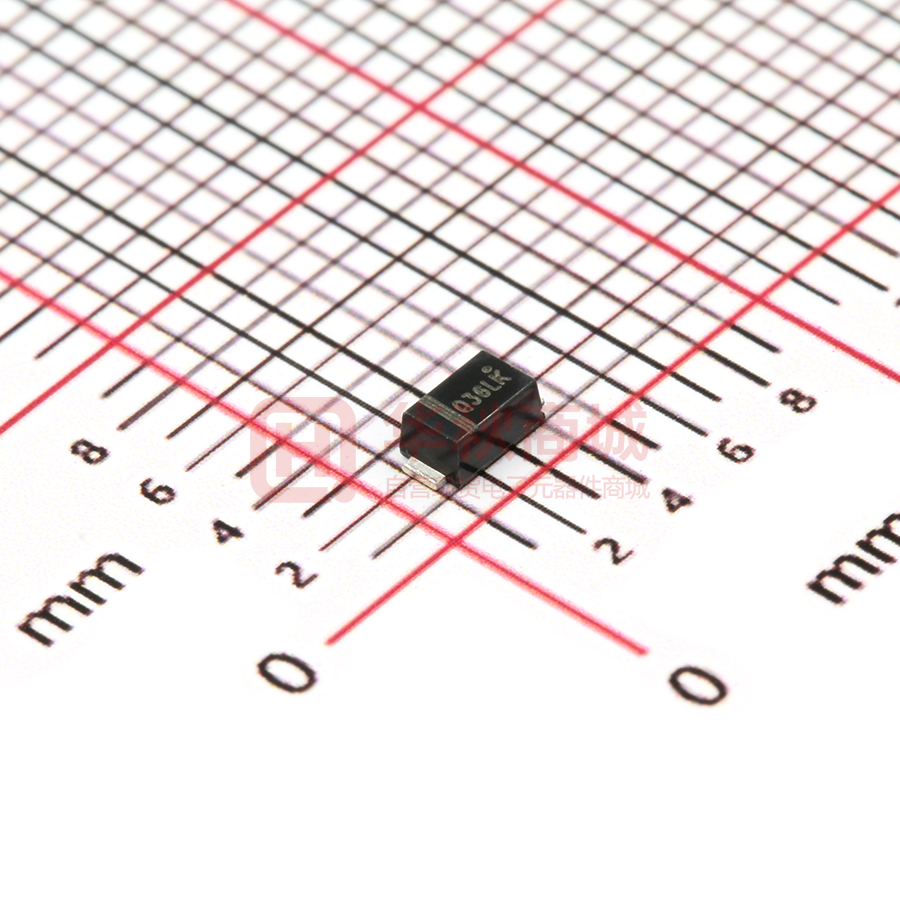

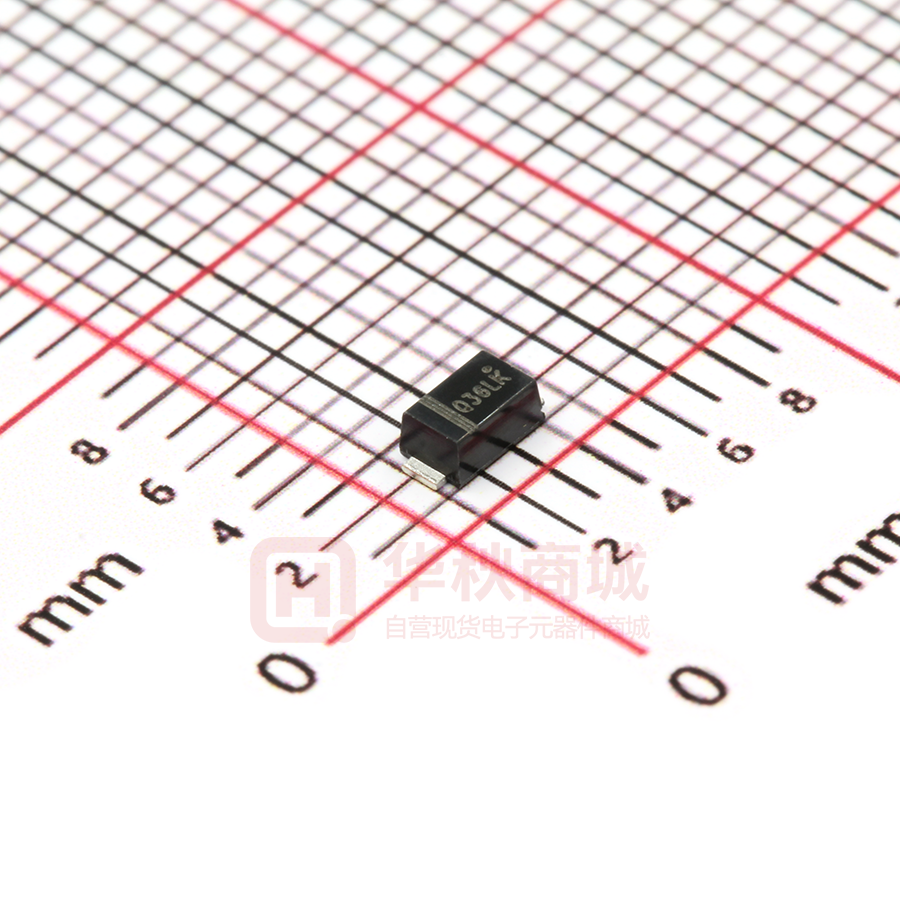

SS36FA

SS34FA-S310FA Schottky Barrier Rectifiers, Surface Mount, 3 A, 40 V-100 V Features • • • • • • • www.onsemi.com Low Power Loss, High Efficiency Guard Ring for Overvoltage Protection High Surge Current Capability UL Flammability 94V−0 Classification MSL 1 per J−STD−020 NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable This Device is Pb−Free and RoHS Compliant 2 1 SOD−123FL CASE 425AB ABSOLUTE MAXIMUM RATINGS 1 Cathode (Values are at TA = 25°C unless otherwise noted) Parameter Symbol SS34FA SS36FA S310FA Unit VRRM Repetitive Peak Reverse Voltage 40 60 100 V VRMS RMS Reverse Voltage 28 42 70 V DC Blocking Voltage 40 60 100 V VR MARKING DIAGRAM IF(AV) Average Forward Rectified Current 3 A IFSM Peak Forward Surge Current: 8.3 ms Single Half Sine−Wave Superimposed on Rated Load 80 A TJ TSTG Operating Junction Temperature Range Storage Temperature Range 2 Anode −55 to +125 −55 to +150 −55 to +150 1 °C &Y &Z * °C &G Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. &Y &Z*&G = Binary Calendar Year Coding Scheme = Assembly Plant Code = Specific Device Code (34L, 36L or 30L) = Single Digit Weekly Datecode ORDERING INFORMATION See detailed ordering and shipping information on page 2 of this data sheet. THERMAL CHARACTERISTICS (Values are at TA = 25°C unless otherwise noted) (Note 1) Symbol Parameter Value Unit yJL Thermal Characteristics, Junction−to−Lead 16 °C/W RqJA Thermal Resistance, Junction−to−Ambient 152 °C/W 1. Per JESD51−3 Recommended Thermal Test Board. Device mounted on FR−4 PCB, board size = 76.2 mm × 114.3 mm. © Semiconductor Components Industries, LLC, 2016 July, 2019 − Rev. 2 1 Publication Order Number: SS36FA/D SS34FA−S310FA ELECTRICAL CHARACTERISTICS (Values are at TA = 25°C unless otherwise noted) Parameter Symbol Conditions SS34FA SS36FA S310FA Unit 0.50 0.75 0.85 V 0.1 mA VF Maximum Instantaneous Forward Voltage (Note 2) IF = 3 A IR Maximum Reverse Current at Rated VR TJ = 25°C TJ = 125°C 60 10 5 CJ Typical Junction Capacitance VR = 4 V, f = 1 MHz 152 117 78 pF Trr Typical Reverse Recovery Time IF = 0.5 A, IR = 1 A, IRR = 0.25 A 12 11 8 ns 0.5 Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 2. Pulse test with PW = 300 ms, 1% duty cycle. ORDERING INFORMATION Part Number Top Mark Package Shipping† SS34FA, NRVBSS34FA* 34L SOD−123FL (Pb−Free) 3,000 / Tape & Reel SS36FA, NRVBSS36FA* 36L SOD−123FL (Pb−Free) 3,000 / Tape & Reel S310FA, NRVBS310FA* 30L SOD−123FL (Pb−Free) 3,000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable www.onsemi.com 2 SS34FA−S310FA 4 PEAK FORWARD SURGE CURRENT (A) AVERAGE FORWARD CURRENT (A) TYPICAL PERFORMANCE CHARACTERISTICS SS36FA − S310FA 3 2 SS34FA 1 RESISTIVE OR INDUCTIVE LOAD 0 0 25 50 75 100 125 150 100 8.3ms Single Half Sine−Wave 80 60 40 20 0 0 10 CASE TEMPERATURE (oC) Figure 1. Forward Current Derating Curve Figure 2. Maximum Non−Repetitive Forward Surge Current SS36FA o TA= 150 C o TA= 125 C 0.1 o TA= −55 C 0.1 0.2 o TA= 150 C o TA= 125 C o TA= −55 C 0.1 o TA= 25 C o o TA= 25 C 0.01 0.0 1 Forward Current, I F [A] Forward Current, I F [A] SS34FA 1 100 NUMBER OF CYCLES AT 60 Hz TA= −40 C 0.4 0.3 0.5 0.6 0.7 0.01 0.0 0.8 0.1 0.2 Forward Voltage, V F [V] o TA= −40 C 0.3 0.4 0.5 0.6 0.7 0.8 Forward Voltage, VF [V] Figure 3. Typical Forward Characteristics Figure 4. Typical Forward Characteristics 100000 10000 1 Reverse Current, I R [μA] Forward Current, I F [A] S310FA o TA= 150 C o 0.1 TA= 125 C o TA= −55 C o TA= −40 C o TA= 25 C 0.01 0.0 0.1 0.2 0.3 0.4 Forward Voltage, V 0.5 F [V] 0.6 1000 100 10 1 o o TA= −40 C 0.001 1E−4 0.7 1E−5 10 0.8 o TA=150 C TA= 25 C 0.1 0.01 o TA= 125 C o TA= 75 C SS34FA o TA= −55 C 20 30 40 50 60 70 80 90 100 Percent of Rated Peak Reverse Voltage [%] Figure 5. Typical Forward Characteristics Figure 6. Typical Reverse Characteristics www.onsemi.com 3 SS34FA−S310FA 10000 10000 1000 1000 100 o o TA= 125 C o TA= 75 C 10 Reverse Current, I R [μA] Reverse Current, I R [μA] TYPICAL CHARACTERISTICS (Continued) TA=150 C 1 0.1 o TA= 25 C 0.01 o TA= −40 C 0.001 1E−4 1E−5 10 o 20 30 40 50 60 70 80 90 100 Junction Capacitance, CJ [pF] o TA= 75 C 0.1 0.01 0.001 o TA= 25 C o TA= −40 C o TA= −55 C 20 30 40 50 60 70 S310FA 80 90 100 Figure 8. Typical Reverse Characteristics 1000 SS34FA SS36FA S310FA 10 1 10 Reverse Voltage, V R [V] 1 Percent of Rated Peak Reverse Voltage [%] Figure 7. Typical Reverse Characteristics 1 0.1 o TA= 125 C 10 1E−5 10 Percent of Rated Peak Reverse Voltage [%] 100 100 1E−4 SS36FA TA= −55 C o TA=150 C 100 Figure 9. Typical Junction Capacitance www.onsemi.com 4 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SOD−123FL CASE 425AB ISSUE O DATE 31 AUG 2016 2.90 2.70 1.90 1.70 4.30 1.40 1.90 1.20 TOP VIEW 1.40 1.20 LAND PATTERN RECOMMENDATION 1.43 1.23 3.80 3.40 0.30 0.16 FRONT VIEW 0.85 0.35 2.60 2.45 NOTES: A. NO INDUSTRY STANDARD APPLIES TO THIS PACKAGE. B. ALL DIMENSIONS ARE IN MILLIMETERS. C. DIMENSIONS ARE EXCLUSIVE OF BURRS, MOLD FLASH AND TIE BAR PROTRUSIONS. 1.20 0.80 BOTTOM VIEW DOCUMENT NUMBER: DESCRIPTION: 98AON13722G SOD−123FL Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com ON Semiconductor Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 www.onsemi.com 1 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
