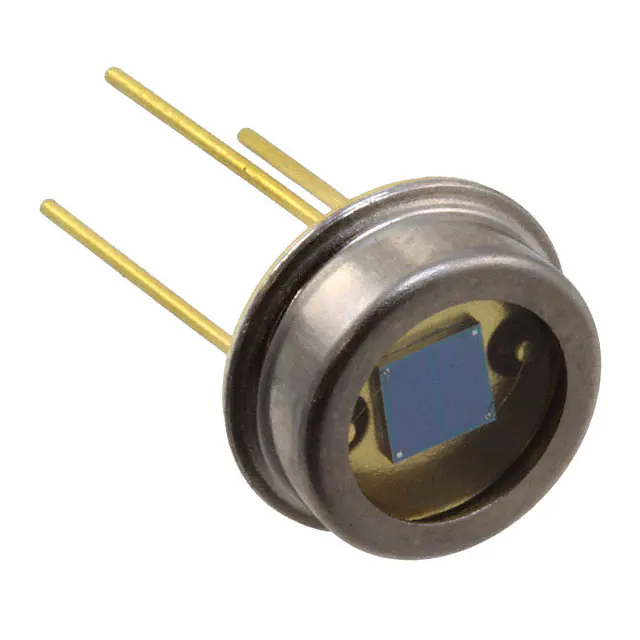

ODD-3W-2

From Deep UV to Mid-IR An ITW Company Red Enhanced 3.1 mm2 X 2 Bi-Cell Photodiode ODD-3W-2 FEATURES • Red Enhanced • • • • Low Noise High Response High Shunt Resistance Low Profile TO-5 Package Electro-Optical Characteristics at 25°C Characteristic Test Conditions Dark Current, ID Typ Max Units VR = 5 V 0.9 5 na VR = 10 mV 300 MΩ Junction Capacitance, CJ VR = 0 V, f = 1 MHz 30 pF Junction Capacitance, CJ VR = 10 V, f = 1 MHz 7.5 pF Shunt Resistance, RSH Spectral Application Range, λrange Spot Scan 250 Responsivity, R λ = 633 nm, VR = 0 V 0.32 0.36 A/W Responsivity, R λ = 900 nm, VR = 0 V 0.5 0.6 A/W IR = 10 µA 25 60 Breakdown Voltage, VR Noise Equivalent Power, NEP 1 Min VR = 0 V, λ = 950 nm 1100 nm V -14 2.5 x 10 W/√HZ Response Time, tr 1 RL = 50 Ω, VR = 0 V 190 nsec Response Time, tr 1 RL = 50 Ω, VR = 10 V 8 nsec Response time of 10% to 90% is specified at 660 nm. Absolute Maximum Ratings at 25°C Parameter Min Reverse Voltage, VR Max Units 100 V Storage Temperature, TSTG -55 +150 °C Operating Temperature, TO -40 +125 °C +260 °C Lead Soldering Temperature (1/16" from case for 3 sec) Revision March 21, 2018 Page 1 of 3 From Deep UV to Mid-IR ODD-3W-2 Red Enhanced 3.1 mm2 X 2 Bi-Cell Photodiode An ITW Company RELATIVE CAPACITANCE Capacitance vs Bias Voltage 1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 0 2 4 6 8 10 12 BIAS VOLTAGE (V) 14 16 18 20 Typical Spectral Response 0.7 RESPONSIVITY 0.6 0.5 0.4 0.3 0.2 0.1 0.0 300 400 500 600 700 800 900 WAVELENGTH (nm) 1000 1100 RELATIVE DARK CURRENT (ld) Dark Current vs Voltage Revision March 21, 2018 3.0 2.5 2.0 1.5 1.0 0.5 0.0 0 5 10 15 20 25 30 35 REVERSE VOLTAGE (Vr) 40 45 50 55 60 Page 2 of 3 From Deep UV to Mid-IR An ITW Company Red Enhanced 3.1 mm2 X 2 Bi-Cell Photodiode ODD-3W-2 Package Information ANODE CELL #1 .128 .110 45° .030 .035 ∅ .358 .370 .316 ∅ .324 ∅ .200 COMMON CATHODE CASE GROUND ANODE CELL #2 ∅ .075 .50 MIN .228 .236 80° VIEWING ANGLE .020 .012 MAX GLASS HEIGHT ∅ .018 ACTIVE AREA POSITION RELATIVE TO ± .358/.370 DIMENSION ± .010" .111 [2.82] 1 ANODE CELL #1 .004 [0.10] GAP .111 [2.82] 2 X .048 [1.22] ACTIVE AREA 2X .100 [2.54] ACTIVE AREA CELL #1 2 COMMON CATHODE CASE GROUND CELL #2 3 ANODE CELL #2 Dimensions are in inch [metric] units. Specifications are subject to change without prior notice. 1260 Calle Suerte, Camarillo, California 93012 Phone: +1 805.499.0335 | Fax: +1 805.499.8108 | sales@optodiode.com | www.optodiode.com Revision March 21, 2018 Page 3 of 3
