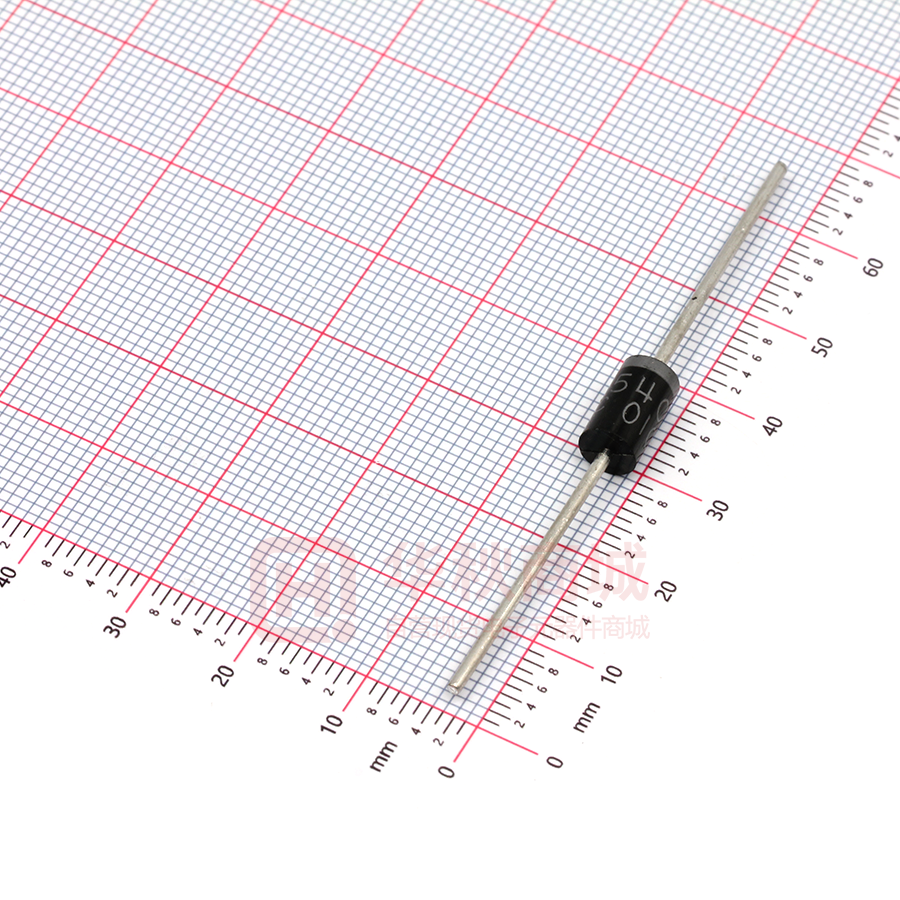

DATA SHEET 1N5400~1N5408 HIGH CURRENT PLASTIC SILICON RECTIFIER VOLTAGE 50 to 1000 Volts CURRENT DO-201AD 3.0 Ampere Unit: inch(mm) FEATURES .052(1.3) .048(1.2) 1.0(25.4)MIN. • Plastic package has Underwriters Laboratories Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound. • High current capability • Low leakage • Exceeds environmental standards of MIL-S-19500/228 .375(9.5) substance directive request .285(7.2) • Pb free product are available : 99% Sn above can meet Rohs environment MECHANICALDATA Case: DO-201AD Molded plastic .210(5.3) .188(4.8) 1.0(25.4)MIN. Lead: Axial leads, solderable per MIL-STD-202G, Method 208 guaranteed Polarity: Color band denotes cathode end Mounting Position: Any Weight: 1132mg MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load,derate current by 20%. PAR AME T E R S YM B OL 1 N 5 4 0 0 1 N 5 4 0 1 1 N 5 4 0 2 1 N 5 4 0 3 1 N 5 4 0 4 1 N 5 4 0 5 1 N 5 4 0 6 1 N 5 4 0 7 1 N 5 4 0 8 U N IT S M a xi m um R e c ur r e nt P e a k R e ve r s e V o l t a g e V RRM 50 100 200 300 400 500 600 800 1000 V M a xi m um R M S V o l t a g e V RMS 35 70 140 210 280 350 420 560 700 V M a xi m um D C B l o c k i ng V o l t a g e V DC 50 100 200 300 400 400 600 800 1000 V M a xi m um A ve r a g e F o r w a r d C ur r e nt . 3 7 5 " ( 9 . 5 m m ) l e a d l e ng t h a t T A = 5 5 OC IAV 3 .0 A P e a k F o r w a r d S ur g e C ur r e nt : 8 . 3 m s s i ng l e ha l f s i ne - w a ve s up e r i m p o s e d o n r a t e d l o a d ( J E D E C m e t ho d ) IF S M 200 A M a xi m um F o r w a r d V o l t a g e a t 3 . 0 A VF 1 .2 V M a xi m um D C R e ve r s e C ur r e nt a t T A = 2 5 OC R a t e d D C B l o c k i ng V o l t a g e T A = 1 0 0 OC IR 5 .0 1000 uA Ty p i c a l J u n c t i o n c a p a c i t a n c e ( N o t e 1 ) CJ 30 pF Rθ J A 20 T J , T S TG - 5 5 TO + 1 5 0 Ty p i c a l T h e r m a l R e s i s t a n c e ( N o t e 2 ) O p e r a t i n g J u n c t i o n a n d S t o r a g e Te m p e r a t u r e R a n g e O C / W O C NOTES: 1. Measured at 1 MHz and applied reverse voltage of 4.0 VDC. 2. Thermal Resistance from Junction to Ambient and from junction to lead at 0.375”(9.5mm)lead length P.C.B.mounted. STAD-JAN.07.2005 PAGE . 1 AVERAGEFORWARDRECITIFIED CURRENTAMPERES 5 4 3 2 1 0 0 20 40 60 80 100 120 140 160 PEAK FORWARD SURGE CURRENT, AMPERES RATING AND CHARACTERISTIC CURVES 240 200 160 120 80 40 0 1 10 100 O AMBIENT TEMPERAURE, C NO. OF CYCLE AT 60HZ Fig.1- FORWARD CURRENT DERATING CURVE Fig.2- MAXIMUM NON - REPETITIVE SURGE CURRENT 100 INSTANTANEOUS FORWARD CURRENT AMPERES INSTANTANEOUS REVERSE CURRENT, uA 100 O TJ = 150 C 10 O TJ = 100 C 1.0 O TJ = 25 C 0.1 0.01 20 40 60 80 100 120 140 PERCENTAGE OF PEAK REVERSE VOLTAGE,% 10 1.0 0.1 0 .01 0.5 0.7 0.9 1.1 1.3 1.5 1.7 INSTANTANEOUS FORWARD VOLTAGE, VOLTS Fig.3- TYPICAL REVERSE CHARACTERISTIC Fig.4- TYPICAL INSTANTANEOUS FORWARD CHARACTERISTIC CAPACITANCE, pF 100 10 1 .1 1 10 100 REVERSE VOLTAGE, VOLTS Fig.5- TYPICAL JUNCTION CAPACITANCE STAD-JAN.07.2005 PAGE . 2
