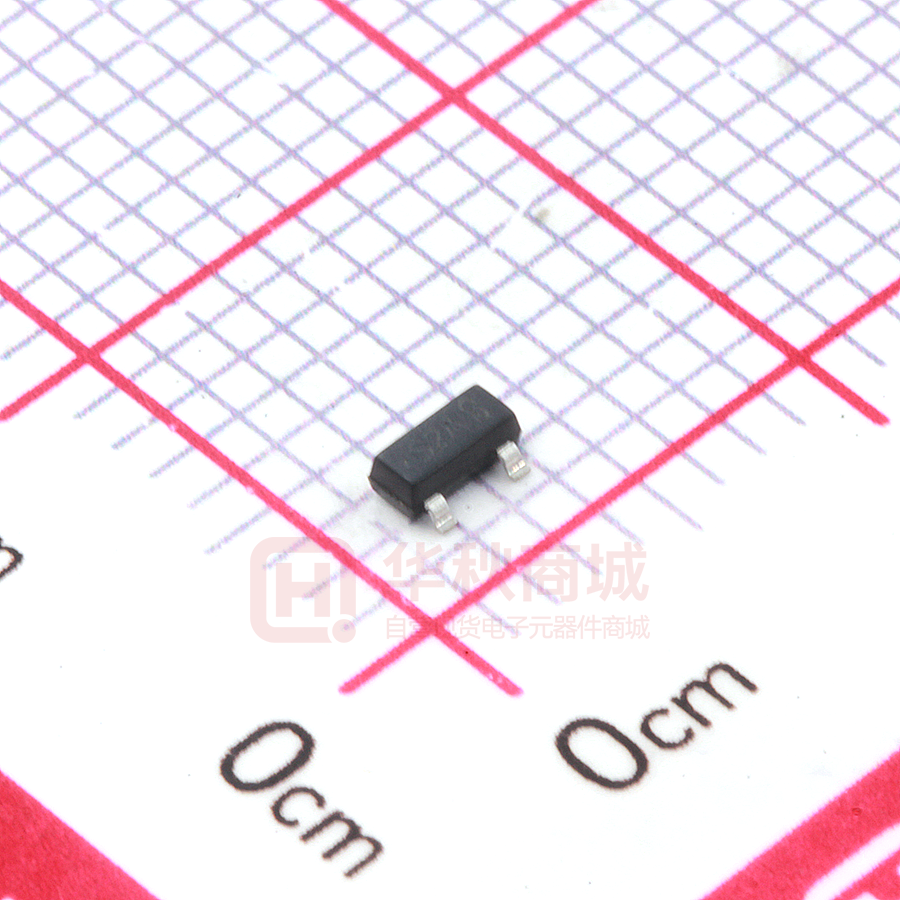

MMBT3906 PNP GENERAL PURPOSE SWITCHING TRANSISTOR VOLTAGE POWER 40 Volt 225 mWatt 0.006(0.15)MIN. FEATURES 0.120(3.04) • PNP epitaxial silicon, planar design 0.110(2.80) • Collector-emitter voltage VCE = -40V • Collector current IC = -200mA • Lead free in compliance with EU RoHS 2011/65/EU directive • Green molding compound as per IEC61249 Std. . (Halogen Free) 0.056(1.40) 0.047(1.20) 0.008(0.20) 0.079(2.00) 0.003(0.08) 0.070(1.80) MECHANICAL DATA 0.044(1.10) 0.004(0.10) 0.035(0.90) 0.000(0.00) Case: SOT-23, Plastic 0.020(0.50) Terminals: Solderable per MIL-STD-750, Method 2026 0.013(0.35) Approx. Weight: 0.0003 ounces, 0.0084 grams 3 COLLECTOR Top View Marking: S2A 3 Collector 1 BASE 1 Base 2 Emitter 2 EMITTER ABSOLUTE RATINGS Parameter Symbol Value Units Collector - Emitter Voltage VCEO -40 V Collector - Base Voltage VCBO -40 V Emitter - Base Voltage VEBO -5 V -200 mA Symbol Value Units Max Power Dissipation (Note 1) PTOT 330 mW Thermal Resistance , Junction to Ambient RθJA 375 TJ,TSTG -55 to 150 Collector Current - Continuous I C THERMAL CHARACTERISTICS Parameter Operating Junction Temperature and Storage Temperature Range O C/W O C Note 1: Transistor mounted on FR-5 board 1 x 0.75 x 0.062 in. March 30,2015-REV.02 PAGE . 1 MMBT3906 ELECTRICAL CHARACTERISTICS P a r a me t e r Sy mb o l Te s t Co nd it io n M I N. TY P. MAX. Unit s Co lle c t o r - E mit t e r B r e a k d o w n Vo lt a g e V ( B R) CE O I C= - 1 mA, I B = 0 - 40 - - V Co lle c t o r - B a s e B r e a k d o w n Vo lt a g e V ( B R) CB O I C= - 1 0 uA, I E = 0 - 40 - - V E mit t e r - B a s e B r e a k d o w n Vo lt a g e V ( BR ) E BO I E = - 1 0 uA , I C= 0 -5 - - V B a s e Cut o f f Cur r e nt Co lle c t o r Cut o f f Cur r e nt DC Cur r e nt G a in ( No t e 2 ) I BL V CE= - 3 0 V, V E B = - 3 V - - -50 nA I CE X V CE= - 3 0 V, V E B = - 3 V - - -50 nA hFE I C= - 0 . 1 mA , V CE = - 1 V I C= - 1 mA, V CE = - 1 V I C= - 1 0 mA , V CE = - 1 V I C= - 5 0 mA , V CE = - 1 V I C= - 1 0 0 mA , V CE= - 1 V 60 80 100 60 30 - 300 - - Co lle c t o r - E mit t e r S a t ur a t io n Vo lt a g e ( No t e 2 ) V CE ( S AT ) I C= - 1 0 mA , I B= - 1 mA I C= - 5 0 mA , I B= - 5 mA - - - 0.25 -0.4 V B a s e - Emit t e r S a t ur a t io n Vo lt a g e ( No t e 2 ) V B E( SAT) I C= - 1 0 mA , I B= - 1 mA I C= - 5 0 mA , I B= - 5 mA - 0.65 - - - 0.85 - 0.95 V Co lle c t o r - B a s e Ca p a c it a nc e C CB O V CB= - 5 V, I E = 0 , f = 1 M Hz - - 4.5 pF E mit t e r - B a s e Ca p a c it a nc e C EBO V EB = - 0 . 5 V, I C= 0 , f = 1 M Hz - - 10 pF De la y Time td V CC = - 3 V, V B E = - 0 . 5 V, I C = - 1 0 mA , I B = - 1 mA - - 35 ns Ris e Time tr V CC = - 3 V, V B E = - 0 . 5 V, I C = - 1 0 mA , I B = - 1 mA - - 35 ns S t o r a g e Time ts V CC= - 3 V, I C= - 1 0 mA I B 1 = I B 2 = - 1 mA - - 225 ns F a ll Time tf V CC= - 3 V, I C= - 1 0 mA I B 1 = I B 2 = - 1 mA - - 75 ns Cur r e nt G a in- Ba nd w id t h P r o d uc t fT I C = - 1 0 mA , V CE = - 2 0 V, f = 1 0 0 M Hz 250 - - M Hz Note 2: Pulse Test: Pulse Width < 300 us, Duty Cycle < 2.0%. SWITCHING TIME EQUIVALENT TEST CIRCUITS +3V -0 .5 V 0 275 W < 1ns -10.9V 300 ns C S * < 4pF 10K W D elay and R ise Tim e Equivalent Test C ircuit +3V 275 W < 1ns +9 .1V 0 - 1 0.9V 10 to 500us Duty Cycle ~ 2.0% 10K W C S * < 4pF 1N 916 Storage and Fall Tim e Equivalent Test Circuit March 30,2015-REV.02 PAGE . 2 ELECTRICAL CHARACTERISTICS CURVE 1.2 300 TJ = 150˚ C VCE = 1V 250 1.0 0.8 TJ = 100˚ C TJ = 25˚ C -VBE (V) hFE 200 150 TJ = 25˚ C 100 0.6 TJ = 100˚ C TJ = 150˚ C 0.4 50 0.2 VCE = 1V 0 0.01 0.1 1 10 100 0.0 0.01 1000 0.1 1 10 100 1000 Collector Current, -IC (mA) Collector Current, -IC (mA) Fig. 1. Typical hFE vs. Collector Current Fig. 2. Typical VBE vs. Collector Current 1.00 1.000 IC/IB = 10 TJ = 25˚ C 0.10 TJ = 150˚ C -VBE(sat) (V -VCE(sat) (V) TJ = 100˚ TJ = 150˚ TJ = 25˚ IC/IB = 10 0.01 0.01 0.1 1 10 100 1000 0.100 0.01 0.1 Collector Current, -IC (mA) Fig. 3. Typical VCE (sat) vs. Collector Current 1 10 100 Collector Current, -I C (mA) Fig. 4. Typical VBE (sat) vs. Collector Current 10 Capacitance (pF) CIB (EB) COB (CB) 1 -0.1 -1 Reverse Voltage, V -10 R -100 (V) Fig. 5. Typical Capacitances vs. Reverse Voltage March 30,2015-REV.02 PAGE . 3 MMBT3906 0.035 MIN. (0.90) MIN. MOUNTING PAD LAYOUT 0.078 (2.00) 0.037 (0.95) 0.043 (1.10) 0.031 MIN. (0.80) MIN. 0.043 (1.10) 0.106 (2.70) ORDER INFORMATION • Packing information T/R - 12K per 13" plastic Reel T/R - 3K per 7" plastic Reel March 30,2015-REV.02 PAGE . 4 MMBT3906 Part No_packing code_Version MMBT3906_R1_00001 MMBT3906_R2_00001 For example : RB500V-40_R2_00001 Serial number Version code means HF Part No. Packing size code means 13" Packing type means T/R Packing Code XX Packing type Tape and Ammunition Box (T/B) Tape and Reel (T/R) Bulk Packing (B/P) Tube Packing (T/P) Tape and Reel (Right Oriented) (TRR) Tape and Reel (Left Oriented) (TRL) FORMING March 30,2015-REV.02 Version Code XXXXX 1st Code Packing size code A N/A 0 HF 0 serial number R 7" 1 RoHS 1 serial number B 13" 2 T 26mm X S 52mm Y L F PANASERT T/B CATHODE UP (PBCU) PANASERT T/B CATHODE DOWN (PBCD) 2nd Code HF or RoHS 1st Code 2nd~5th Code U D PAGE . 5 MMBT3906 Disclaimer • Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. • Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. • Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. • Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. • Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. • The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. • Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. March 30,2015-REV.02 PAGE . 6
