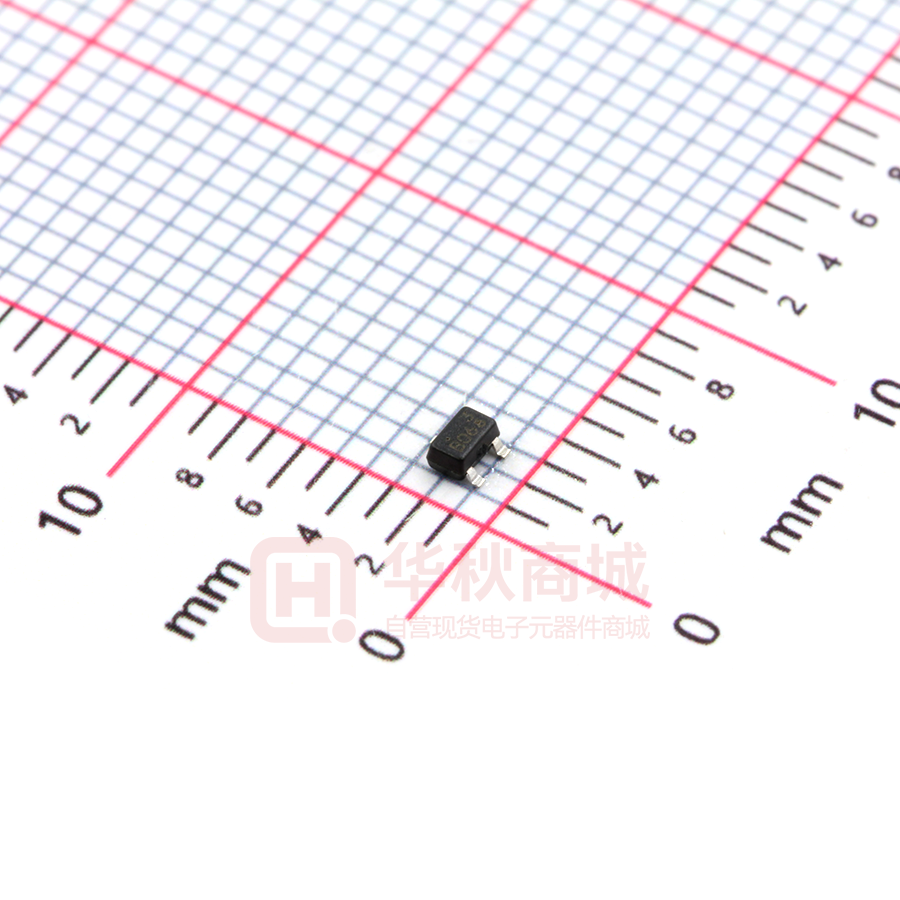

MMBTA06W_R1_00001

PMMBTA06W NPN High Voltage Transistor Voltage 80V Power 225mW Features  NPN silicon, planar design  Collector current IC = 500mA  Lead free in compliance with EU RoHS 2011/65/EU directive.  Green molding compound as per IEC61249 Std. (Halogen Free) Mechanical Data  Case: SOT-323 Package  Terminals: Solderable per MIL-STD-750, Method 2026  Approx. Weight: 0.00018 ounces, 0.005 grams  Marking: B06 o Maximum Ratings and Thermal Characteristics (TA=25 C unless otherwise noted) PARAMETER SYMBOL LIMIT UNITS Collector-Emitter Voltage VCBO 80 V Collector-Base Voltage VCEO 80 V Emitter-Base Voltage VEBO 4 V Collector Current-Continuous IC 500 mA Maximum Power Dissipation ( Note 1) PD 225 mW TJ,TSTG -55 to +150 Operating Junction and Storage Temperature Range Typical Junction-to Ambient Thermal Resistance ( Note 1) RθJA 550 o C o C/W Note : 1. Mounted on a FR4 PCB, single-sided copper, mini pad. December 2,2014-REV.00 Page 1 PMMBTA06W o Electrical Characteristics (TA=25 C unless otherwise noted) PARAMETER SYMBOL TEST CONDITION MIN. TYP. MAX. UNITS OFF Characteristics Collector-Emitter Breakdown Voltage V(BR)CEO IC= 1mA, IB= 0 80 - - V Collector-Base Breakdown Voltage V(BR)CBO IC= 100A, IE= 0 80 - - V Emitter-Base Breakdown Voltage V(BR)EBO IE= 100A, IC= 0 4 - - V Collector Cutoff Current ICBO VCB= 80V, IE= 0 - - 100 nA Collector Cutoff Current ICES VCE= 60V, IB= 0 - - 100 nA VCE= 1V, IC= 10mA 100 - - VCE= 1V, IC= 100mA 100 - - ON characteristics DC Current Gain hFE - Collector-Emitter Saturation Voltage VCE(SAT) IC=100mA, IB= 10mA - - 0.25 V Base-Emitter Turn-on voltage VBE(on) IC=100mA, VCE= 1V - - 1.2 V 100 - - MHz Current-Gain-Bandwidth Product December 2,2014-REV.00 fT IC=10mA, VCE= 2V f=100MHz Page 2 PMMBTA06W 300 IC/IB = 10 0.4 TJ = 125°C 0.3 0.2 VCE = 1V 250 hFE VCE(SAT) (V) 0.5 TJ = 75°C TJ = 125°C 200 TJ = 75°C 150 TJ = 25°C 100 0.1 TJ = 25°C 0 0.01 0.1 50 0.01 1 IC, Collector Current (A) 1 IC, Collector Current (A) Fig.2 Typical DC Current Gain vs Collector Current Fig.1 Typical Collector-Emitter Saturation Voltage 1 1.2 0.9 1 TJ = 75°C VBE(ON) (V) VBE ( SAT ) (V) 0.1 TJ = 25°C 0.8 0.7 0.6 0.5 0.4 0.01 TJ = 25°C TJ = 75°C 0.6 0.4 VCE = 1V 0.2 IC/IB = 10 TJ = 125°C 0.8 TJ = 125°C 0.1 1 IC, Collector Current (A) 0 0.00001 0.0001 0.001 0.01 0.1 1 IC, Collector Current (A) Fig.4 Typical Base - Emitter Voltage vs Collector Current Fig.3 Typical Base-Emitter Saturation Voltage C, Capacitance (pF) 100 TA= 25°C CBE 10 CCB 1 1 10 100 VR, Reverse Voltage (V) Fig.5 Typical Capacitance December 2,2014-REV.00 Fig.5 Typical Capacitance Page 3 PMMBTA06W MOUNTING PAD LAYOUT 0.073 (1.85) 0.034 (0.86) 0.026 (0.66) 0.026 (0.65) 0.026 (0.65) ORDER INFORMATION ˙Packing information T/R – 12K per 13" plastic Reel T/R – 3K per 7" plastic Reel December 2,2014-REV.00 Page 4 PMMBTA06W Part No_packing code_Version MMBTA06W_R1_00001 MMBTA06W_R2_00001 For example : RB500V-40_R2_00001 ˙Serial number ˙ ˙Version code means HF Part No. ˙Packing size code means 13" ˙Packing type means T/R Packing Code XX Version Code XXXXX Packing type 1st Code Packing size code 2nd Code HF or RoHS 1st Code 2nd~5th Code Tape and Ammunition Box (T/B) A N/A 0 HF 0 serial number Tape and Reel (T/R) R 7" 1 RoHS 1 serial number Bulk Packing (B/P) B 13" 2 Tube Packing (T/P) T 26mm X Tape and Reel (Right Oriented) (TRR) S 52mm Y Tape and Reel (Left Oriented) (TRL) L PANASERT T/B CATHODE UP (PBCU) U FORMING F PANASERT T/B CATHODE DOWN (PBCD) D December 2,2014-REV.00 Page 5 PMMBTA06W Disclaimer ● Reproducing and modifying information of the document is prohibited without permission from Panjit International Inc.. ● Panjit International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. ● Panjit International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. ● Panjit International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. ● Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications. Panjit International Inc. makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. ● The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment, aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages resulting from such improper use or sale. ● Since Panjit uses lot number as the tracking base, please provide the lot number for tracking when complaining. December 2,2014-REV.00 Page 6
