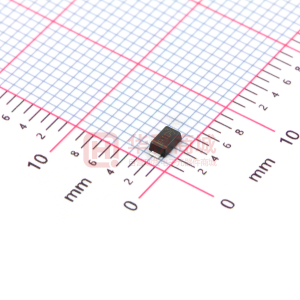

RS1002FL

RS1001FL~RS1010FL SMALL SURFACE MOUNT FAST DIODES VOLTAGE FEATURES • • • • • • For surface mounted applications Low profile package Ideal for automated placement Glass Passivated Chip Junction High temperature soldering : 260OC / 10 seconds at terminals In compliance with EU RoHS 2002/95/EC directives 0.075(1.90) 0.067(1.70) 0.044(1.10) 0.031(0.80) 0.043(1.08) 0.038(0.98) 100 to 1000 Volts CURRENT 1.0 Amperes 0.115(2.90) 0.106(2.70) MECHANICAL DATA • Case : JEDEC SOD-123FL, Molded plastic over passivated junction • Terminals : Solderable per MIL-STD-750, Method 2026 • Standard Packaging : 8mm tape (EIA-481) • Apporx. Weight: 0.0006 ounce, 0.0172 gram • Polarity : Color band cathode 0.030(0.75) 0.017(0.45) 0.145(3.70) 0.137(3.50) 1 2 Cathode Anode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20% Rating Marking Code Maximum repetitve peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Derate above TC=110OC Maximum instantaneous forward voltage Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method) Maximum DC reverse current at rated DC blocking voltage TJ=25OC TJ=125OC 4V,1MHz I F=0.5A I R=1A I rr=0.25A 0.7A 1.0A Test condition Symbol V RRM V RMS VDC I F(AV) RS1001FL RS1002FL RS1004FL RS1006FL RS1008FL RS1010FL 0.008(0.20) 0.004(0.10) Units V V V A R1B 100 70 100 R1D 200 140 200 R1G 400 280 400 1.0 1.15 1.3 30 1.0 50 9 R1J 600 420 600 R1K 800 560 800 R1M 1000 700 1000 VF V I FSM A IR μA Typical capacitance CJ pF Reverse recovery time Thermal resistance junction to ambient air t rr 150 250 500 nS R ϑJA 180 O C/W Operating junction and storage temperature range TJ ,TSTG -55 to +150 O C November 12,2010-REV.01 PAGE . 1 RS1001FL~RS1010FL 10 15 CJ, Junction Capacitance (pF) 1 13 10 8 5 3 0 0.1 1 10 100 I F[A] 0.1 0.01 Typical@25 C O 0.001 0 0.20 0.40 0.60 0.80 1.00 1.20 1.40 1.60 1.80 V F[V] VR, Reverse Bias Voltage (V) Fig.1-TYPICAL FORWARD CHARACTERISTICS Fig.2-TYPICAL JUNCTION CAPACITANCE FORWARD SURGE CURRENT, AMPERES pk (HALF-SING WAVE) 1.5 I F, Forward Current [A] 35 30 25 20 15 10 5 1.25 1 0.75 0.5 0.25 0 0 25 50 75 100 125 150 Mounted on 5 cm x 1.5cm PCB Board 1 2 4 6 8 10 20 40 60 80 100 T C, Case Temperature [ OC] NUMBER OF CYCLES AT 60Hz Fig.3-FORWARD CURRENT DERATING CURVE Fig.4-MAXIMUM NON-REPEITIVE SURGE CURRENT November 12,2010-REV.01 PAGE . 2 RS1001FL~RS1010FL MOUNTING PAD LAYOUT SOD-123FL Unit: inch(mm) ORDER INFORMATION • Packing information T/R - 10K per 13" plastic Reel T/R - 3K per 7” plastic Reel LEGAL STATEMENT Copyright PanJit International, Inc 2010 The information presented in this document is believed to be accurate and reliable. The specifications and information herein are subject to change without notice. Pan Jit makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose. Pan Jit products are not authorized for use in life support devices or systems. Pan Jit does not convey any license under its patent rights or rights of others. November 12,2010-REV.01 PAGE . 3
