SB320 SERIES
SCHOTTKY BARRIER RECTIFIERS
20 to 60 Volt
VOLTAGE
CURRENT
3 Ampere
FEATURES
0.052(1.3)
0.048(1.2)
1.0(25.4)MIN.
• Plastic package has Underwriters Laboratory
Flammability Classification 94V-O utilizing
Flame Retardant Epoxy Molding Compound
• For use in low voltage,high frequency inverters, free wheeling,
and polarity protection applications
MECHANICAL DATA
0.285(7.2)
0.375(9.5)
• Lead free in compliance with EU RoHS 2011/65/EU directive

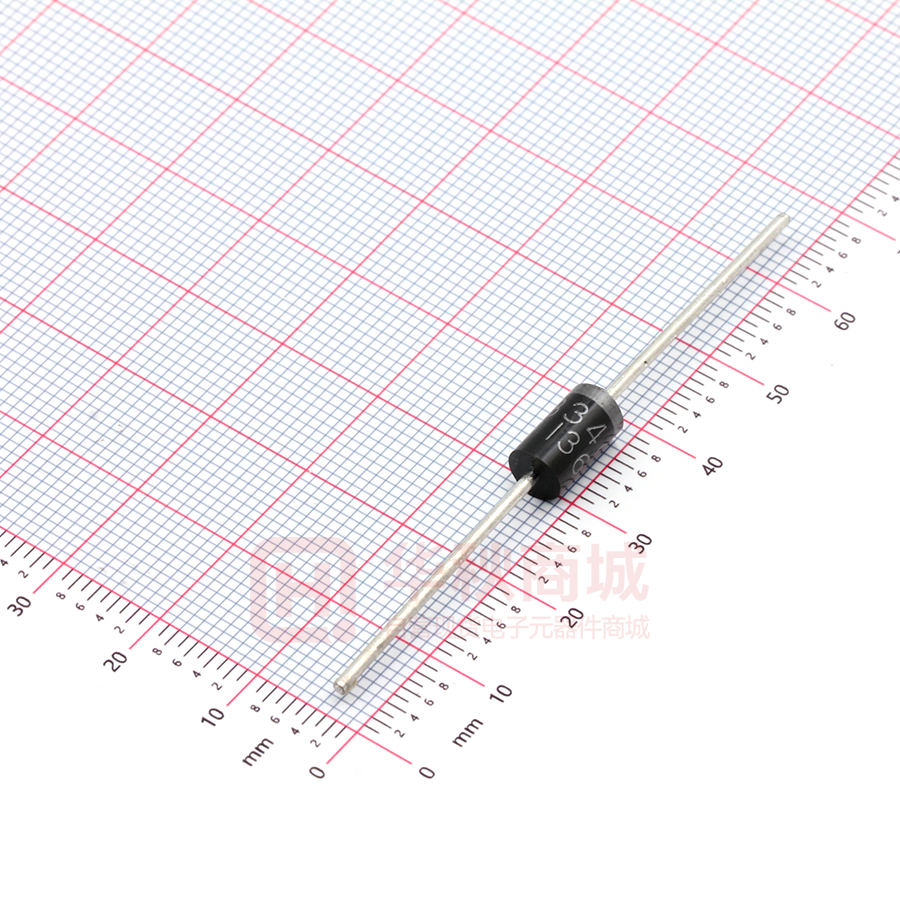

• Case: DO-201AD Molded plastic
• Terminals: Axial leads, solderable per MIL-STD-750,Method 2026
0.210(5.3)
0.188(4.8)
1.0(25.4)MIN.
• Polarity: Color band denotes cathode
• Weight: 0.04 ounces, 1.142 grams
1
Cathode
2
Anode
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
PA RA M E TE R
S YM B OL
SB320
SB330
SB340
SB350
SB360
UNITS
Ma xi mum Re c urre nt P e a k Re ve rs e Vo lta g e
V RRM
20
30
40
50
60
V
M a xi m um RM S Vo lt a g e
V RMS
14
21
28
35
42
V
M a xi m um D C B lo c k i ng Vo lt a g e
V DC
20
30
40
50
60
V
M a xi m um A ve r a g e F o rwa rd Re c t i f i e d C ur re nt 0 .3 7 5 " (9 .5 m m )
le a d le ng th
I F (A V )
3
A
P e a k F o rwa rd S urg e C urre nt : 8 . 3 m s s i ng le ha lf s i ne -wa ve
s up e ri m p o s e d o n ra te d lo a d
IF S M
80
A
M a xi m um F o rwa r d Vo lt a g e a t 3 A ( No te 3 )
VF
0 .5
0 .7 5
V
IR
0 .2
30
0.1
30
mA
Ma xi mum D C Re ve rs e C urre nt a t Ra te d D C B lo c k i ng
Vo lt a g e
T J = 2 5 OC
TJ= 1 0 0 OC
Typ i c a l The rm a l Re s i s ta nc e (No te 2 )
(No t e 1 )
(No t e 1 )
Op e r a t i ng J unc t i o n a nd S t o ra g e Te m p e ra ture Ra ng e
50
12
15
R θJ A
R θJ C
R θJ L
T J , T S TG
-5 5 to + 1 2 5
O
-5 5 to + 1 5 0
C / W
O
C
Notes :
1. Measured at ambient temperature at a distance of 9.5mm from the case
2. Minimum Pad Area
3. Pulse test : 300μs pulse width , 1% duty cycle
April 20,2016-REV.05
PAGE . 1
SB320 SERIES
RATING AND CHARACTERISTIC CURVES
5.0
20-30V
40-60V
4.0
3.0
2.0
1.0
0
0
20
40
60
80
100
120
140
160
LEAD TEMPERATURE, OC
INSTANTANEOUS REVERSE CURRENT, mA
AVERAGE FORWARD RECTIFIED
CURRENT AMPERES
10
1.0
TJ = 100 C
0.1
TJ = 75 C
O
O
0.01
O
TJ = 25 C
V RRM =20-40V
V RRM =50-60V
.001
0
20
40
60
80
100
PERCENT OF INSTANTANEOUS REVERSE VOLTAGE,(%)
Fig.2 TYPICAL REVERSE CHARACTERISTICS
Fig.1 FORWARD CURRENT DERATING CURVE
50
90
PEAK FORWARD SURGE CURRENT,
AMPERES
INSTANTANEOUS FORWARD CURRENT,
AMPERES
TJ = 25 OC
f = 1.0mHz
Vsig= 50mVp-p
10
20-40V
1.0
50-60V
0.1
0
.2
.4
.8
.6
70
60
50
40
30
20
10
1
2
5
10
20
50
100
NO. OF CYCLE AT 60HZ
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
Fig.3 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
Percent of Reverse Voltage (%)
80
Fig.4 MAXIMUM NON - REPETITIVE SURGE CURRENT
120
100
80
60
20~30V
40
40~60V
20
0
0
25
50
75
100
125
150
TJ, Junction Temperature (°C)
Fig.5 Operating Temperature Derating Curve
April 20,2016-REV.05
PAGE . 2
SB320 SERIES
Part No_packing code_Version
SB320_AY_00001
SB320_AY_10001
SB320_B0_00001
SB320_B0_10001
SB320_R2_00001
SB320_R2_10001
For example :
RB500V-40_R2_00001
Serial number
Part No.
Version code means HF
Packing size code means 13"
Packing type means T/R
Packing Code XX
Packing type
Tape and Ammunition Box
(T/B)
Tape and Reel
(T/R)
Bulk Packing
(B/P)
Tube Packing
(T/P)
Tape and Reel (Right Oriented)
(TRR)
Tape and Reel (Left Oriented)
(TRL)
FORMING
April 20,2016-REV.05
Version Code XXXXX
1st Code
Packing size code
A
N/A
0
HF
0
serial number
R
7"
1
RoHS
1
serial number
B
13"
2
T
26mm
X
S
52mm
Y
L
F
PANASERT T/B CATHODE UP
(PBCU)
PANASERT T/B CATHODE DOWN
(PBCD)
2nd Code HF or RoHS 1st Code 2nd~5th Code
U
D
PAGE . 3
SB320 SERIES
Disclaimer
• Reproducing and modifying information of the document is prohibited without permission
from Panjit International Inc..
• Panjit International Inc. reserves the rights to make changes of the content herein the
document anytime without notification. Please refer to our website for the latest
document.
• Panjit International Inc. disclaims any and all liability arising out of the application or use of
any product including damages incidentally and consequentially occurred.
• Panjit International Inc. does not assume any and all implied warranties, including warranties
of fitness for particular purpose, non-infringement and merchantability.
• Applications shown on the herein document are examples of standard use and operation.
Customers are responsible in comprehending the suitable use in particular applications.
Panjit International Inc. makes no representation or warranty that such applications will be
suitable for the specified use without further testing or modification.
•
The products shown herein are not designed and authorized for equipments requiring high
level of reliability or relating to human life and for any applications concerning life-saving
or life-sustaining, such as medical instruments, transportation equipment, aerospace
machinery et cetera. Customers using or selling these products for use in such applications
do so at their own risk and agree to fully indemnify Panjit International Inc. for any damages
resulting from such improper use or sale.
• Since Panjit uses lot number as the tracking base, please provide the lot number for tracking
when complaining.
April 20,2016-REV.05
PAGE . 4
