TMC 7... and TMC 8...
Thermal magnetic UL Listed and UL Recognized
miniature circuit breakers
Data sheet
3644_en_C
1
© PHOENIX CONTACT 2018-11-08
Description
TMC 8... miniature circuit breakers (MCB) are UL 489 Listed
to provide branch overload and short-circuit protection. An
interrupt capacity of 10 kAIC at up to 277/480 V AC and
125 V DC makes the TMC 8... ideal for a wide range of
applications that require a UL 489 Listed circuit breaker.
TMC 7... miniature circuit breakers are UL 1077
Recognized and provide supplemental overload and shortcircuit protection. Short-circuit current ratings range from
5 kAIC to 7.5 kAIC, depending upon the supply voltage.
The circuit breakers are available in 1-, 2-, and 3-pole
configurations with B, C, and D trip curve options, making
them ideal for a wide range of applications. They are
17.6 mm wide (per pole) and mount on 35 mm NS35 rail.
Available accessories include an auxiliary contact, alarm
contact, shunt trips, and busbars.
The TMC 7... is UL Recognized for the U.S. and Canada.
The TMC 8... is UL Listed for the U.S. and Canada. Both
products lines carry the CE mark.
1.1
Typical applications
TMC 7/8... circuit breakers are suitable for protection of
– cables
– motors
– generators and transformers
– thyristors
– silicon rectifiers
– computers and peripheral equipment
– industrial process control systems
– telecommunications equipment
– power supplies
1.2
–
–
–
–
–
–
–
–
Features
TMC 7... is UL 1077 Recognized
TMC 8... is UL 489 Listed
1-, 2-, and 3-pole configurations
Current ratings of 1 to 63 A
Available with B, C, and D trip curves
Visual status indication
Trip-free, snap-action mechanism cannot be manually
overridden in an overload situation
Full range of bus bars and accessories
This document is valid for all products listed in the “Ordering data” on page 3.
TMC 7... and TMC 8...
Table of contents
1
Description.................................................................................................................................. 1
1.1
1.2
Typical applications........................................................................................................................................ 1
Features ......................................................................................................................................................... 1
2
Ordering data.............................................................................................................................. 3
3
Technical data ...........................................................................................................................11
3.1
3.2
3.3
3.4
4
Trip curve .................................................................................................................................................... 12
Current rating and voltage drop @ 25°C ....................................................................................................... 12
Dimensions .................................................................................................................................................. 13
Environmental influences ............................................................................................................................. 14
Circuit breaker installation .........................................................................................................14
4.1
4.2
4.3
Mounting ...................................................................................................................................................... 14
Removal ....................................................................................................................................................... 14
DC connection diagram ............................................................................................................................... 14
5
Accessories ...............................................................................................................................15
6
Ordering data for accessories....................................................................................................16
7
Technical data for accessories ..................................................................................................17
7.1
7.2
8
Accessory descriptions..............................................................................................................19
8.1
8.2
8.3
9
Technical data for TMC 7/8 AUX and TMC 7/8 ALARM accessories .......................................................... 17
Technical data for busbars and termination pins ......................................................................................... 18
Auxiliary contact (TMC 7/8 AUX) .................................................................................................................. 19
Alarm contact (TMC 7/8 ALARM) ................................................................................................................. 19
Shunt trip (TMC 7/8...SHNT) ........................................................................................................................ 20
TMC 7/8 AUX / TMC 7/8 ALARM / TMC 7/8...SHNT installation ...............................................20
9.1
3644_en_C
Busbars and related accessories ................................................................................................................. 21
PHOENIX CONTACT
2/24
TMC 7... and TMC 8...
2
Ordering data
Order key
TMC 81C 01A
Current rating
Trip curve (B, C, or D)
Number of poles (1, 2, or 3)
Design criteria (UL 489)
Thermal magnetic circuit breaker family
Products
Description
Type
Order No.
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 1 A
TMC 81B 01A
2907478
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 2 A
TMC 81B 02A
2907479
1
Pcs./Pkt.
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 3 A
TMC 81B 03A
2907480
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 4 A
TMC 81B 04A
2907481
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 5 A
TMC 81B 05A
2907482
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 6 A
TMC 81B 06A
2907483
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 7 A
TMC 81B 07A
2907484
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 8 A
TMC 81B 08A
2907485
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 10 A
TMC 81B 10A
2907487
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 12 A
TMC 81B 12A
2907488
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 13 A
TMC 81B 13A
2907489
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 15 A
TMC 81B 15A
2907490
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 16 A
TMC 81B 16A
2907491
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 20 A
TMC 81B 20A
2907492
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 25 A
TMC 81B 25A
2907493
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 30 A
TMC 81B 30A
2907494
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 32 A
TMC 81B 32A
2907495
1
MCB, up to 60 V DC and 120 V AC, B curve 1-pole 35 A
TMC 81B 35A
2907496
1
MCB, up to 60 V DC and 120 V AC, B curve 1-pole 40 A
TMC 81B 40A
2907497
1
MCB, up to 60 V DC and 120 V AC, B curve 1-pole 50 A
TMC 81B 50A
2907498
1
MCB, up to 60 V DC and 120 V AC, B curve 1-pole 60 A
TMC 81B 60A
2907500
1
MCB, up to 60 V DC and 120 V AC, B curve 1-pole 63 A
TMC 81B 63A
2907501
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 1 A
TMC 82B 01A
2907502
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 2 A
TMC 82B 02A
2907503
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 3 A
TMC 82B 03A
2907504
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 4 A
TMC 82B 04A
2907505
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 5 A
TMC 82B 05A
2907506
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 6 A
TMC 82B 06A
2907507
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 7 A
TMC 82B 07A
2907508
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 8 A
TMC 82B 08A
2907510
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 10 A
TMC 82B 10A
2907511
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 12 A
TMC 82B 12A
2907512
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 13 A
TMC 82B 13A
2907513
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 15 A
TMC 82B 15A
2907514
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 16 A
TMC 82B 16A
2907515
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 20 A
TMC 82B 20A
2907516
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 25 A
TMC 82B 25A
2907530
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 30 A
TMC 82B 30A
2907531
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 32 A
TMC 82B 32A
2907532
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), B curve 2-pole 35 A
TMC 82B 35A
2907533
1
3644_en_C
PHOENIX CONTACT
3/24
TMC 7... and TMC 8...
Products
Description
Type
Order No.
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), B curve 2-pole 40 A
TMC 82B 40A
2907534
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), B curve 2-pole 50 A
TMC 82B 50A
2907535
1
Pcs./Pkt.
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), B curve 2-pole 60 A
TMC 82B 60A
2907536
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), B curve 2-pole 63 A
TMC 82B 63A
2907537
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 1 A
TMC 83B 01A
2907539
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 2 A
TMC 83B 02A
2907540
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 3 A
TMC 83B 03A
2907542
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 4 A
TMC 83B 04A
2907543
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 5 A
TMC 83B 05A
2907544
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 6 A
TMC 83B 06A
2907545
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 7 A
TMC 83B 07A
2907546
1
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 8 A
TMC 83B 08A
2907547
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 10 A
TMC 83B 10A
2907548
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 12 A
TMC 83B 12A
2907549
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 13 A
TMC 83B 13A
2907550
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 15 A
TMC 83B 15A
2907551
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 16 A
TMC 83B 16A
2907552
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 20 A
TMC 83B 20A
2907553
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 25 A
TMC 83B 25A
2907555
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 30 A
TMC 83B 30A
2907556
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 32 A
TMC 83B 32A
2907557
1
MCB, up to 240 V AC (240D), B curve 3-pole 35 A
TMC 83B 35A
1010309
1
MCB, up to 240 V AC (240D), B curve 3-pole 40 A
TMC 83B 40A
1010308
1
MCB, up to 240 V AC (240D), B curve 3-pole 50 A
TMC 83B 50A
1010307
1
MCB, up to 240 V AC (240D), B curve 3-pole 60 A
TMC 83B 60A
1010306
1
MCB, up to 240 V AC (240D), B curve 3-pole 63 A
TMC 83B 63A
1010286
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 1 A
TMC 81C 01A
2907558
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 2 A
TMC 81C 02A
2907559
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 3 A
TMC 81C 03A
2907560
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 4 A
TMC 81C 04A
2907561
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 5 A
TMC 81C 05A
2907562
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 6 A
TMC 81C 06A
2907563
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 7 A
TMC 81C 07A
2907564
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 8 A
TMC 81C 08A
2907565
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 10 A
TMC 81C 10A
2907566
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 12 A
TMC 81C 12A
2907568
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 13 A
TMC 81C 13A
2907569
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 15 A
TMC 81C 15A
2907571
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 16 A
TMC 81C 16A
2907572
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 20 A
TMC 81C 20A
2907573
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 25 A
TMC 81C 25A
2907574
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 30 A
TMC 81C 30A
2907575
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 32 A
TMC 81C 32A
2907576
1
MCB, up to 60 V DC and 120 V AC, C curve 1-pole 35 A
TMC 81C 35A
2907577
1
MCB, up to 60 V DC and 120 V AC, C curve 1-pole 40 A
TMC 81C 40A
2907578
1
MCB, up to 60 V DC and 120 V AC, C curve 1-pole 50 A
TMC 81C 50A
2907579
1
MCB, up to 60 V DC and 120 V AC, C curve 1-pole 60 A
TMC 81C 60A
2907580
1
MCB, up to 60 V DC and 120 V AC, C curve 1-pole 63 A
TMC 81C 63A
2907581
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 1 A
TMC 82C 01A
2907582
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 2 A
TMC 82C 02A
2907584
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 3 A
TMC 82C 03A
2907585
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 4 A
TMC 82C 04A
2907586
1
3644_en_C
PHOENIX CONTACT
4/24
TMC 7... and TMC 8...
Products
Description
Type
Order No.
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 5 A
TMC 82C 05A
2907587
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 6 A
TMC 82C 06A
2907588
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 7 A
TMC 82C 07A
2907589
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 8 A
TMC 82C 08A
2907590
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 10 A
TMC 82C 10A
2907591
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 12 A
TMC 82C 12A
2907592
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 13 A
TMC 82C 13A
2907593
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 15 A
TMC 82C 15A
2907594
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 16 A
TMC 82C 16A
2907595
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 20 A
TMC 82C 20A
2907597
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 25 A
TMC 82C 25A
2907598
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 30 A
TMC 82C 30A
2907599
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 32 A
TMC 82C 32A
2907600
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), C curve 2-pole 35 A
TMC 82C 35A
2907601
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), C curve 2-pole 40 A
TMC 82C 40A
2907602
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), C curve 2-pole 50 A
TMC 82C 50A
2907603
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), C curve 2-pole 60 A
TMC 82C 60A
2907604
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), C curve 2-pole 63 A
TMC 82C 63A
2907605
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 1 A
TMC 83C 01A
2907607
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 2 A
TMC 83C 02A
2907608
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 3 A
TMC 83C 03A
2907609
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 4 A
TMC 83C 04A
2907610
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 5 A
TMC 83C 05A
2907611
1
Pcs./Pkt.
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 6 A
TMC 83C 06A
2907612
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 7 A
TMC 83C 07A
2907613
1
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 8 A
TMC 83C 08A
2907614
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 10 A
TMC 83C 10A
2907615
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 12 A
TMC 83C 12A
2907616
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 13 A
TMC 83C 13A
2907617
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 15 A
TMC 83C 15A
2907618
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 16 A
TMC 83C 16A
2907620
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 20 A
TMC 83C 20A
2907621
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 25 A
TMC 83C 25A
2907623
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 30 A
TMC 83C 30A
2907624
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 32 A
TMC 83C 32A
2907625
1
MCB, up to 240 V AC (240D), C curve 3-pole 35 A
TMC 83C 35A
1010303
1
MCB, up to 240 V AC (240D), C curve 3-pole 40 A
TMC 83C 40A
1010305
1
MCB, up to 240 V AC (240D), C curve 3-pole 50 A
TMC 83C 50A
1010302
1
MCB, up to 240 V AC (240D), C curve 3-pole 60 A
TMC 83C 60A
1010301
1
MCB, up to 240 V AC (240D), C curve 3-pole 63 A
TMC 83C 63A
1010291
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 1 A
TMC 81D 01A
2907626
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 2 A
TMC 81D 02A
2907627
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 3 A
TMC 81D 03A
2907628
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 4 A
TMC 81D 04A
2907629
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 5 A
TMC 81D 05A
2907630
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 6 A
TMC 81D 06A
2907631
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 7 A
TMC 81D 07A
2907632
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 8 A
TMC 81D 08A
2907633
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 10 A
TMC 81D 10A
2907634
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 12 A
TMC 81D 12A
2907636
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 13 A
TMC 81D 13A
2907637
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 15 A
TMC 81D 15A
2907638
1
3644_en_C
PHOENIX CONTACT
5/24
TMC 7... and TMC 8...
Products
Description
Type
Order No.
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 16 A
TMC 81D 16A
2907639
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 20 A
TMC 81D 20A
2907640
1
Pcs./Pkt.
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 25 A
TMC 81D 25A
2907641
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 30 A
TMC 81D 30A
2907642
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 32 A
TMC 81D 32A
2907643
1
MCB, up to 60 V DC and 120 V AC, D curve 1-pole 35 A
TMC 81D 35A
2907644
1
MCB, up to 60 V DC and 120 V AC, D curve 1-pole 40 A
TMC 81D 40A
2907645
1
MCB, up to 60 V DC and 120 V AC, D curve 1-pole 50 A
TMC 81D 50A
2907646
1
MCB, up to 60 V DC and 120 V AC, D curve 1-pole 60 A
TMC 81D 60A
2907647
1
MCB, up to 60 V DC and 120 V AC, D curve 1-pole 63 A
TMC 81D 63A
2907649
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 1 A
TMC 82D 01A
2907650
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 2 A
TMC 82D 02A
2907652
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 3 A
TMC 82D 03A
2907653
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 4 A
TMC 82D 04A
2907654
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 5 A
TMC 82D 05A
2907655
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 6 A
TMC 82D 06A
2907656
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 7 A
TMC 82D 07A
2907657
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 8 A
TMC 82D 08A
2907658
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 10 A
TMC 82D 10A
2907659
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 12 A
TMC 82D 12A
2907660
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 13 A
TMC 82D 13A
2907661
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 15 A
TMC 82D 15A
2907662
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 16 A
TMC 82D 16A
2907663
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 20 A
TMC 82D 20A
2907665
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 25 A
TMC 82D 25A
2907666
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 30 A
TMC 82D 30A
2907667
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 32 A
TMC 82D 32A
2907668
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), D curve 2-pole 35 A
TMC 82D 35A
2907669
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), D curve 2-pole 40 A
TMC 82D 40A
2907670
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), D curve 2-pole 50 A
TMC 82D 50A
2907671
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), D curve 2-pole 60 A
TMC 82D 60A
2907672
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), D curve 2-pole 63 A
TMC 82D 63A
2907673
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 1 A
TMC 83D 01A
2907674
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 2 A
TMC 83D 02A
2907675
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 3 A
TMC 83D 03A
2907676
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 4 A
TMC 83D 04A
2907678
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 5 A
TMC 83D 05A
2907679
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 6 A
TMC 83D 06A
2907681
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 7 A
TMC 83D 07A
2907682
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 8 A
TMC 83D 08A
2907683
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 10 A
TMC 83D 10A
2907684
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 12 A
TMC 83D 12A
2907685
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 13 A
TMC 83D 13A
2907686
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 15 A
TMC 83D 15A
2907687
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 16 A
TMC 83D 16A
2907688
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 20 A
TMC 83D 20A
2907689
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 25 A
TMC 83D 25A
2907690
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 30 A
TMC 83D 30A
2907691
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 32 A
TMC 83D 32A
2907692
1
MCB, up to 240 V AC (240D), D curve 3-pole 35 A
TMC 83D 35A
1010290
1
MCB, up to 240 V AC (240D), D curve 3-pole 40 A
TMC 83D 40A
1010289
1
3644_en_C
PHOENIX CONTACT
6/24
TMC 7... and TMC 8...
Products
Description
Type
Order No.
Pcs./Pkt.
MCB, up to 240 V AC (240D), D curve 3-pole 50 A
TMC 83D 50A
1010284
1
MCB, up to 240 V AC (240D), D curve 3-pole 60 A
TMC 83D 60A
1010288
1
MCB, up to 240 V AC (240D), D curve 3-pole 63 A
TMC 83D 63A
1010287
1
Pcs./Pkt.
TMC 71C 04A
Current rating
Trip curve (B, C, or D)
Number of poles (1, 2, or 3)
Design criteria (UL 1077)
Thermal magnetic circuit breaker family
Products
Description
Type
Order No.

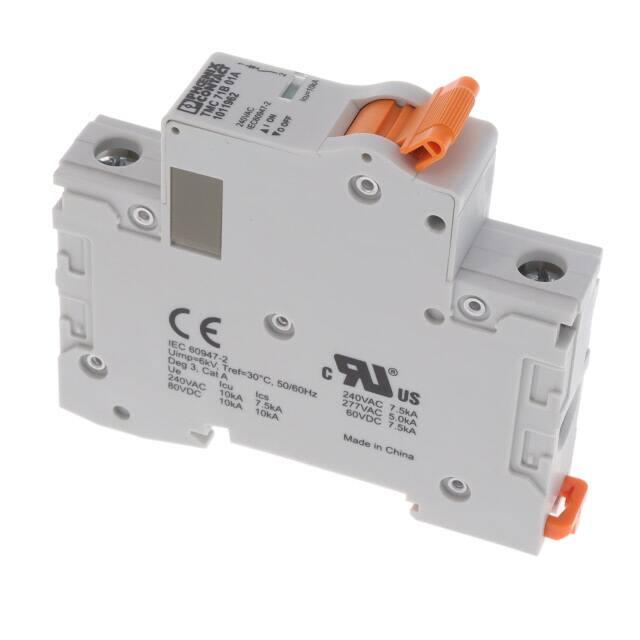

MCB, up to 60 V DC and 277 V AC, B curve 1-pole 1 A
TMC 71B 01A
1011962
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 2 A
TMC 71B 02A
1019909
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 3 A
TMC 71B 03A
1019910
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 4 A
TMC 71B 04A
1019911
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 5 A
TMC 71B 05A
1019912
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 6 A
TMC 71B 06A
1019913
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 7 A
TMC 71B 07A
1019914
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 8 A
TMC 71B 08A
1019915
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 10 A
TMC 71B 10A
1019916
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 12 A
TMC 71B 12A
1019917
1

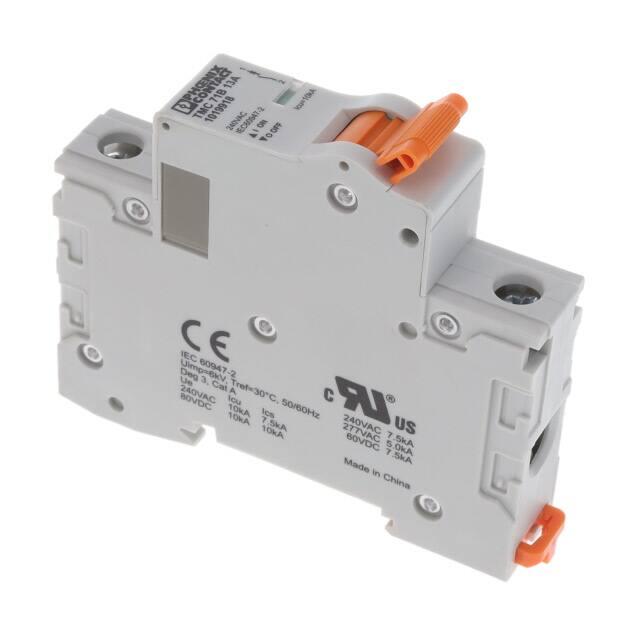

MCB, up to 60 V DC and 277 V AC, B curve 1-pole 13 A
TMC 71B 13A
1019918
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 15 A
TMC 71B 15A
1019919
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 16 A
TMC 71B 16A
1019920
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 20 A
TMC 71B 20A
1019921
1

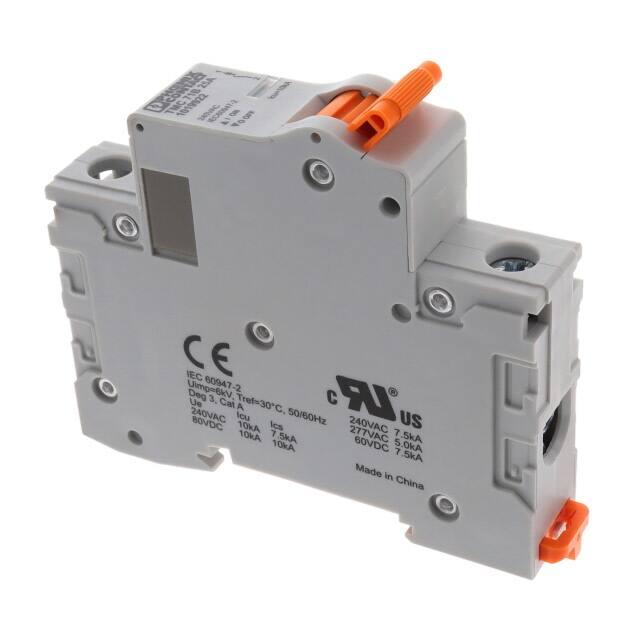

MCB, up to 60 V DC and 277 V AC, B curve 1-pole 25 A
TMC 71B 25A
1019922
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 30 A
TMC 71B 30A
1019923
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 32 A
TMC 71B 32A
1019924
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 40 A
TMC 71B 40A
1019925
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 50 A
TMC 71B 50A
1019926
1
MCB, up to 60 V DC and 277 V AC, B curve 1-pole 60 A
TMC 71B 60A
1019927
1

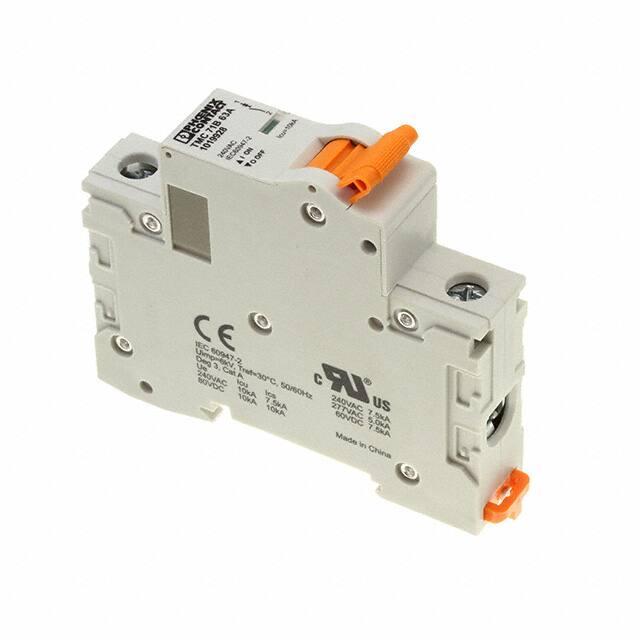

MCB, up to 60 V DC and 277 V AC, B curve 1-pole 63 A
TMC 71B 63A
1019928
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 1 A
TMC 72B 01A
1019930
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 2 A
TMC 72B 02A
1019931
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 3 A
TMC 72B 03A
1019932
1

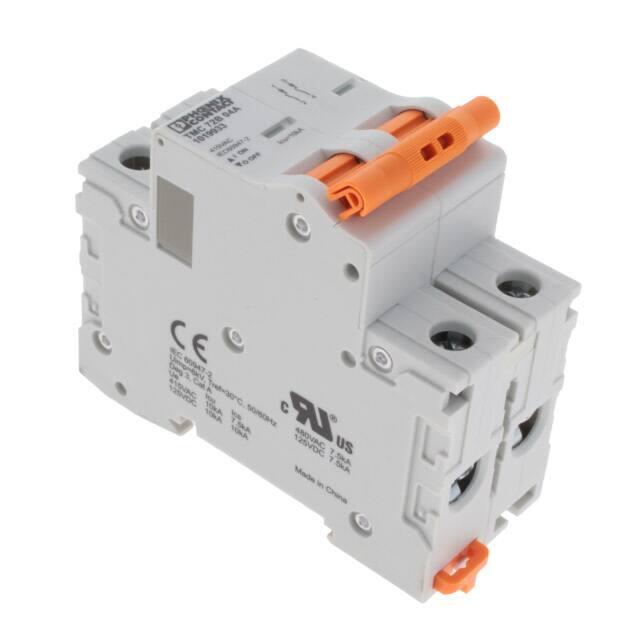

MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 4 A
TMC 72B 04A
1019933
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 5 A
TMC 72B 05A
1019934
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 6 A
TMC 72B 06A
1019935
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 7 A
TMC 72B 07A
1019936
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 8 A
TMC 72B 08A
1019937
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 10 A
TMC 72B 10A
1019938
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 12 A
TMC 72B 12A
1019939
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 13 A
TMC 72B 13A
1019940
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 15 A
TMC 72B 15A
1019941
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 16 A
TMC 72B 16A
1019942
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 20 A
TMC 72B 20A
1019943
1

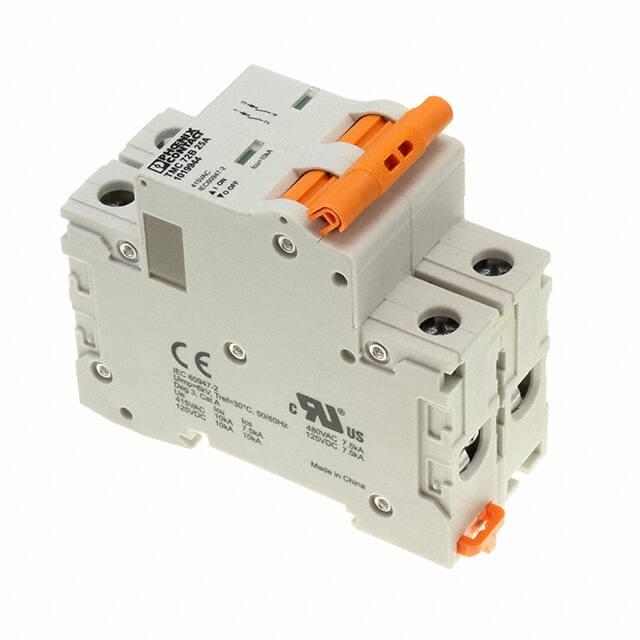

MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 25 A
TMC 72B 25A
1019944
1
3644_en_C
PHOENIX CONTACT
7/24
TMC 7... and TMC 8...
Products
Description
Type
Order No.
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 30 A
TMC 72B 30A
1019945
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), B curve 2-pole 32 A
TMC 72B 32A
1019946
1
Pcs./Pkt.
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), B curve 2-pole 40 A
TMC 72B 40A
1019947
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), B curve 2-pole 50 A
TMC 72B 50A
1019948
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), B curve 2-pole 60 A
TMC 72B 60A
1019949
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), B curve 2-pole 63 A
TMC 72B 63A
1019950
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 1 A
TMC 73B 01A
1019951
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 2 A
TMC 73B 02A
1019952
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 3 A
TMC 73B 03A
1019953
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 4 A
TMC 73B 04A
1019954
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 5 A
TMC 73B 05A
1019955
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 6 A
TMC 73B 06A
1019956
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 7 A
TMC 73B 07A
1019957
1
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 8 A
TMC 73B 08A
1019958
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 10 A
TMC 73B 10A
1019959
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 12 A
TMC 73B 12A
1019960
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 13 A
TMC 73B 13A
1019961
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 15 A
TMC 73B 15A
1019962
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 16 A
TMC 73B 16A
1019963
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 20 A
TMC 73B 20A
1019964
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 25 A
TMC 73B 25A
1019965
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 30 A
TMC 73B 30A
1019966
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 32 A
TMC 73B 32A
1019967
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 40 A
TMC 73B 40A
1019968
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 50 A
TMC 73B 50A
1019969
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 60 A
TMC 73B 60A
1019970
1
MCB, 277 V AC (277/480Y, 240D), B curve 3-pole 63 A
TMC 73B 63A
1019971
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 1 A
TMC 71C 01A
1019972
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 2 A
TMC 71C 02A
1019973
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 3 A
TMC 71C 03A
1019974
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 4 A
TMC 71C 04A
1019975
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 5 A
TMC 71C 05A
1019976
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 6 A
TMC 71C 06A
1019977
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 7 A
TMC 71C 07A
1019978
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 8 A
TMC 71C 08A
1019979
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 10 A
TMC 71C 10A
1019980
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 12 A
TMC 71C 12A
1019981
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 13 A
TMC 71C 13A
1019982
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 15 A
TMC 71C 15A
1019983
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 16 A
TMC 71C 16A
1019984
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 20 A
TMC 71C 20A
1019985
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 25 A
TMC 71C 25A
1019986
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 30 A
TMC 71C 30A
1019987
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 32 A
TMC 71C 32A
1019988
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 40 A
TMC 71C 40A
1019989
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 50 A
TMC 71C 50A
1019990
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 60 A
TMC 71C 60A
1019991
1
MCB, up to 60 V DC and 277 V AC, C curve 1-pole 63 A
TMC 71C 63A
1019992
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 1 A
TMC 72C 01A
1019994
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 2 A
TMC 72C 02A
1019995
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 3 A
TMC 72C 03A
1019996
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 4 A
TMC 72C 04A
1019997
1
3644_en_C
PHOENIX CONTACT
8/24
TMC 7... and TMC 8...
Products
Description
Type
Order No.
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 5 A
TMC 72C 05A
1019998
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 6 A
TMC 72C 06A
1019999
1

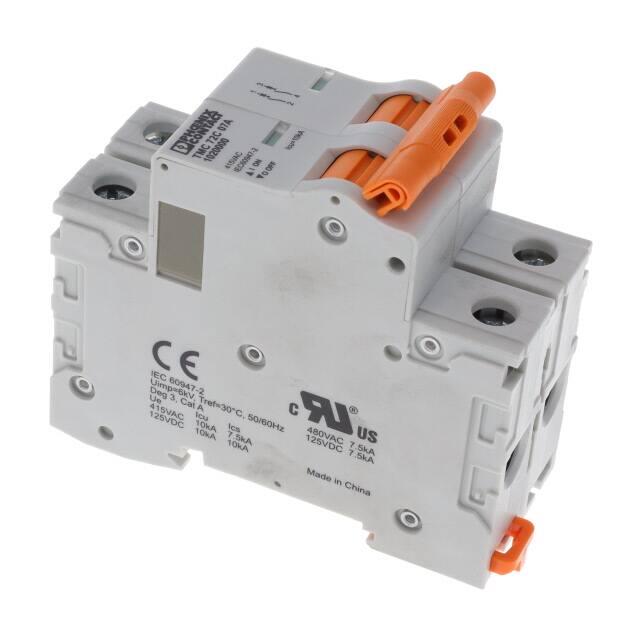

MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 7 A
TMC 72C 07A
1020000
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 8 A
TMC 72C 08A
1020001
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 10 A
TMC 72C 10A
1020002
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 12 A
TMC 72C 12A
1020003
1

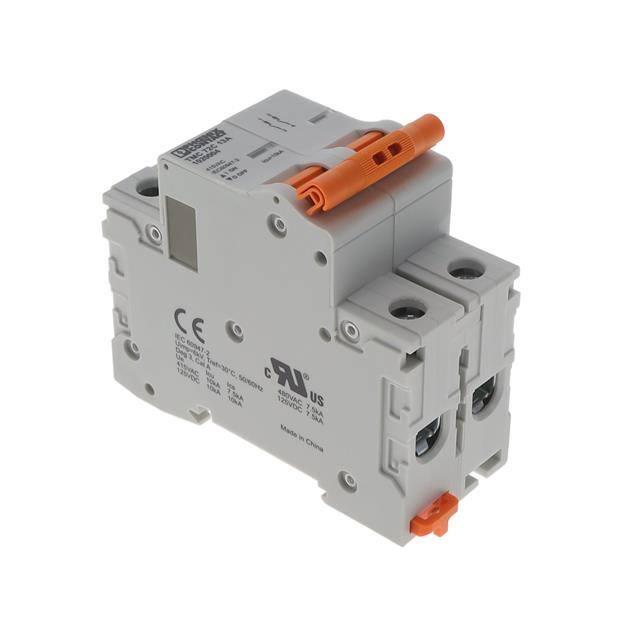

MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 13 A
TMC 72C 13A
1020004
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 15 A
TMC 72C 15A
1020005
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 16 A
TMC 72C 16A
1020006
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 20 A
TMC 72C 20A
1020007
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 25 A
TMC 72C 25A
1020008
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 30 A
TMC 72C 30A
1020009
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), C curve 2-pole 32 A
TMC 72C 32A
1020010
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), C curve 2-pole 40 A
TMC 72C 40A
1020011
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), C curve 2-pole 50 A
TMC 72C 50A
1020012
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), C curve 2-pole 60 A
TMC 72C 60A
1020013
1
MCB, up to 125 V DC (two poles in series) and 240 V AC (120/240S, 240D), C curve 2-pole 63 A
TMC 72C 63A
1020014
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 1 A
TMC 73C 01A
1020015
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 2 A
TMC 73C 02A
1020016
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 3 A
TMC 73C 03A
1020017
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 4 A
TMC 73C 04A
1020018
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 5 A
TMC 73C 05A
1020019
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 6 A
TMC 73C 06A
1020020
1
Pcs./Pkt.
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 7 A
TMC 73C 07A
1020021
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 8 A
TMC 73C 08A
1020022
1
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 10 A
TMC 73C 10A
1020023
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 12 A
TMC 73C 12A
1020024
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 13 A
TMC 73C 13A
1020025
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 15 A
TMC 73C 15A
1020026
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 16 A
TMC 73C 16A
1020027
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 20 A
TMC 73C 20A
1020028
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 25 A
TMC 73C 25A
1020029
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 30 A
TMC 73C 30A
1020030
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 32 A
TMC 73C 32A
1020031
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 40 A
TMC 73C 40A
1020032
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 50 A
TMC 73C 50A
1020033
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 60 A
TMC 73C 60A
1020035
1
MCB, 277 V AC (277/480Y, 240D), C curve 3-pole 63 A
TMC 73C 63A
1020036
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 1 A
TMC 71D 01A
1020037
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 2 A
TMC 71D 02A
1020038
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 3 A
TMC 71D 03A
1020039
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 4 A
TMC 71D 04A
1020040
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 5 A
TMC 71D 05A
1020041
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 6 A
TMC 71D 06A
1020042
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 7 A
TMC 71D 07A
1020043
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 8 A
TMC 71D 08A
1020044
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 10 A
TMC 71D 10A
1020045
1

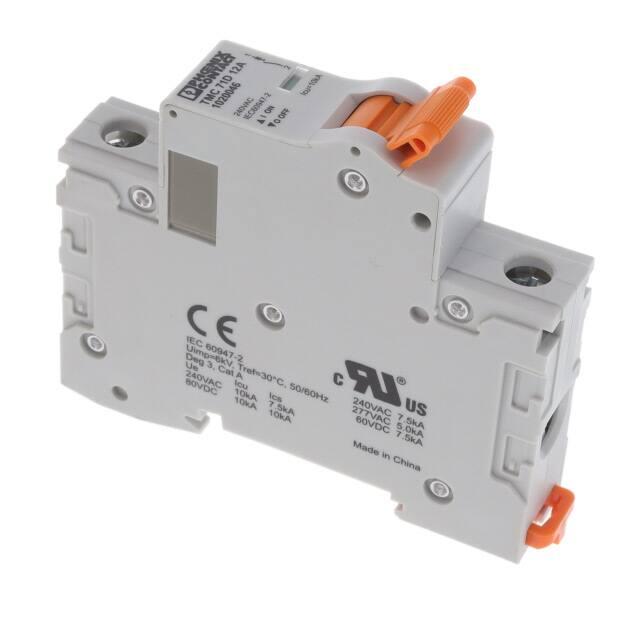

MCB, up to 60 V DC and 277 V AC, D curve 1-pole 12 A
TMC 71D 12A
1020046
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 13 A
TMC 71D 13A
1020048
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 15 A
TMC 71D 15A
1020049
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 16 A
TMC 71D 16A
1020051
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 20 A
TMC 71D 20A
1020052
1
3644_en_C
PHOENIX CONTACT
9/24
TMC 7... and TMC 8...
Products
Description
Type
Order No.
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 25 A
TMC 71D 25A
1020053
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 30 A
TMC 71D 30A
1020054
1
Pcs./Pkt.
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 32 A
TMC 71D 32A
1020055
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 40 A
TMC 71D 40A
1020056
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 50 A
TMC 71D 50A
1020057
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 60 A
TMC 71D 60A
1020058
1
MCB, up to 60 V DC and 277 V AC, D curve 1-pole 63 A
TMC 71D 63A
1020059
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 1 A
TMC 72D 01A
1020060
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 2 A
TMC 72D 02A
1020061
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 3 A
TMC 72D 03A
1020062
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 4 A
TMC 72D 04A
1020064
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 5 A
TMC 72D 05A
1020065
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 6 A
TMC 72D 06A
1020066
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 7 A
TMC 72D 07A
1020067
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 8 A
TMC 72D 08A
1020068
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 10 A
TMC 72D 10A
1020069
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 12 A
TMC 72D 12A
1020070
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 13 A
TMC 72D 13A
1020071
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 15 A
TMC 72D 15A
1020072
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 16 A
TMC 72D 16A
1020073
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 20 A
TMC 72D 20A
1020074
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 25 A
TMC 72D 25A
1020075
1

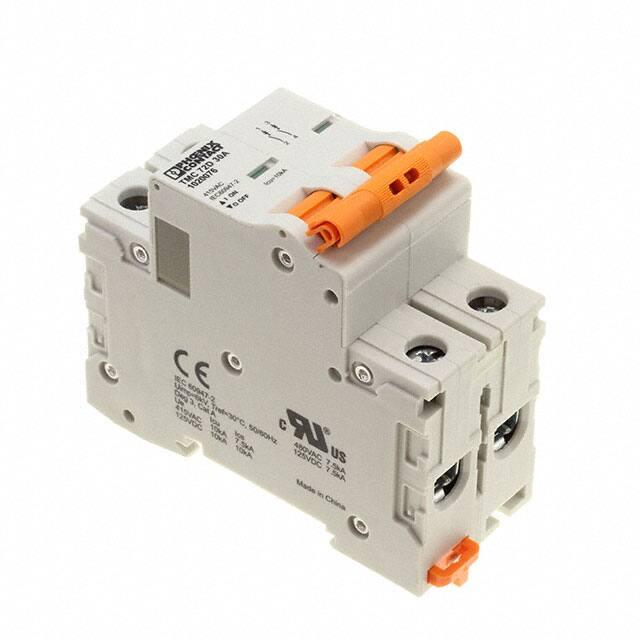

MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 30 A
TMC 72D 30A
1020076
1

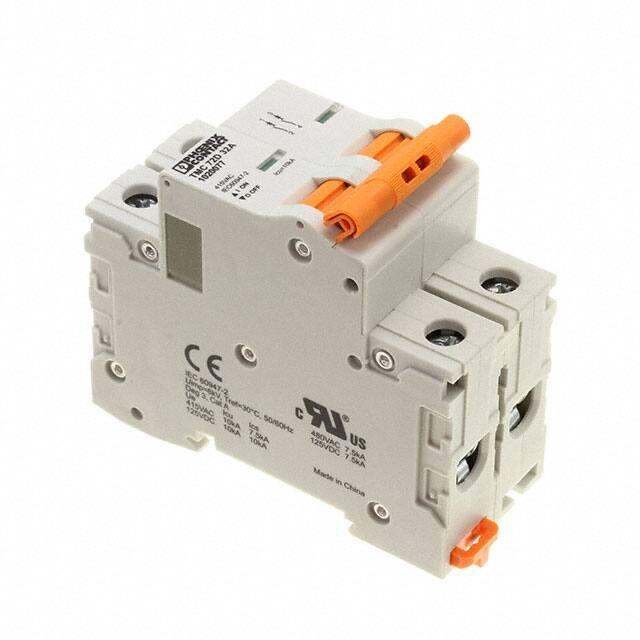

MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 32 A
TMC 72D 32A
1020077
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 40 A
TMC 72D 40A
1020078
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 50 A
TMC 72D 50A
1020079
1
MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 60 A
TMC 72D 60A
1020080
1

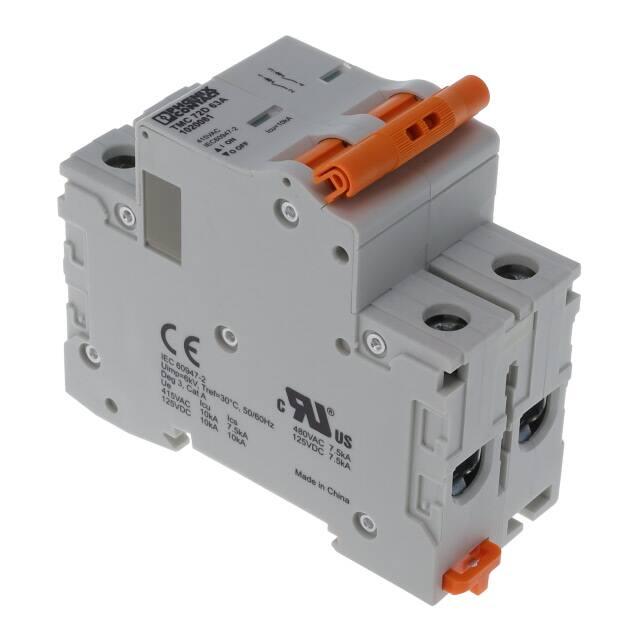

MCB, up to 125 V DC (two poles in series) and 277 V AC (277/480Y, 240D), D curve 2-pole 63 A
TMC 72D 63A
1020081
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 1 A
TMC 73D 01A
1020082
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 2 A
TMC 73D 02A
1020083
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 3 A
TMC 73D 03A
1020084
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 4 A
TMC 73D 04A
1020085
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 5 A
TMC 73D 05A
1020086
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 6 A
TMC 73D 06A
1020087
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 7 A
TMC 73D 07A
1020088
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 8 A
TMC 73D 08A
1020090
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 10 A
TMC 73D 10A
1020091
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 12 A
TMC 73D 12A
1020093
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 13 A
TMC 73D 13A
1020094
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 15 A
TMC 73D 15A
1020095
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 16 A
TMC 73D 16A
1020096
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 20 A
TMC 73D 20A
1020097
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 25 A
TMC 73D 25A
1020098
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 30 A
TMC 73D 30A
1020099
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 32 A
TMC 73D 32A
1020100
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 40 A
TMC 73D 40A
1020101
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 50 A
TMC 73D 50A
1020103
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 60 A
TMC 73D 60A
1020104
1
MCB, 277 V AC (277/480Y, 240D), D curve 3-pole 63 A
TMC 73D 63A
1020105
1
3644_en_C
PHOENIX CONTACT
10/24
TMC 7... and TMC 8...
3
Technical data
General data
Ambient temperature, operating
-35°C … 70°C (-31°F … 158°F)
Degree of protection
IP20
Weight (approximate)
TMC 8...
131 g per pole
TMC 7...
116 g per pole
Installation
NS35 rail (EN 60715)
Conductor cross section
1 ... 35 mm²/18 ... 2 AWG1
Connection type
Screw-clamp terminals
Conductor tightening torque, maximum
2 Nm (17.7 lbf-in.)
1
Use copper wire only.
Electrical data
Nominal voltage, UN
See product description for specifics for each model
Nominal current
See product description for specifics for each model
NOTE:
Current ratings are 0.80 of nominal current when mounted side
by side.
Service life
Mechanical
20,000 cycles
Electrical
6,000 cycles
Conformance
IEC 60068-2-6 (Sinusoidal vibration) test Fc
±0.38 mm (10-57 Hz), 5g (57-500 Hz)
10 frequency cycles per axis
IEC 60068-2-27 (Shock) Test Ea
30g, 11 ms
IEC 60068-2-11 (Corrosion) Test Ka
96 h in 5% salt mist
IEC 60068-2-78 (Humidity) Test Cab
48 h at 95% relative humidity, 40°C
Approvals (UL 489/CSA-C22.2 No. 5)
TMC 81...
Nominal current range
Rated voltage AC
Rated voltage DC
Interrupt capacity
1 ... 32 A
277 V AC
60 V DC
10 kA
TMC 81...
35 ... 63A
120 V AC
60 V DC
10 kA
TMC 82...
1 ... 32 A
277 V AC (277/480Y, 240D)
125 V DC (two poles in series)
10 kA
TMC 82...
35 ... 63A
240 V AC (120/240S, 240D)
125 V DC (two poles in series)
10 kA
TMC 83...
1 ... 32 A
277 V AC (277/480Y, 240D)
125 V DC (two poles in series)
10 kA
TMC 83...
35 ... 63 A
240 V AC (120/240S, 240D)
10 kA
Approvals (UL 1077/CSA-C22.2 No. 235)
Nominal current range
Rated voltage AC
Rated voltage DC
TMC 71...
1 ... 63 A
240 V AC
60 V DC
TMC 71...
1 ... 63A
277 V AC
TMC 72...
1 ... 63 A
277/480Y, 240D
TMC 73…
1 ... 63 A
277/480Y, 240D
3644_en_C
Short-circuit current rating
(SCCR)
7.5 kA, U1
5 kA, U1
125 V DC (two poles in series)
7.5 kA, U1
7.5 kA, U1
PHOENIX CONTACT
11/24
TMC 7... and TMC 8...
Approvals (IEC/EN 60947-2)
TMC 71…
Nominal current range
Rated voltage AC
Rated voltage DC
–
240 V AC
80 V DC
TMC 81...
Rupture capacity
7.5 kA AC/10 kA DC (Ics)
10 kA (Icu)
TMC 72…
–
240/415 V AC
125 V DC (two poles in series)
TMC 73…
7.5 kA AC/10 kA DC (Ics)
10 kA DC (Icu)
TMC 82...
TMC 83…
3.1
Trip curve
3.2
Current rating and voltage drop @ 25°C
10000
Ambient temperature
+30°C
No-trip current
Trip current
1.05x In
1.30x In
Curve B magnetic trip current 4x In (±20%)
Curve C magnetic trip current 8x In (±20%)
Curve D magnetic trip current 12x In (±20%)
1000
Trip time (s)
100
10
1
TMC … IN (A)
Voltage drop (V)
1
1.50
2
0.80
3
0.60
4
0.60
5
0.20
6
0.20
7
0.20
8
0.15
10
0.15
12
0.15
13
0.10
15
0.10
16
0.10
20
0.08
25
0.08
30
0.07
32
0.07
35
0.07
40
0.07
50
0.06
60
0.06
63
0.06
0,1
B
C
D
0,01
0,8 1
2
4
6
8 10
20
40
Times rated current
Figure 1
Trip curves
The current rating is reduced to 80% when
mounted side by side.
Magnetic tripping currents are increased by 30%
on DC supplies (ambient temperature 30°C).
3644_en_C
PHOENIX CONTACT
12/24
TMC 7... and TMC 8...
3.3
Dimensions
116 ±0.4
17,6 ±0.2
35,3 ±0.4
52,9 ±0.6
5,5 ±0.3
60,1
60,2 ±0.3
45 ±0.3
Figure 2
TMC 8... dimensions (mm)
81,4 ±0.4
17,6 ±0.2
52,9 ±0.6
49,8
35,3 ±0.4
5,5 ±0.3
60,2 ±0.3
45 ±0.3
Figure 3
3644_en_C
TMC 7... dimensions (mm)
PHOENIX CONTACT
13/24
TMC 7... and TMC 8...
3.4
Environmental influences
The following correction factors must be considered when selecting the appropriate nominal current rating for the circuit
breaker.
IN
(A)
Maximum operating currents (A) depending on ambient temperature (°C)
-35
-30
-25
-20
-15
-10
-5
+5
+10
+15
+20
+25
+30
+35
+40
+45
+50
+55
+60
+65
+70
1
1.27
1.25
1.23
1.21
1.19
1.17
1.15
1.13
0
1.10
1.08
1.06
1.05
1.02
1.00
0.97
0.94
0.91
0.89
0.86
0.83
0.80
0.77
2
2.54
2.50
2.46
2.42
2.38
2.34
2.30
2.26
2.20
2.16
2.12
2.10
2.04
2.00
1.94
1.88
1.82
1.78
1.72
1.66
1.60
1.54
3
3.89
3.83
3.76
3.70
3.64
3.57
3.50
3.44
3.37
3.30
3.22
3.14
3.06
3.00
2.92
2.84
2.76
2.67
2.58
2.49
2.38
2.27
4
5.08
5.00
4.92
4.84
4.76
4.68
4.60
4.52
4.40
4.32
4.24
4.20
4.08
4.00
3.88
3.76
3.64
3.56
3.44
3.32
3.20
3.08
5
6.68
6.56
6.44
6.32
6.19
6.07
5.94
5.81
5.68
5.54
5.40
5.25
5.12
5.00
4.82
4.66
4.50
4.34
4.17
3.99
3.81
3.62
6
7.70
7.58
7.46
7.34
7.21
7.09
6.96
6.83
6.70
6.56
6.42
6.27
6.14
6.00
5.84
5.68
5.52
5.36
5.19
5.01
4.83
4.64
7
8.78
8.66
8.54
8.42
8.29
8.17
8.04
7.91
7.78
7.64
7.50
7.35
7.22
7.00
6.92
6.76
6.60
6.44
6.27
6.09
5.91
5.72
8
9.80
9.68
9.56
9.44
9.31
9.19
9.06
8.93
9.80
8.66
8.52
8.37
8.24
8.00
7.94
7.78
7.62
7.46
7.29
7.11
6.93
6.74
10 13.89 13.62 13.35 13.07 12.81 12.53 12.23 11.93 11.63 11.33 11.01 10.67 10.34 10.00
9.63
9.24
8.85
8.45
8.01
7.55
7.06
6.55
12 15.91 15.64 15.37 15.09 14.83 14.55 14.25 13.95 13.65 13.35 13.03 12.69 12.36 12.00 11.65 11.26 10.60 10.47 10.03
9.57
9.08
8.57
13 16.92 16.65 16.38 16.10 15.84 15.56 15.26 14.96 14.66 14.36 14.04 13.70 13.37 13.00 12.66 12.27 11.61 11.48 11.04 10.58 10.09
9.58
15 19.77 19.42 19.07 18.74 18.39 18.04 17.69 17.32 16.95 16.57 16.19 15.79 15.39 15.00 14.54 14.10 13.65 13.19 12.70 12.20 11.69 11.64
16 20.78 20.43 20.08 19.75 19.40 19.05 18.70 18.33 17.96 17.58 17.20 16.80 16.40 16.00 15.55 15.11 14.66 14.20 13.71 13.21 12.70 12.75
20 25.67 25.28 24.88 24.47 24.06 23.64 23.22 22.78 22.34 21.89 21.43 20.96 20.47 20.00 19.47 18.95 18.42 17.87 17.30 16.71 16.10 15.47
25 32.21 31.72 31.22 30.70 30.18 29.65 29.10 28.55 27.98 27.41 26.82 26.22 25.61 25.00 24.33 23.67 23.00 22.28 21.56 20.80 20.02 19.21
30 39.00 38.42 37.78 37.13 36.47 35.80 35.11 34.43 33.71 32.99 32.26 31.50 30.73 30.00 29.13 28.30 27.44 26.56 25.65 24.71 23.74 22.73
32 41.04 40.46 39.82 39.17 38.51 37.84 37.15 36.47 35.75 35.03 34.30 33.54 32.77 32.00 31.17 30.34 29.48 28.69 27.69 26.75 25.78 24.77
35 44.08 43.50 42.86 42.21 41.55 40.88 40.19 39.51 38.79 38.07 37.34 36.58 35.81 35.00 34.21 33.38 32.52 31.64 30.73 29.79 28.82 27.81
40 51.63 50.86 50.04 49.21 48.37 47.51 46.63 45.74 44.83 43.90 42.95 41.98 40.99 40.00 38.93 37.85 36.75 35.61 34.43 33.21 31.95 30.63
50 64.92 63.97 62.92 61.86 60.77 59.67 58.54 57.40 56.23 55.05 53.81 52.56 51.23 50.00 47.82 46.24 44.81 43.33 41.81 40.23 38.58 35.77
60 80.45 79.03 77.61 76.16 74.69 73.19 71.67 70.11 68.51 66.88 65.21 63.50 61.75 60.00 57.08 55.16 53.18 51.13 49.00 46.78 44.47 40.47
63 83.48 82.06 60.64 79.19 77.72 76.22 74.70 73.14 71.54 69.91 68.24 66.53 64.78 63.00 60.11 58.19 56.21 54.16 52.03 49.81 47.50 43.05
4
Circuit breaker installation
WARNING:
4.3
DC connection diagram
60 V DC
125 V DC
Always remove power before installing or
performing maintenance.
4.1
1.
2.
3.
4.2
1.
2.
3.
Mounting
Hook the device over the top edge of the DIN rail and
rotate it down until it snaps onto the bottom edge of the
rail.
Ensure that the orange DIN rail latch securely locks the
device to the rail.
Repeat for any additional devices.
Slide the devices together into the desired
configuration.
TMC 81 C 20A 1
TMC 82 C 16A 1
2
2
I ON
O OFF
I cu=10KA
I ON
O OFF
I cu=10KA
TMC 82 C 16A 1
2
I ON
O OFF
I cu=10KA
Removal
Slide the device away to gain sufficient clearance from
the next device.
Use a screwdriver to raise the latch and release the unit
from the bottom edge of the DIN rail.
Rotate the device up and lift off of the top edge of the
rail.
3644_en_C
Figure 4
DC connection diagram
PHOENIX CONTACT
14/24
TMC 7... and TMC 8...
5
Accessories
Several accessories are available for use with the
TMC 7/8... circuit breakers. The accessory modules are
mounted on the left side (see Figure 10) of the circuit
breaker. A variety of busbars are also available.
NOTE:
Accessory modules must be installed in the
proper order: shunt trip, alarm contact, and then
the auxiliary contact.
Figure 5
3644_en_C
Busbar and other accessories
PHOENIX CONTACT
15/24
TMC 7... and TMC 8...
6
Ordering data for accessories
Accessories
Description
Type
Order No.
Pcs./Pkt.
Auxiliary contact, one NO and one NC switch
TMC 7/8 AUX
2908219
1
Alarm contact, one NO and one NC
TMC 7/8 ALARM
2908220
1
Shunt trip, 12 V DC, one NO and one NC
TMC 7/8 12VDC SHNT
2908221
1
Shunt trip, 24 V DC, one NO and one NC
TMC 7/8 24VDC SHNT
2908222
1
Shunt trip, 48 V DC, one NO and one NC
TMC 7/8 48VDC SHNT
2908224
1
Shunt trip, 125 V DC, one NO and one NC
TMC 7/8 125VDC SHNT
2908225
1
1
Shunt trip, 120 V AC, one NO and one NC
TMC 7/8 120VAC SHNT
2908226
Shunt trip, 240 V AC, one NO and one NC
TMC 7/8 240VAC SHNT
2908227
1
Shunt trip, 277 V AC, one NO and one NC
TMC 7/8 277VAC SHNT
2908228
1
Busbar, cut to length, for TMC 7... 1-pole applications, up to 57 positions, UL
Listed
TMC 7 B1 80 57 C
1022238
1
Busbar, cut to length, for TMC 7... 1-pole plus auxiliary applications, up to 37
positions, UL Listed
TMC 7 B1 80 37 CA
1022237
1
Busbar, cut to length, for TMC 7... 2-pole applications, up to 56 positions, UL
Listed
TMC 7 B2 80 56 C
1022236
1
Busbar, cut to length, for TMC 7... 2-pole plus auxiliary applications, up to 46
positions, UL Listed
TMC 7 B2 80 46 CA
1022235
1
Busbar, cut to length, for TMC 7... 3-pole applications, up to 57 positions, UL
Listed
TMC 7 B3 80 57 C
1022234
1
Busbar, cut to length, for TMC 7... 3-pole plus auxiliary applications, up to 48
positions, UL Listed
TMC 7 B3 80 48 CA
1025400
1
Busbar terminal, 1-pole incoming connections, for TMC 7...
TMC 7 B1 TERM
1022233
1
Busbar terminal, 2- and 3-pole incoming connections, for TMC 7...
TMC 7 B2/3 TERM
1022232
1
Busbar, end cap, 1-pole, protects open busbar positions, for TMC 7...
TMC 7 B1 END CAP
1022231
1
Busbar, end cap, 2- and 3-pole, protects open busbar positions, for TMC 7...
TMC 7 B2/3 END CAP
1022229
1
Busbar, bus cap, protects three open busbar positions, for TMC 7...
TMC 7 B BUS CAP
1022224
1
Busbar, cut to length, for TMC 8... 1-pole applications, up to 57 positions, UL
Listed
TMC 8 B1 80 57 C
2907991
1
Busbar, cut to length, for TMC 8... 1-pole plus auxiliary applications, up to 37
positions, UL Listed
TMC 8 B1 80 37 CA
2907992
1
Busbar, cut to length, for TMC 8... 2-pole applications, up to 56 positions, UL
Listed
TMC 8 B2 80 56 C
2907993
1
Busbar, cut to length, for TMC 8... 2-pole plus auxiliary applications, up to 46
positions, UL Listed
TMC 8 B2 80 46 CA
2907995
1
Busbar, cut to length, for TMC 8... 3-pole applications, up to 57 positions, UL
Listed
TMC 8 B3 80 57 C
2907996
1
Busbar, cut to length, for TMC 8... 3-pole plus auxiliary applications, up to 48
positions, UL Listed
TMC 8 B3 80 48 CA
2907997
1
Busbar terminal, incoming connections, TMC 8...
TMC 8 B TERM PIN
2907998
1
Busbar, end cap, protects open busbar positions, TMC 8...
TMC 8 B END CAP
2907999
1
Busbar, bus cap, protects three open busbar positions, TMC 8...
TMC 8 B BUS CAP
2908000
1
3644_en_C
PHOENIX CONTACT
16/24
TMC 7... and TMC 8...
7
Technical data for accessories
7.1
Technical data for TMC 7/8 AUX and TMC 7/8 ALARM accessories
General data (TMC 7/8 AUX and TMC 7/8 ALARM)
Ambient temperature, operating
-35 … 70°C (-31 … 158°F)
Degree of protection
IP20
Weight
29 g (approximate)
Width
9 mm
Installation
Left side of circuit breaker
Conductor cross section
1 ... 35 mm²/18 ... 2 AWG
Connection type
Screw-clamp terminals
Conductor tightening torque, maximum
1 Nm (8.9 lbf-in.)
Service life, mechanical
20,000 cycles
Electrical data (TMC 7/8 AUX and TMC 7/8 ALARM)
Nominal voltage, UN (IEC/EN 60947-5-1)
12 V DC ... 220 V DC
12 V AC ... 277 V AC
Rated current (IEC/EN 60947-5-1)
240 V AC
6A
24 V DC
6A
48 V DC
2A
130 V DC
1A
Rated current (UL 489)
12 … 240 V AC
6A
277 V AC
3A
12 … 24 V DC
6A
48 V DC
3A
110 … 220 V DC
1.5 A
General data (TMC 7/8…SHNT)
Ambient temperature, operating
-35 … 70°C (-31 … 158°F)
Degree of protection
IP20
Weight
60 g (approximate)
Width
18 mm
Installation
Left side of circuit breaker
Conductor cross section
1 ... 35 mm²/18 ... 2 AWG
Connection type
Screw-clamp terminals
Conductor tightening torque, maximum
1 Nm (8.9 lbf-in.)
Service life, mechanical
20,000 cycles
3644_en_C
PHOENIX CONTACT
17/24
TMC 7... and TMC 8...
Electrical data (TMC 7/8…SHNT)
Nominal voltage, UN
12 V DC ... 125 V DC
120 V AC ... 277 V AC
Trip voltage
277 V AC
160 V AC
240 V AC
160 V AC
120 V AC
80 V AC
125 V DC
125 V DC
48 V DC
24 V DC
24 V DC
16 V DC
12 V DC
8 V DC
Power consumption/minimum response power
277 V AC
240 W/35 W
240 V AC
200 W/35 W
120 V AC
200 W/35 W
125 V DC
200 W/30 VA
48 V DC
200 W/30 VA
24 V DC
200 W/30 VA
12 V DC
200 W/30 VA
Trip time
7.2
工商网监
湘ICP备2023018690号
