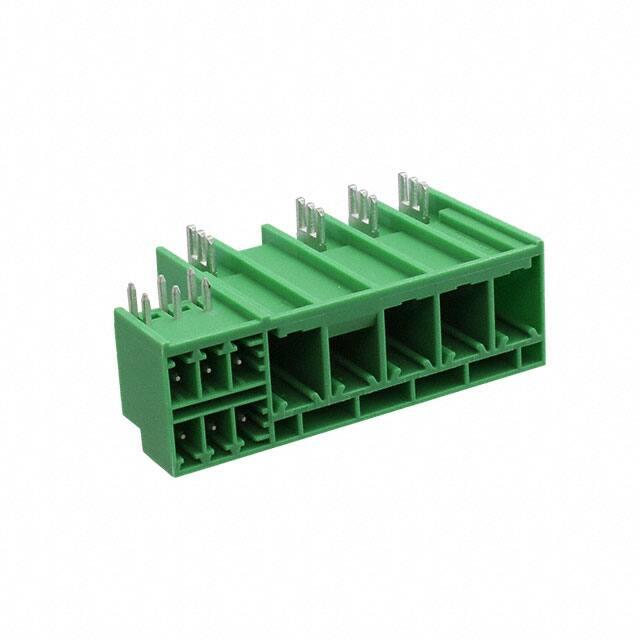

2019-03-15 Product version 01 Data sheet Document revision 00 Order No.: 1717138 Type: PCH 6/ 4+6-GL4-7,62 PCB hybrid header Figure shows a 5+6-pos. version with locking flange at position 5 No. of pos. Nominal cross section Color Pitch Mounting type 10 6 mm² green (6021) 7.62 mm Wave soldering     Nominal current Nominal voltage Connection direction Type of packaging 41 A 630 V 0° packed in cardboard        Main features   1 Your advantages   Combining signals and power in a single header saves time and space Easy PCB replacement thanks to plug-in modules Well-known mounting principle allows worldwide use Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/product/1717138 © PHOENIX CONTACT 2019 2 2019-03-15 Product version 01 Main features........................................................................................................................... 1 2 Your advantages ..................................................................................................................... 1 3 Table of contents ..................................................................................................................... 2 4 3D model in PDF can be activated (Acrobat Reader only)....................................................... 3 5 General Technical Data ........................................................................................................... 4 5.1 item properties .................................................................................................................... 4 6 Material properties................................................................................................................... 5 6.1 RoHs/WEEE compliant ......................................................................................................... 5 6.2 Material of metal parts........................................................................................................... 5 6.3 Material Kunststoffteile .......................................................................................................... 5 7 Dimensions.............................................................................................................................. 6 7.1 Dimensions for the product .................................................................................................... 6 8 Series drawing......................................................................................................................... 7 9 Packaging information ............................................................................................................. 8 10 Application............................................................................................................................... 8 10.1 Temperature limit values ....................................................................................................... 8 11 Mechanical tests...................................................................................................................... 9 12 Electrical tests ....................................................................................................................... 10 12.1 Electrical data ................................................................................................................... 10 12.2 Air and creepage distances .................................................................................................. 10 13 Current carrying capacity/derating curves ............................................................................. 11 13.1 Vibration test .................................................................................................................... 11 14 Approvals .............................................................................................................................. 11 15 Commercial Data................................................................................................................... 12 16 Accessories ........................................................................................................................... 12 17 Combination tests.................................................................................................................. 13   Table of contents 1 © PHOENIX CONTACT 2019 3   Document revision 00   1717138 PCH 6/ 4+6-GL4-7,62 REF 1717119 PHOENIX CONTACT 2 / 13 2019-03-15 Product version 01 1717138 PCH 6/ 4+6-GL4-7,62 3D model in PDF can be activated (Acrobat Reader only) © PHOENIX CONTACT 2019       4 Document revision 00 REF 1717119 PHOENIX CONTACT 3 / 13 2019-03-15 Product version 01 1717138 PCH 6/ 4+6-GL4-7,62 5 General Technical Data 5.1 item properties Document revision 00 Order No. 1717138 Type PCH 6/ 4+6-GL4-7,62 Plug-in system POWER COMBICON 6 Hybrid Product type PCB hybrid header Type of contact Male connector Range of articles PCH 6/..-GL Number of positions 10 Number of connections 10 Number of potentials 10 Type of locking Snap-in locking Self-locking flange Mounting type Wave soldering Connection direction of the connector to the PCB 0° Power Signal 7.62 mm 3.81 mm Number of levels 1 2 Number of positions 4 6 Number of connections 4 6 Number of potentials 4 6 © PHOENIX CONTACT 2019       Pitch REF 1717119 PHOENIX CONTACT 4 / 13 2019-03-15 Product version 01 1717138 PCH 6/ 4+6-GL4-7,62 6 Material properties 6.1 RoHs/WEEE compliant Note 6.2 Document revision 00 WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Material of metal parts Power Signal Contact material Cu alloy Cu alloy Surface contact area Nickel (1.3 - 3 µm Ni) , Tin (2 - 4 µm Sn) Nickel (1.3 - 3 µm Ni) , Tin (2 - 4 µm Sn) Soldering area surface Nickel (1.3 - 3 µm Ni) , Tin (2 - 4 µm Sn) Nickel (1.3 - 3 µm Ni) , Tin (2 - 4 µm Sn) Surface characteristics Tin-plated Tin-plated 6.3 Material Kunststoffteile Insulating material Power Signal PA GF PA GF I I 600 600 Flammability rating according to UL 94 V0 V0 Color green (6021) green (6021) © PHOENIX CONTACT 2019       Insulating material group CTI according to IEC 60112 REF 1717119 PHOENIX CONTACT 5 / 13 2019-03-15 Product version 01 1717138 PCH 6/ 4+6-GL4-7,62 7 Dimensions 7.1 Dimensions for the product Document revision 00 Length 28.2 mm Width 51.06 mm 16.4 mm Total height 19 mm Solder pin [P] 2.6 mm Dimension a 30.48 mm Power Signal Solder pin [P] 2.6 mm 2.6 mm Pin dimensions 1 x 1.2 mm 0.8 x 0.8 mm Dimension a 30.48 mm 30.48 mm © PHOENIX CONTACT 2019       Height (without solder pin) REF 1717119 PHOENIX CONTACT 6 / 13 2019-03-15 Product version 01 1717138 PCH 6/ 4+6-GL4-7,62 Series drawing © PHOENIX CONTACT 2019       8 Document revision 00 REF 1717119 PHOENIX CONTACT 7 / 13 2019-03-15 Product version 01 1717138 PCH 6/ 4+6-GL4-7,62 9 Document revision 00 Packaging information Type of packaging packed in cardboard Pieces per package 50 10 Application 10.1 Temperature limit values -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C (dependent on the derating curve) © PHOENIX CONTACT 2019       Ambient temperature (storage/transport) REF 1717119 PHOENIX CONTACT 8 / 13 2019-03-15 Product version 01 1717138 PCH 6/ 4+6-GL4-7,62 11 Document revision 00 Mechanical tests Mechanical test group A Specification IEC 61984:2008-10 Visual examination Test passed Specification IEC 60512-1-1:2002-02 Dimensional test Test passed Specification IEC 60512-1-2:2002-02 Resistance of marking Test passed Specification IEC 60068-2-70:1995-12 Insertion and withdrawal force Test passed Specification IEC 60512-13-2:2006-02 No. of cycles 25 Insertion strength per pos. approx. 7N Withdraw strength per pos. approx. 4N Polarization and coding Test passed Specification IEC 60512-13-5:2006-02 Test force 20 N Contact retention in insert Test passed IEC 60512-15-1:2008-05 Test force per pos. 20 N © PHOENIX CONTACT 2019       Specification REF 1717119 PHOENIX CONTACT 9 / 13 2019-03-15 Product version 01 1717138 PCH 6/ 4+6-GL4-7,62 12 Electrical tests 12.1 Electrical data Rated current / conductor cross section Document revision 00 41 A 6 mm² Rated insulation voltage (III/2) 630 V Rated surge voltage (III/2) 6 kV Contact resistance 0.42 mΩ Degree of pollution 2 12.2 Air and creepage distances Component Header Specification IEC 60664-1:2007-04 Mains type unearthed mains Insulating material group I CTI 600 Rated insulation voltage 630 V 630 V 1000 V Rated surge voltage 6 kV 6 kV 6 kV Degree of pollution 3 2 2 Overvoltage category III III II Minimum clearance case A (inhomogeneous field) 5.5 mm 5.5 mm 5.5 mm Minimum value of the creepage path requirement in acc. with table 8 mm 3.2 mm 5 mm © PHOENIX CONTACT 2019       Comparative tracking index (IEC 60112:2003-01) REF 1717119 PHOENIX CONTACT 10 / 13 2019-03-15 Product version 01 1717138 PCH 6/ 4+6-GL4-7,62 13 Document revision 00 Current carrying capacity/derating curves Specification IEC 61984:2008-10 Note Representation based on IEC 60512-5-2:2002-02 Reduction factor 0.8 Number of positions See diagram Conductor cross section 6 mm² Current strength [A] Type: LPCH 6/...+...-STL...-7,62 with PCH 6/...+...-GL...-7,62 80 72 64 56 48 40 32 24 16 8 0 = ∑ 5 MΩ IEC 60068-2-6:2007-12 Test passed Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Acceleration 5 g (60.1 - 150 Hz)   Specification Result   Vibration test Test duration per axis 2.5 h Test directions X-, Y- and Z-axis Note The connected conductor loops were guided to the test sample at a distance of approx. 10 cm. 14   13.1 Approvals cULus Recognized  Use group B1 F F1 Voltage 300 V 600 V 160 V Current 6A 35 A 6A REF 1717119 © PHOENIX CONTACT 2019 mm²/AWG/kcmil PHOENIX CONTACT 11 / 13 2019-03-15 Product version 01 1717138 PCH 6/ 4+6-GL4-7,62 15 Document revision 00 Commercial Data Order No. 1717138 Type PCH 6/ 4+6-GL4-7,62 Pieces per package 50 Net weight 120 g GTIN 4055626514994 Information that applies locally, see link on page 1 Country of origin 16 Information that applies locally, see link on page 1 Accessories Order No. Type 1701967 CP-PC RD © PHOENIX CONTACT 2019       Description Coding profile, for plugging into the coding ribs of the plug at a later date, insulating material, color: Red REF 1717119 PHOENIX CONTACT 12 / 13 2019-03-15 Product version 01 1717138 PCH 6/ 4+6-GL4-7,62 17 Document revision 00 Combination tests PCH 6/..-GL LPCH 6/..-STL3 IEC 61984 IEC 61984 Mechanical tests (A) Insertion/withdrawal force per position approx. 7 N / 4 N Polarization when inserted Requirement >20 N Test passed Contact holder in insert Requirements >20 N Test passed Durability tests (B) Contact resistance R1 0.42 mΩ Insertion/withdrawal cycles 25 Contact resistance R2 0.46 mΩ Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 7.3 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 3.31 kV Thermal tests (C) 4 Tested conductor cross section 6 mm²   Tested number of positions 41 A Upper limiting temperature Requirements < 100°C Test passed   Test current Climatic tests (D) -40 °C/2 h Test sequence 2: heat storage 100 °C/168 h Test sequence 3: noxious gas storage (ISO 6988) 0.2 dm3 SO2 on 300 dm3/ 40 °C/1 cycle Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 7.3 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 3.31 kV   Test sequence 1: low temperature storage Specification IEC 61984:2008-10 Degree of protection Back of hand safety with IP10 access probe REF 1717119 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany phoenixcontact.com © PHOENIX CONTACT 2019 Environmental and endurance tests (E) PHOENIX CONTACT 13 / 13
