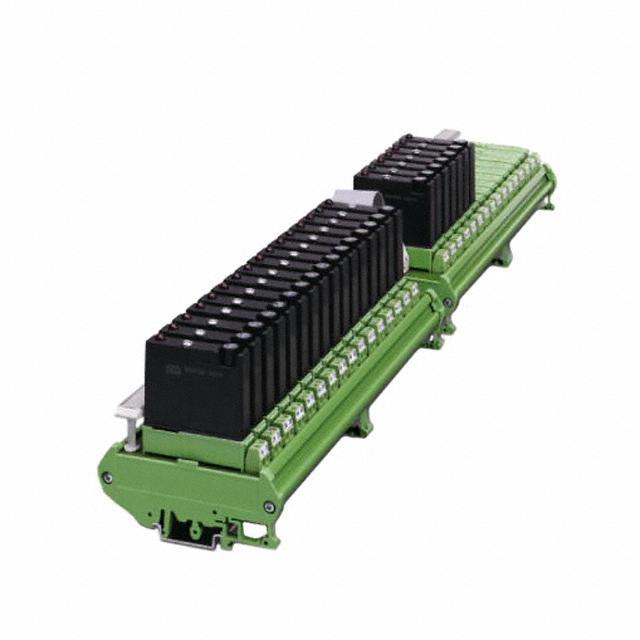

Extract from the online catalog     UMK-16 OM/AMSC/PLC Order No.: 2976721 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2976721   VARIOFACE output module, for 16 channels, with plug-in sockets for generation 4 solid-state relays from OPTO 22   Product notes WEEE/RoHS-compliant since: 04/14/2008 Commercial data GTIN (EAN) 4 017918 089436 Note Made-to-order sales group I641 Pack 1 pcs. Customs tariff 85369010 Catalog page information Page 257 (IF-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data Input data Nominal input voltage UN 24 V DC Type of protection Protection against polarity reversal Operating voltage display Green LED PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 1 / 4 Feb 25, 2011 UMK-16 OM/AMSC/PLC Order No.: 2976721 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2976721 Output data Contact type 1 N/O contact Maximum switching voltage 250 V AC/DC Limiting continuous current 6A Nominal supply voltage 250 V AC/DC (data is module-specific) Continuous load current 6A Error detection (line break / short-circuit) no General data No. of channels 16 32 Compatible components Solid-state relay, Generation 4 from OPTO 22 With components No Width 259 mm Height 90 mm Depth 87 mm Ambient temperature (operation) -20 °C ... 50 °C Ambient temperature (storage/transport) -20 °C ... 70 °C Test voltage 4 kV (50 Hz, 1 min.) Standards/regulations IEC 60664 DIN EN 50178 IEC 62103 Mounting position Any Pollution degree 2 Surge voltage category III Housing insulation material PVC, side panel PA non-reinforced, Color green Connection data Connection 1 Input Type of connection Flat-ribbon cable plug connector in acc. with IEC 60603-13 Number of positions 50 Connection 2 Output Type of connection Screw connection Number of positions 2 Conductor cross section solid min. 0.14 mm² PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 2 / 4 Feb 25, 2011 UMK-16 OM/AMSC/PLC Order No.: 2976721 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2976721 Conductor cross section solid max. 1.5 mm² Conductor cross section stranded min. 0.14 mm² Conductor cross section stranded max. 1.5 mm² Conductor cross section AWG/kcmil min. 26 Conductor cross section AWG/kcmil max 14 Screw thread M3 Stripping length 6 mm Certificates / Approvals Certification CUL, GOST, UL Additional products Item Designation Description UMK-16 OM/AMSC/E/PLC VARIOFACE output expansion module, for 16 channels, with plug-in sockets for Generation 4 solid-state relays from OPTO 22 General 2976734 Diagrams/Drawings Circuit diagram PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 3 / 4 Feb 25, 2011 UMK-16 OM/AMSC/PLC Order No.: 2976721 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2976721 Address PHOENIX CONTACT Deutschland GmbH Flachsmarktstr. 8 32825 Blomberg,Germany Phone +49 5235 3 12000 Fax +49 5235 3 41200 http://www.phoenixcontact.de © 2011 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 4 / 4 Feb 25, 2011
