1700 V SCALE-iDriver
Up to 8 A Single Channel IGBT/MOSFET Gate Driver
Providing Basic Galvanic Isolation for 1700 V IGBT
and MOSFET
Product Highlights
Description
Highly Integrated, Compact Footprint
The SID1183K is a single channel IGBT and MOSFET driver in an
eSOP package. Galvanic isolation is provided by Power Integrations’
innovative solid insulator FluxLink technology. The up to 8 A peak
output drive current enables the product to drive devices up to 600 A
without requiring any additional active components. For gate drive
requirements that exceed the stand-alone capability of the SID1183K,
an external booster may be added. Stable positive and negative voltages
for gate control are provided by one unipolar isolated voltage source.
• Split outputs providing up to 8 A peak drive current
• Integrated FluxLink™ technology providing galvanic isolation
•
•
•
•
•
•
•
•
•
between primary-side and secondary-side
Rail-to-rail stabilized output voltage
Unipolar supply voltage for secondary-side
Suitable for 1700 V IGBT and MOSFET switches
Up to 75 kHz switching frequency
Low propagation delay time 260 ns
Propagation delay jitter ±5 ns
-40 °C to 125 °C operating ambient temperature
High common-mode transient immunity
eSOP package with 9.5 mm creepage and clearance distances
Additional features are short-circuit protection (DESAT) with Advanced
Soft Shut Down (ASSD), undervoltage lock-out (UVLO) for primary-side
and secondary-side and rail-to-rail output with temperature and
process compensated output impedance guarantee safe operation
even in harsh conditions.
Advanced Protection / Safety Features
• Undervoltage lock-out protection for primary and secondary-side
(UVLO) and fault feedback
• Short-circuit protection using VCE SAT monitoring and fault feedback
• Advanced Soft Shut Down (ASSD)
Controller (PWM and fault) signals are compatible with 5 V CMOS logic,
which may also be adjusted to 15 V levels by using external resistor divider.
Product Portfolio
Full Safety and Regulatory Compliance
• 100% production partial discharge test
• 100% production HIPOT compliance testing at 6 kV RMS 1 s
• Basic insulation meets VDE 0884-10
Green Package
• Halogen free and RoHS compliant
Product1
Peak Output Drive Current
SID1183K
8A
Table 1. SCALE-iDriver 1700 V Portfolio.
Notes:
1. Package: eSOP-R16B.
Applications
• General purpose and servo drives
• UPS, solar, welding inverters and power supplies

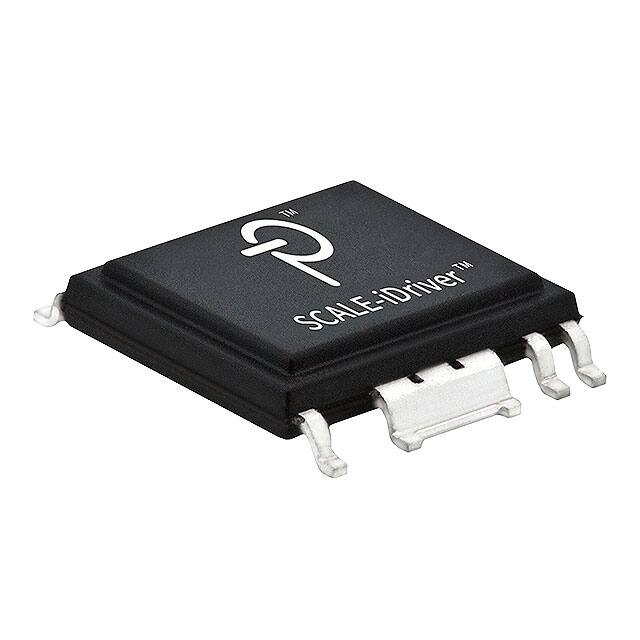

Figure 2. eSOP-R16B Package.
SCALE-iDriver
Primary-Side
Logic
Secondary-Side
Logic
VCE
VGXX
IN
VISO
Fault
Output
VTOT
SO
GH
VIN
VCC
VVCC +
-
FluxLink
+
-
GL
GND
VEE
COM
Figure 1. Typical Application Schematic.
www.power.com
PI-7949-072616
May 2017
This Product is Covered by Patents and/or Pending Patent Applications.
1700 V SCALE-iDriver
VCE
+
VDES
VGXX
SHORT-CIRCUIT
DETECTION
VCC
ASSD
BOOTSTRAP
CHARGE PUMP
COM
VISO
LEVEL
SHIFTER
GH
FluxLink
SO
TRANSCEIVER
(BIDIRECTIONAL)
TRANSCEIVER
(BIDIRECTIONAL)
GL
GND
IN
CORE LOGIC
SUPPLY
MONITORING
AUXILIARY
POWER SUPPLIES
CORE LOGIC
SUPPLY
MONITORING
AUXILIARY
POWER SUPPLIES
COM
VISO
VEE
VEE CONTROL
PI-8285-0317171
Figure 3. Functional Block Diagram.
Pin Functional Description
VCC Pin (Pin 1):
This pin is the primary-side supply voltage connection.
GND Pin (Pin 3-6):
This pin is the connection for the primary-side ground potential.
All primary-side voltages refer to this pin.
VISO Pin (Pin 14):
This pin is the input for the secondary-side positive supply voltage.
COM Pin (Pin 15):
This pin provides the secondary-side reference potential.
GL Pin (Pin 16):
This pin is the driver output – sinking current (turn-off).
IN Pin (Pin 7):
This pin is the input for the logic command signal.
SO Pin (Pin 8):
This pin is the output for the logic fault signal (open drain).
NC Pin (Pin 9):
This pin must be un-connected. Minimum PCB pad size for soldering
is required.
VCC 1
VEE Pin (Pin 10):
Common (IGBT emitter/MOSFET source) output supply voltage.
GND 3-6
VCE Pin (Pin 11):
This pin is the desaturation monitoring voltage input connection.
IN 7
SO 8
VGXX Pin (Pin 12):
This pin is the bootstrap and charge pump supply voltage source.
GH Pin (Pin 13):
This pin is the driver output – sourcing current (turn-on) connection.
16 GL
15 COM
14 VISO
13 GH
12 VGXX
11 VCE
10 VEE
9 NC
PI-7648-041415
Figure 4.
Pin Configuration.
2
Rev. A 05/17
www.power.com
1700 V SCALE-iDriver
SCALE-iDriver Functional Description
SCALE-iDriver
The single channel SCALE-iDriver™ family drives IGBTs and MOSFETs
or other semiconductor power switches with a blocking voltage of up
to 1700 V and provides basic isolation between micro-controller and
the power semiconductor switch. The status of the power semiconductor switch and SCALE-iDriver is monitored via the SO pin.
R1
IN
R2
Command signals are transferred from the primary (IN) to secondaryside via FluxLink isolation technology. The GH pin supplies a positive
gate voltage and charges the semiconductor gate during the turn-on
process. The GL pin supplies the negative voltage and discharges the
gate during the turn-off process.
SO
RSO
VCC
C1
GND
Short-circuit protection is implemented using a desaturation detection
technique monitored via the VCE pin. After the SCALE-iDriver detects
a short-circuit, the semiconductor turn-off process is implemented
using an Advanced Soft Shut Down (ASSD) technique.
Input and Fault Logic (Primary-Side)
The input (IN) and output (SO) logic is designed to work directly with
micro-controllers using 5 V CMOS logic. If the physical distance
between the controller and the SCALE-iDriver is large or if a different
logic level is required, the resistive divider in Figure 5 is recommended.
This solution adjusts the logic level as necessary and will also improve
the driver’s noise immunity.
PI-7950-050916
Figure 5. Increased Threshold Voltages VIN+LT and V IN+HT. For R1 = 3.3 kW and
R 2 = 1 kW the IN Logic Level is 15 V.
connected together. Note: The SCALE-iDriver SID1183K data sheet
defines the RGH and RGL values as total resistances connected to the
respective pins GH and GL. Note that most power semiconductor
data sheets specify an internal gate resistor RGINT which is already
integrated into the power semiconductor switch. In addition to RGINT,
external resistor devices RGON and RGOFF are specified to setup the gate
current levels to the application requirements. Consequently, RGH is
the sum of RGON and RGINT, as shown in Figures 9 and 10. Careful
consideration should be given to the power dissipation and peak
current associated with the external gate resistors.
The GH pin output current source (IGH) of SID1183K is capable of
handling (typically) up to 7.3 A during turn-on, and the GL pin output
current source (IGL) is able to sink up to 8.0 A during turn-off at 25 °C.
The SCALE-iDriver’s internal resistances are described as RGHI and RGLI
respectively. If the gate resistors for SCALE-iDriver family attempt to
draw a higher peak current, the peak current will be internally limited
to a safe value, see Figures 6 and 7. Figure 8 shows the peak current
that can be achieved for a given supply voltage for same gate resistor
values, load capacitance and layout design.
Gate driver commands are transferred from the IN pin to the GH and
GL pins with a propagation delay tP(LH) and tP(HL).
The SO pin current is defined as ISO; voltage during low status is
defined as VSO(FAULT).
Output (Secondary-Side)
The gate of the power semiconductor switch should be connected to
the SCALE-iDriver output via pins GH and GL, using suitable turn-on
and turn-off gate resistors. Turn-on gate resistor RGON needs to be
connected to the GH pin and turn-off gate resistor RGOFF to the GL pin.
If both gate resistors have the same value, the GL and GH pins may be
Turn-On Peak Gate Current IGH (A)
During normal operation, when there is no fault detected, the SO pin
stays at high impedance (open). Any fault is reported by connecting
the SO pin to GND. The SO pin stays low as long as the V VCC voltage
(primary-side) stays below UVLOVCC, and the propagation delay is
negligible. If desaturation is detected (there is a short-circuit), or the
supply voltages V VISO, V VEE, (secondary-side) drop below UVLOVISO,
UVLOVEE, the SO status changes with a delay time tFAULT and keeps
status low for a time defined as tSO. In case of a fault condition the
driver applies the off-state (the GL pin is connected to COM). During
the tSO period, command signal transitions from the IN pin are ignored.
A new turn-on command transition is required before the driver will
enter the on-state.
9
PI-7910-050916
Power Supplies
The SID1183K requires two power supplies. One is the primary-side
(V VCC) which powers the primary-side logic and communication with
the secondary (insulated) side. One supply voltage is required for the
secondary-side, V TOT is applied between the VISO pin and the COM
pin. V TOT should be insulated from the primary-side and should
provide at least the same insulation capabilities as the SCALE-iDriver.
V TOT should have a low capacitive coupling to the primary or any other
secondary-side. The positive gate-emitter voltage is provided by V VISO
which is internally generated and stabilized to 15 V (typically) with
respect to VEE. The negative gate-emitter voltage is provided by V VEE
with respect to COM. Due to the limited current sourcing capabilities
of the VEE pin, any additional load needs to be applied between the
VISO and COM pins. No additional load between VISO and VEE pins
or between VEE and COM pins is allowed.
8
7
6
5
4
4
RGH = 4 Ω, RGL = 3.4 Ω, CLOAD = 47 nF
RGH = 4 Ω, RGL = 3.4 Ω, CLOAD = 100 nF
RGH = RGL = 0 Ω, CLOAD = 47 nF
3
1
0
-60
-40
-20
0
20
40
60
80
100
120
140
Ambient Temperature (°C)
Figure 6. Turn-On Peak Output Current (Source) vs. Ambient Temperature.
Conditions: VCC = 5 V, V TOT = 25 V, fS = 20 kHz, Duty Cycle = 50%.
3
www.power.com
Rev. A 05/17
1700 V SCALE-iDriver
RGH = 4 Ω, RGL = 3.4 Ω, CLOAD = 47 nF
RGH = 4 Ω, RGL = 3.4 Ω, CLOAD = 100 nF
RGH = RGL = 0 Ω, CLOAD = 47 nF
-2
-3
-4
-5
-6
-7
-8
PI-7912-042816
PI-7911-042816
-1
7
6
Gate Peak Current (A)
Turn-Off Peak Gate Current IGL (A)
0
5
4
3
2
IGH, Turn-On Peak Gate Current
IGL, Turn-Off Peak Gate Current
1
-9
0
-10
-60
-40
-20
0
20
40
60
80
100
120
140
Ambient Temperature (°C)
Figure 7. Turn-Off Peak Output Current (Sink) vs. Ambient Temperature.
Conditions: VVCC = 5 V, V TOT = 25 V, fS = 20 kHz, Duty Cycle = 50%.
Short-Circuit Protection
The SCALE-iDriver uses the semiconductor desaturation effect to
detect short-circuits and protects the device against damage by
employing an Advanced Soft Shut Down (ASSD) technique. Desaturation can be detected using two different circuits, either with diode
sense circuitry DVCE (Figure 9) or with resistors RVCEX (Figure 10). With
the help of a well stabilized V VISO and a Schottky diode (DSTO) connected
between semiconductor gate and VISO pin the short-circuit current
value can be limited to a safe value.
During the off-state, the VCE pin is internally connected to the COM
pin and CRES is discharged (red curve in Figure 11 represents the
potential of the VCE pin). When the power semiconductor switch
receives a turn-on command, the collector-emitter voltage (VCE)
decreases from the off-state level same as the DC-link voltage to a
normally much lower on-state level (see blue curve in Figure 11) and
CRES begins to be charged up to the VCE saturation level (VCE SAT). The
VCE voltage during on-state is continuously observed and compared with
a reference voltage VDES. As soon as VCE>VDES the driver turns off the
power semiconductor switch with a controlled collector current slope,
limiting the VCE overvoltage excursions to below the maximum
collector-emitter voltage (VCES). Turn-on commands during this time
and during tSO are ignored, and the SO pin is connected to GND.
The response time tRES is the CRES charging time and describes the
delay between VCE asserting and the voltage on the VCE pin rising
(see Figure 11). Response time should be long enough to avoid false
tripping during semiconductor turn-on and is adjustable via RRES and
CRES (Figure 9) or RVCE and CRES (Figure 10) values. It should not be
longer than the period allowed by the semiconductor manufacturer.
Note: The response time for short-circuit protection using a resistor
network depends also on the actual DC-link voltage.
The implementation according to Figure 10 is preferred as it avoids
unintended tripping of the gate driver during zero-crossing of the load
current, which depending on actual application conditions may lead to
a transient VCESAT increase. The circuitry according to Figure 10
provides an inherent filter, which prevents a false short-circuit
detection. The implementation according to Figure 9, however, does
not provide this filtering and may lead to unintended tripping events.
20
21
22
23
24
25
26
27
28
29
Secondary-Side Total Supply Voltage – VTOT (V)
Figure 8. Turn-On and Turn-Off Peak Output Current vs. Secondary-Side Total
Supply Voltage (V TOT). Conditions: VVCC = 5 V, TJ = 25 °C, RGH = 4 W,
RGL = 3.4 W, CLOAD = 100 nF, fS = 1 kHz, Duty Cycle = 50%.
SCALE-iDriver
RVCE
VCE
VGXX
CRES
DVCE
RRES
CGXX
VISO
RGON
GH
GL
RGOFF
DSTO
Collector
Gate RGINT
Emitter
VEE
COM
PI-7951-080416
Figure 9. Short-Circuit Protection Using Diode DVCE.
Safe Power-Up and Power-Down
During power-up and power-down the IN pin should stay at logic low.
In order to avoid these effects, it is recommended that the IN pin is
kept at logic low during power-up and power-down. Any supply
voltage related to VCC, VISO, VEE and VGXX pins should be stabilized
using ceramic capacitors C1, CS1X, CS2X, CGXX respectively as shown in
Figures 13 and 14. After supply voltages reach their nominal values,
the driver will begin to function after a time delay tSTART.
Short-Pulse Operation
If command signals applied to the IN pin are shorter than the minimum
specified by tGE(MIN), then SID1183K output signals, GH and GL pins,
will extend to value tGE(MIN). The duration of pulses longer than tGE(MIN)
will not be changed.
4
Rev. A 05/17
30
www.power.com
1700 V SCALE-iDriver
SCALE-iDriver
V
RVCE
VCE
VGXX
CRES
RVCEX
VCE (IGBT) Signal
DCL
CGXX
RGON
GH
DSTO
Collector
VCE SAT
Gate RGINT
RGOFF
GL
Fault
VDES
VISO
tRES
t
Emitter
VEE
VCE Pin Signal
COM
COM
PI-7952-080416
PI-7671-093016
Figure 10. Short-Circuit Protection Using a Resistor Network RVCEX.
Figure 11. Short-Circuit Protection Using Resistor Network RVCEX.
Advanced Soft Shut Down (ASSD)
This function is activated after a short-circuit is detected. It protects
the power semiconductor switch against destruction by ending the
turn-on state and limiting the current slope in order to keep momentary VCE overvoltages below VCES. This function is particularly suited to
IGBT applications. Figure 12 shows how the ASSD function operates.
The VCE desaturation is visible during time period P1 (yellow line).
During this time, the gate-emitter voltage (green line) is kept very
stable. Collector current (pink line) is also well stabilized and limited
to a safe value. At the end of period P1, VGE is reduced until the
beginning of tFSSD1. Due to collector current decrease a small VCE
overvoltage is seen. During tFSSD1 VGE is further reduced and the gate
of the power semiconductor switch is further discharged. During tFSSD2
additional small VCE overvoltage events may occur. Once VGE drops
below the gate threshold of the IGBT, the collector current has decayed
almost to zero and the remaining gate charge is removed ‒ ending the
short- circuit event. The whole short-circuit current detection and safe
switch-off is shorter than 10 µs (7.1 µs from 10%-to-10% of the
collector current in this example).
VGE
tFSSD1
IGE
VCE
ICE
P1
tFSSD2
Figure 12. Advanced Soft Shut Down Function.
5
www.power.com
Rev. A 05/17
1700 V SCALE-iDriver
Application Examples and Components Selection
Figures 13 and 14 show the schematic and typical components used
for a SID1183K design. In both cases the primary-side supply voltage
(V VCC) is connected between VCC and GND pins and supported through
a supply bypass ceramic capacitor C1 (4.7 mF typically). If the
command signal voltage level is higher than the rated IN pin voltage
(in this case 15 V) a resistive voltage divider should be used. Additional
capacitor CF and Schmitt trigger IC1 can be used to provide input
signal filtering. The SO output has 5 V logic and the RSO is selected
so that it does not exceed absolute maximum rated ISO current.
The secondary-side isolated power supply (V TOT) is connected between
VISO and COM. The positive voltage rail (V VISO) is supported through
4.7 µF ceramic capacitors CS21 and CS22 connected in parallel. The
negative voltage rail (V VEE) is similarly supported through capacitors
CS11 and CS12. The gate charge will vary according to the type of
power semiconductor switch that is being driven. Typically, CS11 + CS12
should be at least 3 mF multiplied by the total gate charge of the
power semiconductor switch (QGATE) divided by 1 mC. A 10 nF capacitor
CGXX is connected between the GH and VGXX pins.
The gate of the power semiconductor switch is connected through
resistor RGON to the GH pin and by RGOFF to the GL pin. If the value of
RGON is the same as RGOFF the GH pin can be connected to the GL pin
and a common gate resistor can be connected to the gate. In each
case, proper consideration needs to be given to the power dissipation
and temperature performance of the gate resistors.
To ensure gate voltage stabilization and collector current limitation
during a short-circuit, the gate is connected to the VISO pin through
a Schottky diode DSTO (for example PMEG4010).
SCALE-iDriver
Primary-Side
Logic
Command
Signal
R1
3.3 kΩ
IC1
74LVC
CGXX
10 nF
RSO
4.7 kΩ
CF
C1
4.7 µF
R2
1 kΩ
CS21
4.7 µF
GH
VCC
FluxLink
GL
DCL
BAS416
DSTO
SO
VCC
RVCE2-13
150 kΩ × 12
CRES
33 pF
VGXX
IN
VISO
SO
GND
Secondary-Side
Logic
RVCE
120 kΩ
VCE
CS22
4.7 µF
Collector
RGON
Gate
+ V
TOT
RGOFF
GND
RGE
6.8 kΩ
VEE
CS12
4.7 µF
CS11
4.7 µF
COM
Emitter
PI-8249-032317
Figure 13. SCALE-iDriver Application Example Using a Resistor Network for Desaturation Detection.
SCALE-iDriver
Primary-Side
Logic
Command
Signal
R1
3.3 kΩ
IC1
74LVC
VGXX
IN
VISO
SO
CGXX
10 nF
SO
RSO
4.7 kΩ
VCC
GND
Secondary-Side
Logic
RVCE
330 Ω
VCE
CF
R2
1 kΩ
C1
4.7 µF
VCC
FluxLink
GL
DSTO
CS22
4.7 µF
RGON
Collector
Gate
+ V
TOT
RGOFF
GND
RGE
6.8 kΩ
VEE
COM
DVCE1
CRES
33 pF
RRES
62 kΩ
CS21
4.7 µF
GH
DVCE2
CS11
4.7 µF
Emitter
CS12
4.7 µF
PI-8286-031717
Figure 14. SCALE-iDriver Application Example Using Diodes for Desaturation Detection.
6
Rev. A 05/17
www.power.com
1700 V SCALE-iDriver
To avoid parasitic power-switch-conduction during system power-on,
the gate is connected to COM through 6.8 kΩ resistor.
Figure 13 shows how switch desaturation can be measured using
resistors RVCE2 – RVCE13. In this example all the resistors have a value
of 150 kW and 1206 size. The total resistance is 1.8 MW. The resistors
should be chosen to limit current to between 0.6 mA to 0.8 mA at
maximum DC-link voltage. The sum of RVCE2 – RVCE13 should be
typically 1.8 MW for 1700 V semiconductors. In each case the
resistor string must provide sufficient creepage and clearance
distances between collector of the semiconductor and SCALE-iDriver.
The low leakage diode DCL keeps the short-circuit duration constant
over a wide DC-link voltage range.
Response time is set up through RVCE and CRES (typically 120 kW and
33 pF respectively for 1700 V semiconductors). If short-circuit
detection proves to be too sensitive, the CRES value can be increased.
The maximum short-circuit duration must be limited to the maximum
value given in the semiconductor data sheet.
Figure 14 illustrates how diodes DVCE1 and DVCE2 may be used to
measure switch desaturation. For insulation, two or more diodes in
SMD packages are used (STTH212U for example depending on actual
application conditions). RRES connected to VISO guarantees current
flow through the diodes when the semiconductor is in the on-state.
When the switch desaturates, CRES starts to be charged through RRES.
In this configuration the response time is controlled by RRES and CRES.
In this application example CRES = 33 pF and RRES = 62 kW; if desaturation is too sensitive or the short-circuit duration too long, both CRES and
RRES can be adjusted.
Figure 15 shows the recommended PCB layout and corresponds to
the schematic in Figure 13. The PCB is a two layer design. It is
important to ensure that PCB traces do not cover the area below the
desaturation resistors or diodes DVCE1 and DVCE2. This is a critical
design requirement to avoid coupling capacitance with the SCALEiDriver’s VCE pin and isolation issues within the PCB.
Gate resistors are located physically close to the power semiconductor
switch. As these components can get hot, it is recommended that
they are placed away from the SCALE-iDriver.
During IC operation, the PDRV power is shared between turn-on (RGH),
turn-off (RGL) external gate resistors and internal driver resistances
RGHI and RGLI. For junction temperature estimation purposes, the
dissipated power under load (POL) inside the IC can be calculated
accordingly to equation 4:
R GHI
R GL I
l
POL = 0.5 # Q GATE # fS # VTOT # b R +
R GH + R GL I + RG L
GHI
RGH and RGL represent sum of external (RGON, RGOFF) and power
semiconductor internal gate resistance (RGINT):
R GH = R GON + R GINT
R GL = R GOFF + R GINT
Total IC power dissipation (PDIS) is estimated as sum of equations 2, 3
and 4:
PDIS = PP + PSNL + POL
TJ
= i JA # PDIS + T A
ƒS = 20 kHz, TA = 85 °C, V TOT = 25 V, V VCC = 5 V.
QGATE = 1.5 mC (the gate charge value here should correspond to
selected V TOT), RGINT = 2.5 W, RGON = RGOFF = 1.8 W.
PDRV = 1.5 mC × 20 kHz × 25 V = 0.75 W, according to equation 1.
PP = 5 V × 13.5 mA = 68 mW, according to equation 2 (see Figure 18).
PSNL = 25 V × 7.7 mA = 193 mW, according to equation 3 (see Figure 20).
The dissipated power under load is:
POL = 0.5 # 1.5 nC # 20 kHz # 25 V #
1.2 X
1.1 X
b
l ≅ 176 mW ,
+
1.2 X + 4 .3 X 1.1 X + 4.3 X
RGHI = 1.2 W as maximum data sheet value.
RGLI = 1.1 W as maximum data sheet value.
RGH = RGL = 1.8 W + 2.5 W = 4.3 W.
(1)
QGATE – Controlled power semiconductor switch gate charge (derived
for the particular gate potential range defined by V TOT). See semiconductor manufacturer data sheet.
ƒS – Switching frequency which is same as applied to the IN pin of
SCALE-iDriver.
(6)
An example is given below,
First calculation in designing the power semiconductor switch gate
driver stage is to calculate the required gate power - PDRV. The power
is calculated based on equation 1:
(5)
Example
according to equation 4.
PDRV = Q GATE # fS # VTOT
The operating junction temperature (TJ) for given ambient temperature (TA) can be estimated according to equation 6:
Power Dissipation and IC Junction
Temperature Estimation
where,
(4)
PDIS = 68 mW + 193 mW + 176 mW = 437 mW according to equation 5.
TJ = 67 °C/W × 437 mW + 85 °C = 113 °C according to equation 6.
Estimated junction temperature for this design would be approximately
113 °C and is lower than the recommended maximum value. As the
internal IC resistor values are maximum values, it is understood that
the example represents worst-case conditions.
V TOT – SCALE-iDriver secondary-side supply voltage.
In addition to PDRV, PP (primary-side IC power dissipation) and PSNL
(secondary-side IC power dissipation without capacitive load) must be
considered. Both are ambient temperature and switching frequency
dependent (see typical performance characteristics).
PP = VVCC # I VCC
PSNL = VTOT # I VISO
(2)
(3)
7
www.power.com
Rev. A 05/17
1700 V SCALE-iDriver
Table 2 describes the recommended capacitor and resistor
characteristics and layout requirements to achieve optimum
performances of SCALE-iDriver.
Pin
Return to Pin
Recommended
Value
Symbol
VCC
GND
4.7 mF
C1
VISO
VEE
4.7 mF
CS21/CS22
25V X7R type is recommended. Example part number
could be Murata 25 V part #GRM31CR71E475KA88.
This capacitor needs to be close to IC pins.
VEE
COM
4.7 mF
CS11/CS12
25 V X7R type is recommended. Example part number
could be Murata 25 V part #GRM31CR71E-475KA88.
This capacitor needs to be close to IC pins.
CGXX
To avoid misoperation, this pin should not be
connected to anything else. This capacitor needs to
be as close to IC pins as possible. 25 V X7R type is
recommended. Example part number could be Yageo
25 V part#CC0603KRX7R9BB103.
CRES
Select CRES to achieve needed desaturation protection
response time. 50 V COG/NPO is recommended. A
value of 33 pF is initially recommended. Example part
number could be KEMET 50 V part C0603C330J5GACTU.
Any net and any other layer should provide sufficient
distance to components CRES in order to avoid parasitic
effects (capacitance)
RVCE, DVCE, CRES,
RRES, DCL
Select RVCE or RRES for the proper operation of the
short-circuit protection. Any net and any other layer
should provide sufficient distance to components RVCE,
DVCE, RRES, and DCL in order to avoid parasitic effects.
VGXX
VCE
GH
COM
VCE
Table 2.
10 nF
33 pF
Notes
VCC blocking capacitor must be placed close to IC.
Enlarged loop could result in inadequate VCC supply
voltage during operation.
PCB Layout and Component Guidelines.
8
Rev. A 05/17
www.power.com
1700 V SCALE-iDriver
SID1183K
PI-8287-031717
Figure 15a. Top View of Recommended PCB Layout. Corresponds to Schematic Shown in Figure 13.
PI-7956-092216
Figure 15b. Bottom View of Recommended PCB Layout. Corresponds to Schematic Shown in Figure 13.
9
www.power.com
Rev. A 05/17
1700 V SCALE-iDriver
Parameter
Symbol
Conditions
Min
Max
Units
Absolute Maximum Ratings1
Primary-Side Supply Voltage2
V VCC
VCC to GND
-0.5
6.5
V
Secondary-Side Total Supply Voltage
V TOT
VISO to COM
-0.5
30
V
Secondary-Side Positive Supply Voltage
V VISO
VISO to VEE
-0.5
17.5
V
Secondary-Side Negative Supply Voltage
V VEE
VEE to COM
-0.5
15
V
Logic Input Voltage (command signal)
VIN
IN to GND
-0.5
V VCC + 0.5
V
Logic Output Voltage (fault signal)
VSO
SO to GND
-0.5
V VCC + 0.5
V
Logic Output Current (fault signal)
ISO
Positive Current Flowing into the Pin
10
mA
VCE Pin Voltage
V VCE
VCE - COM
-0.5
V TOT + 0.5
V
75
kHz
Switching Frequency
fS
Storage Temperature
TS
-65
150
°C
Operating Junction Temperature
TJ
-40
150
°C
Operating Ambient Temperature
TA
-40
125
°C
Operating Case Temperature
TC
-40
125
°C
Input Power Dissipation
4
PP
Output Power Dissipation4
PS
Total IC Power Dissipation4
PDIS
V VCC = 5 V
V TOT = 28 V
3
115
1675
1790
mW
mW
NOTES:
1. Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device.
2. Defined as peak voltage measured directly on VCC pin.
3. Transmission of command signals could be affected by PCB layout parasitic inductances at junction temperatures higher than recommended.
4. Input Power Dissipation refers to equation 2. Output Power Dissipation is secondary-side IC power dissipation without capacitive load
(PSNL, equation 3) and dissipated power under load (POL, equation 4). Total IC power dissipation is sum of PP and PS.
Thermal Resistance
Thermal Resistance: eSOP-R16B Package:
qJA ..................................................... 67 °C/W1
qJC .....................................................34 °C/W2
Notes:
1. 2 oz. (610 g/m2) copper clad. Measured with layout shown in Figure 15.
2. The case temperature is measured at the plastic surface at the top
of the package.
10
Rev. A 05/17
www.power.com
1700 V SCALE-iDriver
Parameter
Symbol
Conditions
TJ = -40 °C to +125 °C
See Note 1 (Unless Otherwise Specified)
Min
Typ
Max
Units
Recommended Operation Conditions
Primary-Side
Supply Voltage
V VCC
VCC - GND
4.75
5.25
V
Secondary-Side
Total Supply Voltage
V TOT
VISO - COM
22
28
V
0.5
V
Logic Low Input Voltage
VIL
Logic High
Input Voltage
VIH
3.3
Switching Frequency
fS
0
75
kHz
Operating IC Junction
Temperature
TJ
-40
125
°C
V
Electrical Characteristics
Logic Low Input
Threshold Voltage
VIN+LT
fS = 0 Hz
0.6
1.25
1.8
V
Logic High Input
Threshold Voltage
VIN+HT
fS = 0 Hz
1.7
2.2
3.05
V
Logic Input
Voltage Hysteresis
VIN+HS
fS = 0 Hz
0.1
VIN = 5 V
56
Input Bias Current
Supply Current
(Primary-Side)
Supply Current
(Secondary-Side)
Power Supply
Monitoring Threshold
(Primary-Side)
Power Supply
Monitoring Threshold
(Secondary-Side,
Positive Rail V VISO)
Power Supply Monitoring
Blanking Time, V VISO
Power Supply
Monitoring Threshold
(Secondary-Side,
Negative Rail V VEE)
IIN
IVCC
IVISO
VIN > 3 V
See Note 12
UVLOVISO(BL)
mA
17
VIN = 5 V
23
fS = 20 kHz
20
fS = 75 kHz
23
VIN = 0 V
8
VIN = 5 V
9
fS = 20 kHz
10
fS = 75 kHz
14
4.28
Set Fault
3.85
Hysteresis, See Notes 3, 4
0.02
Set Fault, Note 3
11.7
Hysteresis
0.3
Voltage Drop 13.5 V to 11.5 V
See Note 12
0.5
4.67
Hysteresis
0.1
mA
V
13.5
12.35
V
ms
5.15
Set Fault, V TOT = 20 V
mA
4.65
4.12
12.85
Clear Fault, V TOT = 20 V
UVLOVEE
165
VIN = 0 V
Clear Fault
UVLOVISO
113
106
Clear Fault
UVLOVCC
V
4.93
5.5
V
11
www.power.com
Rev. A 05/17
1700 V SCALE-iDriver
Parameter
Symbol
Conditions
TJ = -40 °C to +125 °C
See Note 1 (Unless Otherwise Specified)
Min
Typ
Max
Units
Electrical Characteristics (cont.)
Power Supply Monitoring Blanking Time, V VEE
UVLOVEE(BL)
Voltage Drop 5.5 V to 4.5 V
See Note 12
0.5
Secondary-Side
Positive Supply Voltage
Regulation
V VISO(HS)
21 V ≤ V TOT ≤ 30 V,
|i(VEE)| ≤ 1.5 mA
14.4
V TOT = 15 V, V VEE set to 0 V
0.1
VEE Source Capability
IVEE(SO)
V TOT = 25 V, V VEE set to 7.5 V
See Note 13
VEE Sink Capability
IVEE(SI)
DESAT Detection Level
ms
15.07
15.75
1.85
3.3
4.5
V TOT = 25 V, V VEE set to 12.5 V
1.74
3.1
4.5
mA
VDES
VCE-VEE, VIN = 5 V
7.2
7.8
8.3
V
DESAT Sink Current
IDES
V VCE = 10 V, VIN = 0 V
15
28
50
mA
DESAT Bias Current
IDES(BS)
V VCE - V VEE = 4.5 V, VIN = 5 V
-0.5
3
mA
VCE Pin Capacitance
C VCE
Between VCE and COM pins
See Note 12
Turn-On
Propagation Delay
Turn-Off
Propagation Delay
Minimum Turn-On and
Off Pulses
tP(LH)
tP(HL)
tGE(MIN)
12.5
180
TJ = 125 °C
See Note 5
210
278
364
TJ = 25 °C
See Note 6
200
262
330
TJ = 125 °C
See Note 6
211
287
359
tR
ns
See Note 12
650
tF
22
45
CG = 10 nF,
See Note 7
55
90
150
CG = 47 nF,
See Note 7
300
465
650
18
45
No CG
See Note 8
Output Fall Time
340
ns
No CG
See Note 7
Output Rise Time
mA
pF
TJ = 25 °C
See Note 5
253
V
CG = 10 nF
See Note 8
40
81
150
CG = 47 nF
See Note 8
300
460
650
ns
ns
ns
12
Rev. A 05/17
www.power.com
1700 V SCALE-iDriver
Parameter
Symbol
Conditions
TJ = -40 °C to +125 °C
See Note 1 (Unless Otherwise Specified)
Min
Typ
Max
Units
Electrical Characteristics (cont.)
tFSSD1
VGE change from 14.5 V to 14 V
See Note 12
tFSSD2
VGE change from 14.5 V to 2.5 V
See Note 12
ASSD Rate of Change
Propagation Delay Jitter
Fault Signalization
Delay Time
tFAULT
SO Fault
Signalization time
tSO
Power-On
Start-Up Time
Gate Sourcing
Peak Current, GH Pin
Gate Sinking Peak
Current GL Pin
tSTART
IGH
IGL
60
ns
950
1828
2800
See Note 12
±5
See Note 10
190
750
ns
10
13.4
µs
10
ms
6.8
See Note 11
VGH ≥ VTOT - 8.8 V
CG = 470 nF
See Note 13
3.6
5.5
A
RG = 0, CG = 47 nF
See Notes 2, 12, 13
TA = 25 °C
VGL ≤ 7.5 V
CG = 470 nF
VGL is referenced to COM
4.6
ns
7.3
4
4.8
5.5
A
RG = 0, CG = 47 nF
See Notes 2, 12
TA = 25 °C
7.8
Turn-On Internal
Gate Resistance
RGHI
I(GH) = 250 mA
VIN= 5 V
See Note 13
0.76
1.2
Ω
Turn-Off Internal
Gate Resistance
RGLI
I(GL) = 250 mA
VIN = 0 V
See Note 13
0.68
1.1
Ω
VGH(ON)
I(GH) = 20 mA
VIN = 5 V
See Note 13
Turn-On Gate
Output Voltage
V TOT-0.04
V
13
www.power.com
Rev. A 05/17
1700 V SCALE-iDriver
Parameter
Symbol
Conditions
TJ = -40 °C to +125 °C
See Note 1 (Unless Otherwise Specified)
Min
Typ
Max
Units
0.04
V
450
mV
Electrical Characteristics (cont.)
Turn-Off Gate
Output Voltage
(Referred to COM Pin)
SO Output Voltage
VGL(OFF)
I(GL) = 20 mA
VIN = 0 V
VSO(FAULT)
Fault Condition, ISO = 3.4 mA, V VCC ≥ 3.9 V
210
Package Characteristics (See Notes 12, 14)
Distance Through the
Insulation
DTI
Minimum Internal Gap (Internal Clearance)
0.4
mm
Minimum Air Gap
(Clearance)
L1 (IO1)
Shortest Terminal-to-Terminal Distance
Through Air
9.5
mm
Minimum External
Tracking (Creepage)
L2 (IO2)
Shortest Terminal-to-Terminal Distance
Across the Package Surface
9.5
mm
Tracking Resistance
(Comparative Tracking
Index)
CTI
DIN EN 60112 (VDE 0303-11): 2010-05
EN / IEC 60112:2003 + A1:2009
600
Isolation Resistance,
Input to Output
See Note 16
R IO
VIO = 500 V, TJ = 25 °C
1012
VIO = 500 V, 100 °C ≤ TJ ≤ TC(MAX)
1011
Isolation Capacitance,
Input to Output
See Note 16
CIO
W
1
pF
Package Insulation Characteristics
Maximum Working
Isolation Voltage
VIOWM
1202
VRMS
Maximum Repetitive
Peak Isolation Voltage
VIORM
1700
VPEAK
Input to Output
Test Voltage
VPD
Method A, After Environmental Tests
Subgroup 1, VPR = 1.3 × VIORM, t = 10 s
(qualification) Partial Discharge < 5 pC
2210
Method A, After Input/Output Safety Test
Subgroup 2/3, VPR = 1.2 x VIORM, t = 10 s,
(qualification) Partial Discharge < 5 pC
2040
Method B1, 100% Production Test,
VPR = 1.5 × VIORM, t = 1 s
Partial Discharge < 5 pC
2550
VPEAK
Maximum Transient
Isolation Voltage
VIOTM
V TEST = VIOTM, t = 60 s (qualification),
t = 1 s (100% production)
8000
VPEAK
Maximum Surge
Isolation Voltage
VIOSM
Test Method Per IEC 60065, 1.2/50 μs
Waveform, V TEST = 1.3 x VIOSM = 10400 V
(qualification)
8000
VPEAK
Insulation Resistance
RS
VIO = 500 V at TS
>109
W
Maximum Case
Temperature
TS
150
°C
14
Rev. A 05/17
www.power.com
1700 V SCALE-iDriver
Parameter
Symbol
Conditions
TJ = -40 °C to +125 °C
See Note 1 (Unless Otherwise Specified)
Min
Typ
Max
Units
1.79
W
Package Insulation Characteristics (cont.)
Safety Total
Dissipated Power
PS
TJ = 25 °C
Pollution Degree
2
Climatic Classification
Withstanding
Isolation Voltage
50/105/21
VISO
V TEST = VISO, t = 60 s (qualification),
V TEST = 1.2 × VISO = 6000 VRMS, t = 1 s
(100% production)
5000
VRMS
15
www.power.com
Rev. A 05/17
1700 V SCALE-iDriver
PI-8288-032317
Safe Operating Power (W)
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0
20
40
60
80
100
120
140
160
TA (°C)
Figure 16. Thermal Derating Curve Showing Dependence of Limited Dissipated Power on Case Temperature
(DIN V VDE V 0884-10).
Operation is allowed until reaching TJ and/or case temperature of 125 °C are reached. Thermal stress beyond those values but below thermal
derating curve may lead to permanent functional product damage. Operating beyond thermal SR derating curve may affect product reliability.
NOTES:
1. V VCC = 5 V, V TOT = 25 V; GH and GL pins are shorted together. RG = 4 W, No CG; VCC pin is connected to the SO pin through a 2 kW resistor.
The VGXX pin is connected to the GH pin through a 10 nF capacitor. Typical values are defined at TJ = 25 °C; fS = 20 kHz, Duty Cycle =
50%. Positive currents are assumed to be flowing into pins.
2. Pulse width ≤ 10 ms, duty cycle ≤ 1%. The maximum value is controlled by the ASIC to a safe level. The internal peak power is safely
controlled for RG ≥ 0 and power semiconductor module input gate capacitance CIES ≤ 47 nF.
3. During very slow V VCC power-up and power-down related to V TOT, V VCC and V VEE respectively, several SO fault pulses may be generated.
4. SO pin connected to GND as long as V VCC stays below minimum value. No signal is transferred from primary to secondary-side.
5. VIN potential changes from 0 V to 5 V within 10 ns. Delay is measured from 50% voltage increase on IN pin to 10% voltage increase
on GH pin.
6. VIN potential changes from 5 V to 0 V within 10 ns. Delay is measured from 50% voltage decrease on IN pin to 10% voltage decrease
on GL pin.
7. Measured from 10% to 90% of VGE (CG simulates semiconductor gate capacitance). The VGE is measured across CG.
8. Measured from 90% to 10% of VGE (CG simulates semiconductor gate capacitance). The VGE is measured across CG.
9. ASSD function limits G-E voltage of controlled semiconductor in specified time. Conditions: CG = 10 nF, V TOT = V VISO = 15 V,
V VEE = 0 V (VEE shorted to COM).
10. The amount of time needed to transfer fault event (UVLO or DESAT) from secondary-side to SO pin.
11. The amount of time after primary and secondary-side supply voltages (V VCC and V TOT) reach minimal required level for driver proper
operation. No signal is transferred from primary to secondary-side during that time, and no fault condition will be transferred from the
secondary-side to the primary-side.
12. Guaranteed by design.
13. Positive current is flowing out of the pin.
14. Safety distances are application dependent and the creepage and clearance requirements should follow specific equipment isolation
standards of an application. Board design should ensure that the soldering pads of an IC maintain required safety relevant distances.
15. Measured accordingly to IEC 61000-4-8 (fS = 50 Hz, and 60 Hz) and IEC 61000-4-9.
16. All pins on each side of the barrier tied together creating a two-terminal device.
16
Rev. A 05/17
www.power.com
1700 V SCALE-iDriver
Typical Performance Characteristics
115
114
113
112
111
110
109
-40
-20
0
20
40
60
80
100
120
IN = 0 V DC
IN = 5 V DC
fSW = 20 kHz
fSW = 75 kHz
20
15
10
5
108
-60
0
140
-60
-40
-20
Ambient Temperature (°C)
20
40
60
80
100
120
140
Figure 18. Supply Current Primary-Side I VCC vs. Ambient Temperature.
Conditions: V VCC = 5 V, V TOT = 25 V, No-Load.
15
10
5
PI-7915-110716
20
11.0
10.5
Supply Current IVISO (mA)
PI-8290-032417
25
Supply Current IVCC (mA)
0
Ambient Temperature (°C)
Figure 17. Input Bias Current vs. Ambient Temperature.
Conditions: V VCC = 5 V, VIN = 5 V, V TOT = 25 V.
10.0
9.5
IN = 0 V DC
IN = 5 V DC
fS = 20 kHz
fS = 75 kHz
9.0
8.5
8.0
7.5
7.0
6.5
6.0
0
0
10
20
30
40
50
60
70
-60
80
-40
-20
20
40
60
80
100
120 140
Figure 20. Supply Current Secondary-Side I VISO vs. Ambient Temperature.
Conditions: V VCC = 5 V, V TOT = 25 V, No-Load.
VTOT = 22 V
VTOT = 25 V
VTOT = 28 V
8
6
4
2
350
PI-7918-041416
PI-8293-032717
12
Propagation Delay (ns)
Figure 19. Supply Current Primary-Side I VCC vs. Switching Frequency.
Conditions: V VCC = 5 V, V TOT = 25 V, TJ= 25 °C, No-Load.
10
0
Ambient Temperature (°C)
Switching Frequency – fS (kHz)
Supply Current IVISO (mA)
PI-8289-032317
116
25
Supply Current IVCC (mA)
PI-7913-110716
Input Bias Current IIN (µA)
117
300
250
tP(HL), Turn-On Delay
tP(LH), Turn-Off Delay
200
150
100
50
0
0
0
10
20
30
40
50
60
70
Switching Frequency – fS (kHz)
Figure 21. Supply Current Secondary-Side I VISO vs. Switching Frequency.
Conditions: V VCC = 5 V, No-Load.
80
-60
-40
-20
0
20
40
60
80
100
120
140
Ambient Temperature (°C)
Figure 22. Propagation Delay Time vs. Ambient Temperature.
Conditions: V VCC = 5 V, V TOT = 25 V, fS = 20 kHz, CLOAD = 2.2 nF.
17
www.power.com
Rev. A 05/17
1700 V SCALE-iDriver
8
6
4
2
4.0
3.5
Clear Fault
Set Fault
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
-40
-20
0
20
40
60
80
100
120
-60
140
-40
-20
140
120
100
80
60
40
20
0
0
20
40
60
80
100
120
140
600
500
400
300
200
100
0
0
20
40
60
80
120
100
120
140
Ambient Temperature (°C)
Figure 27 Power Supply Monitoring Positive Rail Hysteresis UVLOVISO vs. Ambient
Temperature. Conditions: V VCC = 5 V.
12
10
Clear Fault
Set Fault
8
6
4
2
0
-60
-40
-20
0
20
40
60
80
100
120
6
5
Clear Fault
Set Fault
4
140
3
2
1
0
-60
-40
-20
0
20
40
60
80
100
120
Ambient Temperature (°C)
Figure 28. Power Supply Monitoring Negative Rail UVLOVEE vs. Ambient
Temperature. Conditions: V VCC = 5 V.
18
Rev. A 05/17
140
Figure 26. Power Supply Monitoring Positive Rail UVLOVISO vs. Ambient
Temperature. Conditions: V VCC = 5 V.
Secondary-Side Power Supply
Monitoring Negative Rail UVLOVEE (V)
PI-7923-040116
700
-20
100
Ambient Temperature (°C)
800
-40
80
14
Ambient Temperature (°C)
Figure 25. Power Supply Monitoring Hysteresis UVLOVCC vs. Ambient Temperature.
Conditions: V TOT = 25 V.
-60
60
PI-7924-040116
160
Secondary-Side Power Supply
Monitoring Positive Rail UVLOVISO (V)
PI-7922-051716
Primary-Side Power Supply
Monitoring Hysteresis UVLOVCC (mV)
180
-20
40
Figure 24. Power Supply Monitoring UVLOVCC vs. Ambient Temperature.
Conditions: V TOT = 25 V.
200
-40
20
Ambient Temperature (°C)
Ambient Temperature (°C)
-60
0
PI-7926-040116
-60
Figure 23. SO Fault Signalization Time vs. Ambient Temperature.
Conditions: V VCC = 5 V, V TOT = 25 V, RSO = 4.7 kW.
Secondary-Side Power Supply Monitoring
Positive Rail Hysteresis UVLOVISO (mV)
PI-7921-040116
10
4.5
Primary-Side Power Supply
Monitoring UVLOVCC (V)
12
PI-7919-110716
SO Fault Signalization Time – tSO (µs)
Typical Performance Characteristics
www.power.com
140
1700 V SCALE-iDriver
200
150
100
50
0
-40
-20
0
20
40
60
80
100
120
8.5
8.0
VTOT = 22 V
VTOT = 25 V
VTOT = 28 V
7.5
7.0
6.5
6.0
5.5
5.0
-60
140
-40
-20
40
60
80
100
120
140
VTOT = 22 V and VVISO = 17.5 V
VTOT = 25 V and VVISO = 17.5 V
VTOT = 28 V and VVISO = 17.5 V
3.45
3.40
3.35
3.30
3.25
3.20
3.15
Figure 30. Desaturation Detection Level VDES vs. Ambient Temperature.
Conditions: V VCC = 5 V.
3.50
IVEE(SI) Sink Capability (mA)
3.60
PI-7928-110716
IVEE(SO) Source Capability (mA)
Figure 29. Power Supply Monitoring Negative Rail Hysteresis UVLOVEE vs. Ambient
Temperature. Conditions: V VCC = 5 V.
3.50
20
Ambient Temperature (°C)
Ambient Temperature (°C)
3.55
0
PI-7948-050416
-60
9.0
PI-7927-040116
250
DESAT Detection Level VDES (V)
300
PI-7925-110716
Secondary-Side Power Supply Monitoring
Negative Rail Hysteresis UVLOVEE (mV)
Typical Performance Characteristics
VTOT = 22 V and VVISO = 12.5 V
VTOT = 25 V and VVISO = 12.5 V
VTOT = 28 V and VVISO = 12.5 V
3.45
3.40
3.35
3.30
3.25
3.20
3.15
3.10
3.05
3.00
3.10
-60
-40
-20
0
20
40
60
80
100
120
140
Ambient Temperature (°C)
Figure 31. VEE Source Capability I VEE(SO) vs. Ambient Temperature and V VISO.
Conditions: V VCC = 5 V, fS = 20 kHz, Duty Cycle = 50%.
-60
-40
-20
0
20
40
60
80
100
120
140
Ambient Temperature (°C)
Figure 32. VEE Sink Capability I VEE(SI) vs. Ambient Temperature and V VISO.
Conditions: V VCC = 5 V, fS = 20 kHz, Duty Cycle = 50%.
19
www.power.com
Rev. A 05/17
1700 V SCALE-iDriver
eSOP-R16B
3
2X
4
0.023 [0.58] 13X
0.018 [0.46]
0.010 [0.25] M C A B
2X
0.004 [0.10] C B
0.050 [1.27]
0.400 [10.16]
A
8 Lead Tips
0.006 [0.15] C
9
16
0.057 [1.45] Ref.
2
H
9
10 11 12 13 14 15 16
0.010 [0.25]
Gauge Plane
2
0.059 [1.50]
Ref. Typ.
0.464 [11.79]
0.350 [8.89]
B
0.004 [0.10] C A
0° - 8°
0.059 [1.50]
Ref. Typ.
8
7
0.006 [0.15] C
4 Lead Tips
3
4
0.158 [4.01]
0.045 [1.14] Ref.
0.152 [3.86]
1
8
Pin #1 I.D.
(Laser Marked)
6
5
4
3
Seating Plane
0.040 [1.02]
0.028 [0.71]
DETAIL A
0.020 [0.51]
Ref.
1
0.010 [0.24]
Ref.
0.022 [0.56] Ref.
0.019 [0.48]
Ref.
0.080 [2.03] Ref.
TOP VIEW
BOTTOM VIEW
C
0.032 [0.81]
0.029 [0.74]
0.028 [0.71]
Ref.
0.010 [0.25] Ref.
Detail A
0.356 [9.04]Ref.
0.105 [2.67]
0.093 [2.36]
0.012 [0.30]
0.004 [0.10]
Seating Plane to
Molded Bumps
Standoff
0.049 [1.23]
0.046 [1.16]
7
C
0.004 [0.10] C
12 Leads
SIDE VIEW
0.306 [7.77] Ref.
.028 [0.71]
.050 [1.27]
3
0.016 [0.41]
0.011 [0.28]
12X
Seating
Plane
0.092 [2.34]
0.086 [2.18]
END VIEW
Notes:
1. Dimensioning and tolerancing per ASME Y14.5M-1994.
2. Dimensions noted are determined at the outermost extremes of the plastic body exclusive of mold
flash, tie bar burrs, gate burrs, and inter-lead flash, but including any mismatch between the top
and bottom of the plastic body. Maximum mold protrusion is 0.007 [0.18] per side.
3. Dimensions noted are inclusive of plating thickness.
.070 [1.78]
.460 [11.68]
Reference
Solder Pad
Dimensions
.162 [4.11]
.165 [4.19]
.300 [7.62]
.350 [8.89]
INCH [mm]
4. Does not include inter-lead flash or protrusions.
5. Controlling dimensions in inches [mm].
6. Datums A and B to be determined in Datum H.
7. Exposed metal at the plastic package body outline/surface between leads 6 and 7, connected
internally to wide lead 3/4/5/6.
PI-6995-051716
POD-eSOP-R16B Rev B
20
Rev. A 05/17
www.power.com
1700 V SCALE-iDriver
MSL Table
Part Number
MSL Rating
SID1183K
3
ESD and Latch-Up Table
Test
Conditions
Results
Latch-up at 125 °C
JESD78D
Human Body Model ESD
JESD22-A114F
> ±2000 V on all pins
Charged Device Model ESD
JESD22-C101
> ±500 V on all pins
Machine Model ESD
JESD22-A115C
> ±200 V on all pins
> ±100 mA or > 1.5 × VMAX on all pins
IEC 60664-1 Rating Table
Parameter
Conditions
Specifications
Basic Isolation Group
Material Group
I
Rated mains voltage ≤ 150 VRMS
I - IV
Rated mains voltage ≤ 300 VRMS
I - IV
Rated mains voltage ≤ 600 VRMS
I - IV
Rated mains voltage ≤ 1000 VRMS
I - III
Installation Classification
Electrical Characteristics (EMI) Table
Parameter
Symbol
Conditions
Common-Mode
Transient Immunity,
Logic High
CMH
Common-Mode
Transient Immunity,
Logic Low
Variable Magnetic Field
Immunity
Typ
Max
Units
Typical values measured according to Figures
33, 34. Maximum values are design values
assuming trapezoid waveforms
-35 / 50
-100 / 100
kV/ms
CML
Typical values measured according to Figures
33, 34. Maximum values are design values
assuming trapezoid waveforms
-35 / 50
-100 / 100
kV/ms
HHPEAK
See Note 15
1000
HLPEAK
See Note 15
1000
Figure 33. Applied Common Mode Pulses for Generating Negative dv/dt.
Min
A/m
Figure 34. Applied Common Mode Pulses for Generating Positive dv/dt.
21
www.power.com
Rev. A 05/17
1700 V SCALE-iDriver
Regulatory Information Table
VDE
UL
CSA
Certified to DIN V VDE V 0884-10
(VDE V 0884-10): 2006-12
UR recognized under UL1577 Component
Recognition Program
UR recognized to CSA Component Acceptance
Notice 5A
Basic insulation for Max. Transient Isolation
voltage 8 kVPEAK, Max. Surge Isolation voltage
8 kVPEAK, Max. Repetitive Peak Isolation
voltage 1700 VPEAK
Single protection, 5000 VRMS dielectric voltage
withstand
Single protection, 5000 VRMS dielectric voltage
withstand
File No. 5020828-4880-0002
File No. Pending
File No. Pending
Part Ordering Information
• SCALE-iDriver Product Family
• Series Number
• Package Identifier
K
eSOP-R16B
• Tape & Reel and Other Options
Blank
SID 1183 K - TL
TL
Tube of 48 pcs.
Tape & Reel, 1000 pcs min/mult.
22
Rev. A 05/17
www.power.com
1700 V SCALE-iDriver
Notes
23
www.power.com
Rev. A 05/17
Revision Notes
A
Date
Code A Initial Release.
05/17
For the latest updates, visit our website: www.power.com
Power Integrations reserves the right to make changes to its products at any time to improve reliability or manufacturability. Power Integrations
does not assume any liability arising from the use of any device or circuit described herein. POWER INTEGRATIONS MAKES NO WARRANTY
HEREIN AND SPECIFICALLY DISCLAIMS ALL WARRANTIES INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS.
Patent Information
The products and applications illustrated herein (including transformer construction and circuits external to the products) may be covered by one
or more U.S. and foreign patents, or potentially by pending U.S. and foreign patent applications assigned to Power Integrations. A complete list of
Power Integrations patents may be found at www.power.com. Power Integrations grants its customers a license under certain patent rights as set
forth at http://www.power.com/ip.htm.
Life Support Policy
POWER INTEGRATIONS PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS
WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF POWER INTEGRATIONS. As used herein:
1. A Life support device or system is one which, (i) is intended for surgical implant into the body, or (ii) supports or sustains life, and (iii) whose
failure to perform, when properly used in accordance with instructions for use, can be reasonably expected to result in significant injury or
death to the user.
2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or system, or to affect its safety or effectiveness.
The PI logo, TOPSwitch, TinySwitch, SENZero, SCALE, SCALE-iDriver, Qspeed, PeakSwitch, LYTSwitch, LinkZero, LinkSwitch, InnoSwitch, HiperTFS,
HiperPFS, HiperLCS, DPA-Switch, CAPZero, Clampless, EcoSmart, E-Shield, Filterfuse, FluxLink, StakFET, PI Expert and PI FACTS are trademarks of
Power Integrations, Inc. Other trademarks are property of their respective companies. ©2017, Power Integrations, Inc.
Power Integrations Worldwide Sales Support Locations
World Headquarters
5245 Hellyer Avenue
San Jose, CA 95138, USA
Main: +1-408-414-9200
Customer Service:
Worldwide: +1-65-635-64480
Americas: +1-408-414-9621
e-mail: usasales@power.com
China (Shanghai)
Rm 2410, Charity Plaza, No. 88
North Caoxi Road
Shanghai, PRC 200030
Phone: +86-21-6354-6323
e-mail: chinasales@power.com
Germany (AC-DC/LED Sales)
Lindwurmstrasse 114
D-80337 München
Germany
Phone: +49-89-5527-39100
e-mail: eurosales@power.com
Germany (IGBT Driver Sales)
HellwegForum 1
59469 Ense
Germany
Tel: +49-2938-64-39990
e-mail: igbt-driver.sales@
power.com
India
China (Shenzhen)
#1, 14th Main Road
17/F, Hivac Building, No. 2, Keji Nan Vasanthanagar
8th Road, Nanshan District,
Bangalore-560052 India
Shenzhen, China, 518057
Phone: +91-80-4113-8020
Phone: +86-755-8672-8689
e-mail: indiasales@power.com
e-mail: chinasales@power.com
Italy
Via Milanese 20, 3rd. Fl.
20099 Sesto San Giovanni (MI) Italy
Phone: +39-024-550-8701
e-mail: eurosales@power.com
Japan
Kosei Dai-3 Bldg.
2-12-11, Shin-Yokohama,
Kohoku-ku
Yokohama-shi, Kanagawa
222-0033 Japan
Phone: +81-45-471-1021
e-mail: japansales@power.com
Korea
RM 602, 6FL
Korea City Air Terminal B/D, 159-6
Samsung-Dong, Kangnam-Gu,
Seoul, 135-728, Korea
Phone: +82-2-2016-6610
e-mail: koreasales@power.com
Singapore
51 Newton Road
#19-01/05 Goldhill Plaza
Singapore, 308900
Phone: +65-6358-2160
e-mail: singaporesales@power.com
Taiwan
5F, No. 318, Nei Hu Rd., Sec. 1
Nei Hu Dist.
Taipei 11493, Taiwan R.O.C.
Phone: +886-2-2659-4570
e-mail: taiwansales@power.com
UK
Building 5, Suite 21
The Westbrook Centre
Milton Road
Cambridge
CB4 1YG
Phone: +44 (0) 7823-557484
e-mail: eurosales@power.com
工商网监
湘ICP备2023018690号
