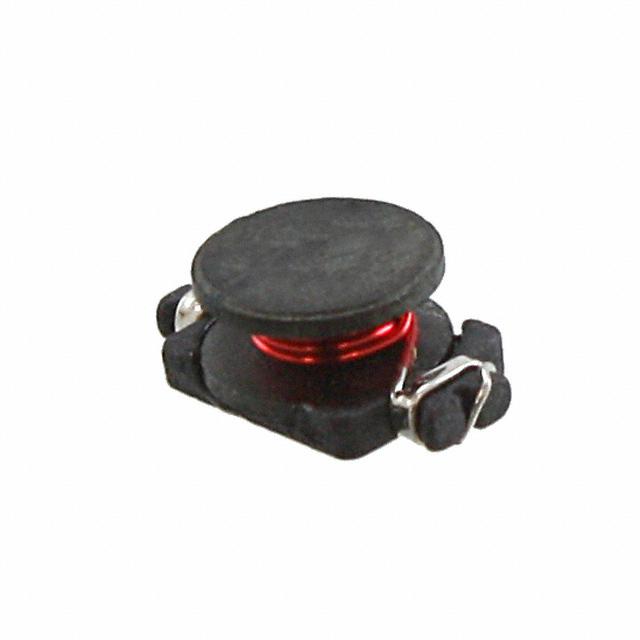

SMT Power Inductors Unshielded Drum Core - P0770NL Series Height: 2.9mm Max Footprint: 6.6mm x 4.5mm Max Current Rating: up to 2.9A Inductance Range: 1.0µH to 220µH Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C Part 6, 7 Number Inductance @ IPK ADC (µH ± 20%) Irated (A) P0770.102NL 1.0 P0770.152NL 5 DCR (MAX) (mΩ) Saturation Current (A) @ 25°C Heating Current (A) 2.90 50 2.90 2.90 1.5 2.60 50 2.60 2.80 P0770.222NL 2.2 2.30 70 2.30 2.40 P0770.332NL 3.3 2.00 80 2.00 2.00 P0770.472NL 4.7 1.50 90 1.50 1.50 P0770.682NL 6.8 1.20 130 1.20 1.40 P0770.103NL 10 1.10 160 1.10 1.10 P0770.153NL 15 0.90 230 0.90 1.20 P0770.223NL 22 0.70 370 0.70 0.80 P0770.333NL 33 0.58 510 0.58 0.60 P0770.473NL 47 0.50 640 0.50 0.50 P0770.683NL 68 0.40 860 0.40 0.40 P0770.104NL 100 0.30 1270 0.31 0.30 P0770.154NL 150 0.25 2000 0.27 0.2 P0770.224NL 220 0.20 3110 0.22 0.20 Notes: 1. The temperature of the component (ambient plus temperature rise) must be within the specified operating temperature range. 2. Inductance tested at 100kHz, 10mVRMS 3. Inductance drop = 10% typical at the Saturation Current 4. ΔT = 15°C rise typical at the Heating Current 5. The rated current is the lower of the saturation or heating current 6. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (i.e. P0770.102NL becomes P0770.102NLT). Pulse complies to industry standard tape and reel specification EIA481. 7. The “NL” suffix indicates an RoHS-compliant part number. Non-NL suffixed parts are not necessarily RoHS compliant, but are electrically and mechanically equivalent to NL versions. If a part number does not have the “NL” suffix, but an RoHS compliant version is required, please contact Pulse for availability. Mechanical P0770.XXXNL Schematic 1 2 Weight .....................0.2 grams Tape & Reel ..............2500/reel Dimensions: Inches mm Unless otherwise specified, all tolerances are ± .010 0,25 1 power.pulseelectronics.com SPM2007_03 (02/19) http://www.power.pulseelectronics.com/contact SMT Power Inductors Unshielded Drum Core - P0770NL Series For More Information Pulse Worldwide Headquarters 15255 Innovation Drive Ste 100 San Diego, CA 92128 U.S.A. Tel: 858 674 8100 Fax: 858 674 8262 Pulse Europe Pulse Electronics GmbH Am Rottland 12 58540 Meinerzhagen Germany Pulse China Headquarters Pulse Electronics (ShenZhen) CO., LTD D708, Shenzhen Academy of Aerospace Technology, The 10th Keji South Road, Nanshan District, Shenzhen, P.R. China 518057 Pulse North China Room 2704/2705 Super Ocean Finance Ctr. 2067 Yan An Road West Shanghai 200336 China Pulse South Asia 3 Fraser Street 0428 DUO Tower Singapore 189352 Pulse North Asia 1F., No.111 Xiyuan Road Zhongli District Taoyuan City 32057 Taiwan (R.O.C) Tel: 49 2354 777 100 Fax: 49 2354 777 168 Tel: 86 755 33966678 Fax: 86 755 33966700 Tel: 86 21 62787060 Fax: 86 2162786973 Tel: 65 6287 8998 Fax: 65 6280 0080 Tel: 886 3 4356768 Fax: 886 3 4356820 Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2019. Pulse Electronics, Inc. All rights reserved. 2 power.pulseelectronics.com SPM2007_03 (02/19) http://www.power.pulseelectronics.com/contact
