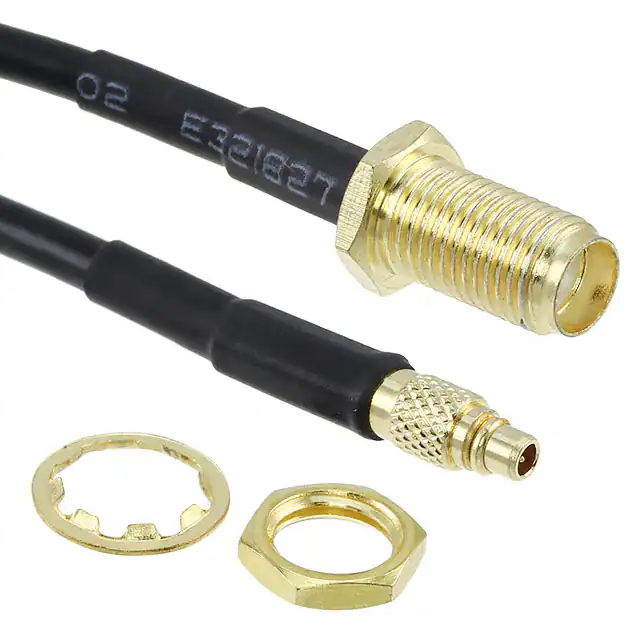

CBA-SMAF-MMCXM

8 7 6 5 4 3 2 1 H H G G F F E E D D C C Notes NOT TO SCALE 1. SMA Female Bulkhead Straight 2. MMCX Male 3. Heatshrink B DESCRIPTION Cable Assy SMA(F) Bulkhead to MMCX(M) cable Assy 200mm 4 Overall length 200mm Attenuation (Max) : -1.5dB FILENAME Nominal Impedance: 50ohm RoHS compliant A All Dimensions in mm 29/05/08 DATE REVISED PAGE Creation Update John FairallFont and Tel No 04/06/08 29/05/2012 1 of 1 REVISIONS DESCRIPTION DATE APPROVED First Issue 13/1/12 12/02/09 DRAWN BY CBA-SMAF-MMCXM-1.VSD VSWR (Max) : 1.5 ZONE REV N/A N/A 1 12 3 2 A 4 5 6 8 7 6 5 4 3 B 2 1
