RT5750A/B
6V 1A, ACOT® Buck Converter
General Description
Features
The RT5750A/B is a simple, easy-to-use, 1A
synchronous step-down DC-DC converter with an input
supply voltage range from 2.5V to 6V. The device
build-in an accurate 0.6V reference voltage and
integrates low RDS(ON) power MOSFETs to achieve
high efficiency in a TSOT-23-5 and TSOT-23-6
package.
The RT5750A/B adopts Advanced Constant On-Time
(ACOT® ) control architecture to provide an ultrafast
transient response with few external components and
to operate in nearly constant switching frequency over
the line, load, and output voltage range. The RT5750A
operate in automatic PSM that maintain high efficiency
during light load operation. The RT5750B operate in
Forced PWM that help to meet tight voltage regulation
accuracy requirements.
The RT5750A/B senses both FETs current for a robust
over-current
protection. The
device features
cycle-by-cycle current limit protection and prevent the
device from the catastrophic damage in output short
Input Voltage Range from 2.5V to 6V
Integrated 120m and 80m FETs
1A Output Current, up to 95% Efficiency
100% Duty Cycle for Lowest Dropout
1.5% Internal Reference Voltage
1.5MHz Typical Switching Frequency
Power Saving Mode for Light Loads (RT5750A)
Low Quiescent Current: 25A (Typ.)
Fast Advanced Constant On-Time (ACOT ® )
Control
Internal Soft Startup (0.6ms)
Enable Control Input
Power Good Indicator (TSOT-23-6)
Both FETs Over-Current Protection
Negative Over-Current Protection (RT5750B)
Input Under-Voltage Lockout Protection
Hiccup-Mode Output Under-Voltage Protection
Over-Temperature Protection
RoHS Compliant and Halogen Free
Applications
circuit, over current or inductor saturation. A built-in
soft-start function prevents inrush current during
start-up. The device also includes input under-voltage
lockout, output under-voltage protection, and
Mobile Phones and Handheld Devices
STB, Cable Modem, and xDSL Platforms
WLAN ASIC Power / Storage (SSD and HDD)
General Purpose for POL LV Buck Converter
over-temperature protection to provide safe and
smooth operation in all operating conditions.
Simplified Application Circuit
RT5750A/B
*PG
VIN
CIN
VPG
VIN
RPG
L
VOUT
SW
Enable
EN
RFB1
GND
CFF
COUT
FB
RFB2
*PG : TSOT-23-6 only.
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
May 2020
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
1
RT5750A/B
Ordering Information
Pin Configuration
(TOP VIEW)
RT5750
Package Type
J5 : TSOT-23-5
J6 : TSOT-23-6
Lead Plating System
G : Green (Halogen Free and Pb Free)
UVP Option
H : Hiccup
PWM Operation Mode
A : Automatic PSM
B : Forced PWM
FB
PG
VIN
6
5
4
2
3
GND
SW
EN
TSOT-23-6
FB
VIN
Note :
Richtek products are :
5
RoHS compliant and compatible with the current
requirements of IPC/JEDEC J-STD-020.
4
Suitable for use in SnPb or Pb-free soldering processes.
Marking Information
EN
2
3
GND
SW
TSOT-23-5

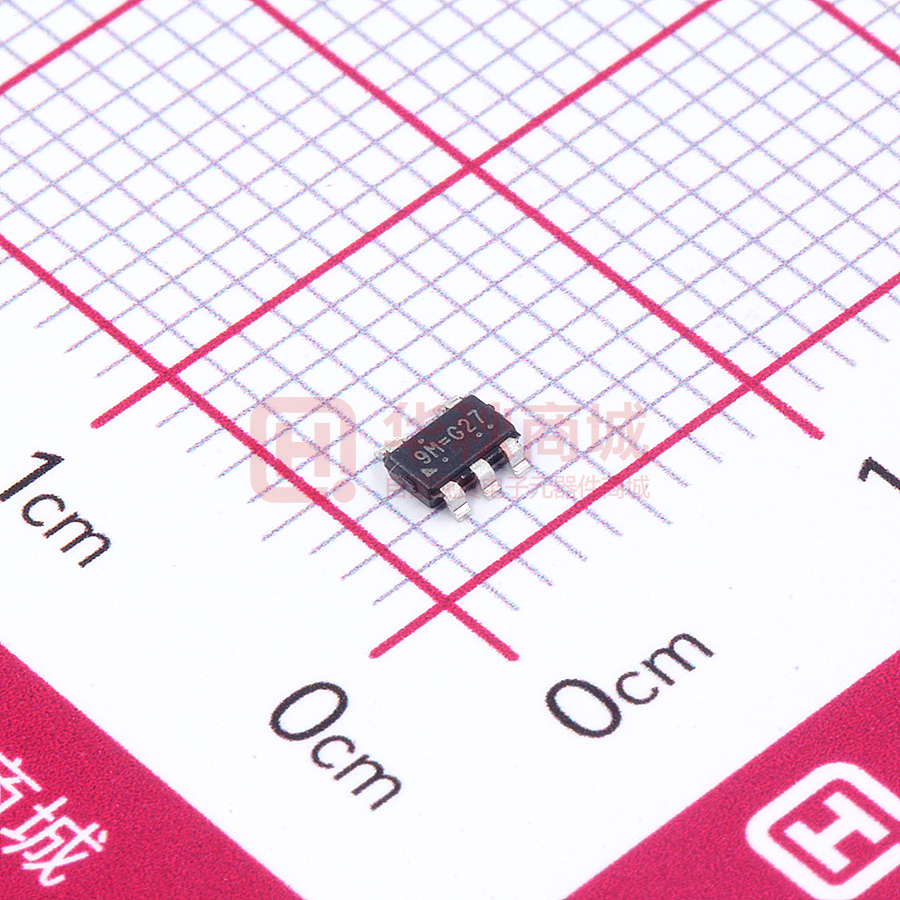

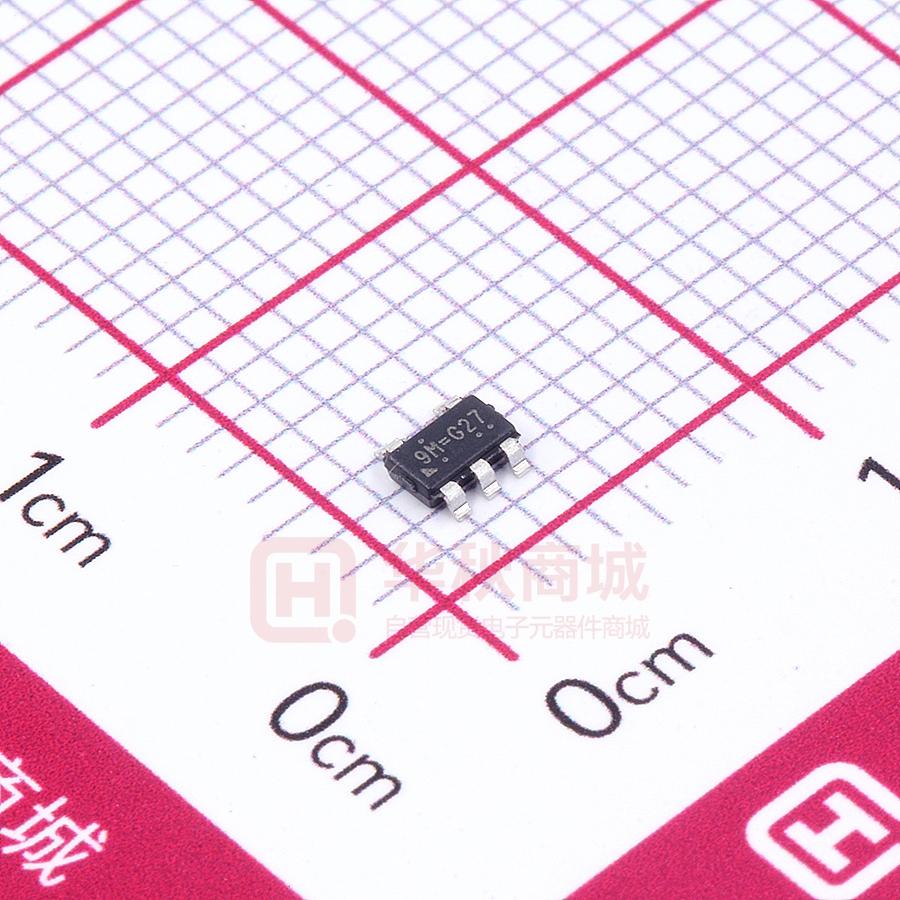

RT5750AHGJ5
9M=DNN
9M= : Product Code
DNN : Date Code
RT5750AHGJ6
3G=DNN
3G= : Product Code
DNN : Date Code
RT5750BHGJ5
9L=DNN
9L= : Product Code
DNN : Date Code
RT5750BHGJ6
3F=DNN
3F= : Product Code
DNN : Date Code
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
www.richtek.com
2
is a registered trademark of Richtek Technology Corporation.
DS5750A/B-00
May 2020
RT5750A/B
Functional Pin Description
Pin No.
Pin Name
Pin Function
TSOT-23-6
TSOT-23-5
1
1
EN
Enable control input. Connect this pin to logic high enables the device
and connect this pin to GND disables the device. Do not leave this pin
floating.
2
2
GND
Signal and power ground pin. Place the bottom resistor of the feedback
network as close as possible to this pin.
3
3
SW
Switch node between the internal switch. Connect this pin to the
inductor.
4
4
VIN
Power input. The input voltage range is from 2.5V to 6V. Connect input
capacitors directly to this pin and GND pins. MLCC with capacitance
higher than 10F is recommended.
5
--
PG
Power good indicator. The output of this pin is an open-drain with
external pull-up resistor. After soft startup, PG is pulled up when the FB
voltage is within 90% (typ.). The PG status is low while EN is disable.
FB
Feedback voltage input. Connect this pin to the midpoint of the external
feedback resistive divider to set the output voltage of the converter to
the desired regulation level. The device regulates the FB voltage at
Feedback Reference Voltage, typically 0.6V.
6
5
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
May 2020
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
3
RT5750A/B
Functional Block Diagram
For TSOT-23-6
EN
VIN
UVLO
Shutdown
Control
OTP
Error Amplifier
+
+
FB
Comparator
+
-
Ramp
Generator
VREF
UV
TON
Logic
Control
SW
VIN
SW
Driver
SW
90%VREF
PG
FB
GND
Current
Limit
Detector
SW
+
Discharge
Resistor
-
VFB
For TSOT-23-5
EN
VIN
UVLO
OTP
Shutdown
Control
Error Amplifier
+
+
FB
VREF
Ramp
Generator
Comparator
+
-
FB
UV
Logic
Control
TON
Driver
SW
Current
Limit
Detector
SW
VIN
SW
GND
SW
Discharge
Resistor
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
www.richtek.com
4
is a registered trademark of Richtek Technology Corporation.
DS5750A/B-00
May 2020
RT5750A/B
Operation
The RT5750A/B is a high-efficiency, synchronous
Enable Control
step-down DC-DC converter that can deliver up to 1A
output current from a 2.5V to 6V input supply.
The RT5750A/B provides an EN pin, as an external
chip enable control, to enable or disable the device. If
VEN is held below a logic-low threshold voltage (VEN_L)
of the enable input (EN), the converter will disable
output voltage, that is, the converter is disabled and
switching is inhibited even if the VIN voltage is above
VIN under-voltage lockout threshold (VUVLO). During
shutdown mode, the supply current can be reduced to
ISHDN (1A or below). If the EN voltage rises above the
logic-high threshold voltage (VEN_H) while the VIN
voltage is higher than UVLO threshold, the device will
Advanced Constant On-Time Control and PWM
Operation
The RT5750A/B adopts ACOT® control for its ultrafast
transient response, low external component counts and
stable with low ESR MLCC output capacitors. When
the feedback voltage falls below the feedback
reference voltage, the minimum off-time one-shot
(80ns, typ.) has timed out and the inductor current is
below the current limit threshold, then the internal
on-time one-shot circuitry is triggered and the high-side
switch is turn-on. Since the minimum off-time is short,
the device exhibits ultrafast transient response and
enables the use of smaller output capacitance.
be turned on, that is, switching being enabled and
soft-start sequence being initiated. Do not leave this pin
floating.
Soft-Start (SS)
The on-time is inversely proportional to input voltage
and directly proportional to output voltage to achieve
pseudo-fixed frequency over the input voltage range.
After the on-time one-shot timer expired, the high-side
switch is turn-off and the low-side switch is turn-on until
the on-time one-shot is triggered again. In the steady
The RT5750A/B provides an internal soft-start feature
for inrush control. At power up, the internal capacitor is
state, the error amplifier compares the feedback
voltage VFB and an internal reference voltage. If the
virtual inductor current ramp voltage is lower than the
output of the error amplifier, a new pre-determined
fixed on-time will be triggered by the on-time one-shot
generator.
regulation voltage only after this ramp voltage is
greater than the feedback voltage VFB to ensure the
converters have a smooth start-up from pre-biased
output. The output voltage starts to rise in 0.1ms from
EN rising, and the soft-start ramp-up time (10%VOUT to
90%VOUT) is 0.6ms.
charged by an internal current source to generate a
soft-start ramp voltage as a reference voltage to the
PWM comparator. The device will initiate switching and
the output voltage will smoothly ramp up to its targeted
Power Saving Mode (RT5750A)
The RT5750A automatically enters power saving mode
(PSM) at light load to maintain high efficiency. As the
load current decreases and eventually the inductor
current ripple valley touches the zero current, which is
the boundary between continuous conduction and
discontinuous conduction modes. The low-side switch
is turned off when the zero inductor current is detected.
As the load current is further decreased, it takes longer
time to discharge the output capacitor to the level that
requires the next on-time. The switching frequency
decreases and is proportional to the load current to
maintain high efficiency at light load.
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
May 2020
VIN = 5V
VIN
EN
VOUT
0.6ms
0.1ms
90%VOUT
10%VOUT
SS END
SS
(Internal)
PG
1.3ms
Figure 1. Start-Up Sequence
Maximum Duty Cycle Operation
The RT5750A/B is designed to operate in dropout at
the high duty cycle approaching 100%. If the
operational duty cycle is large and the required off time
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
5
RT5750A/B
Table 1. PG Pin Status
becomes smaller than minimum off time, the
RT5750A/B starts to enable skip off time function and
keeps high-side MOSFET switch on continuously. The
RT5750A/B implements skip off time function to
achieve high duty approaching 100%. Therefore, the
maximum output voltage is near the minimum input
supply voltage of the application. The input voltage at
which the devices enter dropout changes depending on
the input voltage, output voltage, switching frequency,
load current, and the efficiency of the design.
Power Good Indication (TSOT-23-6)
The RT5750A/B features an open-drain power-good
output (PGOOD) to monitor the output voltage status.
The output delay of comparator prevents false flag
operation for short excursions in the output voltage,
such as during line and load transients. Pull-up
PGOOD with a resistor to VOUT or an external voltage
below 6V. When VIN voltage rises above VUVLO, the
power-good function is activated. After soft start is
finished, the PGOOD pin is controlled by a comparator
connected to the feedback signal VFB. If VFB rises
above a power-good high threshold (VTH_PGLH)
(typically 90% of the reference voltage), the PGOOD
pin will be in high impedance and VPG will be held high.
When VFB falls short of power-good low threshold
(VTH_PGHL) (typically 85% of the reference voltage), the
PGOOD pin will be pulled low after a certain delay
(60s, typically) elapsed. Once being started-up, if any
internal protection is triggered, PGOOD will be pulled
low to GND. The internal open-drain pull-down device
(10, typically) will pull the PGOOD pin low. The power
good indication profile is shown below.
VTH_PGLH
VTH_PGHL
VFB
Conditions
PG Pin
VEN > VEN_H,
VFB > VTH_PGLH
High Impedance
VEN > VEN_H,
VFB < VTH_PGHL
Low
Shutdown
VEN < VEN_L
Low
OTP
TJ > TSD
Low
Enable
Input Under-Voltage Lockout
In addition to the EN pin, the RT5750A/B also provides
enable control through the VIN pin. If VEN rises above
VEN_H first, switching will still be inhibited until the VIN
voltage rises above VUVLO. It is to ensure that the
internal regulator is ready so that operation with
not-fully-enhanced internal MOSFET switches can be
prevented. After the device is powered up, if the input
voltage VIN goes below the UVLO falling threshold
voltage (VUVLO VUVLO), this switching will be
inhibited; if VIN rises above the UVLO rising threshold
(VUVLO), the device will resume normal operation with a
complete soft-start.
The Over-Current Protection
The RT5750A/B features cycle-by-cycle current-limit
protection on both the high-side and low-side
MOSFETs and prevents the device from the
catastrophic damage in output short circuit, over
current or inductor saturation.
The high-side MOSFET over-current protection is
achieved by an internal current comparator that
monitors the current in the high-side MOSFET during
each on-time. The switch current is compared with the
high-side switch peak-current limit (ILIM_H) after a
certain amount of delay when the high-side switch
being turned on each cycle. If an over-current condition
occurs, the converter will immediately turns off the
high-side switch and turns on the low-side switch to
prevent the inductor current exceeding the high-side
current limit.
The low-side MOSFET over-current protection is
VPGOOD
60μs
Figure 2. The Logic of PGOOD
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
www.richtek.com
6
achieved by measuring the inductor current through the
synchronous rectifier (low-side switch) during the
low-side on-time. Once the current rises above the
low-side switch valley current limit (ILIM_L), the on-time
one-shot will be inhibited until the inductor current
is a registered trademark of Richtek Technology Corporation.
DS5750A/B-00
May 2020
RT5750A/B
ramps down to the current limit level (ILIM_L), that is,
another on-time can only be triggered when the
inductor current goes below the low-side current limit. If
hiccup mode, the IC will shut down for tHICCUP_OFF
(2.4ms), and then attempt to recover automatically for
tHICCUP_ON (1.2ms). Upon completion of the soft-start
the output load current exceeds the available inductor
current (clamped by the low-side current limit), the
output capacitor needs to supply the extra current such
that the output voltage will begin to drop. If it drops
below the output under-voltage protection trip threshold,
the IC will stop switching to avoid excessive heat.
sequence, if the fault condition is removed, the
converter will resume normal operation; otherwise,
such cycle for auto-recovery will be repeated until the
fault condition is cleared. Hiccup mode allows the
circuit to operate safely with low input current and
power dissipation, and then resume normal operation
as soon as the over-load or short-circuit condition is
removed. A short circuit protection and recovery profile
is shown below.
Over-Current Protection
VOUT
(500mV/Div)
VSW
(5V/Div)
Short Circuit Protection and Recovery
Output short
Short removed
VPG
(5V/Div)
IL
(1A/Div)
VOUT
(500mV/Div)
VSW
(4V/Div)
VPG
(1V/Div)
IL
(2A/Div)
Time (50s/Div)
Figure 3. Over-Current Protection
Output Active Discharge
When the RT5750A/B is disabled by EN pin, UVLO or
OTP, the device discharges the output capacitors (via
SW pins) through an internal discharge resistor (150)
connected to ground. This function prevents the
reverse current flow from the output capacitors to the
input capacitors once the input voltage collapses. It
doesn’t need to rely on another active discharge circuit
for discharging output capacitors. This function will be
turned off when the fault condition is removed.
Hiccup-Mode Output Under-Voltage Protection
The RT5750A/B includes output under-voltage
protection (UVP) against over-load or short-circuited
condition by constantly monitoring the feedback
voltage VFB. If VFB drops below the under-voltage
protection trip threshold (typically 50% of the internal
feedback reference voltage), the UV comparator will go
high to turn off both the internal high-side and low-side
MOSFET switches. The RT5750A/B will enter output
under-voltage protection with hiccup mode. During
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
May 2020
Time (2ms/Div)
Figure 4. Short Circuit Protection and Recovery
Thermal Shutdown
The RT5750A/B includes an over-temperature
protection (OTP) circuitry to prevent overheating due to
excessive power dissipation. The OTP will shut down
switching operation when junction temperature
exceeds a thermal shutdown threshold (TSD). Once the
junction temperature cools down by a thermal
shutdown hysteresis (TSD), the IC will resume normal
operation with a complete soft-start.
Note that the over temperature protection is intended to
protect the device during momentary overload
conditions. The protection is activated outside of the
absolute maximum range of operation as a secondary
fail-safe and therefore should not be relied upon
operationally. Continuous operation above the
specified absolute maximum operating junction
temperature may impair device reliability or
permanently damage the device.
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
7
RT5750A/B
Negative Over-Current Limit (RT5750B)
The RT5750B is the part which is forced to PWM and
allows negative current operation. In case of PWM
operation, high negative current may be generated as
an external power source which is tied to output
terminal unexpectedly. As the risk described above, the
internal circuit monitors negative current in each
on-time interval of low-side MOSFET and compares it
with NOC threshold. Once the negative current
exceeds the NOC threshold, the low-side MOSFET is
turned off immediately, and then the high-side
MOSFET will be turned on to discharge the energy of
output inductor. This behavior can keep the valley of
negative current at NOC threshold to protect low-side
MOSFET. However, the negative current can’t be
limited at NOC threshold anymore since minimum
off-time is reached.
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
www.richtek.com
8
is a registered trademark of Richtek Technology Corporation.
DS5750A/B-00
May 2020
RT5750A/B
Absolute Maximum Ratings
(Note 1)
Supply Input Voltage, VIN ---------------------------------------------------------------------------------------0.3V to 6.5V
Switch Voltage, SW -----------------------------------------------------------------------------------------------0.3V to 6.5V
< 50ns ----------------------------------------------------------------------------------------------------------------2.5V to 9V
Other Pins -----------------------------------------------------------------------------------------------------------0.3V to 6.5V
Power Dissipation, PD @ TA = 25C
TSOT-23-5 ----------------------------------------------------------------------------------------------------------1.26W
TSOT-23-6 ----------------------------------------------------------------------------------------------------------1.35W
Lead Temperature (Soldering, 10 sec.) ----------------------------------------------------------------------260C
Junction Temperature --------------------------------------------------------------------------------------------150C
Storage Temperature Range -----------------------------------------------------------------------------------65C to 150C
ESD Ratings
ESD Susceptibility
(Note 2)
HBM (Human Body Model) -------------------------------------------------------------------------------------2kV
Recommended Operating Conditions
(Note 3)
Supply Input Voltage ---------------------------------------------------------------------------------------------2.5V to 6V
Output Voltage -----------------------------------------------------------------------------------------------------0.6V to VIN
Junction Temperature Range ----------------------------------------------------------------------------------40C to 125C
Thermal Information
(Note 4 and Note 5)
Thermal Parameter
TSOT-23-5
TSOT-23-6
Unit
JA
Junction-to-ambient thermal resistance (JEDEC
standard)
230.6
197.6
C/W
JC(Top)
Junction-to-case (top) thermal resistance
21.8
18.9
C/W
JC(Bottom)
Junction-to-case (bottom) thermal resistance
19.7
25
C/W
JA(EVB)
Junction-to-ambient thermal resistance (specific EVB)
79.1
74
C/W
JC(Top)
Junction-to-top characterization parameter
7.1
10.7
C/W
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
May 2020
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
9
RT5750A/B
Electrical Characteristics
(VIN = 3.6V, TA = 25C, unless otherwise specified)
Parameter
Symbol
Test Conditions
Min
Typ
Max
Unit
2.5
--
6
V
2.15
2.3
2.47
V
--
300
--
mV
--
0.3
1
µA
--
25
35
--
300
--
--
0.6
--
Supply Voltage
VIN Supply Input Operating
Voltage
VIN
Under-Voltage Lockout Threshold VUVLO
VIN rising
Under-Voltage Lockout Threshold
VUVLO
Hysteresis
Shutdown Current
Quiescent Current (RT5750A)
Quiescent Current (RT5750B)
ISHDN
VEN = 0V
IQ
VEN = 2V, VFB = 0.63V
tSS
10%VOUT to 90%VOUT
VEN_H
EN high-level input voltage
0.6
0.82
0.95
VEN_L
EN low-level input voltage
0.5
0.76
0.9
591
600
609
mV
0.1
0
0.1
A
µA
Soft-Start
Soft-Start Time
ms
Enable Voltage
Enable Voltage Threshold
V
Feedback Voltage and Discharge Resistance
Feedback Threshold Voltage
VFB
Feedback Input Current
IFB
VFB = 0.6V, TA = 25°C
Internal MOSFET
High-Side On-Resistance
RDS(ON)_H
--
120
--
Low-Side On-Resistance
RDS(ON)_L
--
80
--
mΩ
Current Limit
High-Side Switch Current Limit
ILIM_H
1.85
2.65
--
Low-Side Switch Valley Current
Limit
ILIM_L
1.05
1.55
2.05
Low-Side Switch Negative Valley
Current Limit
ILIM_NL
--
1.5
--
f SW
--
1.5
--
MHz
tOFF_MIN
--
80
--
ns
--
50
--
%
A
Switching Frequency
Switching Frequency
On-Time Timer Control
Minimum Off-Time
Hiccup-Mode Output Under-Voltage Protection
UVP Trip Threshold
VUVP
Hiccup detect
Thermal Shutdown
Thermal Shutdown Threshold
TSD
--
150
--
Thermal Shutdown Hysteresis
TSD
--
30
--
°C
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
www.richtek.com
10
is a registered trademark of Richtek Technology Corporation.
DS5750A/B-00
May 2020
RT5750A/B
Parameter
Symbol
Test Conditions
Min
Typ
Max
Unit
Power Good
Power Good High Threshold
VTH_PGLH
VFB rising, PGOOD goes high
--
90
--
%
Power Good High Hysteresis
VTH_PGLH
VFB falling, PGOOD goes low
--
5
--
%
--
60
--
s
--
150
--
Power Good Falling Delay Time
Output Discharge Resistor
Output Discharge Resistor
Note 1. Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These
are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in
the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions may affect
device reliability.
Note 2. Devices are ESD sensitive. Handling precaution is recommended.
Note 3. The device is not guaranteed to function outside its operating conditions.
Note 4. θJA and θJC are measured or simulated at TA = 25C based on the JEDEC 51-7 standard.
Note 5. θJA(EVB) and ΨJC(TOP) are measured on a high effective-thermal-conductivity four-layer test board which is in size of
70mm x 50mm; furthermore, all layers with 1 oz. Cu. Thermal resistance/parameter values may vary depending on the
PCB material, layout, and test environmental conditions.
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
May 2020
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
11
RT5750A/B
Typical Application Circuit
RT5750A/B
*PG
VIN
CIN
10μF
VPG
VIN
CIN
0.1μF
RPG
100k
L
SW
Enable
VOUT
1μH
EN
CFF
RFB1
GND
COUT
10μF
FB
RFB2
*PG : TSOT-23-6 only.
Table 2. Suggested Component Values
VOUT (V)
RFB1 (k)
RFB2 (k)
L (H)
CFF (pF)
3.3
45
10
1.5
--
1.8
20
10
1.5
--
1.5
15
10
1.5
--
1.2
10
10
1.5
--
1.05
7.5
10
1.5
--
1
6.65
10
1.5
--
Table 3. Recommended External Components
Component
Description
CIN
10F, 6.3V, X5R, 0603
0603X106M6R3 (WALSIN)
GRM188R60J106ME84 (MURATA)
*COUT
10F, 6.3V, X5R, 0603
0603X106M6R3 (WALSIN)
GRM188R60J106ME84 (MURATA)
1.5H
DFE252010F-1R5 (MURATA)
HMLQ25201B-1R5MSR (CYNTEC)
L
Vendor P/N
*COUT : Considering the effective capacitance de-rated with biased voltage level and size, the COUT component
needs satisfy the effective capacitance at least 4F for VOUT = 3.3V and 7F for VOUT 3.3V for stable and
normal operation.
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
www.richtek.com
12
is a registered trademark of Richtek Technology Corporation.
DS5750A/B-00
May 2020
RT5750A/B
Typical Operating Characteristic
Efficiency vs. Output Current
100
90
90
80
80
VOUT = 1.8V
70
Efficiency (%)
Efficiency (%)
Efficiency vs. Output Current
100
VOUT = 1V
60
50
40
30
20
VOUT = 1V
60
50
40
30
20
10
10
RT5750A, VIN = 3.6V
0
0.001
0.01
0.1
0
0.001
1
RT5750B, VIN = 3.6V
0.01
0.1
1
Output Current (A)
Output Current (A)
Efficiency vs. Output Current
Efficiency vs. Output Current
100
100
90
90
80
80
VOUT = 3.3V
70
Efficiency (%)
Efficiency (%)
VOUT = 1.8V
70
VOUT = 1.8V
60
VOUT = 1V
50
40
30
20
VOUT = 3.3V
70
VOUT = 1.8V
60
VOUT = 1V
50
40
30
20
10
10
RT5750A, VIN = 5V
0
0.001
0.01
0.1
0
0.001
1
Output Current (A)
RT5750B, VIN = 5V
0.01
0.1
1
Output Current (A)
Output Voltage vs. Output Current
Output Voltage vs. Output Current
1.05
1.015
1.04
1.010
Output Voltage (V)
Output Voltage (V)
1.03
1.02
1.01
1.00
0.99
0.98
0.97
RT5750A, VIN = 5V, VOUT = 1V
0.01
0.1
Output Current (A)
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
1.000
0.995
0.96
0.95
0.001
1.005
May 2020
RT5750B, VIN = 5V, VOUT = 1V
1
0.990
0.001
0.01
0.1
1
Output Current (A)
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
13
RT5750A/B
Current Limit vs. Temperature
1.7
1.02
1.6
1.5
Current Limit (A)
Output Voltage (V)
Output Voltage vs. Input Voltage
1.03
1.01
1.00
0.99
1.4
1.3
1.2
0.98
1.1
VOUT = 1V, IOUT = 0.5A
Low-Side MOSFET, VIN = 3.6V
0.97
1.0
2.5
3
3.5
4
4.5
5
5.5
6
-50
-25
0
Input Voltage (V)
Current Limit vs. Temperature
2.0
2.9
1.9
Switching Frequency (MHz)1
Current Limit (A)
50
75
100
125
Switching Frequency vs. Temperature
3.0
2.8
2.7
2.6
2.5
2.4
2.3
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.1
High-Side MOSFET, VIN = 3.6V
2.2
VIN = 3.6V, VOUT = 1V, IOUT = 0.5A
1.0
-50
-25
0
25
50
75
100
125
-50
-25
0
Temperature (°C)
25
50
75
100
125
Temperature (°C)
Shutdown Current vs. Temperature
Quiescent Current vs. Temperature
50
5.0
VIN = 3.6V
45
Quiescent Current (μA)
4.5
Shutdown Current (μA)1
25
Temperature (°C)
4.0
3.5
3.0
2.5
2.0
1.5
1.0
40
35
30
25
20
0.5
15
0.0
10
RT5750A, VIN = 3.6V
-50
-25
0
25
50
75
100
Temperature (°C)
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
www.richtek.com
14
125
-50
-25
0
25
50
75
100
125
Temperature (°C)
is a registered trademark of Richtek Technology Corporation.
DS5750A/B-00
May 2020
RT5750A/B
UVLO Threshold vs. Temperature
2.5
450
2.4
UVLO Threshold (V)
Quiescentt Current (μA)
Quiescent Current vs. Temperature
500
400
350
300
250
200
Rising
2.3
2.2
Falling
2.1
2.0
1.9
150
RT5750B, VIN = 3.6V
100
1.8
-50
-25
0
25
50
75
100
125
-50
-25
0
Temperature (°C)
50
75
100
125
Temperature (°C)
Enable Threshold vs. Temperature
Reference Voltage vs. Temperature
1.0
1.05
1.04
Reference Voltage (V)
0.9
Enable Threshold (V)
25
Rising
0.8
0.7
Falling
0.6
0.5
0.4
1.03
1.02
1.01
1.00
0.99
0.98
0.97
0.96
0.3
VIN = 3.6V, VOUT = 1V, IOUT = 0.5A
0.95
-50
-25
0
25
50
75
100
125
-25
0
25
50
75
100
Temperature (°C)
Load Transient Response
Load Transient Response
VOUT
(20mV/Div)
125
VOUT
(20mV/Div)
VIN = 3.6V, VOUT = 1V, IOUT = 10mA to 0.5A
TR = TF = 0.5s, L = 1.5H, COUT = 10F x 1
IOUT
(500mA/Div)
IOUT
(500mA/Div)
VIN = 3.6V, VOUT = 1V, IOUT = 0.5A to 1A
TR = TF = 0.5s, L = 1.5H, COUT = 10F x 1
Time (10s/Div)
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
-50
Temperature (°C)
May 2020
Time (10s/Div)
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
15
RT5750A/B
Load Transient Response
VOUT
(20mV/Div)
Load Transient Response
VOUT
(20mV/Div)
IOUT
(500mA/Div)
IOUT
(500mA/Div)
VIN = 5V, VOUT = 1V, IOUT = 10mA to 0.5A
TR = TF = 0.5s, L = 1.5H, COUT = 10F x 1
VIN = 5V, VOUT = 1V, IOUT = 0.5A to 1A
TR = TF = 0.5s, L = 1.5H, COUT = 10F x 1
Time (10s/Div)
Time (10s/Div)
Output Ripple Voltage
VOUT
(10mV/Div)
Output Ripple Voltage
VOUT
(10mV/Div)
VSW
(4V/Div)
VSW
(4V/Div)
VIN = 3.6V, VOUT = 1V, IOUT = 10mA
VIN = 3.6V, VOUT = 1V, IOUT = 1A
Time (5s/Div)
Time (400ns/Div)
Output Ripple Voltage
VOUT
(10mV/Div)
VOUT
(10mV/Div)
VSW
(4V/Div)
VSW
(4V/Div)
VIN = 5V, VOUT = 1V, IOUT = 10mA
Time (5s/Div)
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
www.richtek.com
16
Output Ripple Voltage
VIN = 5V, VOUT = 1V, IOUT = 1A
Time (400ns/Div)
is a registered trademark of Richtek Technology Corporation.
DS5750A/B-00
May 2020
RT5750A/B
Power On from EN
Power Off from EN
VOUT
(500mV/Div)
VOUT
(500mV/Div
VIN = 3.6V, VOUT = 1V, IOUT = 1A
VSW
(4V/Div)
VSW
(4V/Div)
VIN = 3.6V, VOUT = 1V, IOUT = 1A
VEN
(2V/Div)
VEN
(2V/Div)
VPG
(1V/Div)
VPG
(1V/Div)
Time (500s/Div)
Time (10s/Div)
Power On from VIN
Power Off from VIN
VOUT
(500mV/Div)
VOUT
(500mV/Div)
VIN = 3.6V, VOUT = 1V, IOUT = 1A
VSW
(4V/Div)
VSW
(4V/Div)
VIN
(2V/Div)
VIN
(2V/Div)
VPG
(1V/Div)
VPG
(1V/Div)
Time (500s/Div)
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
VIN = 3.6V, VOUT = 1V, IOUT = 1A
May 2020
Time (100s/Div)
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
17
RT5750A/B
Application Information
The output stage of a synchronous buck converter is
composed of an inductor and capacitor, which stores
and delivers energy to the load, and forms a
second-order low-pass filter to smooth out the switch
node voltage to maintain a regulated output voltage.
Inductor Selection
The inductor selection trade-offs among size, cost,
efficiency, and transient response requirements.
Generally, three key inductor parameters are specified
for operation with the device: inductance value (L),
inductor saturation current (ISAT), and DC resistance
(DCR).
A good compromise between size and loss is to choose
the peak-to-peak ripple current equals to 20% to 50%
of the IC rated current. The switching frequency, input
voltage, output voltage, and selected inductor ripple
current determines the inductor value as follows :
L=
VOUT VIN VOUT
VIN fSW IL
Once an inductor value is chosen, the ripple current
(IL) is calculated to determine the required peak
inductor current.
IL =
VOUT VIN VOUT
I
and IL(PEAK) = IOUT(MAX) L
VIN fSW L
2
IL(PEAK) should not exceed the minimum value of IC's
the calculated inductance value is :
L
1 5 1
1.52μH
5 1.5MHz 0.35A
For the typical application, a standard inductance value
of 1.5H can be selected.
IL =
1 5 1
= 0.36A (36% of the IC rated current)
5 1.5MHz 1.5μH
and IL(PEAK) = 1A + 0.36A = 1.18A
2
For the 1.5H value, the inductor's saturation and
thermal rating should exceed at least 1.18A. For more
conservative, the rating for inductor saturation current
must be equal to or greater than switch current limit of
the device rather than the inductor peak current.
For EMI sensitive application, choosing shielding type
inductor is preferred.
Input Capacitor Selection
Input capacitance, CIN, is needed to filter the pulsating
current at the drain of the high-side power MOSFET.
CIN should be sized to do this without causing a large
variation in input voltage. The waveform of CIN ripple
voltage and ripple current are shown in Figure 5. The
peak-to-peak voltage ripple on input capacitor can be
estimated as equation below :
through the inductor is the inductor ripple current plus
VCIN = D IOUT 1 D + IOUT ESR
CIN fSW
the output current. During power up, faults or transient
Where
upper current limit level. Besides, the current flowing
load conditions, the inductor current can increase above
the calculated peak inductor current level calculated
above. In transient conditions, the inductor current can
increase up to the switch current limit of the device. For
this reason, the most conservative approach is to
specify an inductor with a saturation current rating equal
to or greater than the switch current limit rather than the
peak inductor current.
Considering the Typical Application Circuit for 1V
output at 1A and an input voltage of 5V, using an
inductor ripple of 0.35A (35% of the IC rated current),
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
www.richtek.com
18
D=
VOUT
VIN
For ceramic capacitors, the equivalent series
resistance (ESR) is very low, the ripple which is caused
by ESR can be ignored, and the minimum input
capacitance can be estimated as equation below :
CIN_MIN = IOUT_MAX
D 1 D
VCIN_MAX fSW
Where VCIN_MAX 100mV
is a registered trademark of Richtek Technology Corporation.
DS5750A/B-00
May 2020
RT5750A/B
capacitor should be 0402 or 0603 in size.
VCIN
CIN Ripple Voltage
VESR = IOUT x ESR
(1-D) x IOUT
CIN Ripple Current
D x IOUT
D x tSW (1-D) x tSW
Figure 5. CIN Ripple Voltage and Ripple Current
In addition, the input capacitor needs to have a very
low ESR and must be rated to handle the worst-case
RMS input current of :
IRMS IOUT_MAX
VOUT
VIN
1
VIN
VOUT
It is commonly to use the worse IRMS IOUT/2 at VIN =
2VOUT for design. Note that ripple current ratings from
capacitor manufacturers are often based on only 2000
hours of life which makes it advisable to further de-rate
the capacitor, or choose a capacitor rated at a higher
temperature than required.
Several capacitors may also be paralleled to meet size,
height and thermal requirements in the design. For low
input voltage applications, sufficient bulk input
capacitance is needed to minimize transient effects
during output load changes.
Ceramic capacitors are ideal for switching regulator
applications due to its small, robust and very low ESR.
However, care must be taken when these capacitors
are used at the input. A ceramic input capacitor
combined with trace or cable inductance forms a high
quality (under damped) tank circuit. If the RT5750A/B
circuit is plugged into a live supply, the input voltage
can ring to twice its nominal value, possibly exceeding
the device’s rating. This situation is easily avoided by
placing the low ESR ceramic input capacitor in parallel
with a bulk capacitor with higher ESR to damp the
voltage ringing.
The input capacitor should be placed as close as
possible to the VIN pins, with a low inductance
connection to the GND of the IC. In addition to a larger
bulk capacitor, a small ceramic capacitors of 0.1F
should be placed close to the VIN and GND pin. This
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
May 2020
Output Capacitor Selection
The RT5750A/B are optimized for ceramic output
capacitors and best performance will be obtained using
them. The total output capacitance value is usually
determined by the desired output voltage ripple level and
transient response requirements for sag (undershoot on
load apply) and soar (overshoot on load release).
Output Ripple
The output voltage ripple at the switching frequency is
a function of the inductor current ripple going through
the output capacitor’s impedance. To derive the output
voltage ripple, the output capacitor with capacitance,
COUT, and its equivalent series resistance, RESR, must
be taken into consideration. The output peak-to-peak
ripple voltage VRIPPLE, caused by the inductor current
ripple IL, is characterized by two components, which
are ESR ripple VRIPPLE(ESR) and capacitive ripple
VRIPPLE(C), can be expressed as below :
VRIPPLE = VRIPPLE(ESR) VRIPPLE(C)
VRIPPLE(ESR) = IL RESR
VRIPPLE(C) =
IL
8 COUT fSW
If ceramic capacitors are used as the output capacitors,
both the components need to be considered due to the
extremely low ESR and relatively small capacitance.
For the RT5750A/B’s Typical Application Circuit for
output voltage of 1V, and actual inductor current ripple
(IL) of 0.36A, taking a 10F ceramic capacitors of
GRM188R60J106ME84 from Murata as example, the
output ripple of the output capacitor is as below :
The ripple caused by the ESR of about 5m can be
calculated as
VRIPPLEESR = 0.36A 5m = 1.8mV
Due to DC bias capacitance degrading, the effective
capacitance at output voltage of 1V is about 8F
0.36A
= 3.75mV
8 8μF 1.5MHz
= 1.8mV + 3.75mV = 5.55mV
VRIPPLE C =
VRIPPLE
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
19
RT5750A/B
Output Transient Undershoot and Overshoot
In addition to voltage ripple at the switching frequency,
the output capacitor and its ESR also affect the voltage
sag (undershoot) and soar (overshoot) when the load
steps up and down abruptly. The ACOT® transient
response is very quick and output transients are
usually small. The following section shows how to
calculate the worst-case voltage swings in response to
load step, the output capacitor value, the inductor value
and the output voltage :
VSOAR =
L (IOUT )2
2 COUT VOUT
Due to some modern digital loads can exhibit nearly
instantaneous load changes, the amplitude of the ESR
step up or down should be taken into consideration.
very fast load steps.
Output Voltage Setting
The output voltage transient undershoot and overshoot
each have two components : the voltage steps caused
by the output capacitor's ESR, and the voltage sag and
soar due to the finite output capacitance and the
inductor current slew rate. Use the following formulas
to check if the ESR is low enough (typically not a
problem with ceramic capacitors) and the output
capacitance is large enough to prevent excessive sag
and soar on very fast load step edges, with the chosen
Set the desired output voltage using a resistive divider
from the output to ground with the midpoint connected
to FB, as shown in Figure 6. The output voltage is set
according to the following equation :
inductor value.
VOUT = 0.6V x (1 + RFB1 / RFB2)
VOUT
RFB1
FB
RT5750A/B
The amplitude of the ESR step up or down is a function
of the load step and the ESR of the output capacitor :
VESR _STEP = IOUT x RESR
RFB2
GND
Figure 6. Output Voltage Setting
The amplitude of the capacitive sag is a function of the
load step, the output capacitor value, the inductor value,
Place the FB resistors within 5mm of the FB pin. For
the input-to-output voltage differential, and the
maximum duty cycle. The maximum duty cycle during a
or better tolerance.
fast transient is a function of the on-time and the
minimum off-time since the ACOT® control scheme will
ramp the current using on-times spaced apart with
minimum off-times, which is as fast as allowed.
Calculate the approximate on-time (neglecting
parasites) and maximum duty cycle for a given input
and output voltage as :
tON =
VOUT
tON
and DMAX =
VIN fSW
tON tOFF_MIN
The actual on-time will be slightly longer as the IC
compensates for voltage drops in the circuit, but we
can neglect both of these since the on-time increase
compensates for the voltage losses. Calculate the
output voltage sag as :
VSAG =
L (IOUT )2
2 COUT VIN(MIN) DMAX VOUT
The amplitude of the capacitive soar is a function of the
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
www.richtek.com
20
output voltage accuracy, use divider resistors with 1%
EN Pin for Start-Up and Shutdown Operation
For automatic start-up, the EN pin can be connected to
the input supply VIN directly. The large built-in
hysteresis band makes the EN pin useful for simple
delay and timing circuits. The EN pin can be externally
connected to VIN by adding a resistor REN and a
capacitor CEN, as shown in Figure 7, to have an
additional delay. The time delay can be calculated with
the EN's internal threshold, at which switching
operation begins (typically 0.82V).
An external MOSFET can be added for the EN pin to
be logic-controlled, as shown in Figure 8. In this case, a
pull-up resistor, REN, is connected between VIN and
the EN pin. The MOSFET Q1 will be under logic control
to pull down the EN pin. To prevent the device being
enabled when VIN is smaller than the VOUT target
level or some other desired voltage level, a resistive
divider (REN1 and REN2) can be used to externally set
is a registered trademark of Richtek Technology Corporation.
DS5750A/B-00
May 2020
RT5750A/B
REN
VIN
EN
RT5750A/B
CEN
GND
Figure 7. Enable Timing Control
VIN
REN
EN
RT5750A/B
Q1
Enable
GND
Figure 8. Logic Control for the EN Pin
REN1
VIN
EN
REN2
RT5750A/B
GND
Figure 9. Resistive Divider for Under-Voltage Lockout
Threshold Setting
Power-Good Output
The PGOOD pin is an open-drain power-good
indication output and is to be connected to an external
voltage source through a pull-up resistor.
The external voltage source can be an external voltage
supply below 6V, VCC or the output of the RT5750A/B if
the output voltage is regulated under 6V. It is
recommended to connect a 100k between external
voltage source to PGOOD pin.
Thermal Considerations
The junction temperature should never exceed the
absolute maximum junction temperature TJ(MAX), listed
under Absolute Maximum Ratings, to avoid permanent
damage to the device. The maximum allowable power
dissipation depends on the thermal resistance of the IC
package, the PCB layout, the rate of surrounding airflow,
and the difference between the junction and ambient
temperatures. The maximum power dissipation can be
calculated using the following formula :
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
May 2020
PD(MAX) = (TJ(MAX) TA) / JA
where TJ(MAX) is the maximum junction temperature, TA
is the ambient temperature, and JA is the
junction-to-ambient thermal resistance.
For continuous operation, the maximum operating
junction temperature indicated under Recommended
Operating Conditions is 125C. The junction-to-ambient
thermal resistance, JA, is highly package dependent.
For a TSOT-23-5 package, the thermal resistance, JA,
is 79.1C/W on a high effective-thermal-conductivity
four-layer test board. For a TSOT-23-6 package, the
thermal resistance, JA, is 74C/W on a high
effective-thermal-conductivity four-layer test board. The
maximum power dissipation at TA = 25C can be
calculated as below :
PD(MAX) = (125C 25C) / (79.1C/W) = 1.26W for a
TSOT-23-5 package.
PD(MAX) = (125C 25C) / (74C/W) = 1.35W for a
TSOT-23-6 package.
The maximum power dissipation depends on the
operating ambient temperature for the fixed TJ(MAX) and
the thermal resistance, JA. The derating curves in
Figure 10 allows the designer to see the effect of rising
ambient temperature on the maximum power
dissipation.
1.5
Maximum Power Dissipation (W)1
the input under-voltage lockout threshold, as shown in
Figure 9.
Four-Layer PCB
TSOT-23-6
1.2
TSOT-23-5
0.9
0.6
0.3
0.0
0
25
50
75
100
125
Ambient Temperature (°C)
Figure 10. Derating Curve of Maximum Power
Dissipation
Layout Considerations
Follow the PCB layout
performance of the device.
guidelines
for
optimal
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
21
RT5750A/B
Keep the high-current paths short, especially at the
ground terminals. This practice is essential for stable,
jitter-free operation. The high current path
comprising of input capacitor, high-side FET,
inductor, and the output capacitor should be as short
as possible. This practice is essential for high
efficiency.
Place the input MLCC capacitors as close to the VIN
and GND pins as possible. The major MLCC
capacitors should be placed on the same layer as
the RT5750A/B.
SW node is with high frequency voltage swing and
should be kept at small area. Keep analog
components away from the SW node to prevent
stray capacitive noise pickup.
Connect feedback network behind the output
capacitors. Place the feedback components next to
the FB pin.
For better thermal performance, to design a wide
and thick plane for GND pin or to add a lot of vias to
GND plane.
An example of PCB layout guide is shown from Figure
11.
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
www.richtek.com
22
is a registered trademark of Richtek Technology Corporation.
DS5750A/B-00
May 2020
RT5750A/B
GND
The VIN trace should have enough
width, and use several vias to
shunt the high input current.
Connect feedback network
behind the output
COUT
GND
CIN2
RFB1
CFF
RPG
SW
3
2
GND
4
6
EN
REN
Place the feedback components
next to the FB pin.
Keep analog components
away from the SW node to
prevent stray capacitive noise
pickup.
L
5
VIN
PG
PG
FB
Add extra vias for thermal dissipation
GND
CIN1
VIN
Place the input MLCC capacitors as
close to the VIN and GND pins as
possible.
VOUT
GND
RFB2
VIN
VOUT
GND
Figure 11. Layout Guide
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
May 2020
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
23
RT5750A/B
Outline Dimension
Symbol
Dimensions In Millimeters
Dimensions In Inches
Min
Max
Min
Max
A
0.700
1.000
0.028
0.039
A1
0.000
0.100
0.000
0.004
B
1.397
1.803
0.055
0.071
b
0.300
0.559
0.012
0.022
C
2.591
3.000
0.102
0.118
D
2.692
3.099
0.106
0.122
e
0.838
1.041
0.033
0.041
H
0.080
0.254
0.003
0.010
L
0.300
0.610
0.012
0.024
TSOT-23-5 Surface Mount Package
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
www.richtek.com
24
is a registered trademark of Richtek Technology Corporation.
DS5750A/B-00
May 2020
RT5750A/B
Symbol
Dimensions In Millimeters
Dimensions In Inches
Min
Max
Min
Max
A
0.700
1.000
0.028
0.039
A1
0.000
0.100
0.000
0.004
B
1.397
1.803
0.055
0.071
b
0.300
0.559
0.012
0.022
C
2.591
3.000
0.102
0.118
D
2.692
3.099
0.106
0.122
e
0.838
1.041
0.033
0.041
H
0.080
0.254
0.003
0.010
L
0.300
0.610
0.012
0.024
TSOT-23-6 Surface Mount Package
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
May 2020
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
25
RT5750A/B
Footprint Information
Package
TSOT-25/TSOT-25(FC)/SOT-25
of Pin
P1
P2
A
B
C
D
M
5
0.95
1.90
3.60
1.60
1.00
0.70
2.60
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
www.richtek.com
26
Footprint Dimension (mm)
Number
Tolerance
±0.10
is a registered trademark of Richtek Technology Corporation.
DS5750A/B-00
May 2020
RT5750A/B
Package
TSOT-26/TSOT-26(FC)/SOT-26/SOT-26(COL)
Footprint Dimension (mm)
Number of
Tolerance
Pin
P1
A
B
C
D
M
6
0.95
3.60
1.60
1.00
0.70
2.60
±0.10
Richtek Technology Corporation
14F, No. 8, Tai Yuen 1st Street, Chupei City
Hsinchu, Taiwan, R.O.C.
Tel: (8863)5526789
Richtek products are sold by description only. Richtek reserves the right to change the circuitry and/or specifications without notice at any time. Customers should
obtain the latest relevant information and data sheets before placing orders and should verify that such information is current and complete. Richtek cannot assume
responsibility for use of any circuitry other than circuitry entirely embodied in a Richtek product. Information furnished by Richtek is believed to be accurate and
reliable. However, no responsibility is assumed by Richtek or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may
result from its use. No license is granted by implication or otherwise under any patent or patent rights of Richtek or its subsidiaries.
Copyright © 2020 Richtek Technology Corporation. All rights reserved.
DS5750A/B-00
May 2020
is a registered trademark of Richtek Technology Corporation.
www.richtek.com
27
工商网监
湘ICP备2023018690号
