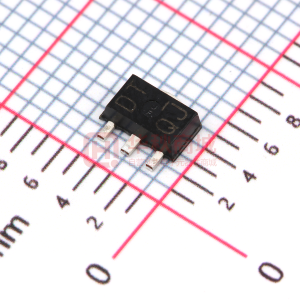

2SD2391

Medium Power Transistor (60V, 2A) 2SD2391 Features 1) Low saturation voltage , typically VCE (sat) =0.13V at IC / IB =1A /50mA. 2) Collector-emitter voltage =60V 3) Pc = 2W (on 40400.7mm ceramic board). 4) Complements the 2SB1561. Dimensions (Unit : mm) MPT3 4.5 1.6 0.5 1.5 (1) (2) (3) 1.0 2.5 4.0 0.4 0.4 1.5 0.5 1.5 3.0 0.4 (1)Base (2)Collector (3)Emitter Absolute maximum ratings (Ta=25C) Parameter Symbol VCBO VCEO VEBO IC PC Tj Tstg + Limits 60 60 6 2 6 0.5 2 150 −55 to +150 Unit V V V A A W ∗1 ∗2 Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector power dissipation Junction temperature Storage temperature + °C °C ∗1 Single pulse, Pw=10ms ∗2 When mounted on a 40 40 0.7mm ceramic board. Electrical characteristics (Ta=25C) Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cutoff current Emitter cutoff current Collector-emitter saturation voltage DC current transfer ratio Transition frequency Output capacitance ∗ Measured using pulse current Symbol BVCBO BVCEO BVEBO ICBO IEBO VCE(sat) hFE1 hFE2 fT Cob Min. 60 60 6 − − − 120 45 − − Typ. − − − − − 0.13 − − 210 21 Max. − − − 0.1 0.1 0.35 270 − − − Unit V V V μA μA V − − MHz pF IC=50μA IC=1mA IE=50μA VCB=50V Conditions VEB=5V IC/IB=1A/50mA VCE/IC=−2V/−0.5A VCE/IC=−2V/−1.5A VCE=2V, IE=−0.5A, f=100MHz VCB=10V, IE=0A, f=1MHz ∗ ∗ Packaging specifications and hFE Type 2SD2391 MPT3 Q DT∗ T100 1000 ∗Denotes hFE Package hFE Marking Code Basic ordering unit (pieces) www.rohm.com c ○ 2009 ROHM Co., Ltd. All rights reserved. 1/2 2009.12 - Rev.A 2SD2391  Electrical characteristic curves 2.0 Data Sheet COLLECTOR CURRENT : lC (A) COLLECTOR CURRENT : IC (A) m 20 A 18 mA 16mA 14mA 12mA 10mA 5 2 1 500m VCE=2V 1000 500 Ta=100°C VCE=2V 1.6 8mA 6mA DC CURRENT GAIN : hFE 200 100 50 20 10 5 2 25°C −40°C 100m 50m 20m 10m 5m 2m 1m 0 0.8 4mA 0.4 IB=0mA 2mA 0.0 0 1 2 3 Ta=25°C 4 5 Ta=1 0 1.2 200m 0°C 25°C −40°C 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1 10m 20m 50m 100m 200m 500m 1 2 5 10 COLLECTOR TO EMITTER VOLTAGE : VCE (V) BASE TO EMITTER VOLTAGE : VBE (V) COLLECTOR CURRENT : IC (A) Fig.1 Grounded emitter output characteristics Fig.2 Grounded emitter propagation characteristics Fig.3 DC current gain vs. collector current ( Ι ) COLLECTOR SATURATION VOLTAGE : VCE(sat) (mV) 1000 500 Ta=25°C 1000 500 200 100 50 25°C Ta=100°C COLLECTOR SATURATION VOLTAGE : VCE(sat) (mV) IC/IB=20 1000 500 200 100 50 20 10 5 2 1 5m 10m 20m 50m100m 200m 500m 1 IC/IB=50 20 10 Ta=25°C DC CURRENT GAIN : hFE 200 100 50 20 10 5 2 1 10m 20m 50m 100m 200m 500m 1 VCE=5V 2V 1V 20 10 5 2 1 5m 10m 20m −40°C 2 5 10 50m 100m 200m 500m 1 2 5 2 5 COLLECTOR CURRENT : IC (A) COLLECTOR CURRENT : IC (A) COLLECTOR CURRENT : IC (A) Fig.4 DC current gain vs. collector current ( ΙΙ ) Fig.5 Collector-emitter saturation voltage vs. collector current ( Ι ) Fig.6 Collector-emitter saturation voltage vs. collector current ( ΙΙ ) 1000 COLLECTOR OUTPUT CAPACITANCE : Cob (pF) EMITTER INPUT CAPACITANCE : Cib (pF) TRANSITION FREQUENCY : fT (MHz) 500 200 100 50 20 10 5 2 1 −2m −10m −100m 500 Cib 200 100 50 20 10 5 2 1 0.1 0.2 0.5 1 2 5 10 20 Cob COLLECTOR CURRENT : lC (A) Ta=25°C VCE=2V 1000 Ta=25°C f=1MHz IE=0A IC=0A 50 20 10 Ic max(Pulse) PW 5 = 2 1 500m DC 10 =1 Pw =1 PW s ms 0m s 0m 200m 100m 50m −1 −2 50 100 20m Ta=25°C Single pulse 10m 0.2 0.5 1 2 5 10 20 50 100 200 500 EMITTER CURRENT : IE (A) COLLECTOR TO BASE VOLTAGE : VCB (V) EMITTER TO BASE VOLTAGE : VEB (V) COLLECTOR TO EMITTER VOLTAGE : VCE (V) Fig.7 Gain bandwidth product vs. emitter current Fig.8 Iutput capacitance vs. voltage Fig.9 Safe operating area www.rohm.com c ○ 2009 ROHM Co., Ltd. All rights reserved. 2/2 2009.12 - Rev.A Notice Notes No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without notice. The content specified herein is for the purpose of introducing ROHM's products (hereinafter "Products"). If you wish to use any such Product, please be sure to refer to the specifications, which can be obtained from ROHM upon request. Examples of application circuits, circuit constants and any other information contained herein illustrate the standard usage and operations of the Products. The peripheral conditions must be taken into account when designing circuits for mass production. Great care was taken in ensuring the accuracy of the information specified in this document. However, should you incur any damage arising from any inaccuracy or misprint of such information, ROHM shall bear no responsibility for such damage. The technical information specified herein is intended only to show the typical functions of and examples of application circuits for the Products. ROHM does not grant you, explicitly or implicitly, any license to use or exercise intellectual property or other rights held by ROHM and other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the use of such technical information. The Products specified in this document are intended to be used with general-use electronic equipment or devices (such as audio visual equipment, office-automation equipment, communication devices, electronic appliances and amusement devices). The Products specified in this document are not designed to be radiation tolerant. While ROHM always makes efforts to enhance the quality and reliability of its Products, a Product may fail or malfunction for a variety of reasons. Please be sure to implement in your equipment using the Products safety measures to guard against the possibility of physical injury, fire or any other damage caused in the event of the failure of any Product, such as derating, redundancy, fire control and fail-safe designs. ROHM shall bear no responsibility whatsoever for your use of any Product outside of the prescribed scope or not in accordance with the instruction manual. The Products are not designed or manufactured to be used with any equipment, device or system which requires an extremely high level of reliability the failure or malfunction of which may result in a direct threat to human life or create a risk of human injury (such as a medical instrument, transportation equipment, aerospace machinery, nuclear-reactor controller, fuel-controller or other safety device). ROHM shall bear no responsibility in any way for use of any of the Products for the above special purposes. If a Product is intended to be used for any such special purpose, please contact a ROHM sales representative before purchasing. If you intend to export or ship overseas any Product or technology specified herein that may be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to obtain a license or permit under the Law. Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact us. ROHM Customer Support System http://www.rohm.com/contact/ www.rohm.com © 2009 ROHM Co., Ltd. All rights reserved. R0039A
