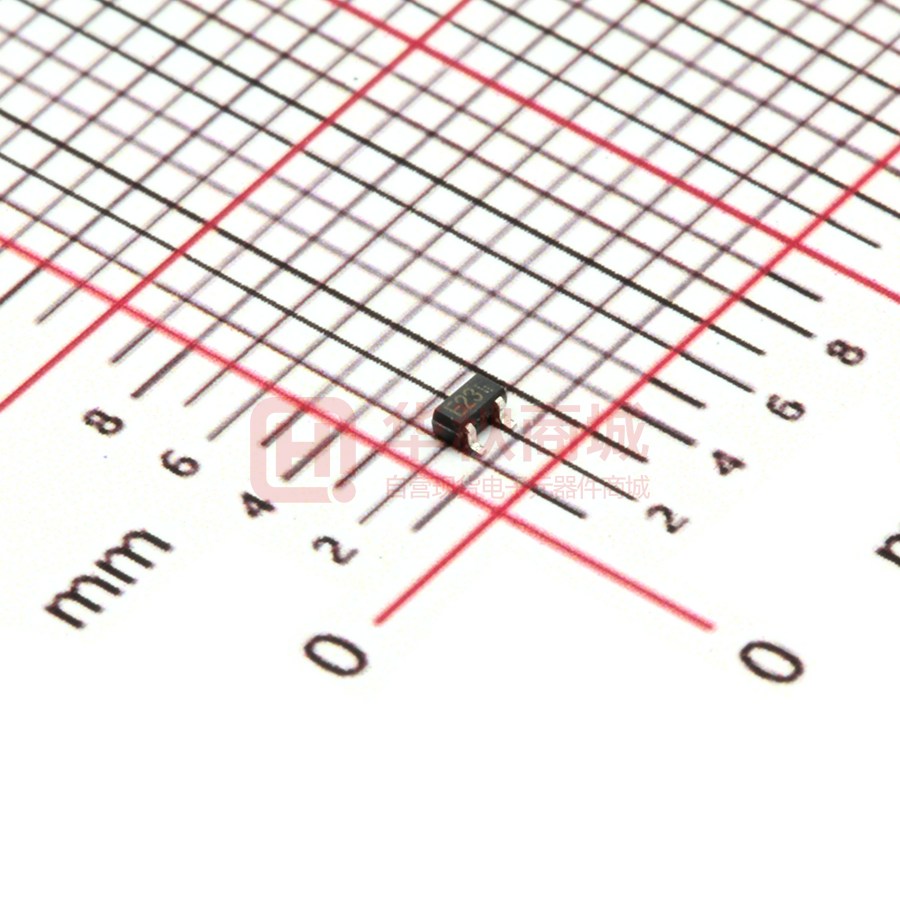

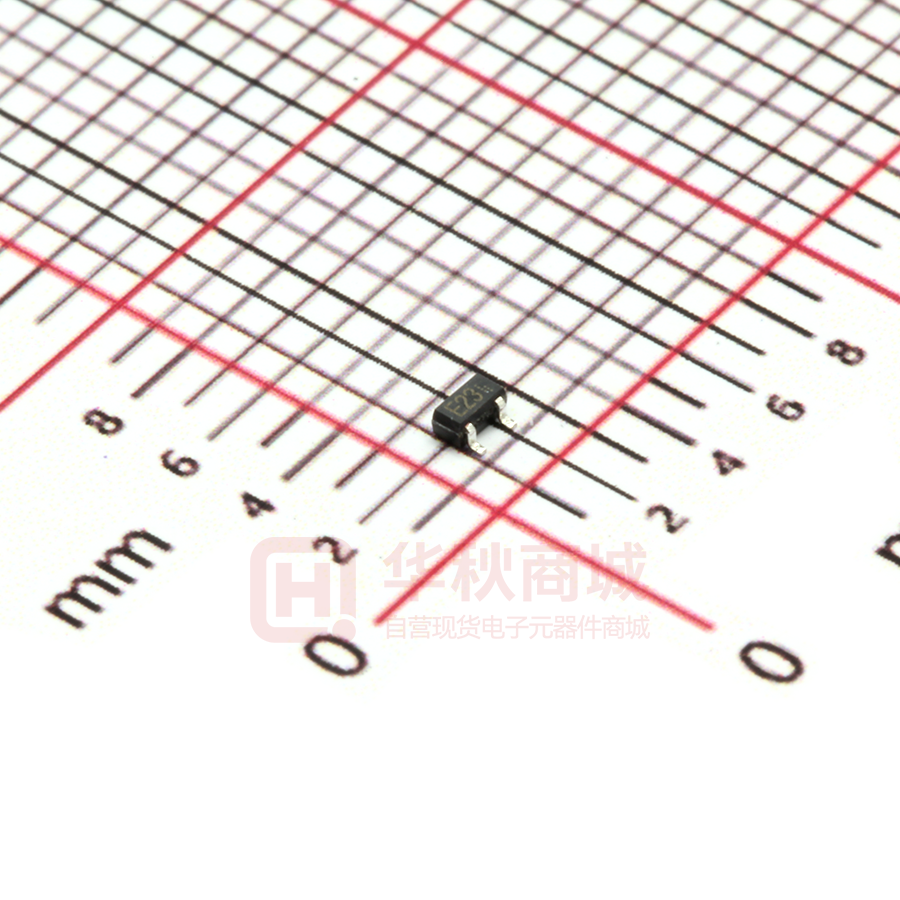

DTC114EUAT106

DTC114EM / DTC114EE / DTC114EUA DTC114EKA / DTC114ESA Transistors 100mA / 50V Digital transistors (with built-in resistors) DTC114EM / DTC114EE / DTC114EUA / DTC114EKA / DTC114ESA zApplications Inverter, Interface, Driver zFeatures 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on/off conditions need to be set for operation, making the device design easy. zStructure NPN epitaxial planar silicon transistor (Resistor built-in type) zDimensions (Unit : mm) 0.7 1.6 DTC114EE 0.55 0.3 0.2 1.2 0.32 (3) 0.8 0.8 1.2 0.2 (1)(2) 0.22 0.4 0.4 (2) 0.13 (1) IN (2) GND (3) OUT 0.5 0.8 0.2 1.0 ROHM : EMT3 Abbreviated symbol : 24 2.0 0.4 0.8 1.6 2.8 2.1 1.25 0.15 1.3 0.1Min. (1) (2) 0.65 0.65 Each lead has same dimensions 4.0 (2) (1) GND (2) IN (3) OUT Abbreviated symbol : 24 (1) 0.95 0.95 0.15 1.9 ROHM : SMT3 EIAJ : SC-59 (1) GND (2) IN (3) OUT Each lead has same dimensions Abbreviated symbol : 24 2.0 (15Min.) 3Min. 3.0 DTC114ESA 1.1 (3) (3) ROHM : UMT3 EIAJ : SC-70 2.9 0.7 0.2 0.3 Each lead has same dimensions Abbreviated symbol : 24 DTC114EKA 0.9 (1) GND (2) IN (3) OUT 0.3Min. DTC114EUA 0.15 0.5 0.5 Each lead has same dimensions ROHM : VMT3 (1) 0.2 0.1Min. (3) 1.6 DTC114EM 0.45 2.5 0.5 0.45 5.0 ROHM : SPT EIAJ : SC-72 (1) (2) (3) Abbreviated symbol : C114ES (1) GND (2) OUT (3) IN Rev.B 1/3 DTC114EM / DTC114EE / DTC114EUA DTC114EKA / DTC114ESA Transistors zPackaging specifications Part No. zEquivalent circuit Package VMT3 EMT3 UMT3 SMT3 SPT Packaging type Taping Taping Taping Taping Taping Code T2L TL T106 T146 TP Basic ordering unit (pieces) 8000 3000 3000 3000 5000 − − − − − − − − − OUT R1 IN R2 GND DTC114EM DTC114EE − DTC114EUA − − DTC114EKA − − − DTC114ESA − − − OUT IN − GND − R1=R2=10kΩ zAbsolute maximum ratings (Ta=25°C) Parameter Limits Symbol Unit DTC114EM DTC114EE DTC114EUA DTC114EKA DTC114ESA Supply voltage VCC 50 V Input voltage VIN −10 to +40 V IO 50 IC(Max.) 100 Output current mA Power dissipation PD Junction temperature Tj 150 °C Storage temperature Tstg −55 to +150 °C 150 200 300 mW zElectrical characteristics (Ta=25°C) Parameter Input voltage Output voltage Input current Output current DC current gain Symbol Min. Typ. Max. VI(off) − − 0.5 VI(on) 3 − − VO(on) − 0.1 0.3 V II − − 0.88 mA IO(off) − − 0.5 µA VCC=50V, VI=0V GI 30 − − − VO=5V, IO=5mA Unit V Input resistance R1 7 10 13 kΩ Resistance ratio R2/R1 0.8 1 1.2 − − 250 − MHz Transition frequency fT ∗ Conditions VCC=5V, IO=100µA VO=0.3V, IO=10mA IO/II=10mA/0.5mA VI=5V − − VCE=10V, IE=−5mA, f=100MHz ∗ Characteristics of built-in transistor Rev.B 2/3 DTC114EM / DTC114EE / DTC114EUA DTC114EKA / DTC114ESA Transistors zElectrical characteristic curves 10m 5m VO=0.3V OUTPUT CURRENT : Io (A) INPUT VOLTAGE : VI(on) (V) 50 20 10 Ta=−40°C 25°C 100°C 5 2 1 500m 200m 100m 100µ 200µ 500µ 1m 2m 5m 10m 20m 50m 100m OUTPUT CURRENT : IO (A) Fig.1 Input voltage vs. output current (ON characteristics) 1 2m 1m 500µ 1k VCC=5V Ta=100°C 25°C −40°C 200µ 100µ 50µ 20µ 10µ 5µ 2µ 1µ 0 VO=5V 500 DC CURRENT GAIN : GI 100 200 Ta=100°C 25°C −40°C 100 50 20 10 5 2 0.5 1.0 1.5 2.0 2.5 3.0 INPUT VOLTAGE : VI(off) (V) Fig.2 Output current vs. input voltage (OFF characteristics) 1 100µ 200µ 500µ1m 2m 5m 10m 20m 50m100m OUTPUT CURRENT : IO (A) Fig.3 DC current gain vs. output current lO/lI=20 OUTPUT VOLTAGE : VO(on) (V) 500m Ta=100°C 25°C −40°C 200m 100m 50m 20m 10m 5m 2m 1m 100µ 200µ 500µ 1m 2m 5m 10m 20m 50m 100m OUTPUT CURRENT : IO (A) Fig.4 Output voltage vs. output current Rev.B 3/3 Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.,LTD. The contents described herein are subject to change without notice. The specifications for the product described in this document are for reference only. Upon actual use, therefore, please request that specifications to be separately delivered. Application circuit diagrams and circuit constants contained herein are shown as examples of standard use and operation. Please pay careful attention to the peripheral conditions when designing circuits and deciding upon circuit constants in the set. Any data, including, but not limited to application circuit diagrams information, described herein are intended only as illustrations of such devices and not as the specifications for such devices. ROHM CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any third party's intellectual property rights or other proprietary rights, and further, assumes no liability of whatsoever nature in the event of any such infringement, or arising from or connected with or related to the use of such devices. Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or otherwise dispose of the same, no express or implied right or license to practice or commercially exploit any intellectual property rights or other proprietary rights owned or controlled by ROHM CO., LTD. is granted to any such buyer. Products listed in this document are no antiradiation design. The products listed in this document are designed to be used with ordinary electronic equipment or devices (such as audio visual equipment, office-automation equipment, communications devices, electrical appliances and electronic toys). Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. About Export Control Order in Japan Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control Order in Japan. In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause) on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction. Appendix1-Rev1.1
