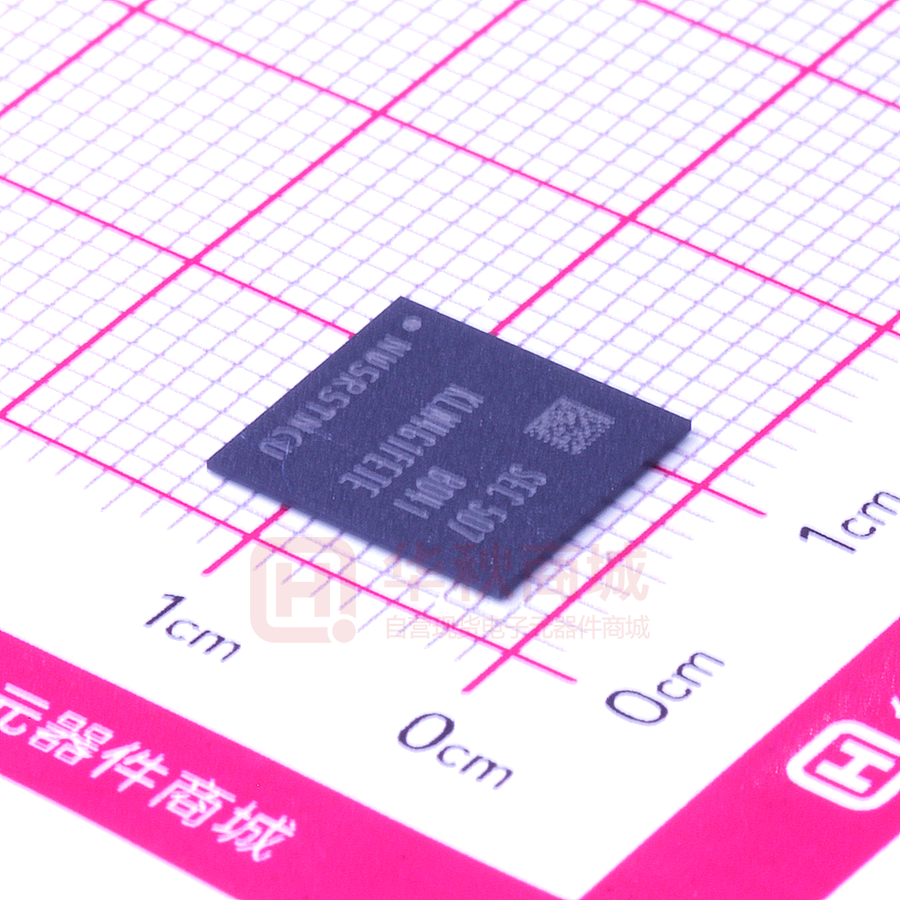

KLM4G1FETE-B041

KLM4G1FETE-B041

  • 厂商:

    SAMSUNG(三星)

  • 封装:

    FBGA153_11X10MM

  • 描述:

    三星eMMC产品 FBGA153 4GB 200MHz

  • 数据手册
  • 价格&库存
KLM4G1FETE-B041 数据手册
SAMSUNG CONFIDENTIAL Rev1.0. Feb. 2018 KLM4G1FETE-B041 Samsung eMMC Product family eMMC 5.1 Specification compatibility datasheet SAMSUNG ELECTRONICS RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND SPECIFICATIONS WITHOUT NOTICE. Products and specifications discussed herein are for reference purposes only. All information discussed herein is provided on an "AS IS" basis, without warranties of any kind. This document and all information discussed herein remain the sole and exclusive property of Samsung Electronics. No license of any patent, copyright, mask work, trademark or any other intellectual property right is granted by one party to the other party under this document, by implication, estoppel or otherwise. Samsung products are not intended for use in life support, critical care, medical, safety equipment, or similar applications where product failure could result in loss of life or personal or physical harm, or any military or defense application, or any governmental procurement to which special terms or provisions may apply. For updates or additional information about Samsung products, contact your nearest Samsung office. All brand names, trademarks and registered trademarks belong to their respective owners. ⓒ 2018 Samsung Electronics Co., Ltd. All rights reserved -1- KLM4G1FETE-B041 SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet eMMC Revision History Revision No. History Draft Date Remark Editor 0.0 1. Initial issue Nov. 16, 2017 Target S.M.Lee 0.1 1. Package Dimension update. Dec. 20, 2017 Target S.M.Lee 1.0 1. Customer sample Jan. 02, 2018 Final S.M.Lee IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. -2- KLM4G1FETE-B041 datasheet SAMSUNG CONFIDENTIAL Rev. 1.0 Table Of Contents 1.0 PRODUCT LIST.......................................................................................................................................................... 4 2.0 KEY FEATURES......................................................................................................................................................... 4 3.0 PACKAGE CONFIGURATIONS ................................................................................................................................. 5 3.1 153 Ball Pin Configuration ....................................................................................................................................... 5 3.1.1 11mm x 10mm x 0.8mm Package Dimension .................................................................................................. 6 3.2 Product Architecture ................................................................................................................................................ 7 4.0 HS400 mode............................................................................................................................................................... 8 5.0 New eMMC5.1 Features ............................................................................................................................................. 9 5.1 Overview.................................................................................................................................................................. 9 5.2 Command Queuing ................................................................................................................................................. 9 5.2.1 CMD Set Description......................................................................................................................................... 9 5.2.2 New Response : QSR (Queue Status Register) .............................................................................................. 9 5.2.3 Send Status : CMD13 ...................................................................................................................................... 9 5.2.4 Mechanism of CMD Queue operation............................................................................................................... 10 5.2.5 CMD Queue Register description ..................................................................................................................... 10 5.3 Enhanced Strobe Mode........................................................................................................................................... 10 5.4 RPMB Throughput improve ..................................................................................................................................... 10 5.5 Secure Write Protection........................................................................................................................................... 11 6.0 Technical Notes .......................................................................................................................................................... 12 6.1 S/W Algorithm.......................................................................................................................................................... 12 6.1.1 Partition Management ....................................................................................................................................... 12 6.1.1.1 Enhanced Partition (Area) .......................................................................................................................... 12 6.1.2 Boot operation................................................................................................................................................... 12 6.1.3 User Density...................................................................................................................................................... 13 6.1.4 Auto Power Saving Mode.................................................................................................................................. 14 6.1.5 Performance...................................................................................................................................................... 14 7.0 REGISTER VALUE ..................................................................................................................................................... 15 7.1 OCR Register .......................................................................................................................................................... 15 7.2 CID Register ............................................................................................................................................................ 15 7.2.1 Product name table (In CID Register) ............................................................................................................... 15 7.3 CSD Register........................................................................................................................................................... 16 7.4 Extended CSD Register .......................................................................................................................................... 17 8.0 AC PARAMETER........................................................................................................................................................ 21 8.1 Timing Parameter .................................................................................................................................................... 21 8.2 Previous Bus Timing Parameters for DDR52 and HS200 mode are defined by JEDEC standard.......................... 21 8.3 Bus Timing Specification in HS400 mode ............................................................................................................... 22 8.3.1 HS400 Device Input Timing .............................................................................................................................. 22 8.3.2 HS400 Device Output Timing............................................................................................................................ 23 8.4 Bus signal levels ...................................................................................................................................................... 24 8.4.1 Open-drain mode bus signal level..................................................................................................................... 24 8.4.2 Push-pull mode bus signal level eMMC ............................................................................................................ 24 9.0 DC PARAMETER ....................................................................................................................................................... 25 9.1 Active Power Consumption during operation .......................................................................................................... 25 9.2 Standby Power Consumption in auto power saving mode and standby state......................................................... 25 9.3 Sleep Power Consumption in Sleep State............................................................................................................... 25 9.4 Supply Voltage ........................................................................................................................................................ 25 9.5 Bus Signal Line Load............................................................................................................................................... 26 IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. -3- eMMC SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC INTRODUCTION SAMSUNG eMMC is an embedded MMC solution designed in a BGA package form. eMMC operation is identical to a MMC device and therefore is a simple read and write to memory using MMC protocol v5.1 which is a industry standard. eMMC consists of NAND flash and a MMC controller. 3V supply voltage is required for the NAND area (VDDF or VCC) whereas 1.8V or 3V dual supply voltage (VDD or VCCQ) is supported for the MMC controller. SAMSUNG eMMC supports HS400 in order to improve sequential bandwidth, especially sequential read performance. There are several advantages of using eMMC. It is easy to use as the MMC interface allows easy integration with any microprocessor with MMC host. Any revision or amendment of NAND is invisible to the host as the embedded MMC controller insulates NAND technology from the host. This leads to faster product development as well as faster times to market. The embedded flash management software or FTL(Flash Transition Layer) of eMMC manages Wear Leveling, Bad Block Management and ECC. The FTL supports all features of the Samsung NAND flash and achieves optimal performance. 1.0 PRODUCT LIST [Table 1] Product List Capacities 4 GB eMMC Part ID NAND Flash Type User Density (%) KLM4G1FETE-B041 32Gb x 1 91.0% Power System Package size Pin Configuration - Interface power : VDD (1.70V ~ 1.95V or 2.7V ~ 3.6V) - Memory power : VDDF (2.7V ~ 3.6V) 11mm x 10mm x 0.8 153FBGA 2.0 KEY FEATURES  embedded MultiMediaCard Ver. 5.1 compatible.  SAMSUNG eMMC supports features of eMMC5.1 which are defined in JEDEC Standard - Major Supported Features : HS400, Field Firmware Update, Cache, Command Queuing, Enhanced Strobe Mode,  Secure Write Protection, Partition types. - Non-supported Features : Large Sector Size (4KB)  Backward compatibility with previous MultiMediaCard system specification (1bit data bus, multi-eMMC systems)  Data bus width : 1bit (Default), 4bit and 8bit  MMC I/F Clock Frequency : 0 ~ 200MHz MMC I/F Boot Frequency : 0 ~ 52MHz  Temperature : Operation (-25C ~ 85C), Storage without operation (-40C ~ 85C)  Power : Interface power → VCCQ(1.70V ~ 1.95V or 2.7V ~ 3.6V) , Memory power → VCC (2.7V ~ 3.6V) IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. -4- SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 3.0 PACKAGE CONFIGURATIONS 3.1 153 Ball Pin Configuration [Table 2] 153 Ball Information Pin NO Name A3 DAT0 A4 DAT1 A5 DAT2 B2 DAT3 B3 DAT4 B4 DAT5 B5 DAT6 B6 DAT7 K5 RSTN C6 VCCQ M4 VCCQ N4 VCCQ P3 VCCQ P5 VCCQ E6 VCC F5 VCC J10 VCC NC Ball-side down view 1 2 3 4 5 6 7 Vss RFU A DAT0 DAT1 DAT2 B DAT3 DAT4 DAT5 DAT6 DAT7 C VDDI Vss RFU F VCC RFU G Vss RFU H Data Strobe Vss VCC VCC J C2 VDDI K RSTN RFU M5 CMD L H5 Data Strobe M VCCQ CMD CLK M6 CLK N J5 VSS P VSS E7 VSS G5 VSS H10 VSS K8 VSS N2 VSS N5 VSS P4 VSS P6 VSS RFU E VCC VSS RFU 10 11 12 13 14 D K9 A6 9 VCCQ Vss C4 8 Vss VCCQ VCCQ Vss Vss VCCQ Vss RFU Vss VCC Vss RFU RFU RFU Figure 1. 153-FBGA  CLK : Clock input  Data Strobe : Data Strobe is generated from eMMC to host. In HS400 mode, read data and CRC response are synchronized with Data Strobe.  CMD : A bidirectional signal used for device initialization and command transfers. Command operates in two modes, open-drain for initialization and push-pull for fast command transfer.  DAT0-7 : Bidirectional data channels. It operates in push-pull mode.  RST_n : H/W reset signal pin  VCC : Supply voltage for flash memory  VCCQ : Supply voltage for memory controller  VDDi : Internal power node to stabilize regulator output to controller core logics  VSS : Ground connections  RFU : Reserved for future use , do not use for any usage IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. -5- SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 3.1.1 11mm x 10mm x 0.8mm Package Dimension #A1 INDEX MARK 11.00±0.10 A 0.50 x 13 = 6.50 3.25 0.50 0.25 1413121110 9 8 7 6 5 4 3 2 1 0.08 MAX 11.00±0.10 B 0.50 0.25 3.25 0.50 x 13 = 6.50 10.00±0.10 A B (Datum B) C D E F G H J K L M N P 10.00±0.10 10.00±0.10 #A1 0.22±0.05 0.70±0.10  0.15 M TOP VIEW (Datum A) 153-0.30±0.05 AB BOTTOM VIEW Figure 2. 11mm x 10mm x 0.8mm Package Dimension IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. -6- SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 3.2 Product Architecture - eMMC consists of NAND Flash and Controller. VCCQ is for Controller power and VCC is for flash power VCC CReg Data Strobe CLK CMD DAT[7:0] Core Regulator VDDi Core Logic Block NAND I/O Block RESET MMC I/O Block VCCQ Control Signal Memory Data Bus MMC Controller Figure 3. eMMC Block Diagram IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. -7- SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 4.0 HS400 mode eMMC5.0 product supports high speed DDR interface timing mode up to 400MB/s at 200MHz with 1.8V I/O supply. HS400 mode supports the following features :  DDR Data sampling method CLK frequency up to 200MHz DDR (up to 400Mbps)  Only 8-bits bus width available Signaling levels of 1.8V Six selectable Drive Strength (refer to the table below) [Table 3] I/O driver strength types Driver Type HS200 & HS400 Nominal Impedance Support Approximated driving capability compared to Type-0 Remark Default Driver Type. Supports up to 200MHz operation. 0 Default 50Ω x1 1 Optional 33Ω x1.5 Supports up to 200MHz Operation. 2 Optional 66Ω x0.75 The weakest driver that supports up to 200MHz operation. 3 Optional 100Ω x0.5 For low noise and low EMI systems. Maximal operating frequency is decided by Host design. 4 Optional 40Ω x1.2 Supports up to 200MHz DDR operation NOTE: 1) Support of Driver Type-0 is default for HS200 & HS400 Device, while supporting Driver types 1~4 are optional for HS200 & HS400 Device. [Table 4] Device type values (EXT_CSD register : DEVICE_TYPE [196]) Bit Device Type Supportability 7 HS400 Dual Data Rate eMMC @ 200 MHz - 1.2V I/O Not support 6 HS400 Dual Data Rate eMMC @ 200 MHz - 1.8V I/O Support 5 HS200 Single Data Rate eMMC @ 200 MHz - 1.2V I/O Not support 4 HS200 Single Data Rate eMMC @ 200 MHz - 1.8V I/O Support 3 High-Speed Dual Data Rate eMMC @ 52MHz - 1.2V I/O Not support 2 High-Speed Dual Data Rate eMMC @ 52MHz - 1.8V or 3V I/O Support 1 High-Speed eMMC @ 52MHz - at rated device voltage(s) Support 0 High-Speed eMMC @ 26MHz - at rated device voltage(s) Support [Table 5] Extended CSD revisions (EXT_CSD register : EXT_CSD_REV [192]) Value 255-8 Timing Interface EXT_CSD Register Value Reserved - 8 Revision 1.8 (for MMC V5.1) 0x08 7 Revision 1.7 (for MMC V5.0) - 6 Revision 1.6 (for MMC V4.5, V4.51) - 5 Revision 1.5 (for MMC V4.41) - 4 Revision 1.4 (Obsolete) - 3 Revision 1.3 (for MMC V4.3) - 2 Revision 1.2 (for MMC V4.2) - 1 Revision 1.1 (for MMC V4.1) - 0 Revision 1.0 (for MMC V4.0) - [Table 6] High speed timing values (EXT_CSD register : HS_TIMING [185]) Value 0x0 Timing Interface Supportability Selecting backwards compatibility interface timing Support 0x1 High Speed Support 0x2 HS200 Support 0x3 HS400 Support IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. -8- SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 5.0 New eMMC5.1 Features 5.1 Overview New Feature JEDEC Support Cache Flushing Report Mandatory Yes Background operation control Mandatory Yes Command Queuing Optional Yes Enhanced Strobe Optional Yes RPMB Throughput improve Optional Yes Secure Write Protection Optional Yes 5.2 Command Queuing To facilitate command queuing in eMMC, the device manages an internal task queue that the host can queue during data transfer tasks. Every task is issued by the host and initially queued as pending. The device works to prepare pending tasks for execution. When a task is ready for execution, its state changes to “ready for execution”. The host tracks the state of all queued tasks and may order the execution of any task, marked as “ready for execution”, by sending a command indicating its task ID. The device executes the data transfer transaction after receiving the execute command(CMD46/CMD47) 5.2.1 CMD Set Description [Table 7] CMD Set Description and Details CMD Type Argument Abbreviation Purpose CMD44 ac/R1 [31] Reliable Write Request [30] DAT_DIR - "0" write / "1" read [29] tag request [28:25] context ID [24] forced programming [23] Priority: “0” simple / “1” high [20:16] TASK ID [15:0] number of blocks QUEUED_TASK _PARAMS Define direction of operation (Read or Write) and Set high priority CMD Queue with task ID CMD45 ac/R1 [31:0] Start block address QUEUED_TASK_ADDRESS Indicate data address for Queued CMD CMD46 adtc/R1 [20:16] TASK ID EXECUTE_READ_TASK (Read) Transmit the requested number of data blocks CMD47 adtc/R1 [20:16] TASK ID EXECUTE_WRITE_TASK (Write) Transmit the requested number of data blocks CMDQ_TASK _MGMT Reset a specific task or entire queue. [20:16] when TM op-code = 2h these bits represent TaskID. When TM op-code = 1h these bits are reserved." CMD48 ac/R1b [20:16] Task ID [3:0] TM op-code 5.2.2 New Response : QSR (Queue Status Register) The 32-bit Queue Status Register (QSR) carries the state of tasks in the queue at a specific point in time. The host has read access to this register through device response to SEND_STATUS command (CMD13 with bit[15]=”1”), R1’s argument will be the 32- bit Queue Status Register (QSR). Every bit in the QSR represents the task who’s ID corresponds to the bit index. If bit QSR[i] = “0”, then the queued task with a Task ID i is not ready for execution. The task may be queued and pending, or the Task ID is unused. If bit QSR[i] = “1”, then the queued task with Task ID i is ready for execution. 5.2.3 Send Status : CMD13 CMD13 for reading the Queue Status Register (QSR) by the host. If bit[15] in CMD13’s argument is set to 1, then the device shall send an R1 Response with the QSR instead of the Device Status. * There is still legacy CMD13 with R` response  IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. -9- SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 5.2.4 Mechanism of CMD Queue operation Host issues CMD44 with Task ID number, Sector, Count, Direction, Priority to the device followed by CMD45 and host checks the Queue Status check with CMD13 [15]bits to 1 . After that host issues CMD46 for Read or CMD47 for write During CMD queue operation, CMD44/CMD45 is able to be issued at anytime when the CMD line is not in use *Read Execution CMD R1 44 45 R1 44 R1 45 R1 13 46 R1 47 R1 44 QSR R1 45 R1 13 QSR *Write Execution Data DATA Data 5.2.5 CMD Queue Register description Configuration and capability structures shall be added to the EXT_CSD register, as described below [Table 8] CMD Queuing Support (EXT_CSD register : CMDQ_SUPPORT [308]) Bit7 Bit6 Bit5 Bit4 Bit 3 Bit2 Bit1 Bit0 Reserved CMD Queue supportability This field indicates whether the device supports command queuing or not 0x0: CMD Queue function is not supported 0x1: CMD Queue function is supported [Table 9] Command Queue Mode Enable(EXT_CSD register : CMDQ_MODE_EN [15]) Bit7 Bit6 Bit5 Bit4 Bit 3 Bit2 Bit1 Bit0 Reserved 0x00 This field is used by the host enable command queuing 0x0: Queue function is not enabled 0x1: Queue function is enabled [Table 10] CMD Queuing Depth(EXT_CSD register : CMDQ_DEPTH [307]) Bit7 Bit6 Bit5 Bit4 Bit 3 Reserved Bit2 Bit1 Bit0 0x0F This field is used to calculate the depth of the queue supported by the device Bit encoding: [7:5]: Reserved [4:0]: N,a parameter used to calculate the Queue Depth of task queue in the device. Queue Depth = N+1. 5.3 Enhanced Strobe Mode This product supports Enhanced Strobe in HS400 mode and refer to the details as described in eMMC5.1 JEDEC standard 5.4 RPMB Throughput improve [Table 11] Related parameter register in EXT_CSD : WR_REL_PARAM [166] Name Field Bit Type Enhanced RPMB Reliable Write EN_RPMB_REL_WR 4 R Bit[4]: EN_RPMB_REL_WR(R) 0x0: RPMB transfer size is either 256B (single 512B frame) or 512B (Two 512B frame). 0 x1: RPMB transfer size is either 256B (single 512B frame), 512B (Two 512B frame), or 8KB(Thirthy two 512B frames). IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 10 - SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 5.5 Secure Write Protection Configuration and capability structures shall be added to the EXT_CSD register and Authenticated Device Configuration Area as described below [Table 12] Parameter register in EXT_CSD : SECURE_WP_INFO [211] Bit7 Bit6 Bit5 Bit4 Bit Bit2 Reserved Bit1 Bit0 SECURE_WP_EN_STATUS SECURE_WP_SUPPORT Bit[7:2]: Reserved Bit[1]: SECURE_WP_EN_STATUS(R) 0x0: Legacy Write Protection mode. 0x1: Secure Write Protection mode. Bit[0]: SECURE_WP_SUPPORT(R) 0x0: Secure Write Protection is NOT supported by this device 0x1: Secure Write Protection is supported by this device [Table 13] Authenticated Device Configuration Area[1] : SECURE_WP_MODE_ENABLE Bit7 Bit6 Bit5 Bit4 Bit Bit2 Bit1 Reserved Bit0 0x00 Bit[7:1] : Reserved Bit[0] : SECURE_WP_EN (R/W/E) The default value of this field is 0x0.  0x0 : Legacy Write Protection mode, i.e., TMP_WRITE_PROTECT[12] , PERM_WRITE_PROTECT[13] is updated by CMD27. USER_WP[171], BOOT_WP[173] and BOOT_WP_STATUS[174] are updated by CMD6.  0x1 : Secure Write Protection mode. The access to the write protection related EXT_CSD and CSD fields depends on the value of SECURE_WP_MASK bit in SECURE_WP_MODE_CONFIG field. [Table 14] Authenticated Device Configuration Area[2] : SECURE_WP_MODE_CONFIG Bit7 Bit6 Bit5 Bit4 Bit Bit2 Bit1 Reserved Bit0 0x00 Bit[7:1] : Reserved Bit[0] : SECURE_WP_MASK (R/W/E_P) The default value of this field is 0x0.  0x0: Disabling updating WP related EXT_CSD and CSD fields. CMD27 (Program CSD) will generate generic error for setting TMP_WRITE_PROTECT[12] , PERM_WRITE_PROTECT[13]. CMD6 for updating USER_WP[171], BOOT_WP[173] and BOOT_WP_STATUS[174] generates SWITCH_ERROR. If a force erase command is issued, the command will fail (Device stays locked) and the LOCK_UNLOCK_FAILED error bit will be set in the status register. If CMD28 or CMD29 is issued, then generic error will be occurred. Power-on Write Protected boot partitions will keep protected mode after power failure, H/W reset assertion and any CMD0 reset. The device keeps the current value of BOOT_WP_STATUS in the EXT_CSD register to be same after power cycle, H/W reset assertion, and any CMD0 reset.  0x1: Enabling updating WP related EXT_CSD and CSD fields. I.e TMP_WRITE_PROTECT[12] , PERM_WRITE_PROTECT[13] , USER_WP[171], BOOT_WP[173] and BOOT_WP_STATUS[174] are accessed using CMD6, CMD8 and CMD27. If a force erase command is issued and accepted, then ALL THE DEVICE CONTENT WILL BE ERASED including the PWD and PWD_LEN register content and the locked Device will get unlocked. If a force erase command is issued and power-on protected or a permanently-writeprotected write protect groups exist on the device, the command will fail (Device stays locked) and the LOCK_UNLOCK_FAILED error bit will be set in the status register. An attempt to force erase on an unlocked Device will fail and LOCK_UNLOCK_FAILED error bit will be set in the status register. Write Protection is applied to the WPG indicated by CMD28 with the WP type indicated by the bit[2] and bit[0] of USER_WP[171]. All temporary WP Groups and power-on Write Protected boot partitions become writable/erasable temporarily which means write protect type is not changed. All power-on and permanent WP Groups in user area will not become writable/erasable temporarily. Those temporarily writable/erasable area will become write protected when this bit is cleared to 0x0 by the host or when there is power failure, H/W reset assertion and any CMD0 reset. The device keeps the current value of BOOT_WP_STATUS in the EXT_CSD register to be same after power cycle, H/W reset assertion, and any CMD0 reset. IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 11 - SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 6.0 Technical Notes 6.1 S/W Algorithm 6.1.1 Partition Management The device initially consists of two Boot Partitions and RPMB Partition and User Data Area. The User Data Area can be divided into four General Purpose Area Partitions and User Data Area partition. Each of the General Purpose Area partitions and a section of User Data Area partition can be configured as enhanced partition. 6.1.1.1 Enhanced Partition (Area) SAMSUNG eMMC adopts Enhanced User Data Area as SLC Mode. Therefore when master adopts some portion as enhanced user data area in User Data Area, that area occupies double size of original set up size. ( ex> if master set 1MB for enhanced mode, total 2MB user data area is needed to generate 1MB enhanced area) Max Enhanced User Data Area size is defined as (MAX_ENH_SIZE_MULT x HC_WP_GRP_SIZE x HC_ERASE_GRP_SIZE x 512kBytes) 6.1.2 Boot operation Device supports not only boot mode but also alternative boot mode. Device supports high speed timing and dual data rate during boot. CLK CMD CMD1 DAT[0] S 010 E S 512bytes +CRC RESP CMD2 E Boot terminated (1) MIn 8 cloks + 48 clocks = 56 clocks required from CMD signal high to next MMC command. (2) *(1) Boot ACK Time (2) Boot Data Time Figure 4. embedded MultiMediaCard state diagram (boot mode) CLK CMD CMD01 CMD0CMD1 Reset DAT[0] S Min74 Clocks required after power is stable to start boot command RESP 010 (1) E S 512bytes +CRC CMD1 RESP E (3) Boot terminated (2) *(1) Boot ACK Time (2) Boot Data Time (3) CMD1 Time *CMD0 with argument 0xFFFFFFFA Figure 5. embedded MultiMediaCard state diagram (alternative boot mode) [Table 15] Boot ack, boot data and initialization Time Timing Factor Value (1) Boot ACK Time < 50 ms (2) Boot Data Time < 100 ms (3) Initialization Time1) < 3 secs NOTE: 1) This initialization time includes partition setting, Please refer to INI_TIMEOUT_AP in 6.4 Extended CSD Register. Normal initialization time (without partition setting) is completed within 1sec IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 12 - CMD2 datasheet KLM4G1FETE-B041 SAMSUNG CONFIDENTIAL Rev. 1.0 eMMC 6.1.3 User Density Total User Density depends on device type. For example, 32MB in the SLC Mode requires 64MB in MLC. This results in decreasing of user density 4 General Purpose Partitions (GPP) Boot Partition #1  RPMB 1 2 Enhanced User Data Area 4 3 User Density [Table 16] Capacity according to partition Default. Boot partition 1 Boot partition 2 RPMB 4,096KB 4,096KB 512KB [Table 17] Maximum Enhanced Partition Size Device Max. Enhanced Partition Size 4 GB 1,954,545,664 Byte [Table 18] User Density Size Device User Density Size 4 GB 3,909,091,328 Byte IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 13 - datasheet KLM4G1FETE-B041 SAMSUNG CONFIDENTIAL Rev. 1.0 eMMC 6.1.4 Auto Power Saving Mode If host does not issue any command during a certain duration (1ms), after previously issued command is completed, the device enters "Power Saving mode" to reduce power consumption. At this time, commands arriving at the device while it is in power saving mode will be serviced in normal fashion [Table 19] Auto Power Saving Mode and exit Mode Enter Condition Auto Power Saving Mode When previous operation which came from Host is completed and no command is issued during a certain time. Escape Condition If Host issues any command [Table 20] Auto Power Saving Mode and Sleep Mode  Auto Power Saving Mode Sleep Mode NAND Power ON OFF Goto Sleep Time < 1ms < 1ms 6.1.5 Performance [Table 21] Performance Density Sequential Read (MB/s) Sequential Write (MB/s) 4 GB 300 19 * Test Condition : Bus width x8, HS400, 512KB data transfer, w/o file system overhead, measured on Samsung’s internal board IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 14 - SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 7.0 REGISTER VALUE 7.1 OCR Register The 32-bit operation conditions register stores the VCCQ voltage profile of the eMMC. In addition, this register includes a status information bit. This status bit is set if the eMMC power up procedure has been finished. The OCR register shall be implemented by all eMMCs. [Table 22] OCR Register VCCQ voltage window2 Register Value [6:0] Reserved 00 00000b [7] 1.70 - 1.95 1b [14:8] 2.0-2.6 000 0000b [23:15] 2.7-3.6 1 1111 1111b OCR bit [28:24] Reserved 0 0000b [30:29] Access Mode 00b (byte mode) 10b (sector mode) -[ *Higher than 2GB only] [31] eMMC power up status bit (busy)1 NOTE : 1) This bit is set to LOW if the eMMC has not finished the power up routine 2) The voltage for internal flash memory(VCC) should be 2.7-3.6v regardless of OCR Register value. 7.2 CID Register [Table 23] CID Register Name Field Width CID-slice CID Value Manufacturer ID MID 8 [127:120] 0x15 6 [119:114] --- Reserved Card/BGA CBX 2 [113:112] 01 OEM/Application ID OID 8 [111:104] ---1 Product name PNM 48 [103:56] See Product name table Product revision PRV 8 [55:48] ---2 Product serial number PSN 32 [47:16] ---3 Manufacturing date MDT 8 [15:8] ---4 CRC7 checksum CRC 7 [7:1] ---5 not used, always ’1’ - 1 [0:0] --- NOTE : 1),4),5) description are same as eMMC JEDEC standard 2) PRV is composed of the revision count of controller and the revision count of F/W patch 3) A 32 bits unsigned binary integer. (Random Number) 7.2.1 Product name table (In CID Register) [Table 24] Product name table Part Number Density Product Name in CID Register (PNM) KLM4G1FETE-B041 4 GB 0 x 344654453452 IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 15 - SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 7.3 CSD Register The Card-Specific Data register provides information on how to access the eMMC contents. The CSD defines the data format, error correction type, maximum data access time, data transfer speed, whether the DSR register can be used etc. The programmable part of the register (entries marked by W or E, see below) can be changed by CMD27. The type of the entries in the table below is coded as follows: R: Read only W: One time programmable and not readable. R/W: One time programmable and readable. W/E: Multiple writable with value kept after power failure, H/W reset assertion and any CMD0 reset and not readable. R/W/E: Multiple writable with value kept after power failure, H/W reset assertion and any CMD0 reset and readable. R/W/C_P: Writable after value cleared by power failure and HW/ rest assertion (the value not cleared by CMD0 reset) and readable. R/W/E_P: Multiple writable with value reset after power failure, H/W reset assertion and any CMD0 reset and readable. W/E/_P: Multiple writable with value reset after power failure, H/W reset assertion and any CMD0 reset and not readable. [Table 25] CSD Register CSD Value Name Field Width Cell Type CSD-slice CSD structure CSD_STRUCTURE 2 R [127:126] 0x3 System specification version SPEC_VERS 4 R [125:122] 0x4 Reserved - 2 R [121:120] - 8GB Data read access-time 1 TAAC 8 R [119:112] 0x27 Data read access-time 2 in CLK cycles (NSAC*100) NSAC 8 R [111:104] 0x1 Max. bus clock frequency TRAN_SPEED 8 R [103:96] 0x32 Device command classes CCC 12 R [95:84] 0xF5 Max. read data block length READ_BL_LEN 4 R [83:80] 0x9 Partial blocks for read allowed READ_BL_PARTIAL 1 R [79:79] 0x0 Write block misalignment WRITE_BLK_MISALIGN 1 R [78:78] 0x0 Read block misalignment READ_BLK_MISALIGN 1 R [77:77] 0x0 DSR implemented DSR_IMP 1 R [76:76] 0x0 Reserved - 2 R [75:74] - Device size C_SIZE 12 R [73:62] 0xFFF Max. read current @ VDD min VDD_R_CURR_MIN 3 R [61:59] 0x6 Max. read current @ VDD max VDD_R_CURR_MAX 3 R [58:56] 0x6 Max. write current @ VDD min VDD_W_CURR_MIN 3 R [55:53] 0x6 Max. write current @ VDD max VDD_W_CURR_MAX 3 R [52:50] 0x6 Device size multiplier C_SIZE_MULT 3 R [49:47] 0x7 Erase group size ERASE_GRP_SIZE 5 R [46:42] 0x1F Erase group size multiplier ERASE_GRP_MULT 5 R [41:37] 0x1F Write protect group size WP_GRP_SIZE 5 R [36:32] 0xF Write protect group enable WP_GRP_ENABLE 1 R [31:31] 0x1 Manufacturer default ECC DEFAULT_ECC 2 R [30:29] 0x0 Write speed factor R2W_FACTOR 3 R [28:26] 0x3 Max. write data block length WRITE_BL_LEN 4 R [25:22] 0x9 Partial blocks for write allowed WRITE_BL_PARTIAL 1 R [21:21] 0x0 Reserved - 4 R [20:17] - Content protection application CONTENT_PROT_APP 1 R [16:16] 0x0 File format group FILE_FORMAT_GRP 1 R/W [15:15] 0x0 Copy flag (OTP) COPY 1 R/W [14:14] 0x1 Permanent write protection PERM_WRITE_PROTECT 1 R/W [13:13] 0x0 Temporary write protection TMP_WRITE_PROTECT 1 R/W/E [12:12] 0x0 File format FILE_FORMAT 2 R/W [11:10] 0x0 ECC code ECC 2 R/W/E [9:8] 0x0 CRC CRC 7 R/W/E [7:1] - Not used, always’1’ - 1 — [0:0] - IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 16 - SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 7.4 Extended CSD Register The Extended CSD register defines the eMMC properties and selected modes. It is 512 bytes long. The most significant 320 bytes are the Properties segment, which defines the eMMC capabilities and cannot be modified by the host. The lower 192 bytes are the Modes segment, which defines the configuration the eMMC is working in. These modes can be changed by the host by means of the SWITCH command. R: Read only W: One time programmable and not readable. R/W: One time programmable and readable. W/E: Multiple writable with value kept after power failure, H/W reset assertion and any CMD0 reset and not readable. R/W/E: Multiple writable with value kept after power failure, H/W reset assertion and any CMD0 reset and readable. R/W/C_P: Writable after value cleared by power failure and HW/ rest assertion (the value not cleared by CMD0 reset) and readable. R/W/E_P: Multiple writable with value reset after power failure, H/W reset assertion and any CMD0 reset and readable. W/E/_P: Multiple writable with value reset after power failure, H/W reset assertion and any CMD0 reset and not readable [Table 26] Extended CSD Register Name Field Cell Type CSD slice CSD Value (Bytes) 6 - [511:506] - Size 4GB Properties Segment Reserved 1 Extended Security Commands Error EXT_SECURITY_ERR 1 R [505] 0x00 Supported Command Sets S_CMD_SET 1 R [504] 0x01 HPI features HPI_FEATURES 1 R [503] 0x01 Background operations support BKOPS_SUPPORT 1 R [502] 0x01 Max packed read commands MAX_PACKED_READS 1 R [501] 0x3F Max packed write commands MAX_PACKED_WRITES 1 R [500] 0x3F Data Tag Support DATA_TAG_SUPPORT 1 R [499] 0x01 Tag Unit Size TAG_UNIT_SIZE 1 R [498] 0x02 Tag Resources Size TAG_RES_SIZE 1 R [497] 0x00 Context management capabilities CONTEXT_CAPABILITIES 1 R [496] 0x05 Large Unit size LARGE_UNIT_SIZE_M1 1 R [495] 0x07 Extended partitions attribute support EXT_SUPPORT 1 R [494] 0x03 Supported modes SUPPORTED_MODES 1 R [493] 0x03 FFU features FFU_FEATURES 1 R [492] 0x00 Operation codes timeout OPERATION_CODE_TIMEOUT 1 R [491] 0x00 FFU Argument FFU_ARG 4 R [490:487] 0xC7810000 178 - [486:309] - Reserved1 CMD Queuing Support CMDQ_SUPPORT 1 R [308] 0x01 CMD Queuing Depth CMDQ_DEPTH 1 R [307] 0x0F 1 - [306] - Reserved1 Number of FW sectors correctly programmed NUMBER_OF_FW_SECTORS_CORRECTLY_PROGRAMMED 4 R [305:302] 0x0 Vendor proprietary health report VENDOR_PROPRIETARY_HEALTH_REPORT 32 R [301:270] 0x0 Device life time estimation type B DEVICE_LIFE_TIME_EST_ TYP_B 1 R [269] 0x01 Device life time estimation type A DEVICE_LIFE_TIME_EST_ TYP_A 1 R [268] 0x01 Pre EOL information PRE_EOL_INFO 1 R [267] 0x01 Optimal read size OPTIMAL_READ_SIZE 1 R [266] 0x00 Optimal write size OPTIMAL_WRITE_SIZE 1 R [265] 0x04 Optimal trim unit size OPTIMAL_TRIM_UNIT_SIZE 1 R [264] 0x01 Device version DEVICE_VERSION 1 R [263:262] 0x00 IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 17 - SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC Firmware version FIRMWARE_VERSION 3 R [261:254] 0x01 Power class for 200MHz, DDR at VCC=3.6V PWR_CL_DDR_200_360 1 R [253] 0x00 Cache size CACHE_SIZE 4 R [252:249] 0x10000 Generic CMD6 timeout GENERIC_CMD6_TIME 1 R [248] 0x0A Power off notification (long) timeout POWER_OFF_LONG_TIME 1 R [247] 0x3C Background operations status BKOPS_STATUS 1 R [246] 0x00 Number of correctly programmed sectors CORRECTLY_PRG_SECTORS_NUM 4 R [245:242] 0x0 1st initialization time after partitioning INI_TIMEOUT_AP 1 R [241] 0x1E Cache flush policy CACHE_FLUSH_POLICY 1 R [240] 0x00 Power class for 52MHz, DDR at 3.6V PWR_CL_DDR_52_360 1 R [239] 0x00 Power class for 52MHz, DDR at 1.95V PWR_CL_DDR_52_195 1 R [238] 0x00 Power class for 200MHz at VCCQ=1.95V, VCC=3.6V PWR_CL_200_360 1 R [237] 0x00 Power class for 200MHz, at VCCQ=1.3V, VCC=3.6V PWR_CL_200_195 1 R [236] 0x00 Minimum Write Performance for 8bit at 52MHz in DDR mode MIN_PERF_DDR_W_8_52 1 R [235] 0x00 Minimum Read Performance for 8bit at 52MHz in DDR mode MIN_PERF_DDR_R_8_52 1 R [234] 0x00 1 - [233] - TRIM Multiplier TRIM_MULT 1 R [232] 0x02 Secure Feature support SEC_FEATURE_SUPPORT 1 R [231] 0x55 Secure Erase Multiplier SEC_ERASE_MULT 1 R [230] 0x1B Secure TRIM Multiplier SEC_TRIM_MULT 1 R [229] 0x11 Boot information BOOT_INFO 1 R [228] 0x07 1 - [227] - Reserved1 Reserved1 Boot partition size BOOT_SIZE_MULT 1 R [226] 0x20 Access size ACC_SIZE 1 R [225] 0x06 High-capacity erase unit size HC_ERASE_GRP_SIZE 1 R [224] 0x01 High-capacity erase timeout ERASE_TIMEOUT_MULT 1 R [223] 0x01 Reliable write sector count REL_WR_SEC_C 1 R [222] 0x01 High-capacity write protect group size HC_WP_GRP_SIZE 1 R [221] 0x10 Sleep current (VCC) S_C_VCC 1 R [220] 0x07 Sleep current (VCCQ) S_C_VCCQ 1 R [219] 0x07 Production state awareness timeout PRODUCTION_STATE_AWARENESS_TIMEOUT 1 R [218] 0x00 Sleep/awake timeout S_A_TIMEOUT 1 R [217] 0x11 Sleep Notification Timeout SLEEP_NOTIFICATION_TIME 1 R [216] 0x07 Sector Count SEC_COUNT 4 R [215:212] 0x748000 Secure Write Protect Information SECURE_WP_INFO 1 R [211] 0x01 Minimum Write Performance for 8bit at 52MHz MIN_PERF_W_8_52 1 R [210] 0x00 Minimum Read Performance for 8bit at 52MHz MIN_PERF_R_8_52 1 R [209] 0x00 Minimum Write Performance for 8bit at 26MHz, for 4bit at 52MHz MIN_PERF_W_8_26_4_52 1 R [208] 0x00 Minimum Read Performance for 8bit at 26MHz, for 4bit at 52MHz MIN_PERF_R_8_26_4_52 1 R [207] 0x00 Minimum Write Performance for 4bit at 26MHz MIN_PERF_W_4_26 1 R [206] 0x00 Minimum Read Performance for 4bit at 26MHz MIN_PERF_R_4_26 1 R [205] 0x00 IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 18 - SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 Reserved1 eMMC 1 - [204] - Power class for 26MHz at 3.6V 1 R PWR_CL_26_360 1 R [203] 0x00 Power class for 52MHz at 3.6V 1 R PWR_CL_52_360 1 R [202] 0x00 Power class for 26MHz at 1.95V 1 R PWR_CL_26_195 1 R [201] 0x00 Power class for 52MHz at 1.95V 1 R PWR_CL_52_195 1 R [200] 0x00 Partition switching timing PARTITION_SWITCH_TIME 1 R [199] 0x02 Out-of-interrupt busy timing OUT_OF_INTERRUPT_TIME 1 R [198] 0x0A I/O Driver Strength DRIVER_STRENGTH 1 R [197] 0x1F Device type DEVICE_TYPE 1 R [196] 0x57 1 - [195] - CSD_STRUCTURE 1 R [194] 0x02 1 - [193] - EXT_CSD_REV 1 R [192] 0x08 1 R/W/E_P [191] 0x00 1 - [190] - CMD_SET_REV 1 R [189] 0x00 1 - [188] - POWER_CLASS 1 R/W/E_P [187] 0x00 1 - [186] - Reserved 1 Reserved 1 CSD structure Extended CSD revision Modes Segment Command set CMD_SET Reserved1 Command set revision Reserved 1 Power class Reserved1 High-speed interface timing HS_TIMING 1 R/W/E_P [185] 0x01 Strobe Support STROBE_SUPPORT 1 R [184] 0x01 BUS_WIDTH 1 W/E_P [183] 0x00 1 - [182] - ERASED_MEM_CONT 1 R [181] 0x00 1 - [180] - Bus width mode Reserved1 Erased memory content Reserved1 Partition configuration PARTITION_CONFIG 1 R/W/E & R/W/E_P [179] 0x00 Boot config protection BOOT_CONFIG_PROT 1 R/W & R/W/C_P [178] 0x00 BOOT_BUS_CONDITIONS 1 R/W/E [177] 0x00 1 - [176] - High-density erase group definition ERASE_GROUP_DEF 1 R/W/E_P [175] 0x00 Boot write protection status registers BOOT_WP_STATUS 1 R [174] 0x00 1 R/W & R/W/C_P [173] 0x00 1 - [172] - 1 R/W, R/W/C_P &R/W/E_P [171] 0x00 1 - [170] - R/W [169] 0x00 Boot bus Conditions Reserved 1 Boot area write protection register BOOT_WP Reserved1 User area write protection register USER_WP Reserved1 FW configuration FW_CONFIG 1 RPMB Size RPMB_SIZE_MULT 1 R [168] 0x04 Write reliability setting register WR_REL_SET 1 R/W [167] 0x1F Write reliability parameter register WR_REL_PARAM 1 R [166] 0x14 Start Sanitize operation SANITIZE_START 1 W/E_P [165] 0x00 Manually start background operations BKOPS_START 1 W/E_P [164] 0x00 Enable background operations handshake BKOPS_EN 1 R/W&R/W/E [163] 0x01 H/W reset function RST_n_FUNCTION 1 R/W [162] 0x00 IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 19 - SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC HPI management HPI_MGMT 1 R/W/E_P [161] 0x00 Partitioning Support PARTITIONING_SUPPORT 1 R [160] 0x07 Max Enhanced Area Size MAX_ENH_SIZE_MULT 3 R [159:157] 0xE9 Partitions attribute PARTITIONS_ATTRIBUTE 1 R/W [156] 0x00 Partitioning Setting PARTITION_SETTING_ COMPLETED 1 R/W [155] 0x00 General Purpose Partition Size GP_SIZE_MULT 12 R/W [154:143] 0x0 Enhanced User Data Area Size ENH_SIZE_MULT 3 R/W [142:140] 0x0 ENH_START_ADDR 4 R/W [139:136] 0x0 1 - [135] - Enhanced User Data Start Address Reserved 1 Bad Block Management mode SEC_BAD_BLK_MGMNT 1 R/W [134] 0x00 Production state awareness PRODUCTION_STATE_AWARENESS 1 W/E_P [133] 0x00 Package Case Temperature is controlled TCASE_SUPPORT 1 W/E_P [132] 0x00 Periodic Wake-up PERIODIC_WAKEUP 1 R/W/E [131] 0x00 Program CID/CSD in DDR mode support PROGRAM_CID_CSD_DDR_SUPPORT 1 R [130] 0x01 2 - [129:128] - Reserved1 Vendor Specific Fields VENDOR_SPECIFIC_FIELD 64 [127:64] - Native sector size NATIVE_SECTOR_SIZE 1 R [63] 0x00 Sector size emulation USE_NATIVE_SECTOR 1 R/W [62] 0x00 Sector size DATA_SECTOR_SIZE 1 R [61] 0x00 1st initialization after disabling sector size emulation INI_TIMEOUT_EMU 1 R [60] 0x00 Class 6 commands control CLASS_6_CTRL 1 R/W/E_P [59] 0x00 Number of addressed group to be Released DYNCAP_NEEDED 1 R [58] 0x00 Exception events control EXCEPTION_EVENTS_CTRL 2 R/W/E_P [57:56] 0x0 Exception events status EXCEPTION_EVENTS_STATUS 2 R [55:54] 0x0 Extended Partitions Attribute EXT_PARTITIONS_ATTRIBUTE 2 R/W [53:52] 0x0 Context configuration CONTEXT_CONF 15 R/W/E_P [51:37] 0x0 Packed command status PACKED_COMMAND_STATUS 1 R [36] 0x00 Packed command failure index PACKED_FAILURE_INDEX 1 R [35] 0x00 Power Off Notification POWER_OFF_NOTIFICATION 1 R/W/E_P [34] 0x00 Control to turn the Cache ON/OFF CACHE_CTRL 1 R/W/E_P [33] 0x00 Flushing of the cache FLUSH_CACHE 1 W/E_P [32] 0x00 1 - [31] - MODE_CONFIG 1 R/W/E_P [30] 0x00 MODE_OPERATION_CODES 1 W/E_P [29] 0x00 2 - [28:27] - R [26] 0x00 Reserved 1 Mode config Mode operation codes Reserved1 FFU status FFU_STATUS 1 Pre loading data size PRE_LOADING_DATA_SIZE 4 R/W/E_P [25:22] 0x00 Max pre loading data size MAX_PRE_LOADING_DATA_ SIZE 4 R [21:18] 0x00 Product state awareness enablement PRODUCT_STATE_AWARENESS_ ENABLEMENT 1 R/W/E & R [17] 0x00 Secure Removal Type SECURE_REMOVAL_TYPE 1 R/W & R [16] 0x39 1 R/W/E_P [15] 0x00 15 - [14:0] - Command Queue Mode Enable Reserved CMDQ_MODE_EN 1 NOTE : 1) Reserved bits should be read as “0.” IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 20 - SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 8.0 AC PARAMETER 8.1 Timing Parameter [Table 27] Timing Parameter Timing Parameter Initialization Time (tINIT) Normal 1) 2) Max. Value Unit 1 s 3 s Read Timeout 100 ms Write Timeout 350 ms Erase Timeout 20 ms Force Erase Timeout 3 min Secure Erase Timeout 8 s Secure Trim step1 Timeout 5 s Secure Trim step2 Timeout 3 s After partition setting Trim Timeout 600 ms Partition Switching Timeout (after Init) 1 ms Power Off Notification (Short) Timeout 100 ms Power Off Notification (Long) Timeout 600 ms NOTE: 1) Normal Initialization Time without partition setting 2) Initialization Time after partition setting, refer to INI_TIMEOUT_AP in Chapter 7.4 EXT_CSD register 3) Be advised Timeout Values specified in Table above are for testing purposes under Samsung test pattern only and actual timeout situations may vary 4) EXCEPTION_EVENT may occur and the actual timeout values may vary due to user environment 8.2 Previous Bus Timing Parameters for DDR52 and HS200 mode are defined by JEDEC standard IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 21 - SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 8.3 Bus Timing Specification in HS400 mode 8.3.1 HS400 Device Input Timing tPERIOD VCCQ VIH CLOCK INPUT VT VIL VSS tTLH tISUddr VCCQ tIHddr VIH DAT[7-0] INPUT tTHL tISUddr tIHddr VIH VALID WINDOW VIL VIL VALID WINDOW VSS Figure 6. HS400 Device Input Timing NOTE: 1) tISU and tIH are measured at VIL(max.) and VIH(min). 2) VIH denotes VIH(min.) and VIL denotes VIL(max.) [Table 28] HS400 Device input timing Parameter Symbol Min Max Unit Input CLK Cycle time data transfer mode tPERIOD 5 ns Slew rate SR 1.125 V/ns Duty cycle distortion tCKDCD 0.0 Minimum pulse width tCKMPW 2.2 0.3 ns ns Input DAT (referenced to CLK) Input set-up time tISUddr 0.4 ns Input hold time tIHddr 0.4 ns Slew rate SR 1.125 V/ns IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 22 - SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 8.3.2 HS400 Device Output Timing Data Strobe is used to read data (data read and CRC status response read) in HS400 mode. The device output value of Data Strobe is “High-Z” when the device is not in outputting data (data read, CRC status response). Data Strobe is toggled only during data read period. tPERIOD VCCQ Data Strobe OUTPUT VOH VT VOL VSS tTLH tTHL tRQH tRQ VCCQ VOH DAT[7-0] OUTPUT VOH VALID WINDOW VOL VOL VALID WINDOW VSS Figure 7. HS400 Device Output Timing NOTE: VOH denotes VOH(min.) and VOL denotes VOL(max.). HS400 Device Output timing Parameter Symbol Min Max Unit Cycle time data transfer mode tPERIOD 5 ns Slew rate SR 1.125 V/ns Duty cycle distortion tDSDCD 0.0 Minimum pulse width tDSMPW 2.0 Read pre-amble tRPRE 0.4 - tPERIOD Read post-amble tRPST 0.4 - tPERIOD Output skew tRQ - 0.4 ns Output hold skew tRQH - 0.4 ns Slew rate SR 1.125 Data Strobe 0.2 ns ns Output DAT (referenced to Data Strobe) IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 23 - V/ns SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 8.4 Bus signal levels As the bus can be supplied with a variable supply voltage, all signal levels are related to the supply voltage. V VDD input high level output high level VOH VIH undefined VIL input low level VOL output low level VSS t 8.4.1 Open-drain mode bus signal level [Table 29] Open-drain bus signal level Parameter Symbol Min Max. Unit Conditions Output HIGH voltage VOH VDD - 0.2 - V 1) Output LOW voltage VOL - 0.3 V IOL = 2 mA NOTE: 1) Because Voh depends on external resistance value (including outside the package), this value does not apply as device specification. Host is responsible to choose the external pull-up and open drain resistance value to meet Voh Min value. 8.4.2 Push-pull mode bus signal level eMMC The device input and output voltages shall be within the following specified ranges for any VCCQ of the allowed voltage range [Table 30] Push-pull signal level—high-voltage eMMC Parameter Symbol Min Max. Unit Conditions Output HIGH voltage VOH 0.75*VDD - V IOH = -100 uA@VCCQ min Output LOW voltage VOL - 0.125*VDD V IOL = 100 uA@VCCQ min Input HIGH voltage VIH 0.625*VDD VDD + 0.3 V - Input LOW voltage VIL VSS - 0.3 0.25*VDD V - [Table 31] Push-pull signal level—1.70 - 1.95 VCCQ voltage Range Parameter Symbol Min Max. Unit Conditions Output HIGH voltage VOH VCCQ - 0.45V - V IOH = -2mA Output LOW voltage VOL - 0.45V V IOL = 2mA Input HIGH voltage VIH 0.65*VCCQ 1) VCCQ + 0.3 V - V - Input LOW voltage VIL VSS - 0.3 0.35*VCCQ 2) NOTE: 1) 0.7*VCCQ for MMC4.3 and older revisions. 2) 0.3*VCCQ for MMC4.3 and older revisions. IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 24 - SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 9.0 DC PARAMETER 9.1 Active Power Consumption during operation [Table 32] Active Power Consumption during operation Density NAND Type VCCQ VCC Unit 4 GB 32Gb x 1 180 50 mA * Power Measurement conditions: Bus configuration =x8 @HS400 * The measurement for max RMS current is the average RMS current consumption over a period of 100ms 9.2 Standby Power Consumption in auto power saving mode and standby state. [Table 33] Standby Power Consumption in auto power saving mode and standby state Density 4 GB VCCQ NAND Type VCC Unit 25C(Typ) 85C 25C(Typ) 85C 120 400 40 85 32Gb x 1 uA NOTE: Power Measurement conditions: Bus configuration =x8, No CLK *Typical value is measured at VCC=3.3V, TA=25°C. Not 100% tested. 9.3 Sleep Power Consumption in Sleep State [Table 34] Sleep Power Consumption in Sleep State Density 4 GB VCCQ NAND Type 32Gb x 1 25C(Typ) 85C 120 400 VCC Unit 01) uA NOTE: Power Measurement conditions: Bus configuration =x8, No CLK 1) In auto power saving mode, VCC power can not be turned off. However in sleep mode VCC power can be turned off. 9.4 Supply Voltage [Table 35] Supply voltage Item Min Max Unit VCCQ 1.70 (2.7) 1.95 (3.6) V VCC 2.7 3.6 V VSS -0.5 0.5 V IF THERE IS ANY OTHER OPERATION TO IMPLEMENT IN ADDITION TO SPECIFICATION IN THE DATASHEET OR JEDEC STANDARD, PLEASE CONTACT EACH BRANCH OFFICE OR HEADQUARTERS OF SAMSUNG ELECTRONICS. - 25 - SAMSUNG CONFIDENTIAL Rev. 1.0 datasheet KLM4G1FETE-B041 eMMC 9.5 Bus Signal Line Load The total capacitance CL of each line of the eMMC bus is the sum of the bus master capacitance CHOST, the bus capacitance CBUS itself and the capacitance CDEVICE of the eMMC connected to this line: CL = CHOST + CBUS + CDEVICE The sum of the host and bus capacitances should be under 20pF. [Table 36] Bus Signal Line Load sParameter Symbol Min Max Unit Pull-up resistance for CMD RCMD 4.7 Typ. 100 KOhm to prevent bus floating Pull-up resistance for DAT0-DAT7 RDAT 10 100 KOhm to prevent bus floating Internal pull up resistance DAT1-DAT7 Rint 10 150 KOhm to prevent unconnected lines floating Single Device capacitance CDEVICE 12 pF 16 nH Maximum signal line inductance Remark fPP
KLM4G1FETE-B041 价格&库存

很抱歉,暂时无法提供与“KLM4G1FETE-B041”相匹配的价格&库存,您可以联系我们找货

免费人工找货
KLM4G1FETE-B041
  •  国内价格
  • 1+22.77000
  • 10+21.12000
  • 30+20.79000
  • 100+19.80000

库存:0
