SGM8631/SGM8632/SGM8633
6MHz, Rail-to-Rail I/O
CMOS Operational Amplifiers
GENERAL DESCRIPTION
FEATURES
The SGM8631 (single), SGM8632 (dual) and SGM8633
(single with shutdown) are low noise, low voltage and
low power operational amplifiers that can be designed
into a wide range of applications. The SGM8631/2/3
have a high gain-bandwidth product of 6MHz and a
slew rate of 3.7V/μs. The SGM8633 has a power-down
disable feature that reduces the supply current to less
than 1μA.
The SGM8631/2/3 are designed to provide optimal
performance in low voltage and low noise systems. They
provide rail-to-rail output swing into heavy loads. The
input common mode voltage range includes ground, and
the maximum input offset voltage is 3.5mV for
SGM8631/2/3. They are specified over the extended
industrial temperature range (-40℃ to +125℃). The
operating supply range is from 2V to 5.5V.
The SGM8631 single is available in Green SC70-5,
SOT-23-5 and SOIC-8 packages. The SGM8632 dual
is available in Green SOIC-8 and MSOP-8 packages.
The SGM8633 single with shutdown is available in
Green SOT-23-6 and SOIC-8 packages.
Rail-to-Rail Input and Output
Input Offset Voltage: 3.5mV (MAX)
High Gain-Bandwidth Product: 6MHz
High Slew Rate: 3.7V/μs
Settling Time to 0.1% with 2V Step: 0.5μs
Overload Recovery Time: 0.9μs
Low Noise: 13nV/
Hz
at 1kHz
Supply Voltage Range: 2V to 5.5V
Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
Low Supply Current:
SGM8631/3: 570μA (TYP)
SGM8632: 480μA/Amplifier (TYP)
Less than 1μA Shutdown Current for SGM8633
-40℃ to +125℃ Operating Temperature Range
Small Packaging:
SGM8631 Available in Green SC70-5, SOT-23-5
and SOIC-8 Packages
SGM8632 Available in Green MSOP-8 and
SOIC-8 Packages
SGM8633 Available in Green SOT-23-6 and
SOIC-8 Packages
APPLICATIONS
Sensors
Audio
Active Filters
A/D Converters
Communications
Test Equipment
Cellular and Cordless Phones
Laptops and PDAs
Photodiode Amplification
Battery-Powered Instrumentation
SG Micro Corp
www.sg-micro.com
JULY, 2016 – REV. C. 3
SGM8631/SGM8632
SGM8633
6MHz, Rail-to-Rail I/O
CMOS Operational Amplifiers
PACKAGE/ORDERING INFORMATION
MODEL
SGM8631
SGM8632
SGM8633
PACKAGE
DESCRIPTION
SPECIFIED
TEMPERATURE
RANGE
ORDERING
NUMBER
PACKAGE
MARKING
PACKING
OPTION
SC70-5
-40℃ to +125℃
SGM8631XC5/TR
8631
Tape and Reel, 3000
SOT-23-5
-40℃ to +125℃
SGM8631XN5/TR
8631
Tape and Reel, 3000
SOIC-8
-40℃ to +125℃
SGM8631XS/TR
MSOP-8
-40℃ to +125℃

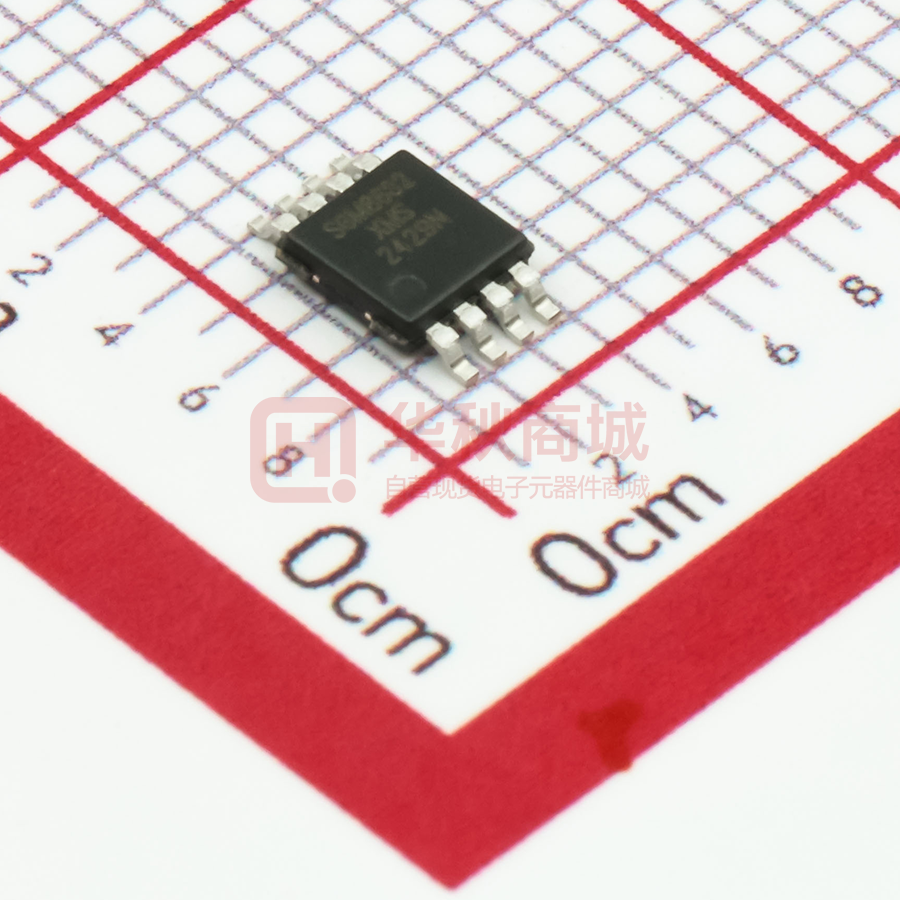

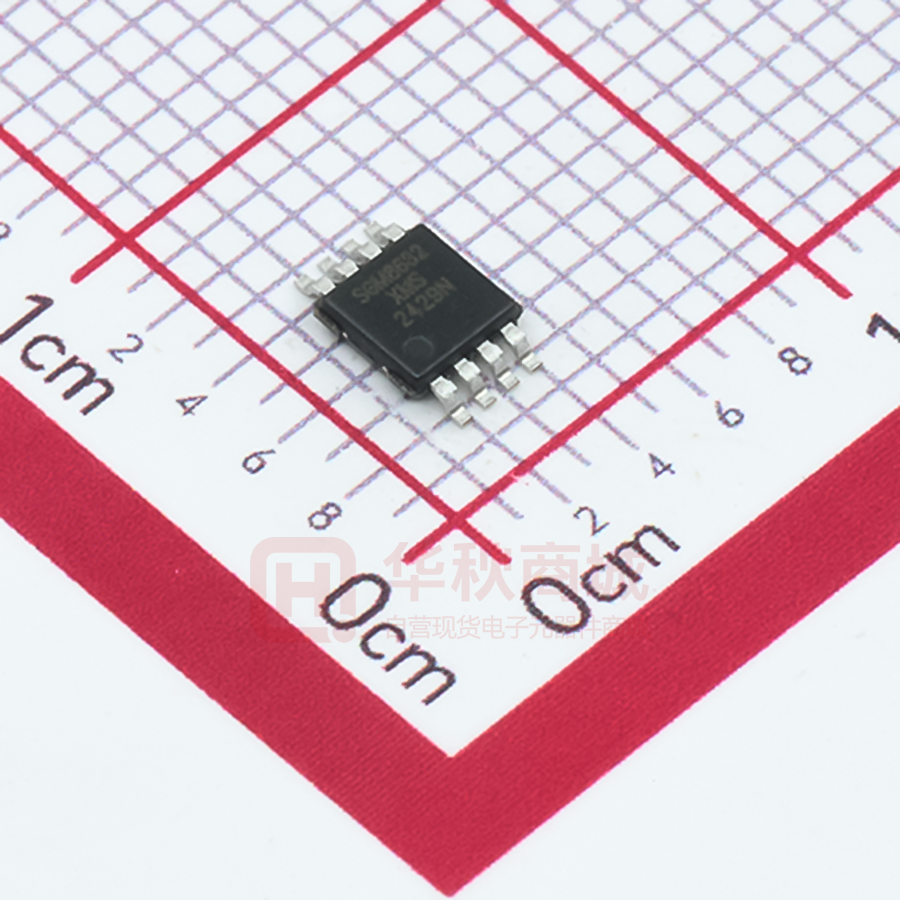

SGM8632XMS/TR
SOIC-8
-40℃ to +125℃
SGM8632XS/TR
SOT-23-6
-40℃ to +125℃
SGM8633XN6/TR
8633
Tape and Reel, 3000
SOIC-8
-40℃ to +125℃
SGM8633XS/TR
SGM8633XS
XXXXX
Tape and Reel, 2500
SGM8631XS
XXXXX
SGM8632
XMS
XXXXX
SGM8632XS
XXXXX
Tape and Reel, 2500
Tape and Reel, 3000
Tape and Reel, 2500
MARKING INFORMATION
NOTE: XXXXX = Date Code and Vendor Code.
SOIC-8/MSOP-8
XXXXX
Vendor Code
Date Code - Week
Date Code - Year
Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If
you have additional comments or questions, please contact your SGMICRO representative directly.
ABSOLUTE MAXIMUM RATINGS
Supply Voltage, +VS to -VS ................................................ 6V
Input Common Mode Voltage Range
.................................................... (-VS) - 0.3V to (+VS) + 0.3V
Package Thermal Resistance @ TA = +25℃
SC70-5, θJA .............................................................. 333℃/W
SOT-23-5, θJA .......................................................... 190℃/W
SOT-23-6, θJA .......................................................... 190℃/W
SOIC-8, θJA .............................................................. 125℃/W
MSOP-8, θJA ............................................................ 216℃/W
Junction Temperature .................................................+150℃
Storage Temperature Range ........................ -65℃ to +150℃
Lead Temperature (Soldering, 10s) ............................+260℃
ESD Susceptibility
HBM (SGM8631/2) ...................................................... 8000V
HBM (SGM8633) ......................................................... 4000V
MM ................................................................................. 400V
CDM ............................................................................ 1000V
RECOMMENDED OPERATING CONDITIONS
Operating Temperature Range ..................... -40℃ to +125℃
SG Micro Corp
www.sg-micro.com
OVERSTRESS CAUTION
Stresses beyond those listed in Absolute Maximum Ratings
may cause permanent damage to the device. Exposure to
absolute maximum rating conditions for extended periods
may affect reliability. Functional operation of the device at any
conditions beyond those indicated in the Recommended
Operating Conditions section is not implied.
ESD SENSITIVITY CAUTION
This integrated circuit can be damaged by ESD if you don’t
pay attention to ESD protection. SGMICRO recommends that
all integrated circuits be handled with appropriate precautions.
Failure to observe proper handling and installation procedures
can cause damage. ESD damage can range from subtle
performance degradation to complete device failure. Precision
integrated circuits may be more susceptible to damage
because very small parametric changes could cause the
device not to meet its published specifications.
DISCLAIMER
SG Micro Corp reserves the right to make any change in
circuit design, or specifications without prior notice.
JULY 2016
2
SGM8631/SGM8632
SGM8633
6MHz, Rail-to-Rail I/O
CMOS Operational Amplifiers
PIN CONFIGURATIONS
SGM8631 (TOP VIEW)
OUT
-VS
+IN
1
5
SGM8631/8633 (TOP VIEW)
NC
1
8
DISABLE
(SGM8633 ONLY)
-IN
2
7
+VS
+IN
3
6
OUT
-VS
4
5
NC
+VS
2
3
4
-IN
SC70-5/SOT-23-5
SOIC-8
SGM8633 (TOP VIEW)
SGM8632 (TOP VIEW)
OUT
1
6
+VS
-VS
2
5
DISABLE
+IN
3
4
SOT-23-6
SG Micro Corp
www.sg-micro.com
NC = NO CONNECT
OUTA
1
8
+VS
-INA
2
7
OUTB
+INA
3
6
-INB
-VS
4
5
+INB
-IN
SOIC-8/MSOP-8
JULY 2016
3
SGM8631/SGM8632
SGM8633
6MHz, Rail-to-Rail I/O
CMOS Operational Amplifiers
ELECTRICAL CHARACTERISTICS
(At TA = +25℃, VS = 5V, VCM = VS/2, RL = 600Ω, unless otherwise noted.)
SGM8631/2/3
PARAMETER
CONDITIONS
TYP
MIN/MAX OVER TEMPERATURE
+25℃
+25℃
0.9
3.5
-40℃ to
-40℃ to
+85℃
+125℃
3.7
3.8
UNITS
MIN/
MAX
mV
MAX
Input Characteristics
Input Offset Voltage (VOS)
Input Bias Current (IB)
1
pA
TYP
Input Offset Current (IOS)
1
pA
TYP
-0.1 to 5.6
V
TYP
dB
MIN
dB
MIN
dB
MIN
Input Common Mode Voltage Range (VCM)
VS = 5.5V
Common Mode Rejection Ratio
(CMRR)
VS = 5.5V, VCM = -0.1V to 4V
84
VS = 5.5V, VCM = -0.1V to 5.6V
76
RL = 600Ω, VOUT = 0.15V to 4.85V
86
RL = 10kΩ , VOUT = 0.05V to 4.95V
103
Open-Loop Voltage Gain (AOL)
68
79
67
73
66
69
dB
MIN
2.4
μV/℃
TYP
RL = 600Ω
0.079
V
TYP
RL = 10kΩ
0.007
V
TYP
mA
MIN
5.4
Ω
TYP
Turn-On Time
1.3
μs
TYP
Turn-Off Time
0.4
μs
TYP
Input Offset Voltage Drift (ΔVOS/ΔT)
Output Characteristics
Output Voltage Swing from Rail
Output Current (IOUT)
58
Closed-Loop Output Impedance
f = 200kHz, G = 1
40
30
26
Power-Down Disable (SGM8633 Only)
DISABLE Voltage-Off
0.8
V
MAX
DISABLE Voltage-On
2
V
MIN
Power Supply
2
2
2
2
V
MIN
5.5
5.5
5.5
5.5
V
MAX
VS = 2V to 5.5V, VCM = (-VS) + 0.5V
84
69
68
67
dB
MIN
SGM8632
IOUT = 0
480
620
720
790
μA
MAX
SGM8631/3
IOUT = 0
570
720
820
880
μA
MAX
0.5
8
9
10
μA
MAX
Operating Voltage Range
Power Supply Rejection Ratio (PSRR)
Quiescent Current/
Amplifier (IQ)
Supply Current when Disabled
(SGM8633 only)
Dynamic Performance
Gain-Bandwidth Product (GBP)
6
MHz
TYP
Phase Margin (φO)
63
°
TYP
Full Power Bandwidth (BWP)
< 1% distortion
250
kHz
TYP
Slew Rate (SR)
G = 1, 2V output step
3.7
V/μs
TYP
Settling Time to 0.1% (tS)
G = 1, 2V output step
0.5
μs
TYP
Overload Recovery Time
VIN × G = VS
0.9
μs
TYP
f = 1kHz
13
nV/ Hz
TYP
Noise Performance
Input Voltage Noise Density (en)
SG Micro Corp
www.sg-micro.com
JULY 2016
4
SGM8631/SGM8632
SGM8633
6MHz, Rail-to-Rail I/O
CMOS Operational Amplifiers
TYPICAL PERFORMANCE CHARACTERISTICS
At TA = +25℃, VCM = VS/2, RL = 600Ω, unless otherwise noted.
CMRR vs. Frequency
PSRR vs. Frequency
120
VS = 5V
100
100
80
80
PSRR (dB)
CMRR (dB)
120
60
40
20
VS = 5V
PSRR-
60
PSRR+
40
20
0
0.01
0.1
1
10
100
0
0.01
1000
0.1
1
Frequency (kHz)
Channel Separation vs. Frequency
Channel Separation vs. Frequency
120
90
Channel Separation (dB)
Channel Separation (dB)
1000
150
Channel A to B
Channel B to A
60
VS = 2V
RL = 620Ω
TA = +25℃
G=1
30
0.1
1
10
100
90
Channel A to B
60
VS = 5V
RL = 620Ω
TA = +25℃
G=1
30
0
1000
Channel B to A
120
0.1
1
Frequency (kHz)
Closed-Loop Output Voltage Swing
100
1000
Closed-Loop Output Voltage Swing
6
5
Output Voltage (VP-P)
2
1.5
1
VS = 2V
VIN = 2VP-P
TA = +25℃
RL = 10kΩ
G=1
0.5
0
10
Frequency (kHz)
2.5
Output Voltage (VP-P)
100
Frequency (kHz)
150
0
10
10
4
3
VS = 5V
VIN = 4.9VP-P
TA = +25℃
RL = 10kΩ
G=1
2
1
100
1000
Frequency (kHz)
SG Micro Corp
www.sg-micro.com
10000
0
10
100
1000
10000
Frequency (kHz)
JULY 2016
5
SGM8631/SGM8632
SGM8633
6MHz, Rail-to-Rail I/O
CMOS Operational Amplifiers
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
At TA = +25℃, VCM = VS/2, RL = 600Ω, unless otherwise noted.
Small-Signal Overshoot vs. Load Capacitance
VS = 2V
RL = 10kΩ
TA = +25℃
G=1
40
30
20
10
0
10
100
Small-Signal Overshoot vs. Load Capacitance
50
Small-Signal Overshoot (%)
Small-Signal Overshoot (%)
50
VS = 5V
RL = 10kΩ
TA = +25℃
G=1
40
30
20
10
0
1000
10
100
Load Capacitance (pF)
Load Capacitance (pF)
Output Impedance vs. Frequency
Output Impedance vs. Frequency
100
VS = 2V
80
Output Impedance (Ω)
Output Impedance (Ω)
100
60
G = 10
40
0
G=1
G = 100
20
1
10
100
1000
60
0
10000
G=1
G = 100
20
1
10
100
1000
10000
Frequency (kHz)
Large-Signal Step Response
Voltage (1V/div)
Voltage (1V/div)
SG Micro Corp
www.sg-micro.com
G = 10
40
Large-Signal Step Response
Time (400ns/div)
VS = 5V
80
Frequency (kHz)
G=1
CL = 100pF
RL = 10kΩ
VS = 2V
1000
G=1
CL = 100pF
RL = 10kΩ
VS = 5V
Time (400ns/div)
JULY 2016
6
SGM8631/SGM8632
SGM8633
6MHz, Rail-to-Rail I/O
CMOS Operational Amplifiers
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
At TA = +25℃, VCM = VS/2, RL = 600Ω, unless otherwise noted.
Voltage (50mV/div)
Small-Signal Step Response
Small-Signal Step Response
Voltage (50mV/div)
G=1
CL = 100pF
RL = 10kΩ
VS = 2V
G=1
CL = 100pF
RL = 10kΩ
VS = 5V
Time (1μs/div)
Time ((1μs/div)
Positive Overload Recovery
Negative Overload Recovery
VIN
VIN
VOUT
0V
0V
VS = 5V
VIN = 50mV
RL = 620Ω
G = -100
1V/div
1V/div
VS = 5V
VIN = 50mV
RL = 620Ω
G = -100
50mV/di
50mV/di
0V
0V
VOUT
Time (1µs/div)
Time (1µs/div)
Shutdown Current vs. Temperature
750
0.7
600
Shutdown Current (nA)
Supply Current (mA)
Supply Current vs. Temperature
0.8
0.6
VS = 2V
0.5
VS = 3V
VS = 5V
0.4
0.3
-50
-25
0
25
50
75
Temperature (℃)
SG Micro Corp
www.sg-micro.com
100
125
VS = 5V
450
300
VS = 3V
VS = 2V
150
0
-50
-25
0
25
50
75
100
125
Temperature (℃)
JULY 2016
7
SGM8631/SGM8632
SGM8633
6MHz, Rail-to-Rail I/O
CMOS Operational Amplifiers
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
At TA = +25℃, VCM = VS/2, RL = 600Ω, unless otherwise noted.
CMRR vs. Temperature
110
VS = 5.5V
VS = 2V to 5.5V
100
VCM = -0.1V to 4V
90
90
PSRR (dB)
CMRR (dB)
100
80
70
VCM = -0.1V to 5.6V
60
50
PSRR vs. Temperature
110
80
70
60
-50
-25
0
25
50
75
Temperature (℃)
100
50
125
-50
VS = 2V
Open–Loop Voltage Gain (dB)
Open–Loop Voltage Gain (dB)
RL = 10kΩ
100
VS = 5V
90
80
70
-50
-25
0
25
50
75
25
100
100
VS = 2V
80
70
-50
-25
0
+25℃
+125℃
1
10
20
30
40
50
Output Current (mA)
SG Micro Corp
www.sg-micro.com
100
125
Sourcing Current
VS = 2V
1.5
-40℃
1
+125℃
+25℃
0.5
Sinking Current
0
75
Output Voltage Swing vs. Output Current
Output Voltage (V)
Output Voltage (V)
50
2
-40℃
0
25
Temperature (℃)
VS = 5V
2
125
90
60
125
Sourcing Current
3
100
VS = 5V
Output Voltage Swing vs. Output Current
4
75
RL = 600Ω
Temperature (℃)
5
50
Open-Loop Voltage Gain vs. Temperature
110
110
0
Temperature (℃)
Open-Loop Voltage Gain vs. Temperature
120
-25
60
70
80
0
Sinking Current
0
5
10
15
20
25
30
35
Output Current (mA)
JULY 2016
8
SGM8631/SGM8632
SGM8633
6MHz, Rail-to-Rail I/O
CMOS Operational Amplifiers
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
At TA = +25℃, VCM = VS/2, RL = 600Ω, unless otherwise noted.
Input Voltage Noise Density vs. Frequency
VS = 5V
100
10
1
35
Percentage of Amplifiers (%)
Input Voltage Noise Density (nV/√Hz)
1000
10
100
1000
Frequency (Hz)
SG Micro Corp
www.sg-micro.com
10000
30
Offset Voltage Production Distribution
VS = 5V
20300 Samples
1 Production Lot
25
20
15
10
5
0
-4
-3
-2
-1
0
1
2
3
4
Offset Voltage (mV)
JULY 2016
9
SGM8631/SGM8632
SGM8633
6MHz, Rail-to-Rail I/O
CMOS Operational Amplifiers
APPLICATION NOTES
Driving Capacitive Loads
The SGM8631/2/3 can directly drive 1000pF in
unity-gain without oscillation. The unity-gain follower
(buffer) is the most sensitive configuration to capacitive
loading. Direct capacitive loading reduces the phase
margin of amplifiers and this results in ringing or even
oscillation. Applications that require greater capacitive
driving capability should use an isolation resistor
between the output and the capacitive load like the
circuit in Figure 1. The isolation resistor RISO and the
load capacitor CL form a zero to increase stability. The
bigger the RISO resistor value, the more stable VOUT will
be. Note that this method results in a loss of gain
accuracy because RISO forms a voltage divider with the
RLOAD.
VOUT
VIN
The SGM8631/2/3 family operates from either a single
2V to 5.5V supply or dual ±1V to ±2.75V supplies. For
single-supply operation, bypass the power supply +VS
with a 0.1µF ceramic capacitor which should be placed
close to the +VS pin. For dual-supply operation, both
the +VS and the -VS supplies should be bypassed to
ground with separate 0.1µF ceramic capacitors. 2.2µF
tantalum capacitor can be added for better performance.
Good PC board layout techniques optimize performance
by decreasing the amount of stray capacitance at the
operational amplifier’s inputs and output. To decrease
stray capacitance, minimize trace lengths and widths
by placing external components as close to the device
as possible. Use surface-mount components whenever
possible.
For the operational amplifier, soldering the part to the
board directly is strongly recommended. Try to keep the
high frequency current loop area small to minimize the
EMI (electromagnetic interference).
RISO
SGM8631
Power Supply Bypassing and Layout
CL
+VS
Figure 1. Indirectly Driving Heavy Capacitive Load
An improved circuit is shown in Figure 2. It provides DC
accuracy as well as AC stability. RF provides the DC
accuracy by connecting the inverting input with the
output. CF and RISO serve to counteract the loss of
phase margin by feeding the high frequency component
of the output signal back to the amplifier’s inverting
input, thereby preserving phase margin in the overall
feedback loop.
CF
+VS
10μF
10μF
0.1μF
0.1μF
VN
VN
SGM8631
VOUT
VOUT
SGM8631
VP
10μF
VP
-VS (GND)
0.1μF
RF
RISO
SGM8631
VIN
VOUT
CL
RL
Figure 2. Indirectly Driving Heavy Capacitive Load with
DC Accuracy
For non-buffer configuration, there are two other ways
to increase the phase margin: (a) by increasing the
amplifier’s closed-loop gain or (b) by placing a
capacitor in parallel with the feedback resistor to
counteract the parasitic capacitance associated with
inverting node.
SG Micro Corp
www.sg-micro.com
-VS
Figure 3. Amplifier with Bypass Capacitors
Grounding
A ground plane layer is important for SGM8631/2/3
circuit design. The length of the current path in an
inductive ground return will create an unwanted voltage
noise. Broad ground plane areas will reduce the
parasitic inductance.
Input-to-Output Coupling
To minimize capacitive coupling, the input and output
signal traces should not be in parallel. This helps
reduce unwanted positive feedback.
JULY 2016
10
SGM8631/SGM8632
SGM8633
6MHz, Rail-to-Rail I/O
CMOS Operational Amplifiers
TYPICAL APPLICATION CIRCUITS
Differential Amplifier
The circuit shown in Figure 4 performs the difference
function. If the resistor ratios are equal (R4/R3 = R2/R1),
then VOUT = (VP - VN) × R2/R1 + VREF.
R2
R1
VN
SGM8631
VOUT
Active Low-Pass Filter
The low-pass filter shown in Figure 6 has a DC gain of
(-R2/R1) and the -3dB corner frequency is 1/2πR2C.
Make sure the filter bandwidth is within the bandwidth
of the amplifier. Feedback resistors with large values
can couple with parasitic capacitance and cause
undesired effects such as ringing or oscillation in
high-speed amplifiers. Keep resistor values as low as
possible and consistent with output loading consideration.
VP
C
R3
R4
R1
R2
VIN
VREF
SGM8631
Figure 4. Differential Amplifier
Instrumentation Amplifier
The circuit in Figure 5 performs the same function as
that in Figure 4 but with a high input impedance.
VOUT
R3 = R1 // R2
Figure 6. Active Low-Pass Filter
R2
R1
SGM8631
VN
SGM8631
VP
R3
VOUT
R4
SGM8631
VREF
Figure 5. Instrumentation Amplifier
REVISION HISTORY
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
JULY 2016 ‒ REV.C.2 to REV.C.3
Page
Changed Electrical Characteristics section .......................................................................................................................................................... 4
AUGUST 2015 ‒ REV.C.1 to REV.C.2
Page
New version....................................................................................................................................................................................................... All
February 2015 ‒ REV.C to REV.C.1
Page
Changed Package Outline Dimensions section ........................................................................................................................................... 17, 18
SG Micro Corp
www.sg-micro.com
JULY 2016
11
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
SC70-5
D
e1
0.65
e
E1
1.9
E
0.75
b
0.4
1.3
RECOMMENDED LAND PATTERN (Unit: mm)
L
L1
A
θ
A1
c
0.20
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
Dimensions
In Inches
MIN
MAX
A
0.900
1.100
0.035
0.043
A1
0.000
0.100
0.000
0.004
A2
0.900
1.000
0.035
0.039
b
0.150
0.350
0.006
0.014
c
0.080
0.150
0.003
0.006
D
2.000
2.200
0.079
0.087
E
1.150
1.350
0.045
0.053
E1
2.150
2.450
0.085
0.096
e
0.65 TYP
0.026 TYP
e1
1.300 BSC
0.051 BSC
L
0.525 REF
0.021 REF
L1
0.260
0.460
0.010
0.018
θ
0°
8°
0°
8°
SG Micro Corp
www.sg-micro.com
TX00043.000
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
SOT-23-5
1.90
D
e1
E1
2.59
E
0.99
b
e
0.69
0.95
RECOMMENDED LAND PATTERN (Unit: mm)
L
A
A1
θ
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
c
0.2
Dimensions
In Inches
MIN
MAX
A
1.050
1.250
0.041
0.049
A1
0.000
0.100
0.000
0.004
A2
1.050
1.150
0.041
0.045
b
0.300
0.500
0.012
0.020
c
0.100
0.200
0.004
0.008
D
2.820
3.020
0.111
0.119
E
1.500
1.700
0.059
0.067
E1
2.650
2.950
0.104
0.116
e
0.950 BSC
0.037 BSC
e1
1.900 BSC
0.075 BSC
SG Micro Corp
www.sg-micro.com
L
0.300
0.600
0.012
0.024
θ
0°
8°
0°
8°
TX00033.000
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
SOT-23-6
D
e1
e
2.59
E
E1
0.99
b
0.95
0.69
RECOMMENDED LAND PATTERN (Unit: mm)
L
A
A1
θ
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
c
0.2
Dimensions
In Inches
MIN
MAX
A
1.050
1.250
0.041
0.049
A1
0.000
0.100
0.000
0.004
A2
1.050
1.150
0.041
0.045
b
0.300
0.500
0.012
0.020
c
0.100
0.200
0.004
0.008
D
2.820
3.020
0.111
0.119
E
1.500
1.700
0.059
0.067
E1
2.650
2.950
0.104
0.116
e
0.950 BSC
0.037 BSC
e1
1.900 BSC
0.075 BSC
SG Micro Corp
www.sg-micro.com
L
0.300
0.600
0.012
0.024
θ
0°
8°
0°
8°
TX00034.000
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
SOIC-8
0.6
D
e
2.2
E1
E
5.2
b
1.27
RECOMMENDED LAND PATTERN (Unit: mm)
L
A
A1
c
θ
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
Dimensions
In Inches
MIN
MAX
A
1.350
1.750
0.053
0.069
A1
0.100
0.250
0.004
0.010
A2
1.350
1.550
0.053
0.061
b
0.330
0.510
0.013
0.020
c
0.170
0.250
0.006
0.010
D
4.700
5.100
0.185
0.200
E
3.800
4.000
0.150
0.157
E1
5.800
6.200
0.228
0.244
e
SG Micro Corp
www.sg-micro.com
1.27 BSC
0.050 BSC
L
0.400
1.270
0.016
0.050
θ
0°
8°
0°
8°
TX00010.000
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
MSOP-8
b
E1
E
4.8
1.02
e
0.41
0.65
RECOMMENDED LAND PATTERN (Unit: mm)
D
L
A
A1
c
θ
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
Dimensions
In Inches
MIN
MAX
A
0.820
1.100
0.032
0.043
A1
0.020
0.150
0.001
0.006
A2
0.750
0.950
0.030
0.037
b
0.250
0.380
0.010
0.015
c
0.090
0.230
0.004
0.009
D
2.900
3.100
0.114
0.122
E
2.900
3.100
0.114
0.122
E1
4.750
5.050
0.187
0.199
e
SG Micro Corp
www.sg-micro.com
0.650 BSC
0.026 BSC
L
0.400
0.800
0.016
0.031
θ
0°
6°
0°
6°
TX00014.000
PACKAGE INFORMATION
TAPE AND REEL INFORMATION
REEL DIMENSIONS
TAPE DIMENSIONS
P2
W
P0
Q1
Q2
Q1
Q2
Q1
Q2
Q3
Q4
Q3
Q4
Q3
Q4
B0
Reel Diameter
A0
P1
K0
Reel Width (W1)
DIRECTION OF FEED
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF TAPE AND REEL
Reel
Diameter
Reel Width
W1
(mm)
A0
(mm)
B0
(mm)
K0
(mm)
P0
(mm)
P1
(mm)
P2
(mm)
W
(mm)
Pin1
Quadrant
SC70-5
7″
9.5
2.25
2.55
1.20
4.0
4.0
2.0
8.0
Q3
SOT-23-5
7″
9.5
3.20
3.20
1.40
4.0
4.0
2.0
8.0
Q3
SOT-23-6
7″
9.5
3.17
3.23
1.37
4.0
4.0
2.0
8.0
Q3
SOIC-8
13″
12.4
6.40
5.40
2.10
4.0
8.0
2.0
12.0
Q1
MSOP-8
13″
12.4
5.20
3.30
1.50
4.0
8.0
2.0
12.0
Q1
SG Micro Corp
www.sg-micro.com
TX10000.000
DD0001
Package Type
PACKAGE INFORMATION
CARTON BOX DIMENSIONS
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF CARTON BOX
Length
(mm)
Width
(mm)
Height
(mm)
Pizza/Carton
7″ (Option)
368
227
224
8
7″
442
410
224
18
13″
386
280
370
5
SG Micro Corp
www.sg-micro.com
DD0002
Reel Type
TX20000.000
工商网监
湘ICP备2023018690号
