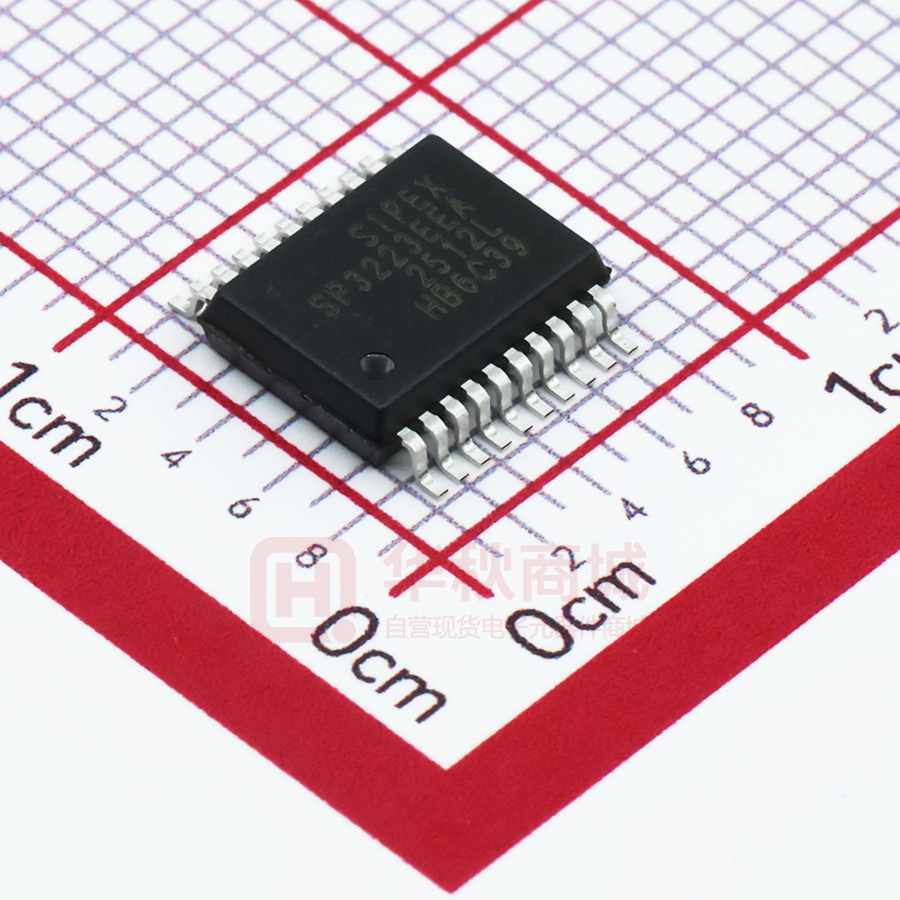

SP3223E / SP3223EB / SP3223EU
Intelligent +3.0V to +5.5V RS-232 Transceivers
FEATURES
• Meets true EIA/TIA-232-F Standards
from a +3.0V to +5.5V power supply
• Interoperable with EIA/TIA-232 and
adheres to EIA/TIA-562 down to a +2.7V
power source
• AUTO ON-LINE® circuitry automatically
wakes up from a 1µA shutdown
• Minimum 250Kbps data rate under load
(EB)
• 1 Mbps data rate for high speed RS-232
(EU)
• Regulated Charge Pump Yields Stable
RS-232 Outputs Regardless of VCC
Variations
• ESD Specifications:
+15KV Human Body Model
+15KV IEC61000-4-2 Air Discharge
+8KV IEC61000-4-2 Contact Discharge
EN
20 SHUTDOWN
1
C1+ 2
19 Vcc
V+
3
18 GND
C1-
4
17
T1OUT
C2+
5
16
R1IN
C2-
6
15 R1OUT
V-
7
14 ONLINE
SP3223E
T2OUT
8
13 T1IN
R1IN
9
12 T2IN
R2OUT 10
11 STATUS
Now Available in Lead Free Packaging
DESCRIPTION
The SP3223 products are RS-232 transceiver solutions intended for portable applications
such as notebook and hand held computers. These products use an internal high-efficiency,
charge-pump power supply that requires only 0.1µF capacitors in 3.3V operation. This charge
pump and Exar's driver architecture allow the SP3223 series to deliver compliant RS-232
performance from a single power supply ranging from +3.3V to +5.0V. The SP3223 is a 2driver/2-receiver device ideal for laptop/notebook computer and PDA applications.
The AUTO ON-LINE® feature allows the device to automatically "wake-up" during a shutdown state when an RS-232 cable is connected and a connected peripheral is turned on.
Otherwise, the device automatically shuts itself down drawing less than 1µA.
SELECTION TABLE
Device
Power
Supplies
RS- 232
Drivers
RS-232
Receivers
AUTO ON-LINE ®
TTL
3-state
Data Rate
(kbps)
SP3223E
+3.0V to +5.5V
2
2
YES
YES
120
SP3223EB
+3.0V to +5.5V
2
2
YES
YES
250
SP3223EU
+3.0V to +5.5V
2
2
YES
YES
1000
SP3223E/EB/EU_102_031920
1
ABSOLUTE MAXIMUM RATINGS
These are stress ratings only and functional operation
of the device at these ratings or any other above those
indicated in the operation sections of the specifications
below is not implied. Exposure to absolute maximum
rating conditions for extended periods of time may
affect reliability and cause permanent damage to the
device.
VCC.......................................................-0.3V to +6.0V
V+ (NOTE 1).......................................-0.3V to +7.0V
V- (NOTE 1)........................................+0.3V to -7.0V
V+ + |V-| (NOTE 1)...........................................+13V
ICC (DC VCC or GND current).........................+100mA
Input Voltages
TxIN, ONLINE,
SHUTDOWN, EN......................-0.3V to VCC + 0.3V
RxIN...................................................................+15V
Output Voltages
TxOUT.............................................................+13.2V
RxOUT, STATUS.......................-0.3V to (VCC + 0.3V)
Short-Circuit Duration
TxOUT.....................................................Continuous
Storage Temperature......................-65°C to +150°C
Power Dissipation per package
20-pin SSOP (derate 9.25mW/oC above +70oC)..750mW
20-pin TSSOP (derate 11.1mW/oC above +70oC..900mW
NOTE 1: V+ and V- can have maximum magnitudes of 7V, but their absolute difference cannot exceed 13V.
ELECTRICAL CHARACTERISTICS
Unless otherwise noted, the following specifications apply for VCC = +3.0V to +5.5V with TAMB = TMIN to TMAX.
Typical values apply at VCC = +3.3V or +5.0V and TAMB = 25°C (Note 2).
PARAMETER
MIN.
TYP.
MAX.
UNITS
DC CHARACTERISTICS
Supply Current,
AUTO ON-LINE®
1.0
10
µA
Supply Current, Shutdown
1.0
10
µA
Supply Current,
AUTO ON-LINE® Disabled
0.3
1.0
mA
0.8
Vcc
V
CONDITIONS
All RxIN open, ONLINE = GND,
SHUTDOWN = Vcc, TxIN = Vcc or
GND, Vcc = +3.3V, TAMB = +25ºC
SHUTDOWN = GND, TxIN =
Vcc or GND, Vcc = +3.3V, TAMB =
+25ºC
ONLINE = SHUTDOWN = Vcc, No
Load, Vcc = +3.3V, TAMB = +25ºC
LOGIC INPUTS AND RECEIVER OUTPUTS
Input Logic Threshold
LOW
HIGH
GND
2.0
Vcc = 3.3V or 5.0V,
TxIN, EN, SHUTDOWN, ONLINE
Input Leakage Current
+/-0.01
+/-1.0
µA
TxIN, EN, ONLINE, SHUTDOWN,
TAMB = +25ºC, Vin = 0V to Vcc
Output Leakage Current
+/-0.05
+/-10
µA
Receivers disabled, Vout = 0V to
Vcc
0.4
V
IOUT = 1.6mA
V
IOUT = -1.0mA
Output Voltage LOW
Output Voltage HIGH
Vcc - 0.6
Vcc - 0.1
NOTE 2: C1 - C4 = 0.1µF, tested at 3.3V ±10%.
C1 = 0.047µF, C2-C4 = 0.33µF, tested at 5V±10%.
SP3223E/EB/EU_102_031920
2
ELECTRICAL CHARACTERISTICS
Unless otherwise noted, the following specifications apply for VCC = +3.0V to +5.5V with TAMB = TMIN to TMAX.
Typical values apply at VCC = +3.3V or +5.0V and TAMB = 25°C (Note 2).
PARAMETER
Driver Outputs
Output Voltage Swing
Output Resistance
MIN.
+/-5.0
TYP.
MAX.
+/-5.4
300
Output Short-Circuit Current
+/-35
Output Leakage Current
RECEIVER INPUTS
Input Voltage Range
-15
UNITS
CONDITIONS
V
All Driver outputs loaded with 3kΩ
to GND, TAMB = +25ºC
Ω
Vcc = V+ = V- = 0V, Vout = +/-2V
+/-60
mA
Vout = 0V
+/-25
µA
Vcc = 0V or 3.0V to 5.5V, Vout =
+/-12V, Driver disabled
+15
V
Input Threshold LOW
0.6
1.2
V
Vcc = 3.3V
Input Threshold LOW
0.8
1.5
V
Vcc = 5.0V
Input Threshold HIGH
1.5
2.4
V
Vcc = 3.3V
Input Threshold HIGH
1.8
2.4
V
Vcc = 5.0V
7
kΩ
Input Hysteresis
Input Resistance
0.3
3
V
5
AUTO ON-LINE® CIRCUITRY CHARACTERISTICS (ONLINE = GND, SHUTDOWN = Vcc)
STATUS Output Voltage LOW
STATUS Output Voltage HIGH
0.4
Vcc - 0.6
V
IOUT = 1.6mA
V
IOUT = -1.0mA
Receiver Threshold to Drivers
Enabled (tONLINE)
200
µs
Figure 15
Receiver Positive or Negative
Threshold to STATUS HIGH
(tSTSH)
0.5
µs
Figure 15
Receiver Positive or Negative
Threshold to STATUS LOW
(tSTSL)
20
µs
Figure 15
NOTE 2: C1 - C4 = 0.1µF, tested at 3.3V ±10%.
C1 = 0.047µF, C2-C4 = 0.33µF, tested at 5V±10%.
SP3223E/EB/EU_102_031920
3
TIMING CHARACTERISTICS
Unless otherwise noted, the following specifications apply for VCC = +3.0V to +5.5V with TAMB = TMIN to TMAX.
Typical values apply at VCC = +3.3V or +5.0V and TAMB = 25°C.
PARAMETER
MIN.
TYP.
120
235
MAX.
UNITS
CONDITIONS
Maximum Data Rate
SP3223E
SP3223EB
250
SP3223EU
1000
kbps
RL = 3kΩ, CL = 1000pF, One
Driver active
RL = 3kΩ, CL = 250pF, One Driver
active
Receiver Propagation Delay
tPHL and tPLH
0.15
µA
Receiver input to Receiver output,
CL = 150pF
Receiver Output Enable Time
200
ns
Normal Operation
Receiver Output Disable Time
200
ns
Normal Operation
│tPHL - tPLH│, TAMB = 25°C
Driver Skew
E, EB
100
500
ns
EU
50
100
ns
200
1000
ns
Receiver Skew
E, EB, EU
│tPHL - tPLH│
Transition-Region Slew Rate
E, EB
EU
30
90
V/µs
Vcc = 3.3V, RL = 3kΩ, TAMB =
25°C, measurements taken from
-3.0V to +3.0V or +3.0V to -3.0V
SP3223E/EB/EU_102_031920
4
TYPICAL OPERATING CIRCUIT
Figure 1. SP3223E Typical Operating Circuit
SP3223E/EB/EU_102_031920
5
TYPICAL PERFORMANCE CHARACTERISTICS
Unless otherwise noted, the following performance characteristics apply for VCC = +3.3V, 250Kbps data rate, all
drivers loaded with 3kΩ, 0.1µF charge pump capacitors, and TAMB = +25°C.
30
6
4
25
TxOUT +
2
20
0
15
+ Slew
10
-2
TxOUT -
-4
-6
- Slew
0
1000
1 T ransmitter at 250Kbps
1 T ransmitter at 15.6Kbps
All drivers loaded 3K + Load Cap
5
2000
3000
4000
0
5000
0
500
1000
2000
3000
4000
5000
Load Capacitance (pF)
Load Capacitance (pF)
Figure 2. Transmitter Output Voltage VS. Load
Capacitance for the SP3223EB
Figure 3. Slew Rate VS. Load Capacitance for the
SP3223EB
35
20
30
25
15
250K bps
20
125K bps
10
15
20K bps
10
5
0
0
1000
2000
3000
4000
1 T ransmitter at 250Kbps
2 T ransmitters at 15.6Kbps
All drivers loaded with 3K // 1000pF
5
1 T ransmitter at 250Kbps
1 T ransmitter at 15.6Kbps
All drivers loaded 3K + Load Cap
0
5000
Load Capacitance (pF)
2.7
3
3.5
4
4.5
5
Supply VVoltage
Supply
oltage(Vdc)
(V DC )
Figure 5. Supply Current VS. Supply Voltage for
the SP3223EB
Figure 4. Supply Current VS. Load Capacitance
when Transmitting Data for the SP3223EB
6
Tx OUT +
4
2
0
-2
-4
-6
Tx OUT -
2.7
3
3.5
4
4.5
5
Supply VVoltage
Supply
oltage(Vdc)
(V DC )
Figure 6. Transmitter Output Voltage VS. Supply
Voltage for the SP3223EB
SP3223E/EB/EU_102_031920
6
TYPICAL PERFORMANCE CHARACTERISTICS
Unless otherwise noted, the following performance characteristics apply for VCC = +3.3V, 1000Kbps data rate, all
drivers loaded with 3kΩ, 0.1µF charge pump capacitors, and TAMB = +25°C.
6
200
4
150
2
-2
T1 at 500K bps
T2 at 31. 2K bps
All TX loaded 3K // CLoad
50
0
0
250
-4
500
1000
1500
Load Capacitance (pF)
-6
2000
2.7
3
3.5
4
Supply
V oltage (V)
Supply Voltage (V)
4.5
5
Figure 8. Transmitter Output Voltage VS. Supply
Voltage for the SP3223EU
Figure 7. Transmitter Skew VS. Load Capacitance
for the SP3223EU
35
6
30
4
T1 at 1Mbps
T2 at 62. 5K bps
2
25
20
0
15
-2
T1 at 1Mbps
T2 at 62. 5K bps
10
-4
-6
1D river at 1Mbps
Other D rivers at 62. 5K bps
All Drive rs Loaded with 3K // 250pF
0
100
5
0
250
500
1000
Load Capacitance (pF)
0
1500
Figure 9. Transmitter Output Voltage VS. Load
Capacitance for the SP3223EU
250
500
1000
Load Capacitance (pF)
1500
Figure 10. Supply Current VS. Load Capacitance for
the SP3223EU
6
20
4
15
2
10
2.7
3
3.5
4
Supply
V Voltage
oltage (V)
Supply
(V)
4.5
T1 at 1Mbps
T2 at 62. 5K bps
All Drive rs loaded
with 3K //250pF
0
T1 at 1Mbps
T2 at 62. 5K bps
All Drive rs loaded
with 3K //250pF
5
0
0
-2
-4
-6
5
2.7
3
3.5
4
Supply
oltage (V)
SupplyV Voltage
(V)
4.5
5
Figure 12. Transmitter Output Voltage VS. Supply
Voltage for the SP3223EU
Figure 11. Supply Current VS. Supply Voltage for
the SP3223EU
SP3223E/EB/EU_102_031920
7
PIN DESCRIPTION
Name
Function
Pin #
EN
Receiver Enable, Apply logic LOW for normal operation. Apply logic HIGH to
disable receiver outputs (high-Z state).
1
C1+
Positive terminal of the voltage doubler charge-pump capacitor
2
V+
Regulated +5.5V output generated by charge pump
3
C1-
Negative terminal of the voltage doubler charge-pump capacitor
4
C2+
Positive terminal of the inverting charge-pump capacitor
5
C2-
Negative terminal of the inverting charge-pump capacitor
6
Regulated -5.5V output generated by charge pump
7
T2OUT
RS-232 Driver output
8
R2IN
RS-232 receiver input
9
TTL/CMOS receiver output
10
V-
R2OUT
STATUS
TTL/CMOS output indicating online and shutdown status
11
T2IN
TTL/CMOS driver input
12
T1IN
TTL/CMOS driver input
13
ONLINE
Apply logic HIGH to override AUTO ON-LINE ® circuitry keeping drivers active
(SHUTDOWN must also be logic HIGH, refer to table 2).
14
R1OUT
TTL/CMOS receiver output
15
R1IN
RS-232 receiver input
16
T1OUT
RS-232 Driver output
17
GND
Ground
18
Vcc
+3.0V to +5.5V supply voltage
19
Apply logic LOW to shut down drivers and charge pump. This overrides all
AUTO ON-LINE ® circuitry and ONLINE (refer to table 2).
20
SHUTDOWN
Table 2. Pin Description
SP3223E/EB/EU_102_031920
8
DESCRIPTION
THEORY OF OPERATION
The SP3223 is a 2-driver/2-receiver device
ideal for portable or handheld applications.
The SP3223 transceivers meet the EIA/TIA232 and ITU-T V.28/V.24 communication
protocols and can be implemented in batterypowered, portable, or handheld applications
such as notebook or handheld computers.
The SP3223 devices feature Exar's proprietary on-board charge pump circuitry that
generates ±5.5V RS-232 voltage levels from
a single +3.0V to +5.5V power supply.
The SP3223 series is made up of four basic
circuit blocks:
1. Drivers, 2. Receivers, 3. The Exar proprietary charge pump, and 4. AUTO ONLINE® circuitry.
Drivers
The drivers are inverting level transmitters
that convert TTL or CMOS logic levels to 5.0V
EIA/TIA-232 levels with an inverted sense
relative to the input logic levels. Typically, the
RS-232 output voltage swing is +5.4V with
no load and +5V minimum fully loaded. The
driver outputs are protected against infinite
short-circuits to ground without degradation in reliability. These drivers comply with
the EIA-TIA-232F and all previous RS-232
versions. Unused driver inputs should be
connected to GND or VCC.
These devices are an ideal choice for power
sensitive designs. Featuring AUTO ON-LINE®
circuitry, the SP3223 reduces the power supply drain to a 1µA supply current. In many
portable or handheld applications, an RS-232
cable can be disconnected or a connected
peripheral can be turned off. Under these
conditions, the internal charge pump and
the drivers will be shut down. Otherwise, the
system automatically comes online. This
feature allows design engineers to address
power saving concerns without major design
changes.
The drivers can guarantee output data
rates fully loaded with 3kΩ in parallel with
1000pF, (SP3223EU, CL= 250pF) ensuring
compatibility with PC-to-PC communication
software.
The slew rate of the driver output on the
E and EB versions is internally limited to a
maximum of 30V/µs in order to meet the EIA
standards (EIA RS-232D 2.1.7, Paragraph 5).
The Slew Rate of EU version is not limited
to enable higher speed data transfers. The
transition of the loaded output from HIGH to
LOW also meets the monotonicity requirements of the standard.
VCC
C5
C1
C2
+
+
+
2 C1+
0.1µF
0.1µF
V+
SP3223E
C3
C4
11 T1IN
T1OUT 17
12 T2IN
T2OUT 8
5KΩ
10 R2OUT
+
0.1µF
V- 7
6 C2-
15 R1OUT
TTL/CMOS OUTPUTS
3
4 C15 C2+
TTL/CMOS INPUTS
UART
or
Serial µC
19
VCC
0.1µF
R1IN
16
R2IN
9
+
0.1µF
RS-232
OUTPUTS
RS-232
INPUTS
5KΩ
Figure 14 shows a loopback test circuit used
to test the RS-232 Drivers. Figure 15 shows
the test results where one driver was active
at 250kbps and all drivers are loaded with
an RS-232 receiver in parallel with a 1000pF
capacitor. RS-232 data transmission rate of
120kbps to 1Mbps provide compatibility with
designs in personal computer peripherals
and LAN applications.
EN
VCC
20
14
SHUTDOWN
ONLINE
11 STATUS
GND
18
RESET
µP
Supervisor
IC
VIN
Figure 13. Interface Circuitry Controlled by Microprocessor Supervisory Circuit
SP3223E/EB/EU_102_031920
9
Device: SP3223
SHUTDOWN
EN
TXOUT
RXOUT
0
0
High Z
Active
0
1
High Z
High Z
1
0
Active
Active
1
1
Active
High Z
Table 3. SHUTDOWN and EN Truth Tables
Note: In AUTO ON-LINE® Mode where ONLINE = GND
and SHUTDOWN = VCC, the device will shut down if
there is no activity present at the Receiver inputs.
Receivers
The receivers convert ±5.0V EIA/TIA-232
levels to TTL or CMOS logic output levels.
Receivers have an inverting output that can
be disabled by using the EN pin.
Figure 14. Loopback Test Circuit for RS-232 Driver
Data Transmission Rates
Receivers are active when the AUTO ONLINE® circuitry is enabled or when in shutdown. During the shutdown, the receivers will
continue to be active. If there is no activity
present at the receivers for a period longer
than 100µs or when SHUTDOWN is enabled,
the device goes into a standby mode where
the circuit draws 1µA. Driving EN to a logic
HIGH forces the outputs of the receivers into
high-impedance. The truth table logic of the
SP3223 driver and receiver outputs can be
found in Table 2.
Figure 15. Loopback Test Circuit result at 250Kbps
(All Drivers Fully Loaded)
Since receiver input is usually from a transmission line where long cable lengths and
system interference can degrade the signal,
the inputs have a typical hysteresis margin
of 300mV. This ensures that the receiver
is virtually immune to noisy transmission
lines. Should an input be left unconnected,
an internal 5kΩ pull-down resistor to ground
will commit the output of the receiver to a
HIGH state.
Charge Pump
The charge pump uses a unique approach
compared to older less–efficient designs.
The charge pump still requires four external
capacitors, but uses a four–phase voltage
shifting technique to attain symmetrical
5.5V power supplies. The internal power
supply consists of a regulated dual charge
pump that provides output voltages of
+/-5.5V regardless of input voltage (VCC)
over the +3.0V to +5.5V range. This
is important to maintain compliant RS232 levels regardless of power supply
fluctuations.
SP3223E/EB/EU_102_031920
10
The charge pump operates in a discontinuous mode using an internal oscillator. If the
output voltages are less than a magnitude
of 5.5V, the charge pump is enabled. If the
output voltages exceed a magnitude of 5.5V,
the charge pump is disabled. This oscillator
controls the four phases of the voltage shifting. A description of each phase follows.
as the operational conditions for the internal
oscillator are present.
Since both V+ and V– are separately generated from VCC, in a no–load condition V+
and V– will be symmetrical. Older charge
pump approaches that generate V– from
V+ will show a decrease in the magnitude
of V– compared to V+ due to the inherent
inefficiencies in the design.
Phase 1
— VSS charge storage — During this phase
of the clock cycle, the positive side of capacitors C1 and C2 are initially charged to VCC.
Cl+ is then switched to GND and the charge
in C1– is transferred to C2–. Since C2+ is connected to VCC, the voltage potential across
capacitor C2 is now 2 times VCC.
The Exar charge pump is designed to
operate reliably with a range of low cost
capacitors. Either polarized or non polarized capacitors may be used. If polarized
capacitors are used they should be oriented
as shown in the Typical Operating Circuit.
The V+ capacitor may be connected to either
ground or Vcc (polarity reversed.)
Phase 2
— VSS transfer — Phase two of the clock
connects the negative terminal of C2 to the VSS
storage capacitor and the positive terminal of
C2 to GND. This transfers a negative generated voltage to C3. This generated voltage is
regulated to a minimum voltage of -5.5V.
Simultaneous with the transfer of the voltage to C3, the positive side of capacitor C1
is switched to VCC and the negative side is
connected to GND.
The charge pump operates with 0.1µF
capacitors for 3.3V operation. For other
supply voltages, see table 4 for required
capacitor values. Do not use values smaller
than those listed. Increasing the capacitor
values (e.g., by doubling in value) reduces
ripple on the transmitter outputs and may
slightly reduce power consumption. C2, C3,
and C4 can be increased without changing
C1’s value.
Phase 3
— VDD charge storage — The third phase of
the clock is identical to the first phase — the
charge transferred in C1 produces –VCC in
the negative terminal of C1, which is applied
to the negative side of capacitor C2. Since
C2+ is at VCC, the voltage potential across C2
is 2 times VCC.
For best charge pump efficiency locate the
charge pump and bypass capacitors as
close as possible to the IC. Surface mount
capacitors are best for this purpose. Using
capacitors with lower equivalent series resistance (ESR) and self-inductance, along
with minimizing parasitic PCB trace inductance will optimize charge pump operation.
Designers are also advised to consider that
capacitor values may shift over time and
operating temperature.
Phase 4
— VDD transfer — The fourth phase of
the clock connects the negative terminal
of C2 to GND, and transfers this positive
generated voltage across C2 to C4, the
VDD storage capacitor. This voltage is
regulated to +5.5V. At this voltage, the internal oscillator is disabled. Simultaneous
with the transfer of the voltage to C4, the
positive side of capacitor C1 is switched to VCC
and the negative side is switched to GND, allowing the charge pump cycle to begin again.
The charge pump cycle will continue as long
SP3223E/EB/EU_102_031920
11
VCC = +5V
C4
+5V
+
C1
+
C2
–
–5V
–
+
–
VDD Storage Capacitor
–
+
VSS Storage Capacitor
C3
–5V
Figure 16. Charge Pump - Phase 1
VCC = +5V
C4
C1
+
+
C2
–
–
+
–
VDD Storage Capacitor
–
+
VSS Storage Capacitor
C3
–10V
Figure 17. Charge Pump - Phase 2
[
T
]
+6V
a) C2+
T
1
0V
2
2
0V
b) C2-
T
Ch1 2.00V Ch2 2.00V M 1.00ms Ch1 1.96V
-6V
Figure 18. Charge Pump Waveforms
VCC = +5V
C4
+5V
C1
+
–
+
C2
–5V
+
–
VDD Storage Capacitor
–
+
VSS Storage Capacitor
–
C3
–5V
Figure 19. Charge Pump - Phase 3
VCC = +5V
C4
+10V
C1
+
–
C2
+
–
+
–
VDD Storage Capacitor
–
+
VSS Storage Capacitor
C3
Figure 20. Charge Pump - Phase 4
Minimum recommended charge pump capacitor value
Input Voltage VCC
Charge pump capacitor value
3.0V to 3.6V
C1 - C4 = 0.1µF
4.5V to 5.5V
C1 = 0.047µF, C2-C4 = 0.33µF
3.0V to 5.5V
C1 - C4 = 0.22µF
Table 4. Minimum Charge Pump Capacitor values
SP3223E/EB/EU_102_031920
12
The second stage of the AUTO ON-LINE®
circuitry, shown in Figure 23, processes
the receiver's RXINACT signal with an accumulated delay that disables the device to
a 1µA typical supply current. The STATUS
pin goes to a logic LOW when the cable
is disconnected, the external transmitter is disabled, or the SHUTDOWN pin is
invoked. The typical accumulated delay
is around 20µs. When the SP3223 drivers
and internal charge pump are disabled, the
supply current is reduced to 1µA typical.
This can commonly occur in handheld or
portable applications where the RS-232
cable is disconnected or the RS-232 drivers
of the connected peripheral are truned off.
The AUTO ON-LINE® mode can be disabled
by the SHUTDOWN pin. If this pin is a logic
LOW, the AUTO ON-LINE® function will not
operate regardless of the logic state of the
ONLINE pin. Table 5 summarizes the logic
of the AUTO ON-LINE® operating modes.
The truth table logic of the SP3223 driver and
receiver outputs can be found in Table 3.
AUTO ON-LINE Circuitry
®
The SP3223 device has AUTO ON-LINE®
circuitry on board that saves power in applications such as laptop computers, PDA's,
and other portable systems.
The SP3223 device incorporates an AUTO
ON-LINE® circuit that automatically enables
itself when the external transmitter is enabled
and the cable is connected. Conversely,
the AUTO ON-LINE® circuit also disables
most of the internal circuitry when the device
is not being used and goes into a standby
mode where the device typically draws 1µA.
This function is externally controlled by the
ONLINE pin. When this pin is tied to a logic
LOW, the AUTO ON-LINE® function is active. Once active, the device is enabled until
there is no activity on receiver inputs. The
receiver input typically sees at least ±3V,
which are generated from the transmitter
at the other end of the cable with a ±5V
minimum. When the external transmitter is
disabled or the cable is disconnected, the
receiver input will be pulled down by its
internal 5kΩ resistor to ground. When this
occurs over a period of time, the internal
transmitters will be disabled and the device
goes into a shutdown or standby mode.
When the ONLINE pin is HIGH, the AUTO
ON-LINE® mode is disabled.
The STATUS pin outputs a logic LOW signal
if the device is shutdown. This pin goes to
a logic HIGH when the external transmitter
is enabled and the cable is connected.
When the SP3223 device is shutdown, the
charge pumps are turned off. V+ charge
pump output decays to VCC,the V- output
decays to GND. The decay time will depend
on the size of capacitors used for the charge
pump. Once in shutdown, the time required
to exit the shut down state and have valid
V+ and V- levels is typically 200µs.
The AUTO ON-LINE ® circuit has two
stages:
1) Inactive Detection
2) Accumulated Delay
For easy programming, the STATUS can
be used to indicate DTR or a Ring Indicator
signal. Tying ONLINE and SHUTDOWN
together will bypass the AUTO ON-LINE®
circuitry so this connection acts like a shutdown input pin
The first stage, shown in Figure 22, detects
an inactive input. A logic HIGH is asserted
on RXINACT if the cable is disconnected
or the external transmitters are disabled.
Otherwise, RXINACT will be at a logic LOW.
This circuit is duplicated for each of the other
receivers.
SP3223E/EB/EU_102_031920
13
S
H
U
T
R E C E IV E R +2.7V
0V
R S -232 INP UT
V OLTAG E S -2.7V
D
O
W
N
VCC
S TAT US
0V
tS T S L
tS T S H
tONL INE
DR IV E R
R S -232 OUT P UT
V OLTAG E S
+5V
0V
-5V
Figure 21. AUTO ON-LINE® Timing Waveforms
RS-232 SIGNAL
AT RECEIVER
INPUT
SHUTDOWN
ONLINE
STATUS
TRANSCEIVER
STATUS
YES
HIGH
LOW
HIGH
Normal Operation
(AUTO ON-LINE©)
NO
HIGH
HIGH
LOW
Normal Operation
NO
HIGH
LOW
LOW
Shutdown
(AUTO ON-LINE©)
YES
LOW
HIGH/LOW
HIGH
Shutdown
NO
LOW
HIGH/LOW
LOW
Shutdown
Table 5. AUTO ON-LINE® Logic
Inactive Detection Block
RXIN
RS-232
Receiver Block
RX INACT
RXOUT
Figure 22. Stage I of AUTO ON-LINE® Circuitry
Delay
Buffer
Delay
Buffer
INACTIVE
R 1ON
R 2 ON
SHUTDOWN
Figure 23. Stage II of AUTO ON-LINE® Circuitry
SP3223E/EB/EU_102_031920
14
ESD TOLERANCE
The SP3223 series incorporates
ruggedized ESD cells on all driver output
and receiver input pins. The ESD structure is
improved over our previous family for more
rugged applications and environments
sensitive to electro-static discharges and
associated transients. The improved ESD
tolerance is at least +15kV without damage
nor latch-up.
is applied to points and surfaces of the
equipment that are accessible to personnel
during normal usage. The transceiver IC
receives most of the ESD current when the
ESD source is applied to the connector pins.
The test circuit for IEC61000-4-2 is shown
on Figure 25. There are two methods within
IEC61000-4-2, the Air Discharge method and
the Contact Discharge method. With the Air
Discharge Method, an ESD voltage is applied
to the equipment under test (EUT) through
air. This simulates an electrically charged
person ready to connect a cable onto the
rear of the system only to find an unpleasant zap just before the person touches the
back panel. The high energy potential on the
person discharges through an arcing path
to the rear panel of the system before he or
she even touches the system. This energy,
whether discharged directly or through air,
is predominantly a function of the discharge
current rather than the discharge voltage.
Variables with an air discharge such as
approach speed of the object carrying the
ESD potential to the system and humidity
will tend to change the discharge current.
For example, the rise time of the discharge
current varies with the approach speed.
The Contact Discharge Method applies the
ESD current directly to the EUT. This method
was devised to reduce the unpredictability
of the ESD arc. The discharge current rise
time is constant since the energy is directly
transferred without the air-gap arc. In situations such as hand held systems, the ESD
charge can be directly discharged to the
equipment from a person already holding
the equipment. The current is transferred
on to the keypad or the serial port of the
equipment directly and then travels through
the PCB and finally to the IC.
There are different methods of ESD testing
applied:
a) MIL-STD-883, Method 3015.7
b) IEC61000-4-2 Air-Discharge
c) IEC61000-4-2 Direct Contact
The Human Body Model has been the
generally accepted ESD testing method
for semiconductors. This method is also
specified in MIL-STD-883, Method 3015.7
for ESD testing. The premise of this ESD test
is to simulate the human body’s potential to
store electro-static energy and discharge it
to an integrated circuit. The simulation is
performed by using a test model as shown
in Figure 24. This method will test the IC’s
capability to withstand an ESD transient
during normal handling such as in manufacturing areas where the IC's tend to be
handled frequently.
The IEC-61000-4-2, formerly IEC801-2, is
generally used for testing ESD on equipment
and systems. For system manufacturers,
they must guarantee a certain amount of
ESD protection since the system itself is exposed to the outside environment and human
presence. The premise with IEC61000-4-2
is that the system is required to withstand
an amount of static electricity when ESD
Figure 24. ESD Test Circuit for Human Body Model
SP3223E/EB/EU_102_031920
15
Figure 25. ESD Test Circuit for IEC61000-4-2
i→
The circuit model in Figures 24 and 25 represent the typical ESD testing circuit used for
all three methods. The CS is initially charged
with the DC power supply when the first
switch (SW1) is on. Now that the capacitor
is charged, the second switch (SW2) is on
while SW1 switches off. The voltage stored
in the capacitor is then applied through RS,
the current limiting resistor, onto the device
under test (DUT). In ESD tests, the SW2
switch is pulsed so that the device under
test receives a duration of voltage.
30A
15A
0A
For the Human Body Model, the current
limiting resistor (RS) and the source capacitor
(CS) are 1.5kΩ an 100pF, respectively. For
IEC-61000-4-2, the current limiting resistor
(RS) and the source capacitor (CS) are 330Ω
an 150pF, respectively.
t=0ns
t=30ns
t→
Figure 26. ESD Test Waveform for IEC61000-4-2
The higher CS value and lower RS value in
the IEC61000-4-2 model are more stringent
than the Human Body Model. The larger
storage capacitor injects a higher voltage
to the test point when SW2 is switched on.
The lower current limiting resistor increases
the current charge onto the test point.
DEVICE PIN
TESTED
Driver Outputs
Receiver Inputs
HUMAN BODY
MODEL
Air Discharge
±15kV
±15kV
±15kV
±15kV
IEC61000-4-2
Direct Contact
±8kV
±8kV
Level
4
4
Table 6. Transceiver ESD Tolerance Levels
SP3223E/EB/EU_102_031920
16
PACKAGE: 20 Pin TSSOP
SP3223E/EB/EU_102_031920
17
PACKAGE: 20 Pin SSOP
SP3223E/EB/EU_102_031920
18
ORDERING INFORMATION(1)
Part Number
Temperature
Range
Package
Packaging
Method
Lead-Free(2)
-40°C to +85°C
20-pin TSSOP
Tape and Reel
Yes
SP3223ECA-L/TR
0°C to +70°C
20-pin SSOP
Tape and Reel
Yes
SP3223ECY-L
0°C to +70°C
20-pin TSSOP
Tube
Yes
SP3223ECY-L/TR
0°C to +70°C
20-pin TSSOP
Tape and Reel
Yes
SP3223EEA-L
-40°C to +85°C
20-pin SSOP
Tube
Yes
SP3223EEA-L/TR
-40°C to +85°C
20-pin SSOP
Tape and Reel
Yes
SP3223EEY-L
-40°C to +85°C
20-pin TSSOP
Tube
Yes
SP3223EEY-L/TR
-40°C to +85°C
20-pin TSSOP
Tape and Reel
Yes
-40°C to +85°C
20-pin TSSOP
Tape and Reel
Yes
SP3223EB
SP3223EBEY-L/TR
SP3223E
SP3223EU
SP3223EUEY-L/TR
NOTES:
1. Refer to www.maxlinear.com/SP3223EB, www.maxlinear.com/SP3223E, and
www.maxlinear.com/SP3223EU for most up-to-date Ordering Information.
2. Visit www.maxlinear.com for additional information on Environmental Rating.
PRODUCT NOMENCLATURE
SP3223 E U EY L /TR
Tape and Reel options
“L” suffix indicates Lead Free packaging
Package Type
Part Number
A= SSOP
Y=TSSOP
Temperature Range C= Commercial Range 0ºc to 70ºC
E= Extended Range -40ºc to 85ºC
Speed Indicator
ESD Rating
Blank= 120Kbps
B= 250Kbps
U= 1Mbps
E= 15kV HBM and IEC 1000-4
SP3223E/EB/EU_102_031920
19
REVISION HISTORY
DATE
REVISION
DESCRIPTION
10-06-06
---
Legacy Sipex data sheet
Nov 2010
1.0.0
Convert to Exar data sheet format and remove EOL parts.
June 2012
1.0.1
Correct type error on page 1 pin diagram. Pin 9 should be R2IN not R1IN,
Change ESD protection levels to IEC61000-4-2.
Mar 2020
1.0.2
Update to MaxLinear logo. Update Ordering Information.
MaxLinear, Inc.
5966 La Place Court, Suite 100
Carlsbad, CA 92088
760.692.0711 p.
760.444.8598 f.
www.maxlinear.com
The content of this document is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by MaxLinear, Inc. MaxLinear, Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content contained in this guide. Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under copyright, no
part of this document may be reproduced into, stored in, or introduced into a retrieval system, or transmitted in any form or by any means (electronic,
mechanical, photocopying, recording, or otherwise), or for any purpose, without the express written permission of MaxLinear, Inc.
Maxlinear, Inc. does not recommend the use of any of its products in life support applications where the failure or malfunction of the product can
reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized
for use in such applications unless MaxLinear, Inc. receives, in writing, assurances to its satisfaction that: (a) the risk of injury or damage has been
minimized; (b) the user assumes all such risks; (c) potential liability of MaxLinear, Inc. is adequately protected under the circumstances.
MaxLinear, Inc. may have patents, patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this
document. Except as expressly provided in any written license agreement from MaxLinear, Inc., the furnishing of this document does not give you any
license to these patents, trademarks, copyrights, or other intellectual property.
MaxLinear, the MaxLinear logo, and any MaxLinear trademarks, MxL, Full-Spectrum Capture, FSC, G.now, AirPHY and the MaxLinear logo are all on
the products sold, are all trademarks of MaxLinear, Inc. or one of MaxLinear’s subsidiaries in the U.S.A. and other countries. All rights reserved. Other
company trademarks and product names appearing herein are the property of their respective owners.
© 2006 - 2020 MaxLinear, Inc. All rights reserved.
SP3223E/EB/EU_102_031920
20
工商网监
湘ICP备2023018690号
