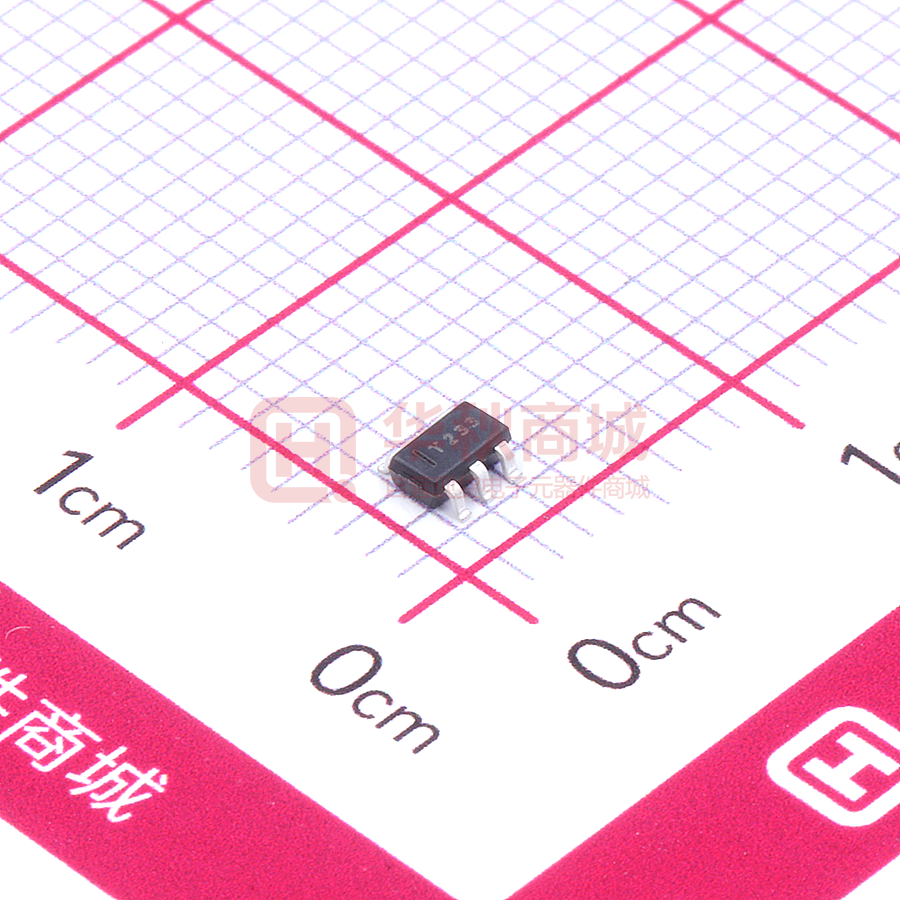

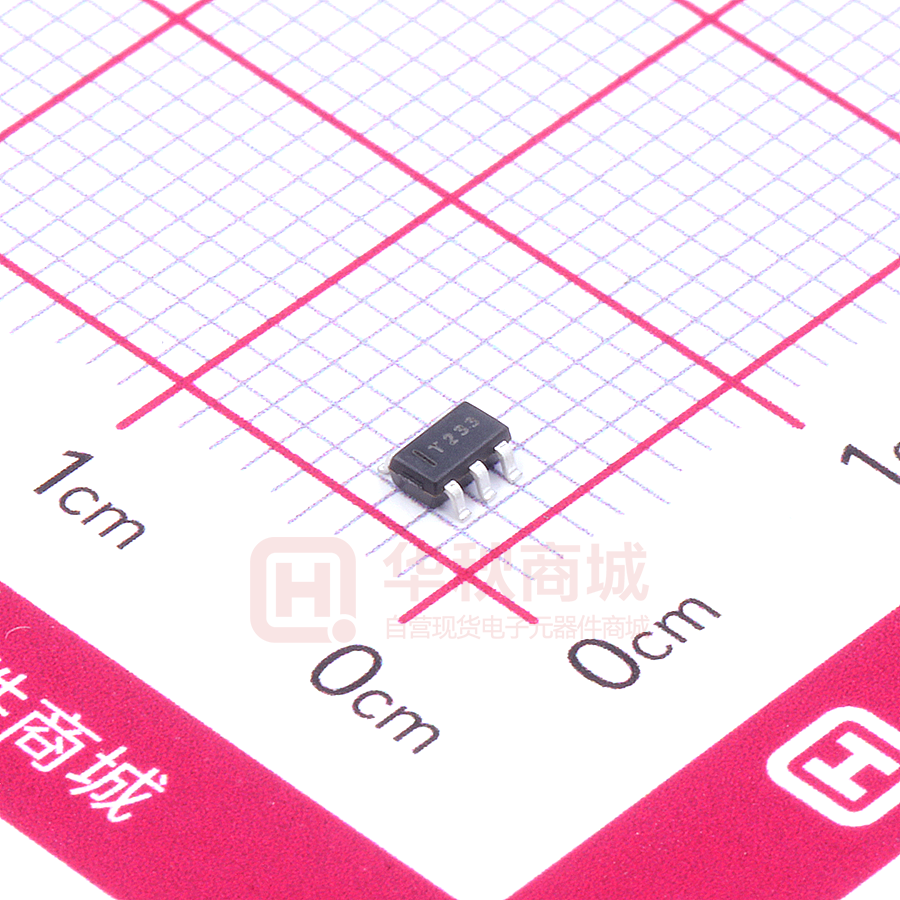

SP6205EM5-L-3.3/TR

SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators August 2018 Rev. 2.0.1 GENERAL DESCRIPTION APPLICATIONS • Battery-Powered Systems The SP6203 and SP6205 are ultra low noise CMOS LDOs with very low dropout and ground current. The noise performance is achieved by means of an external bypass capacitor without sacrificing turn-on and turn-off speed critical to portable applications. Extremely stable and easy to use, these devices offer excellent PSRR and Line/Load regulation. Target applications include battery-powered equipment such as portable and wireless products. Regulators' ground current increases only slightly in dropout. Fast turn-on/turn-off enable control and an internal 30Ω pull down on output allows quick discharge of output even under no load conditions. Both LDOs are protected with current limit and thermal shutdown. • Medical Equipments • MP3/CD Players • Digital Cameras FEATURES • 300mA/500mA Output Current − SP6203: 300mA – SP6205: 500mA − Low Dropout Voltage: 0.6Ω PMOS FET • 2.7V to 5.5V Input Voltage − Fixed and Adjustable Output Voltage − Accurate Output Voltage: 2% over Temp. • 67dB Power Supply Rejection Ratio The SP6205 is available in fixed & adjustable output voltage versions and come in an industry standard 5-pin SOT-23 and small 2X3mm 8-pin DFN packages. For SC-70 100mA CMOS LDO, SP6213 is available. • 12μVRMS Low Output Noise • Unconditionally Stable with 2.2μF Ceramic • Low Quiescent Current: 5μA • Low Ground Current: 350μA at 500mA • Fast Turn-On and Turn-Off: 60μS • Very Good Load/Line Regulation: 0.07/0.04 % • Current Limit and Thermal Protection • RoHS Compliant “Green”/Halogen Free 5-Pin SOT23 and 8-Pin DFN Packages TYPICAL APPLICATION DIAGRAM Fig. 1: SP6203/SP6205 Application Diagram 1/15 Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators ABSOLUTE MAXIMUM RATINGS OPERATING RATINGS These are stress ratings only and functional operation of the device at these ratings or any other above those indicated in the operation sections of the specifications below is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability. Input Voltage Range VIN .......................... +2.7V to +5.5V Enable Input Voltage VEN................... ...............0 to 5.5V Junction Temperature Range ................. -40°C to +125°C Thermal Resistance ...................................................... SOT-23-5 (θJA) .............................................191°C/W DFN-8 (θJA) ................................................... 59°C/W VIN .............................................................. -2V to 6.0V Output Voltage VOUT .............................. -0.6V to VIN +1V Enable Input Voltage VEN................ .. ...............-2V to 6V Storage Temperature .............................. -65°C to 150°C Power Dissipation ............................... Internally Limited1 Lead Temperature (Soldering, 5 sec) ................... +260°C Junction Temperature ........................................ +150°C Note 1: Maximum power dissipation can be calculated using the formula: PD = (TJ (max) - TA) / θJA, where TJ(max) is the junction temperature, TA is the ambient temperature and θJA is the junction-to-ambient thermal resistance. θJC is 6°C/W for this package. Exceeding the maximum allowable power dissipation will result in excessive die temperature and the regulator will go into thermal shutdown mode. ELECTRICAL SPECIFICATIONS Specifications with standard type are for an Operating Junction Temperature of TJ = 25°C only; limits applying over the full Operating Junction Temperature range are denoted by a “•”. Minimum and Maximum limits are guaranteed through test, design, or statistical correlation. Typical values represent the most likely parametric norm at TJ = 25°C, and are provided for reference purposes only. Unless otherwise indicated, VIN = (VOUT + 0.5V) to 6V, CIN = 2.2µF, COUT = 2.2µF and IOUT = 100µA, TJ= –40°C to 85°C. Parameter Min. Typ. Input Voltage Output Voltage -2 Output Voltage Temperature Coefficient2 Reference Voltage 1.225 Load Regulation 3 Dropout Voltage for VOUT ≥ 3.0V4 V • Ground Pin Current5 Shutdown Supply Current 0.33 0.55 Conditions +2 % • ppm/°C Variation from specified VOUT ∆ VOUT/∆T • 1.25 1.275 V 0.04 0.3 %/V 0.07 0.13 0.06 60 120 180 300 0.3 0.5 % IOUT = 0.1mA to 300mA (SP6203) IOUT = 0.1mA to 500mA (SP6205) mV IOUT IOUT IOUT IOUT IOUT = = = = = 0.1mA 100mA 200mA 300mA (SP6203) 500mA (SP6205) IOUT IOUT IOUT IOUT IOUT = = = = = 0.1mA (IQUIESCENT) 100mA 200mA 300mA (SP6203) 500mA (SP6205) 45 110 175 235 350 Thermal Shutdown Junction Temperature Units 6 50 Line Regulation Current Limit Max. 300 500 330 490 0.01 1 0.50 0.85 0.8 1.4 170 ∆VOUT (VIN below 6V) • • • 100 µA µA A Adjustable version only • • • VEN < 0.4V (shutdown) VOUT = 0V (SP6203) VOUT = 0V (SP6205) °C Regulator Turns off Thermal Shutdown Hysteresis 12 °C Regulator turns on again at 158°C Power Supply Rejection Ratio 67 dB f ≤ 1kHz Output Noise Voltage 6 Thermal Regulation7 Wake-Up Time (TWU)8 (from shutdown mode) 150 630 12 50 µVRMS 75 0.05 25 %/W 50 2/15 µS CBYP CBYP CBYP CBYP = = = = 0nF, IOUT = 0.1mA 0nF, IOUT = 300mA 10nF, IOUT = 0.1mA 10nF, IOUT = 300mA ∆VOUT / ∆PD VIN ≥ 4V10 IOUT = 30mA Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators Parameter Min. Turn-On Time (TON)9 (from shutdown mode) Turn-Off Time (TOFF) Max. Conditions 60 120 µS 100 15 250 25 µS IOUT = 0.1mA, VIN ≥ 4V10 IOUT = 300mA, VIN ≥ 4V10 Ω 0.4 Enable Input Logic Low Voltage Units VIN ≥ 4V10 IOUT = 30mA 30 Output Discharge Resistance Enable Input Logic High Voltage Typ. 1.6 No Load V • Regulator Shutdown V • Regulator Enabled Note 2: Output voltage temperature coefficient is defined as the worst case voltage change divided by the total temperature range. Note 3: Regulation is measured at constant junction temperature using low duty cycle pulse testing. Changes in output voltage due to heating effects are covered by the thermal regulation specification. Note 4: Dropout-voltage is defined as the input to output differential at which the output voltage drops 2% below its nominal value measured at 1V differential. Note 5: Ground pin current is the regulator quiescent current. The total current drawn from the supply is the sum of the load current plus the ground pin current. Note 6: Output noise voltage is defined within a certain bandwidth, namely 10Hz < BW < 100kHz. An external bypass cap (10nF) from reference output (BYP pin) to ground significantly reduces noise at output. Note 7: Thermal regulation is defined as the change in output voltage at a time “t” after a change in power dissipation is applied, excluding load and line regulation effects. Specifications are for a 300mA load pulse at VIN = 6V for t = 1ms. Note 8: The wake-up time (TWU) is defined as the time it takes for the output to start rising after enable is brought high. Note 9: The total turn-on time is called the settling time (TS), which is defined as the condition when both the output and the bypass node are within 2% of their fully enabled values when released from shutdown. Note 10: For output voltage versions requiring VIN to be lower than 4V, timing (TON & TOFF) increases slightly. BLOCK DIAGRAM Fig. 2: SP6203/SP6205 Functional Diagram 3/15 Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators PIN ASSIGNMENT 5-Pin SOT23 8-Pin DFN Fig. 3: SP6203/SP6205 Pin Assignment PIN DESCRIPTION Name SOT-23-5 VIN 1 Power Supply Input GND 2 Ground Terminal EN 3 Enable/Shutdown - Logic high = enable - Logic low = shutdown BYP/ADJ 4 VOUT 5 Name DFN-8 Description Bypass - Fixed voltage option: Reference bypass input for ultra-quiet operation. Connecting a 10nF cap on this pin reduces output noise. Adjustable Input – Adjustable voltage option: Adjustable regulator feedback input. Connect to a resistive voltageDivider network. Regulator Output Voltage Description ADJ 1 Adjustable Input – Adjustable voltage option: Adjustable regulator feedback input. Connect to a resistive voltageDivider network. NC 2 No Connect GND 3 Ground Terminal EN 4 Enable/Shutdown - Logic high = enable - Logic low = shutdown VIN 5 Power Supply Input NC 6 No Connect NC 7 No Connect VOUT 8 Regulator Output Voltage 4/15 Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators ORDERING INFORMATION(1) Part Number Ambient Temperature Range Lead-Free Package Packing Method Voltage Option 2.8V SP6203EM5-L-2-8/TR SP6205EM5-L/TR SP6205EM5-L-3-0/TR -40°C≤TA≤+125°C Yes(2) SOT-23-5 ADJ Tape & Reel SP6205EM5-L-3-3/TR 3.0V 3.3V SP6205ER-L/TR DFN8 ADJ NOTES: 1. Refer to www.exar.com/SP6203 and www.exar.com/SP6205 for most up-to-date Ordering Information. 2. Visit www.exar.com for additional information on Environmental Rating. 5/15 Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators TYPICAL PERFORMANCE CHARACTERISTICS All data taken at VIN = 2.7V to 5.5V, TJ = TA = 25°C, unless otherwise specified - Schematic and BOM from Application Information section of this datasheet. Fig. 4: Current Limit Fig. 5: Turn-On Time, RLOAD=50Ω (60mA) Fig. 6: Turn-Off Time, RLOAD=6Ω (500mA) Fig. 7: Turn-Off Time, RLOAD=30KΩ (0.1mA) Fig. 8: Load Regulation, IO=100µA ~500mA Fig. 9: Regulation, Line Step from 4V to 6V, IO=1mA 6/15 Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators Fig. 10: Start Up Waveform, VIN=3.5V, IO=500mA Fig. 11: Start Up Waveform, Slow VIN , No Load Fig. 12: Start Up Waveform, Slow VIN, 500mA Output Load Fig. 13: Start Up Waveform, Slow VIN, COUT=1000μF, IO=0mA Fig. 14: Start Up Waveform, Slow VIN, COUT=1000μF, IO=500mA Fig. 15: Fast VIN, No Load 7/15 Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators Fig. 17: Fast VIN = 1000μF Output Load Fig. 16: Fast VIN, 500mA Output Load Fig. 18: Fast VIN , COUT=1000μF, IO=500mA Fig. 19: Output Noise, CBYP = 10nF Fig. 20: Output Noise, CBYP = open 8/15 Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators THEORY OF OPERATION or tantalum capacitor may be used at the input. GENERAL OVERVIEW OUTPUT CAPACITOR The SP6203/6205 is intended for applications where very low dropout voltage, low supply current and low output noise are critical, even with high load conditions (500mA maximum). Unlike bipolar regulators, the SP6203/6205 (CMOS LDO) supply current increases only slightly with load current. An output capacitor is required between VOUT and GND to prevent oscillation. A 2.2μF output capacitor is recommended. Larger values make the chip more stable which means an improvement of the regulator’s transient response. Also, when operating from other sources than batteries, supply-noise rejection can be improved by increasing the value of the input and output capacitors and using passive filtering techniques. The SP6203/6205 contains an internal bandgap reference which is fed into the inverting input of the LDO-amplifier. The output voltage is then set by means of a resistor divider and compared to the bandgap reference voltage. The error LDO-amplifier drives the gate of a P-channel MOSFET pass device that has a RDS(ON) of 0.6Ω at 500mA producing a 300mV drop at the output. For a lower output current, a smaller output capacitance can be chosen. Finally, the output capacitor should have an effective series resistance (ESR) of 0.5Ω or less. Furthermore, the SP6203/6205 has its own current limit circuitry (500mA/850mA) to ensure that the output current will not damage the device during output short, overload or start-up. Therefore, the use of good quality ceramic or tantalum capacitors is advised. BYPASS CAPACITOR Also, the SP6203/6205 includes thermal shut-down circuitry to turn off the device when the junction temperature exceeds 170°C and it re-mains off until the temperature drops by 12°C. A bypass pin (BYP) is provided to decouple the bandgap reference. A 10nF external capacitor connected from BYP to GND reduces noise present on the internal reference, which in turn significantly reduces output noise and also improves power supply rejection. Note that the minimum value of COUT must be increased to maintain stability when the bypass capacitor is used because CBYP reduces the regulator phase margin. If output noise is not a concern, this input may be left unconnected. Larger capacitor values may be used to further improve power supply rejection, but result in a longer time period (slower turn on) to settle output voltage when power is initially applied. ENABLE/SHUTDOWN OPERATION The SP6203/6205 is turned off by pulling the VEN pin below 0.4V and turned on by pulling it above 1.6V. If this enable/shutdown feature is not required, it should be tied directly to the input supply voltage to keep the regulator output on at all time. While in shutdown, VOUT quickly falls to zero (turn-off time is dependent on load conditions and output capacitance on VOUT) and power consumption drops nearly to zero. NO LOAD STABILITY The SP6203/6205 will remain stable and in regulation with no external load (other than the internal voltage driver) unlike many other voltage regulators. This is especially important in CMOS RAM battery back-up applications. INPUT CAPACITOR A small capacitor of 2.2μF is required from VIN to GND if a battery is used as the power source. Any good quality electrolytic, ceramic 9/15 Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators TURN ON TIME TJ(max) is the maximum junction temperature of the die and is 125°C. TA is the ambient temperature. θJA is the junction-to-ambient thermal resistance for the regulator and is layout dependent. The SOT-23-5 package has a θJA of approximately 191°C/W for minimum PCB copper footprint area. The turn on response is split up in two separate response categories: the wake up time (TWU) and the settling time (TS). The wake up time is defined as the time it takes for the output to rise to 2% of its total value after being released from shutdown (EN > 0.4V). The settling time is defined as the condition where the output reaches 98% of its total value after being released from shutdown. The latter is also called the turn on time and is dependent on the output capacitor, a little bit on load and, if present, on a bypass capacitor. This results in a maximum power dissipation of: PD(max)=[(125°C-25°C)/(191°C/W)] = 523mW The actual power dissipation of the regulator circuit can be determined using one simple equation: PD = (VIN - VOUT) * IOUT + VIN * IGND To prevent the device from entering thermal shutdown, maximum power dissipation cannot be exceeded. Substituting PD(max) for PD and solving for the operating conditions that are critical to the application will give the maximum operating conditions for the regulator circuit. For example, if we are operating the SP6203 3.0V at room temperature, with a minimum footprint layout and output current of 300mA, the maximum input voltage can be determined, based on the equation below. Ground pin current can be taken from the electrical specifications table (0.23mA at 300mA). TURN OFF TIME The turn off time is defined as the condition where the output voltage drops about 66% (θ) of its total value. 5θ to 7θ is the constant where the output voltage drops nearly to zero. There will always be a small voltage drop in shutdown because of the switch unless we short-circuit it. The turn off time of the output voltage is dependent on load conditions, output capacitance on VOUT (time constant τ = RLCL) and also on the difference in voltage between input and output. 390mW = (VIN-3.0V) * 300mA + VIN * 0.23mA After calculations, we find that the maximum input voltage of a 3.0V application at 300mA of output current in a SOT-23-5 package is 4.7V. So if the intent is to operate a 5V output version from a 6V supply at 300mA load and at a 25°C ambient temperature, then the actual total power dissipation will be: THERMAL CONSIDERATIONS The SP6203/6205 is designed to provide 300/500mA of continuous current in a tiny package. Maximum power dissipation can be calculated based on the output current and the voltage drop across the part. To determine the maximum power dissipation of the package, use the junction-to-ambient thermal resistance of the device and the following basic equation: PD=([6V-5V]*[300mA])+(6V*0.23mA)=301.4mW This is well below the 523mW package maximum. Therefore, the regulator can be used. Note that the regulator cannot always be used at its maximum current rating. For example, in a 5V input to 3.0V output application at an ambient temperature of 25°C and operating at the full 500mA (IGND=0.355mA) load, the PD = (TJ(max) - TA) / θJA 10/15 Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators LAYOUT CONSIDERATIONS regulator is limited to a much lower load current, determined by the following equation: The primary path of heat conduction out of the package is via the package leads. Therefore, careful considerations have to be taken into account: 523mW = ( [5V-3V]*[ Iload(max)]) +(5V*0.350mA) After calculation, we find that in such an application (SP6205) the regulator is limited to 260.6mA. Doing the same calculations for the 300mA LDO (SP6203) will limit the regulator’s output current to 260.9mA. 1) Attaching the part to a larger copper footprint will enable better heat transfer from the device, especially on PCB’s where there are internal ground and power planes. 2) Place the input, output and bypass capacitors close to the device for optimal transient response and device behavior. Also, taking advantage of the very low dropout voltage characteristics of the SP6203/6205, power dissipation can be reduced by using the lowest possible input voltage to minimize the input-to-output drop. 3) Connect all ground connections directly to the ground plane. In case there’s no ground plane, connect to a common local ground point before connecting to board ground. ADJUSTABLE REGULATOR APPLICATIONS The SP6203/6205 can be adjusted to a specific output voltage by using two external resistors (see functional diagram). The resistors set the output voltage based on the following equation: Such layouts will provide a much better thermal conductivity (lower θJA) for, a higher maximum allowable power dissipation limit. VOUT = VREF * (R1/R2 + 1) Resistor values are not critical because ADJ (adjust) has a high input impedance, but for best performance use resistors of 470KΩ or less. DUAL-SUPPLY OPERATION When used in dual supply systems where the regulator load is returned to a negative supply, the output voltage must be diode clamped to ground. 11/15 Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators MECHANICAL DIMENSIONS 8-PIN DFN 2X3 12/15 Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators RECOMMENDED LAND PATTERN AND STENCIL 8-PIN DFN 2X3 13/15 Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators MECHANICAL DIMENSIONS 5-PIN SOT-23 14/15 Rev. 2.0.1 SP6203 / SP6205 300mA/500mA Low Noise CMOS LDO Regulators REVISION HISTORY Revision Date Description 2.0.0 04/03/2012 Reformatted Data Sheet Includes top package marking update. 2.0.1 08/31/2018 Updated to MaxLinear logo. Updated format and Ordering Information. Updated Adjustable Regulator Applications section. Removed obsolete Fixed Voltage DFN option. Corrected output noise voltage conditions in Electrical Specifications. Corporate Headquarters: 5966 La Place Court Suite 100 Carlsbad, CA 92008 Tel.:+1 (760) 692-0711 Fax: +1 (760) 444-8598 www.maxlinear.com High Performance Analog: 1060 Rincon Circle San Jose, CA 95131 Tel.: +1 (669) 265-6100 Fax: +1 (669) 265-6101 www.exar.com The content of this document is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by MaxLinear, Inc.. MaxLinear, Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content contained in this guide. Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be reproduced into, stored in, or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), or for any purpose, without the express written permission of MaxLinear, Inc. Maxlinear, Inc. does not recommend the use of any of its products in life support applications where the failure or malfunction of the product can reasonably be expected to cause failure of the life support system or to significantly affect its safety or effectiveness. Products are not authorized for use in such applications unless MaxLinear, Inc. receives, in writing, assurances to its satisfaction that: (a) the risk of injury or damage has been minimized; (b) the user assumes all such risks; (c) potential liability of MaxLinear, Inc. is adequately protected under the circumstances. MaxLinear, Inc. may have patents, patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. Except as expressly provided in any written license agreement from MaxLinear, Inc., the furnishing of this document does not give you any license to these patents, trademarks, copyrights, or other intellectual property. Company and product names may be registered trademarks or trademarks of the respective owners with which they are associated. © 2012 - 2018 MAXLINEAR, INC. ALL RIGHTS RESERVED 15/15 Rev. 2.0.1
