STPS1045B
Power Schottky rectifier
Datasheet production data
Description
High voltage Schottky rectifier suited for switch
mode power supply and other power converters.
$

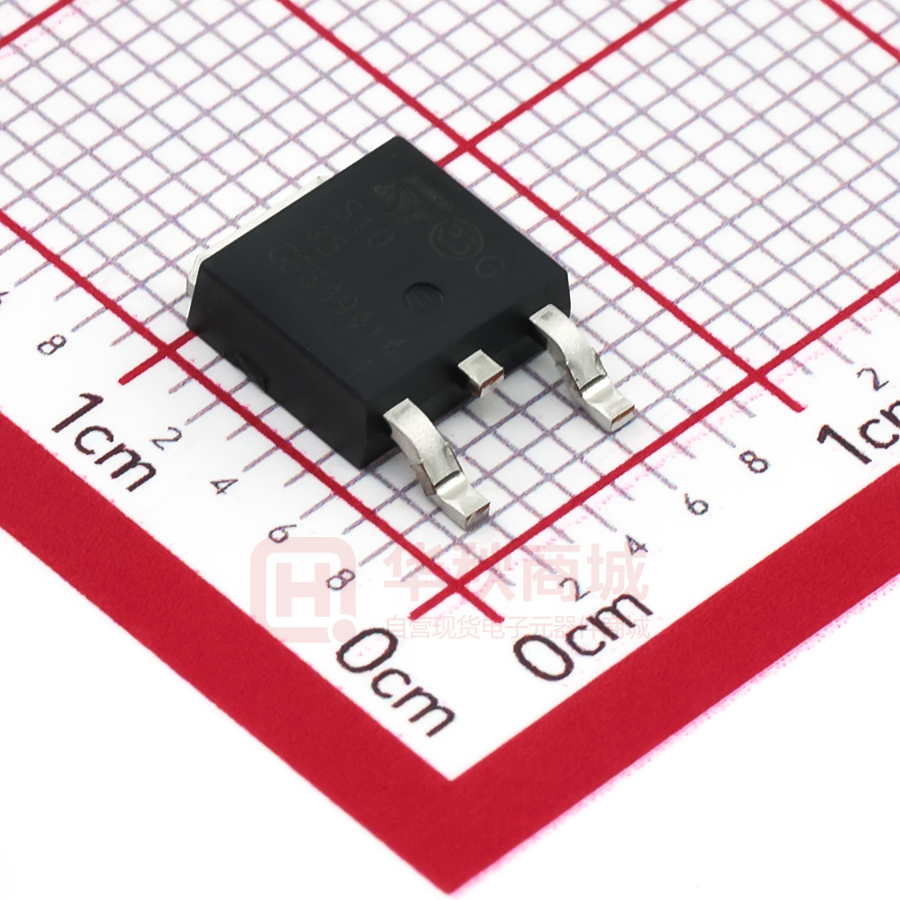

Packaged in DPAK, this device is intended for use
in high frequency circuitries where low switching
losses is required.
.
$
.
.
Table 1. Device summary
Symbol
Value
IF(AV)
10 A
VRRM
45 V
Tj
175 °C
VF(typ)
0.50 V
$
$
$
$
'3$.
Features
Very small conduction losses
Extremely fast switching
Low thermal resistance
Negligible switching losses
Low forward voltage drop
Low capacitance
Avalanche specification
ECOPACK®2 compliant component for DPAK
on demand
October 2016
This is information on a product in full production.
DocID6085 Rev 9
1/8
www.st.com
8
Characteristics
1
STPS1045B
Characteristics
Table 2. Absolute ratings (limiting values, at 25 °C unless otherwise stated)
Symbol
Parameter
Value
Unit
45
V
7
A
Repetitive peak reverse voltage
VRRM
IF(RMS) / pin Forward rms current
IF(AV)
Average forward current,
δ 0.5, square wave
Tc = 150 °C
10
A
IFSM
Surge non repetitive forward current
tp = 10 ms sinusoidal
75
A
PARM
Repetitive peak avalanche power
tp = 10 s, Tj = 125 °C
285
W
-65 to +175
°C
175
°C
Storage temperature range
Tstg
Tj
1.
Maximum operating junction
1
dPtot <
Rth(j-a)
dTj
temperature(1)
condition to avoid thermal runaway for a diode on its own heatsink
Table 3. Thermal resistance
Symbol
Rth(j-c)
Parameter
Max. value
Unit
3
°C/W
Junction to case
Table 4. Static electrical characteristics
Symbol
Parameter
Test conditions
IR (1)
Reverse leakage current
Tj = 25 °C
Tj = 125 °C
Tj = 25 °C
VF(2)
Forward voltage drop
Tj = 125 °C
Tj = 25 °C
Tj = 125 °C
Min.
-
VR = VRRM
-
-
Unit
100
A
15
mA
0.50
0.57
V
IF = 20 A
-
To evaluate the conduction losses, use the following equation:
DocID6085 Rev 9
Max.
0.63
-
2. Pulse test: tp = 380 µs, < 2%
2/8
7
IF = 10 A
1. Pulse test: tp = 5 ms, < 2%
P = 0.42 x IF(AV) + 0.015 x IF2(RMS)
Typ.
0.84
0.65
0.72
STPS1045B
Characteristics
Figure 1. Average forward power dissipation
versus average forward current
Figure 2. Average forward current versus
ambient temperature (δ= 0.5)
,)$9 $
3)$9 :
į
į
į
į
5WKMD 5WKMF
į
5WKMD &:
7
5WKMD &:
į WS7
WS
Figure 3. Normalized avalanche power derating
versus pulse duration at Tj = 125 °C
7DPE&
, )$9 $
3$50 W S
3$50 V
Figure 4. Relative variation of thermal
impedance junction to case versus pulse
duration
= WKMF 5WKMF
į
į
7
į
(
W S V
į W 37
6LQJOHSXOVH
(
(
(
W3
(
WSV
Figure 5. Reverse leakage current versus
reverse voltage applied (typical values)
Figure 6. Junction capacitance versus reverse
voltage applied (typical values)
,5$
&S)
(
) 0+]
926& P9506
7M &
7M &
(
7M &
7M &
(
7M &
(
7M &
(
7M &
(
(
959
959
DocID6085 Rev 9
3/8
Characteristics
STPS1045B
Figure 7. Forward voltage drop versus forward
current
Figure 8. Thermal resistance junction to
ambient versus copper surface under tab
, ) $
5WKMD&:
7M &
PD[LPXPYDOXHV
(SR[\SULQWHGERDUG)5FRSSHUWKLFNQHVV P
7M &
W\SLFDOYDOXHV
'3$.
7M &
PD[LPXPYDOXHV
4/8
6FXFPð
9 ) 9
DocID6085 Rev 9
STPS1045B
2
Package Information
Package Information
Epoxy meets UL94,V0
Cooling method: by conduction (C)
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
2.1
DPAK package information
Figure 9. DPAK package outline
(
$
E
F
7KHUPDOSDG
(
/
'
'
5
+
/
$
E
H
H
5
F
$
/
/
Note:
9
*DXJH
SODQH
This package drawing may slightly differ from the physical package. However, all the
specified dimensions are guaranteed.
DocID6085 Rev 9
5/8
Package Information
STPS1045B
Table 5. DPAK package mechanical data
Dimensions
Ref.
Millimeters
Min.
Typ.
Inches
Max.
Min.
Typ.
Max.
A
2.18
2.40
0.085
0.094
A1
0.90
1.10
0.035
0.043
A2
0.03
0.23
0.001
0.009
b
0.64
0.90
0.025
0.035
b4
4.95
5.46
0.194
0.214
c
0.46
0.61
0.018
0.024
c2
0.46
0.60
0.018
0.023
D
5.97
6.22
0.235
0.244
D1
4.95
5.60
0.194
0.220
E
6.35
6.73
0.250
0.264
E1
4.32
5.50
0.170
0.216
e
2.28
0.090
e1
4.40
4.70
0.173
0.185
H
9.35
10.40
0.368
0.409
L
1.00
1.78
0.039
0.070
L2
1.27
0.050
L4
0.60
1.02
0.023
0.040
V2
-8°
+8°
-8°
8°
Figure 10. DPAK footprint dimensions (in mm)
%
7KHGHYLFHPXVWEHSRVLWLRQHGZLWKLQ
6/8
DocID6085 Rev 9
$ %
$
STPS1045B
3
Ordering information
Ordering information
Table 6. Ordering information
Order code
Marking
STPS1045B
S10 45
STPS1045B-TR
4
Package
Weight
DPAK
0.30 g
S10 45
Base qty
Delivery mode
75
Tube
2500
Tape and reel
Revision history
Table 7. Document revision history
Date
Revision
Changes
Jul-2003
3B
21-Apr-2005
4
IPAK package removed
03-Nov-2005
5
DPAK foot print dimensions updated.
01-Jul-2010
6
Updated Figure 10 Updated ECOPACK statement.
04-Nov-2014
7
Updated DPAK package information, Table 2 and
Figure 5. Removed PARM (Tj = 25 °C).
07-Apr-2015
8
Updated Table 2.
Format update to current standard.
05-Oct-2016
9
Updated DPAK package information.
Last issue
DocID6085 Rev 9
7/8
