ACT45B

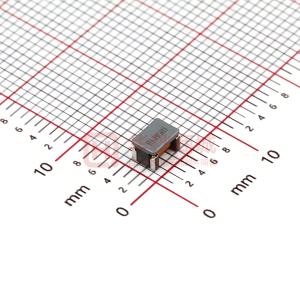

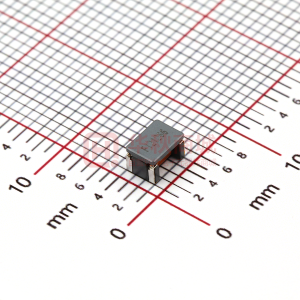

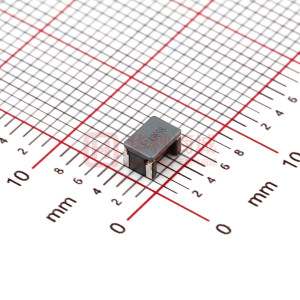

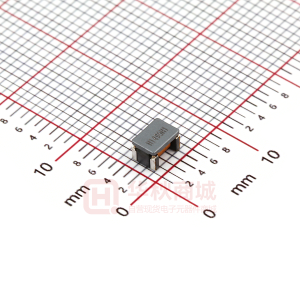

(1/2) Common Mode Filters(SMD) For CAN-BUS ACT Series ACT45B Type FEATURES • Operating temperature range covers from –40 to +150°C. • Non-dissolution of the abutment amounts in circuit board mounting. • The products contain no lead and also support lead-free soldering. • This product conforms to the standards that are slated to be introduced under the RoHS Directive. APPLICATIONS CAN-BUS system, facsimiles, modems, ISDN PACKAGING STYLE AND QUANTITIES Packaging style Taping Quantity 2000 pieces/reel Conformity to RoHS Directive PRODUCT IDENTIFICATION ACT45B - 510 - 2P - TL (1) (2) (3) (4) (1) Series name (2) Inductance value (typ.) (3) Number of line 2P: 2-line (4) Packaging style TL: ø330mm reel taping (5) TDK internal code (5) SHAPES AND DIMENSIONS 4.5± 0.2 3.2 ± 0.2 1 4 CIRCUIT DIAGRAM 1 2 • No polarity RECOMMENDED PC BOARD PATTERN 1.6 3.2 5.9 3.4 4 3 2 3 Dimensions in mm 2.8± 0.2 Weight: 0.14g 0.65± 0.1 0.7±0.1 Dimensions in mm ELECTRICAL CHARACTERISTICS Part No. ACT45B-110-2P ACT45B-220-2P ACT45B-510-2P ACT45B-101-2P Common mode impedance (Ω)[10MHz] min. typ. 300 700 500 1000 1000 2000 2000 5000 Common mode inductance (µH)+50/–30% [100kHz] 11 22 51 100 Stray inductance (µH)typ. [100kHz] 0.05 0.08 0.15 0.20 DC resistance (Ω)max. 0.6 1.0 1.0 3.0 Rated current (A)max. 0.25 0.2 0.2 0.1 Insulation resistance (MΩ)min. 10 10 10 10 Rated voltage (V)max. 50 50 50 50 TYPICAL ELECTRICAL CHARACTERISTICS IMPEDANCE vs. FREQUENCY CHARACTERISTICS ACT45B-110-2P 100000 ACT45B-220-2P 100000 10000 Impedance(Ω) Common mode 1000 Differential mode 10000 Impedance(Ω) Common mode 1000 Differential mode 100 100 10 1 10 100 Frequency (MHz) 1000 10 1 10 100 Frequency (MHz) 1000 • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • All specifications are subject to change without notice. 002-04 / 20070206 / e9711_act45b.fm (2/2) TYPICAL ELECTRICAL CHARACTERISTICS IMPEDANCE vs. FREQUENCY CHARACTERISTICS ACT45B-510-2P 100000 ACT45B-101-2P 100000 Common mode 10000 Impedance(Ω) Common mode 10000 Impedance(Ω) 1000 Differential mode 100 1000 Differential mode 100 10 1 10 100 Frequency (MHz) 1000 10 1 10 100 Frequency (MHz) 1000 • All specifications are subject to change without notice. 002-04 / 20070206 / e9711_act45b.fm
