Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Construction and general data
General data
Dielectric
Metallized polypropylene film
Resin filling
Non PCB, soft polyurethane
Safety device
Overpressure disconnector, self-healing technology
Mounting and grounding
Stud on bottom of aluminum can
Cooling
Naturally air-cooled (or forced air cooling)
Discharge resistor
IP00 (B32370, B32371 and B32373 series), IP20 (B32374 series),
IP54 upon request
Upon request
Reference standards
IEC 61071, GB/T 17702, optional IEC 60831, UL 810
Safety approvals
For B32370, B32371 type A, B32373 type A and B32374:
UL 810, CSA C22.2, No 190, Max. 600 VRMS, 50/60Hz, “Protected”,
10k AFC, max. +70 °C.
For B32371 type B and B32373 type B: UL 810, CSA C22.2, No
190, Max.1000 V RMS. 50/60Hz, “Protected”, 10k AFC, max.
+70 °C.
File no.: E487229, CCN:CYWT2/8
Terminals
B32370 series: Fast-on terminals
B32371 (M6) and B32373 (M10) series: Screw terminals
B32374 series: Clamp terminals
Degree of protection
B32370
B32371
B32371
B32373
B32373
Type A
Type B
Type A
Type B
B32374

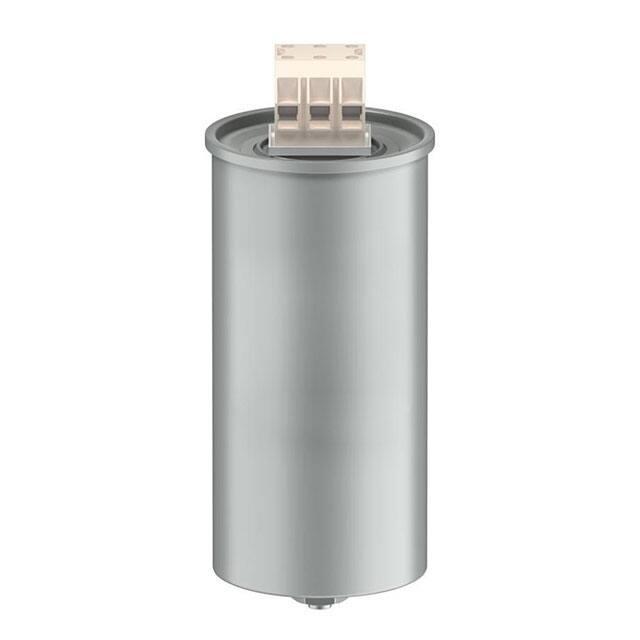

Figure 1: Capacitor MKD-AC series B32370, B32371, B32373 and B32374
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 2 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Specifications and characteristics
Rated capacitance CR: 5 … 600 μF (for ≥400 µF customized design), Tolerance: ±5%
Voltage VRMS (line to line)
Rated AC voltage VR (line to line)
DC voltage VRDC
250
350
675
330
460
900
420
590
1050
480
680
1200
530
750
1350
600
850
1500
660
935
1650
720
1020
1800
780
1100
1950
850
1200
2100
1000
1415
2475
Test data
Voltage between terminals VTT
2.15 VRMS, 2 s
Voltage between terminals and Case VTC
4000 V AC,10 s
Dissipation factor tan δ at 100Hz
≤1.0 10-3
Life test
According to IEC 61071
Life expectancy*
100000 hours for VRMS, ∣ΔC/C∣ ≤3%
Climatic category 40/70/21
Tstg**
−40 ...+85 °C
Tmin
−40 °C
Tmax***
+70 °C
Ths****
+85 °C
Max. permissible humidity
95% (test = 21 days)
Max. permissible altitude
2000 m above sea level
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 3 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Mechanical characteristics
Terminal cross section
Fast-on terminals - B32370 series: 5 mm2
Screw terminals - B32371 (M6): 25 mm2
Screw terminals - B32373 (M10) series: 100 mm2
Clamp terminals - B32374 series: 25 mm2
Max. torque (case)
M12: 12 Nm
Max. torque (for screw terminal)
M6: 4 Nm (B32371 series)
M10: 10 Nm (B32373 series)
Screw clamp terminal: 2Nm (B32374 series)
Max insertion and withdraw force
(for fast-on terminal)
50 N
* Note that this life expectancy occurs for the worst case with a maximum temperature hot-spot of +85° Celsius degree. For
other operation temperatures please check the life time curve for further details.
**:Tstg – Storage temperature.
***:Tmax– Maximum operation ambient temperature.
****:Ths– Maximum temperature allowed at the capacitors hot spot. Considering mounting position with terminals to the top.
For other mounting positions, please request evaluation.
Design data
Dimensions (D x H)
According to specification table
Weight approx.
According to specification table
Max. terminal current
Fast-on terminal: 15 A (B32370)
M6: 30 A (B32371 type A)
50 A (B32371 type B)
M10: 100 A (B32373)
Screw clamp terminal: 50 A (B32374)
Electrical characteristics: Clearance and creepage distances
Series
Diameter
mm
Max. height
Terminal to terminal
Terminal to case
Min.
clearance
mm
Min.
Min.
Min.
creepage clearance creepage
mm
mm
mm
10
36
16
19
B32370
50/63.5
mm
137
B32371
Type A
63.5
142
23
34
13
14
B32371
Type B
75/85/96/116/136
265
20
28
19
20
B32373
Type A
75/85/96/116/136
265
15
28
15
20
B32373
Type B
75/85/96/116/136
265
15
39
20.5
25.6
B32374
75/85/96/116/136
265
35
32
18
25
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 4 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Capacitor catalog number (type or series designation)
FilterCap MKD AC series
A
B
C
D
E
F
G
H
I
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
B
3
2
3
7
3
A
3
4
0
7
J
0
3
0
A. Indicates termination type
0 = 6.3 mm x 0.8 mm (2 x) Fast-on terminals
1 = M6 (2 x) screw terminals
3 = M10 (2 x) screw terminals
4 = M5 (4 x) clamp terminals
B. Indicates revision status (any letter), in case of S letter it means customized design
C. Indicates first number of voltage VRMS value (any digit)
D. Indicates first and second figure of capacitance value (any two digits)
E. Indicates exponent used as multiplier (any digit)
F. Indicates capacitor tolerance for PEC AC capacitor
J = ±5 %; K = ± 10 %;
G. Indicates coded capacitance value
H. Indicates second number of voltage VRMS value (any digit)
I. Indicates Accessories (any digit)
Label information
Date code explanation
WW Z YYYY
WW Z YYYY: production weeks (e.g.: 45)
WW Z YYYY: produced in Zhuhai (China)
WW Z YYYY: production year (e.g.: 2019)
Bar code explanation
Bar code consists of batch number and serial
number.
Batch number: 9 digits (e.g.: 123456789)
Serial number: 3 digits (e.g.: 001)
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 5 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Dimensional drawings
Figure 2: Series B32370 – fast on terminal
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 6 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Figure 3: B32371 series – M6 screw terminal type A
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 7 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Figure 4: B32371 series – M6 screw terminal type B
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 8 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Figure 5: B32373 series – M10 screw terminal type A
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 9 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Figure 6: Series B32373 series – M10 screw terminal type B
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 10 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Figure 7: Series B32374 series – M5 screw clamp terminal
Installation space requirements
1) A minimum distance of 20 mm between the capacitors is necessary to maintain sufficient cooling.
2) Keep at least 20 mm space above the capacitor and do not attach any mounting components at the
crimp or on top. This gap will allow a longitudinal extension of the can in order to ensure that the overpressure disconnector can fully extend.
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 11 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Figure 8: Installation space requirements
Note: For further details, please check installation manual for MKD-AC capacitors.
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 12 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Technical data of standard products
B32370 series – fast-on terminals
VR /VRMS
V
350 /
250
460 /
330
590 /
420
680 /
480
CR
μF
30
40
50
60
70
75
80
100
120
140
150
160
20
25
30
40
50
60
70
80
100
120
20
30
40
50
60
70
80
100
10
15
20
25
30
40
50
60
70
Ordering code
B32370A2306J050
B32370A2406J050
B32370A2506J050
B32370A2606J050
B32370A2706J050
B32370A2756J050
B32370A2806J050
B32370A2107J050
B32370A2127J050
B32370A2147J050
B32370A2157J050
B32370A2167J050
B32370A3206J030
B32370A3256J030
B32370A3306J030
B32370A3406J030
B32370B3506J030
B32370A3606J030
B32370A3706J030
B32370A3806J030
B32370A3107J030
B32370A3127J030
B32370A4206J020
B32370A4306J020
B32370A4406J020
B32370A4506J020
B32370A4606J020
B32370A4706J020
B32370A4806J020
B32370A4107J020
B32370A4106J080
B32370A4156J080
B32370A4206J080
B32370A4256J080
B32370A4306J080
B32370A4406J080
B32370A4506J080
B32370A4606J080
B32370A4706J080
Imax
A
15
15
15
15
15
15
15
15
15
15
15
15
14
15
15
15
15
15
15
15
15
15
14
15
15
15
15
15
15
15
10.5
12.5
14
15
15
15
15
15
15
Î
A
750
900
900
1000
1300
1340
1500
1600
1500
1520
1600
1280
600
750
650
800
840
790
1000
1150
1050
1150
520
1150
1030
1060
1000
870
990
1120
400
600
600
500
600
750
950
850
1000
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
D
mm
50
50
50
50
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
50
50
50
50
50
50
63.5
63.5
63.5
63.5
50
63.5
63.5
63.5
63.5
63.5
63.5
63.5
50
50
50
50
50
63.5
63.5
63.5
63.5
H
mm
64.5
64.5
77.5
77.5
77.5
77.5
77.5
77.5
92.5
102.5
102.5
127.5
64.5
64.5
77.5
92.5
92.5
102.5
92.5
102.5
127.5
137.5
77.5
64.5
77.5
87.5
102.5
127.5
127.5
137.5
64.5
77.5
87.5
102.5
102.5
102.5
102.5
127.5
137.5
Weight
kg
0.17
0.17
0.19
0.19
0.30
0.30
0.30
0.30
0.33
0.35
0.35
0.45
0.17
0.17
0.19
0.23
0.23
0.25
0.33
0.35
0.45
0.47
0.19
0.25
0.30
0.32
0.35
0.45
0.45
0.47
0.17
0.19
0.21
0.25
0.25
0.35
0.35
0.45
0.47
Packing
unit
50
50
50
50
12
12
12
12
12
12
12
12
50
50
50
50
50
50
12
12
12
12
50
12
12
12
12
12
12
12
50
50
50
50
50
12
12
12
12
2019-12-02
Page 13 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
B32370 series – fast on terminals
VR/VRMS
V
750 /
530
850 /
600
CR
μF
10
20
30
40
50
60
10
20
30
40
45
Ordering code
B32370A5106J030
B32370A5206J030
B32370A5306J030
B32370A5406J030
B32370A5506J030
B32370A5606J030
B32370A6106J000
B32370A6206J000
B32370A6306J000
B32370A6406J000
B32370A6456J000
Imax
A
10.5
15
15
15
15
15
12.5
15
15
15
15
Î
A
450
910
650
850
800
870
520
750
730
720
800
D
mm
50
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
H
mm
64.5
77.5
102.5
102.5
127.5
137.5
64.5
77.5
102.5
127.5
127.5
Weight
kg
0.17
0.30
0.35
0.35
0.45
0.47
0.25
0.28
0.35
0.45
0.45
Packing
unit
50
12
12
12
12
12
12
12
12
12
12
Î
A
1250
1500
1600
1400
1450
1650
1500
1600
1750
940
1250
1100
1095
1000
1150
1050
1160
350
530
710
890
1050
760
1230
1000
1030
D
mm
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
H
mm
70.5
70.5
70.5
70.5
82.5
82.5
107.5
132.5
132.5
70.5
70.5
82.5
92.5
107.5
107.5
132.5
142.5
70.5
70.5
70.5
70.5
70.5
82.5
97.5
107.5
117.5
Weight
kg
0.28
0.28
0.28
0.28
0.31
0.31
0.40
0.48
0.48
0.28
0.28
0.31
0.33
0.40
0.40
0.48
0.50
0.28
0.28
0.28
0.28
0.28
0.31
0.35
0.40
0.41
Packing
unit
B32371 series - M6 screw terminals (Type A)
VR /VRMS
V
350 /
250
460 /
330
590 /
420
CR
μF
50
60
70
75
80
100
130
150
200
30
40
50
60
70
80
100
120
10
15
20
25
30
40
50
60
70
Ordering code
B32371A2506J050
B32371A2606J050
B32371A2706J050
B32371A2756J050
B32371A2806J050
B32371A2107J050
B32371A2137J050
B32371A2157J050
B32371A2207J050
B32371A3306J030
B32371A3406J030
B32371A3506J030
B32371A3606J030
B32371A3706J030
B32371A3806J030
B32371A3107J030
B32371A3127J030
B32371A4106J020
B32371A4156J020
B32371A4206J020
B32371A4256J020
B32371A4306J020
B32371A4406J020
B32371A4506J020
B32371A4606J020
B32371A4706J020
Imax
A
23
24
25
25.5
26
27.5
28
30
30
19.5
21.5
23
24
24.5
25
25.5
27.5
12.5
15
17
18.5
20
22
23
24
25
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
2019-12-02
Page 14 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
B32371 series - M6 screw terminals (Type A)
VR/VRMS
V
590 /
420
680 /
480
750 /
530
850 /
600
CR
μF
80
100
10
15
20
25
30
40
50
60
70
10
20
30
40
50
10
20
30
40
Ordering code
B32371A4806J020
B32371A4107J020
B32371A4106J080
B32371A4156J080
B32371A4206J080
B32371A4256J080
B32371A4306J080
B32371A4406J080
B32371A4506J080
B32371A4606J080
B32371A4706J080
B32371A5106J030
B32371A5206J030
B32371A5306J030
B32371A5406J030
B32371A5506J030
B32371A6106J000
B32371A6206J000
B32371A6306J000
B32371A6406J000
Imax
A
25
26
13
15.5
17
18.5
20
21.5
23
23.5
24
13
18
20
21.5
23
13
17.5
20
21.5
Î
A
990
1120
400
600
800
750
880
760
960
850
900
470
680
650
760
800
520
695
730
720
D
mm
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
63.5
H
mm
132.5
142.5
70.5
70.5
70.5
82.5
82.5
107.5
107.5
132.5
142.5
70.5
82.5
107.5
117.5
132.5
70.5
92.5
107.5
132.5
Weight
kg
0.48
0.50
0.28
0.28
0.28
0.31
0.31
0.40
0.40
0.48
0.50
0.30
0.31
0.40
0.41
0.48
0.28
0.33
0.40
0.48
Packing
unit
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
Î
A
2230
1700
D
mm
85
85
H
mm
195
145
Weight
kg
1.30
1.00
Packing
unit
9
4
B32371 series - M6 screw terminals (Type B)
VR/VRMS
V
1020 / 720
1200 / 850
CR
μF
70
33
Ordering code
Imax
A
B32371A7706J020 30
B32371A8336J050 30
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 15 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
B32373 series - M10 screw terminals (Type A)
VR/VRMS
CR
V
μF
150
200
250
300
330
400
500
600
100
120
150
200
250
300
330
400
500
60
70
80
100
120
150
200
250
300
350
400
60
66
68
70
80
86
100
120
150
350 /
250
460 /
330
590 /
420
680 /
480
Ordering code
Imax
Î
D
H
Weight
Packing
A
1800
2160
2000
3770
3560
3790
5400
4800
1440
1720
1600
2130
3600
4320
4160
4260
5330
1270
1175
1340
1245
2550
3195
3360
3110
3730
4350
6720
1150
1260
1655
2050
2360
3400
2430
2300
2880
mm
75
75
75
75
75
75
85
85
75
75
75
85
85
85
85
85
96
75
75
75
75
75
85
85
85
85
96
116
75
75
85
75
75
85
75
75
85
mm
117
117
142
175
195
215
195
245
117
117
142
142
195
195
215
245
245
102
117
117
142
165
165
195
245
245
245
195
117
117
102
145
145
120
165
195
195
kg
0.65
0.65
0.75
0.95
1.05
1.25
1.30
1.55
0.65
0.65
0.75
0.95
1.30
1.30
1.40
1.55
2.00
0.60
0.65
0.65
0.75
0.90
1.15
1.30
1.55
1.55
2.00
2.25
0.65
0.65
0.65
0.75
0.75
0.80
0.90
1.05
1.30
unit
B32373A2157J050
B32373A2207J050
B32373A2257J050
B32373A2307J050
B32373A2337J050
B32373A2407J050
B32373A2507J050
B32373A2607J050
B32373A3107J030
B32373A3127J030
B32373A3157J030
B32373A3207J030
B32373A3257J030
B32373A3307J030
B32373A3337J030
B32373A3407J030
B32373A3507J030
B32373A4606J020
B32373A4706J020
B32373A4806J020
B32373A4107J020
B32373A4127J020
B32373A4157J020
B32373A4207J020
B32373A4257J020
B32373A4307J020
B32373A4357J020
B32373A4407J020
B32373A4606J080
B32373A4666J080
B32373A4686J080
B32373A4706J080
B32373A4806J080
B32373A4866J080
B32373B4107J080
B32373A4127J080
B32373A4157J080
A
41.5
45
45
60
60
60
60
60
36
39
40
48
60
60
60
60
60
32
33
35
35.5
51
59
60
60
60
60
60
32
33
38
43
46
50
50
52
60
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
9
9
6
6
9
6
9
4
9
9
6
4
9
9
4
4
4
6
9
9
6
6
4
9
4
4
4
4
9
9
4
6
6
4
6
9
9
2019-12-02
Page 16 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
B32373 series - M10 screw terminals (Type A)
VR /VRMS
V
680 /
480
750 /
530
850 /
600
CR
μF
166
180
200
250
280
300
350
30
33
47
50
60
65
70
75
80
100
105
110
116
120
150
200
220
250
300
330
350
33
41
47
50
53
60
70
80
Ordering code
B32373A4167J680
B32373A4187J080
B32373A4207J080
B32373A4257J080
B32373A4287J080
B32373A4307J080
B32373A4357J080
B32373A5306J030
B32373A5336J030
B32373A5476J030
B32373A5506J030
B32373A5606J030
B32373A5656J030
B32373A5706J030
B32373A5756J030
B32373A5806J030
B32373A5107J030
B32373B5107J530
B32373A5117J030
B32373A5117J630
B32373A5127J030
B32373A5157J030
B32373A5207J030
B32373A5227J030
B32373A5257J030
B32373A5307J030
B32373B5337J030
B32373A5357J030
B32373A6336J000
B32373A6416J000
B32373A6476J000
B32373A6506J000
B32373A6536J000
B32373A6606J000
B32373A6706J000
B32373A6806J000
Imax
A
60
60
60
60
60
60
60
25.5
29
36
40
43
44
37
43
41
60
60
60
60
60
60
60
60
60
60
60
60
27
29
34
34
35
37.5
48.5
50.5
Î
A
3200
4400
2840
3550
6250
5840
5970
938
1100
2210
2280
2740
2960
1325
1880
1280
3330
3670
3750
3860
2590
5100
5570
5530
5480
4850
5200
5650
930
1000
1330
1220
1230
1700
2430
2130
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
D
mm
85
96
85
96
116
116
116
75
85
75
75
85
85
85
96
85
96
96
96
96
85
116
116
116
116
116
116
116
75
75
85
85
85
96
85
85
H
mm
195
165
245
245
175
195
215
102
92
120
120
120
120
127
107
142
145
145
145
145
195
145
165
175
195
245
245
245
107
117
107
117
117
107
165
195
Weight
kg
1.30
1.35
1.55
2.00
2.05
2.25
2.45
0.60
0.60
0.65
0.65
0.80
0.80
0.85
0.85
1.00
1.15
1.15
1.15
1.15
1.30
1.70
1.90
2.05
2.15
2.85
2.85
2.85
0.60
0.65
0.65
0.80
0.80
0.85
1.15
1.30
Packing
unit
9
4
4
4
4
4
4
6
4
9
9
4
4
4
4
4
4
4
4
4
9
4
4
4
4
4
4
4
6
9
4
4
4
4
4
9
2019-12-02
Page 17 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
B32373 series - M10 screw terminals (Type A)
VR /VRMS
V
CR
μF
94
100
120
130
150
180
200
250
270
300
Ordering code
B32373A6946J000
B32373A6107J000
B32373A6127J000
B32373A6137J000
B32373A6157J000
B32373A6187J000
B32373B6207J000
B32373A6257J000
B32373A6277J000
B32373A6307J000
Imax
A
54
58
60
60
60
60
60
60
60
60
Î
A
3130
2660
3195
3170
2875
4800
3830
4790
5175
5750
D
mm
96
96
96
96
96
116
116
116
116
136
H
mm
165
195
195
195
245
195
245
245
245
245
Weight
kg
1.35
1.60
1.60
1.60
2.00
2.15
2.85
2.85
2.85
3.80
Î
A
910
810
840
1100
1165
1030
1400
2940
3000
2840
4240
4260
4120
4530
5150
6180
800
1100
1000
960
1320
1115
1010
D
Mm
75
75
75
85
85
85
96
96
96
96
116
116
116
116
136
136
75
85
85
85
96
85
85
H
mm
92
102
107
107
117
142
142
165
175
195
165
195
245
245
245
245
102
92
102
117
102
117
142
Weight
kg
0.55
0.60
0.60
0.65
0.80
1.00
1.15
1.35
1.45
1.55
1.90
2.15
2.85
2.85
3.8
3.8
0.60
0.60
0.65
0.80
0.85
0.80
1.00
Packing
unit
4
4
4
4
4
4
4
4
4
4
B32373 series - M10 screw terminals (Type B)
VR /VRMS
V
930 /
660
1020 /
720
CR
μF
20
22
25
33
41
50
68
80
90
100
120
150
200
220
250
300
20
22
25
31
33
36
45
Ordering code
B32373A6206J060
B32373A6226J060
B32373A6256J060
B32373A6336J060
B32373A6416J060
B32373A6506J060
B32373B6686J060
B32373A6806J060
B32373A6906J060
B32373A6107J060
B32373B6127J060
B32373A6157J060
B32373A6207J060
B32373A6227J060
B32373A6257J060
B32373A6307J060
B32373A7206J020
B32373B7226J020
B32373A7256J020
B32373A7316J020
B32373A7336J020
B32373A7366J020
B32373A7456J020
Imax
A
22
23
24
29.5
32
33
40
55.5
58
60
60
60
60
60
60
60
24
26.5
28.5
31.5
34.5
33.5
36.5
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
Packing
unit
6
6
6
4
4
4
4
4
4
4
4
4
4
4
4
4
6
4
4
4
4
4
4
2019-12-02
Page 18 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
B32373 series - M10 screw terminals (Type B)
VR /VRMS
V
1020 /
720
1100 /
780
1200 /
850
CR
μF
50
60
65
70
80
90
100
120
150
180
15
20
22
33
47
53
68
75
82
100
120
150
180
20
25
33
40
47
53
60
68
80
82
100
150
180
Ordering code
B32373A7506J020
B32373A7606J020
B32373A7656J020
B32373A7706J020
B32373A7806J020
B32373A7906J020
B32373A7107J020
B32373A7127J020
B32373A7157J020
B32373A7187J020
B32373A7156J080
B32373A7206J080
B32373A7226J080
B32373B7336J080
B32373A7476J080
B32373B7536J080
B32373A7686J080
B32373A7756J080
B32373A7826J080
B32373A7107J080
B32373A7127J080
B32373A7157J080
B32373A7187J080
B32373A8206J050
B32373A8256J050
B32373A8336J050
B32373A8406J050
B32373A8476J050
B32373A8536J050
B32373B8606J050
B32373A8686J050
B32373B8806J050
B32373B8826J050
B32373B8107J050
B32373A8157J050
B32373A8187J050
Imax
A
38
44
54.5
53.5
60
60
60
60
60
60
21
24
25
32
40
42
55
57
58
60
60
60
60
26
29
38
42
48.5
48.5
55
55
60
60
60
60
60
Î
A
1125
1350
2600
1860
2480
2020
2250
2670
4000
4050
650
740
700
800
1150
1290
2280
2520
2000
2440
4030
3660
4390
935
900
1920
1870
2200
1920
2170
1785
2890
2965
3615
5420
4720
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
D
Mm
85
96
96
85
96
85
85
96
116
116
75
75
75
85
96
96
96
96
85
96
116
116
136
85
85
85
85
96
85
96
85
116
116
116
136
136
H
mm
142
142
165
195
195
245
245
245
215
245
102
107
117
142
142
142
195
195
245
245
195
245
245
102
117
145
165
165
195
195
245
175
175
195
195
245
Weight
kg
1.00
1.15
1.35
1.30
1.60
1.55
1.55
2.00
2.45
2.85
0.60
0.60
0.65
1.00
1.15
1.15
1.60
1.60
1.55
2.00
2.15
2.85
3.80
0.65
0.80
1.00
1.15
1.35
1.30
1.60
1.55
2.05
2.05
2.15
2.95
3.80
Packing
unit
4
4
4
9
4
4
4
4
4
4
6
6
9
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
9
4
4
4
4
4
4
4
2019-12-02
Page 19 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
B32373 series - M10 screw terminals (Type B)
VR /VRMS
V
1200 /850
1415 /
1000
CR
μF
200
15
20
22
30
45
60
Ordering code
B32373A8207J050
B32373A1156J000
B32373A1206J000
B32373A1226J000
B32373A1306J000
B32373A1456J000
B32373A1606J000
Imax
A
60
22
27
28
34.5
47
57
Î
A
5250
2175
2900
3190
4360
6500
8700
D
Mm
136
75
85
85
96
85
96
H
mm
245
142
142
142
142
245
245
Weight
kg
3.80
0.75
1.00
1.00
1.15
1.55
2.00
Imax
A
38
40
42.5
44.5
45
46
47.5
50
50
37
39
40
50
50
50
32.5
33.5
35
35.5
50
50
50
28
30.5
Î
A
1850
2150
2050
2160
2000
2400
3560
4300
4690
1800
1585
1600
2850
2650
3500
1270
1175
1340
1245
2550
1690
3360
1070
1030
D
mm
75
75
75
75
75
75
75
75
85
75
75
75
75
75
75
75
75
75
75
75
85
85
75
75
H
mm
92
92
102
117
142
152
195
195
245
107
117
142
195
245
245
102
117
117
142
165
152
195
102
107
Weight
kg
0.55
0.55
0.60
0.65
0.75
0.80
1.05
1.05
1.55
0.60
0.65
0.75
1.05
1.25
1.25
0.60
0.65
0.65
0.75
0.90
0.90
1.30
0.60
0.60
Packing
unit
4
6
4
4
4
4
4
B32374 series - clamp terminals
VR /VRMS
V
350 /
250
460 /
330
590 /
420
680 /
480
CR
μF
100
120
150
200
250
300
330
400
500
100
120
150
200
250
300
60
70
80
100
120
150
200
40
50
Ordering code
B32374A2107J050
B32374A2127J050
B32374A2157J050
B32374A2207J050
B32374A2257J050
B32374A2307J050
B32374A2337J050
B32374A2407J050
B32374A2507J050
B32374A3107J030
B32374A3127J030
B32374A3157J030
B32374A3207J030
B32374A3257J030
B32374A3307J030
B32374A4606J020
B32374A4706J020
B32374A4806J020
B32374A4107J020
B32374A4127J020
B32374A4157J020
B32374A4207J020
B32374A4406J080
B32374A4506J080
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
Packing
unit
6
6
6
9
6
6
6
6
4
6
6
6
6
6
6
6
6
6
6
6
4
4
6
6
2019-12-02
Page 20 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
B32374 series - clamp terminals
VR /VRMS
V
750 /
530
850 /
600
CR
μF
60
70
80
100
150
200
250
50
60
100
120
150
200
100
120
150
Ordering code
B32374A4606J080
B32374A4706J080
B32374A4806J080
B32374B4107J080
B32374A4157J080
B32374A4207J080
B32374A4257J080
B32374A5506J030
B32374B5606J030
B32374A5107J030
B32374A5127J030
B32374A5157J030
B32374A5207J030
B32374A6107J000
B32374A6127J000
B32374A6157J000
Imax
A
32
38
39
46
50
50
50
30.5
33
50
50
50
50
50
50
50
Î
A
1150
1550
1540
2370
2050
3750
3450
1100
1315
3400
3050
5100
5570
2660
3195
2875
D
mm
75
85
85
96
96
116
116
75
75
96
85
116
116
96
96
96
H
mm
117
107
117
117
142
142
165
117
117
145
175
145
165
195
195
245
Weight
kg
0.65
0.65
0.80
1.05
1.15
1.70
1.80
0.65
0.65
1.15
1.10
1.70
1.90
1.60
1.60
2.00
Packing
unit
6
4
4
4
4
4
4
6
6
4
4
4
4
4
4
4
Display of ordering codes for TDK Electronics products
The ordering code for one and the same product can be represented differently in data sheets, data books,
other publications, on the company website, or in order-related documents such as shipping notes, order
confirmations and product labels. The varying representations of the ordering codes are due to different
processes employed and do not affect the specifications of the respective products. Detailed
information can be found on the Internet under www.tdk-electronics.tdk.com/orderingcodes.
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 21 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Terms
Design
The winding element of the MKD capacitor consists of metallized polypropylene film. This winding
construction achieves low losses and a high pulse-current withstand capability. Soft PU resin is used
for impregnation of the capacitor.
Contacting
The end faces of the windings are contacted by metal spraying to ensure a reliable and low-inductance
connection between the leads and layers. The leads are welded or soldered to these end faces, brought
out through insulating elements (plastic) and soldered to the terminals.
Impregnation
All hollows between the windings and between the windings and the case are filled with an impregnating
agent. Besides increasing dielectric strength, this improves heat dissipation from inside a capacitor.
The impregnating agents that we use are free of PCB and halogens.
Self-healing
All MKD capacitors are self-healing, i.e. voltage breakdowns heal in a matter of microseconds and
hence do not produce a short circuit.
Breakdowns can occur under heavy electrical load as a result of weaknesses or pores in the dielectric.
The integrity of self-healing capacitors is not affected by such breakdowns.
1. Dielectric (Polypropylene)
2. Metallization
3. Material-displacing shock wave
4. Air gap with metal vapor
5,6. Plasma zone
7. Boundary layer between gas-phase
dielectric and plasma zones
8. Puncture channel
9. Gas-phase dielectric
10. Zone of displaced metallization and
dielectric
Figure 9: Description of self-healing technology
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 22 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
When a breakdown occurs, the dielectric in a breakdown channel is broken down into its atomic
components by the electric arc that forms between the electrodes. At the high temperatures of as much
as 6000 K, a plasma is created that explodes out of the channel region and pushes the dielectric layers
apart. The actual self-healing process starts with the continuation of the electric arc in the propagating
plasma. Here the metal layers are removed from the metal edges by evaporation. Insulation areas are
formed. The rapid expansion of the plasma beyond the areas of insulation and its cooling in the areas
of less field strength allow the discharge to extinguish after a few microseconds.
The area of insulation that is created is highly resistive and voltage-proof for all operating requirements
of the capacitor. The self-healing breakdown is limited in current and so it does not represent a short
circuit. The self-healing process is so brief and low in energy that the capacitor also remains fully
functional during the breakdown.
Characteristics
Equivalent circuit diagram
Any real capacitor can be modelled by the following schematic:
Figure 10: Equivalent circuit diagram
Symbol
Ls
Rs
Rp
C
Description
series inductance
series resistance, due to contacts(leads, sprayed metal and film metallization
parallel resistance, due to insulation resistance
capacitance
Unit
H
Ω
Ω
F
C, RS and LS are magnitudes that vary in the frequency domain (AC).
RP is a magnitude defined in DC (insulation resistance).
Rated capacitance CR
It is referred to a test temperature of +20 ℃ and a measuring frequency range of 50 Hz to 1 kHz.
Capacitance tolerance range
It is the range within which the actual capacitance may differ from rated capacitance. The actual
capacitance is to be measured at a temperature of +20 ℃. This range results from variances in materials
and manufacturing processes. The standard manufacturing tolerance for PP film capacitors is ±10% or
‘K’ tolerance or ±5%, ‘J’ tolerance.
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 23 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Temperature dependence of capacitance
The capacitance variation in the permissible temperature range is not linear, but it is reversible, the
characteristic change in capacitance ΔC/C as a function of test temperature is shown as follows:
2%
Relative Capacitance Change
ΔC/C versus Temperature T
ΔC/C
0%
-2%
-4%
-6%
-8%
-60 -40 -20 0
20 40 60 80 100
T(℃)
Figure 11: Temperature dependence of capacitance
Capacitance drift
Capacitance is subject to irreversible in addition to reversible changes, i.e. capacitance drift, the sum
of all time-dependent, irreversible changes of capacitance during operating life. This variation is stated
in percent of the value at delivery. The typical figure is +1/−3%.
Rated AC voltage VR
The maximum operating peak recurrent voltage of either polarity of a reversing type waveform for which
the capacitor has been designed.
Unlike what is common in other standard (e.g. B32304* 3–phase capacitor series for PFC application)
therefore, the rated voltage VR is not the RMS value, but the maximum or peak value of the capacitor
voltage. The voltage at which the capacitor may be operated is dependent on other factors (especially
current and frequency) besides rated voltage.
Voltage VRMS
It is the Root Mean Square (RMS) voltage of maximum permissible value of sinusoidal AC voltage in
continuous operation.
Figure 12: Voltage VRMS
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 24 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Rated DC voltage VRDC
It is the maximum operating peak voltage of either polarity but of non-reversing type waveform, for
which the capacitor has been designed, for continuous operation.
Non-recurrent surge voltage VS
A peak voltage induced by a switching or any other disturbance of the system which is allowed for a
limited number of times and for durations shorter than the basic period.
Figure 13: Non-recurrent surge voltage VS
Maximum duration: 50 ms/pulse
Maximum number of occurrences: 1000 (during load)
Max. Recurrent peak voltage û
This is the permissible, max. Recurrent peak voltage that may appear for max.1% of the period.
Figure 14: Max. Recurrent peak voltage û
Symmetric alternating voltage û𝒂𝒄
The peak values of a symmetrical alternating voltage applied to the capacitor is a decisive factor for the
dielectric losses.
For AC capacitors:
û
V
Insulation voltage Vi
It is the RMS rated value of the insulation voltage of capacitive elements and terminals to case or earth.
If not specified, the RMS value of the insulating voltage is equivalent to the rated voltage divided by √2.
Maximum current Imax
It is the maximum RMS current for continuous operation, but could not be higher than maximum terminal
current. A higher current than proposal Imax value could be possible in lower ambient temperature.
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 25 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Maximum peak current I
It is the maximum current amplitude which occurs instantaneously during continuous operation. The
maximum peak current and the maximum rate of voltage rise (dV/dt)max on a capacitor are related as
follows:
I
C ∙
dV
dt
Maximum surge current I
It is the peak non-repetitive current induced by switching or any other disturbance of the system
permitted for a limited number of times, at durations shorter than the basic period.
I
C ∙
Maximum duration: 50 ms/pulse
Maximum number of occurrences: 1000 (during load)
dV
dt
Self-inductance L
The self-inductance is produced by the inductance of the terminals and the windings. Because of the
special kind of contacting in self-healing capacitors (large area metal spraying covering all windings),
the self-inductance is particularly low. It allows the resonance frequency to be determined:
f
1
2π L
∙C
The resonance frequency is high for all capacitors accordingly.
Insulation Resistance (Rins)
The dielectric of a capacitor has a large area and a short length. Even if the material is a good isolator
there always flows a certain current between the charged electrodes (the current increases
exponentially with the temperature). This leakage can be described as a parallel resistance with a high
value, an Insulation Resistance.
Figure 15: Insulation Resistance (Rins)
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 26 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Insulation resistance and self-discharge time constant
The insulation values for the individual components according to the capacitance are stated as an
insulation resistance Rins in MΩ or a self-discharge time constant τ in seconds.
τ
R
∙C
Series resistance RS
Resistive losses occur in the electrodes in the contacting and in the inner wiring. These are comprised
in the series resistance RS of a capacitor.
The series resistance RS generates the ohmic losses (I2ⅹRS) in a capacitor. It is largely independent
of frequency. The figures stated in selection charts apply to +20℃ capacitor temperature.
Dissipation factor tan δ
The equivalent circuit diagram used for the losses in a capacitor can be shown as follows:
Figure 16: Simplified equivalent circuit diagram of a capacitor
Symbol
C
Lself
ESR
Description
Capacitor
Self-inductance
Equivalent series resistance, representing the entire active power in
capacitor
Unit
F
H
Ω
The self-inductance and capacitance of a capacitor produce its resonance frequency (natural
frequency).
tan δ f
tan δ
Rs ∙ ω ∙ C
From the frequency dependence of the equivalent series resistance can be derived:
ESR
Symbol
tan δ
tan δ0
RS
tan δ
ω∙C
Rs
Description
Dissipation factor of capacitor
Dissipation factor of dielectric
Series resistance
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
tan δ
ω∙C
Unit
Ω
2019-12-02
Page 27 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Dielectric dissipation factor tan δ0
The dissipation factor tan δ0 of the dielectric is assumed to be constant for all capacitors in their
frequency range of use. The figures stated in data sheets apply to rated operation.
Expected Fit rate λ
The FIT (Failure In Time) of a component is defined as the number of expected failures in 109 hours of
operation.
The FIT rate is calculated on the basis of the number of components operating in the field and the
estimated hours of operation. All the reports of failures are taken into consideration for this calculation,
which is updated every year. The other values in the graph are given as indication and calculated based
on acceleration factors.
The failure criterion is capacitance drop higher than 3%.
FIT Rate at Ths
100
FIT
10
1
0,1
0,7
0,8
0,9
Voltage / VRMS
1
55℃
60º C
65º C
70º C
1,1
1,2
75℃
85º C
Figure 17: Expected Fit rate λ
Thermal design
In order to scale a capacitor correctly for a particular application, the permissible ambient temperature
has to be determined. This can be taken from the diagram “Permissible ambient temperature TA vs
total power dissipation P”after calculating the power dissipation (for further details please check
individual data sheets).
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 28 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Calculation of power dissipation P
The total power dissipation P is composed of the dielectric losses (PD) and the resistive losses (PR):
Generally a secondary sinusoidal AC voltage can be used for calculating with sufficient accuracy.
P
P
Symbol
ûac
f0
C
tan δ0
û
P
∙ π ∙ f ∙ C ∙ tan δ
Description
Peak value of symmetrical AC voltage applied to capacitor
Fundamental frequency
Capacitance
Dissipation factor of dielectric
P
Symbol
I
RS
P
Unit
V
Hz
F
I ∙R
Description
RMS value of capacitor current
Series resistance at maximum hot-spot temperature
Unit
A
Ω
The RS figure at maximum hot-spot temperature is used to calculate the resistive losses. In selection
charts and data sheets the figure is stated for 20℃ capacitor temperature. The conversion factor is as
follows:
R
°
1.25 ∙ R
°
Thermal resistance Rth
The thermal resistance is defined as the ratio of a temperature difference and the power dissipation
produced in a capacitor. The decisive factor here is ΔTcap where the temperature difference between
an external reference point of the coolant (e.g. air) surrounding the capacitor and the hot spot (zone
with highest temperature occurring in the component). In a steady state:
R
Symbol
Rth
ΔTcap
P
∆T
P
Description
Thermal resistance
Temperature difference between hot-spot and ambient
Power dissipation
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
Unit
K/W
K
W
2019-12-02
Page 29 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
The temperature difference depends on a large number of different factors. The thermal resistance is
a function of several parameters such as the working temperature and the power dissipation of the
capacitor.
After installation of the capacitor, it is necessary to verify that maximum hot-spot temperature is not
exceeded at extreme service conditions. For detail calculations, please refer to single datasheet part
number for further details.
Life expectancy tLD
The life expectancy tLD is based on the exclusive effect of Voltage and Temperature (hot-spot Ths)
applied to the capacitor dielectric and electrodes (other factors are not considered in the model such
as environmental or mechanical effects).
Hot Spot Temperature (Ths): as the sum of ambient temperature plus the heating induced by the current
(IRMS) in the dielectric which is measured inside of capacitor. Current is an indirect parameter under
consideration which affects the temperature Ths.
Lifetime estimation formula as follows:
t
t ∙e
/
V
V
Symbol
t2
Description
Estimated lifetime at temperature T2 and voltage V2
Unit
hour
t1
Reference life expectancy (e.g. 100000 hours for VR ∣ΔC/C∣≤3%)
hour
V2
Variable Voltage (Rated AC voltage)
VAC
V1
Reference Voltage (Rated AC voltage)
VAC
T1
Reference temperature (e.g. 70℃)
℃
T2
Variable temperature
℃
A
Acceleration factor of temperature
-
n
Acceleration factor of voltage
-
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 30 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Lifetime Expectancy Graphs
The lifetime estimations below show the standard expected lifetime of 100000 hours (at +85 °C hotspot) are only theoretical calculations based on endurance test results performed according to
IEC61071 standard.
Expected life time at Ths
1,3
85℃
1,2
75℃
70℃
1,1
V/VRMS
65℃
1
60℃
55℃
0,9
50℃
0,8
0,1
1
10
tld/tld(co)
Figure 18: Service life tLD at different hot-spot temperature (Ths) and voltage VRMS
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 31 of 34
Film Capacitors - Power Electronic Capacitors
General purpose applications
B3237X Series
FilterCap MKD-AC – Single phase
Cautions and warnings
Capacitors with dents of more than 1 mm depth or any other mechanical damage must not be used.
Check the tightness of the connections / terminals periodically.
The energy stored in capacitors may be lethal. To prevent any risk of shock, the capacitors must be
discharged and short-circuited before handling.
Failure to follow cautions may result in the worst case in premature failure, bursting and fire.
Safety
Electrical or mechanical misapplication of capacitors may be hazardous. Personal injury or property damage
may result from bursting of the capacitor or expulsion of molten material due to mechanical disruption of the
capacitor.
Ensure good, effective grounding for capacitor enclosures.
Observe appropriate safety precautions during operation (self-recharging phenomena and the high energy
stored in capacitors).
Handle capacitors carefully, as they may still be charged even after disconnection.
The terminals of capacitors, connected busbars and cables as well as other devices may also be energized.
Follow good engineering practice.
The maximum permissible fault current (AFC) of 10 kA in accordance with the UL 810 standard must be
assured by the application.
Thermal load
After installing the capacitor, verify that the maximum hot-spot temperature is not exceeded under extreme
operating conditions.
Mechanical protection
The capacitor has to be installed to assure that no mechanical damage or dents in the case occur.
Storage and operating conditions
Do not use or store capacitors in corrosive atmospheres, especially where chloride gas, sulfide gas, acid,
alkali, salt or the like are present. In dusty environments, regular maintenance and cleaning, especially of the
terminals, is required to avoid creating a conductive path between phases and/or phases and ground.
Overpressure disconnector
To ensure full functionality of an overpressure safety disconnector, the following points must be observed:
1. The elastic elements must not be hindered, i.e.
Connecting lines must be flexible leads (cables)
There must be sufficient space (min.15 mm) for expansion above the connections
The metal cover must not be retained by rigid parts such as busbars.
2. The stress parameters of the capacitor must be within the IEC 61071 specification.
Service life expectancy
Electrical components do not have an unlimited service life expectancy: this also applies to self-healing
capacitors. The maximum service life expectancy may vary depending on the application in which the
capacitor is used.
CAP PW PD
Please read Cautions and warnings and
Important notes at the end of this document.
2019-12-02
Page 32 of 34
Important notes
The following applies to all products named in this publication:
1. Some parts of this publication contain statements about the suitability of our products for
certain areas of application. These statements are based on our knowledge of typical
requirements that are often placed on our products in the areas of application concerned. We
nevertheless expressly point out that such statements cannot be regarded as binding
statements about the suitability of our products for a particular customer application. As a
rule we are either unfamiliar with individual customer applications or less familiar with them than the
customers themselves. For these reasons, it is always ultimately incumbent on the customer to
check and decide whether a product with the properties described in the product specification is
suitable for use in a particular customer application.
2. We also point out that in individual cases, a malfunction of electronic components or failure
before the end of their usual service life cannot be completely ruled out in the current state
of the art, even if they are operated as specified. In customer applications requiring a very high
level of operational safety and especially in customer applications in which the malfunction or failure
of an electronic component could endanger human life or health (e.g. in accident prevention or lifesaving systems), it must therefore be ensured by means of suitable design of the customer
application or other action taken by the customer (e.g. installation of protective circuitry or
redundancy) that no injury or damage is sustained by third parties in the event of malfunction or
failure of an electronic component.
3. The warnings, cautions and product-specific notes must be observed.
4. In order to satisfy certain technical requirements, some of the products described in this
publication may contain substances subject to restrictions in certain jurisdictions (e.g.
because they are classed as hazardous). Useful information on this will be found in our Material
Data Sheets on the Internet (www.tdk-electronics.tdk.com/material). Should you have any more
detailed questions, please contact our sales offices.
5. We constantly strive to improve our products. Consequently, the products described in this
publication may change from time to time. The same is true of the corresponding product
specifications. Please check therefore to what extent product descriptions and specifications
contained in this publication are still applicable before or when you place an order.
We also reserve the right to discontinue production and delivery of products. Consequently,
we cannot guarantee that all products named in this publication will always be available.
The aforementioned does not apply in the case of individual agreements deviating from the
foregoing for customer-specific products.
6. Unless otherwise agreed in individual contracts, all orders are subject to our General Terms and
Conditions of Supply.
7. Our manufacturing sites serving the automotive business apply the IATF 16949 standard.
The IATF certifications confirm our compliance with requirements regarding the quality
management system in the automotive industry. Referring to customer requirements and customer
specific requirements (“CSR”) TDK always has and will continue to have the policy of respecting
individual agreements. Even if IATF 16949 may appear to support the acceptance of unilateral
requirements, we hereby like to emphasize that only requirements mutually agreed upon can
and will be implemented in our Quality Management System. For clarification purposes we like
to point out that obligations from IATF 16949 shall only become legally binding if individually agreed
upon.
Page 33 of 34
Important notes
8. The trade names EPCOS, CeraCharge, CeraDiode, CeraLink, CeraPad, CeraPlas, CSMP, CTVS,
DeltaCap, DigiSiMic, ExoCore, FilterCap, FormFit, LeaXield, MiniBlue, MiniCell, MKD, MKK,
MotorCap, PCC, PhaseCap, PhaseCube, PhaseMod, PhiCap, PowerHap, PQSine, PQvar,
SIFERRIT, SIFI, SIKOREL, SilverCap, SIMDAD, SiMic, SIMID, SineFormer, SIOV, ThermoFuse,
WindCap are trademarks registered or pending in Europe and in other countries. Further
information will be found on the Internet at www.tdk-electronics.tdk.com/trademarks.
Release 2018-10
Page 34 of 34
工商网监
湘ICP备2023018690号
