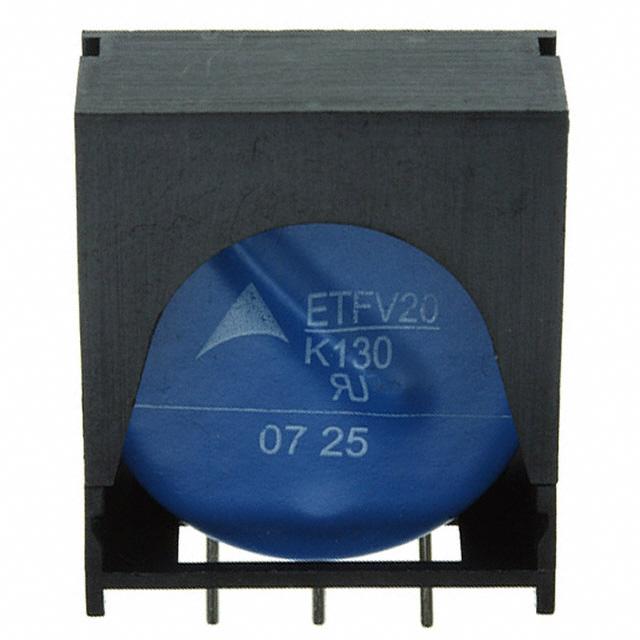

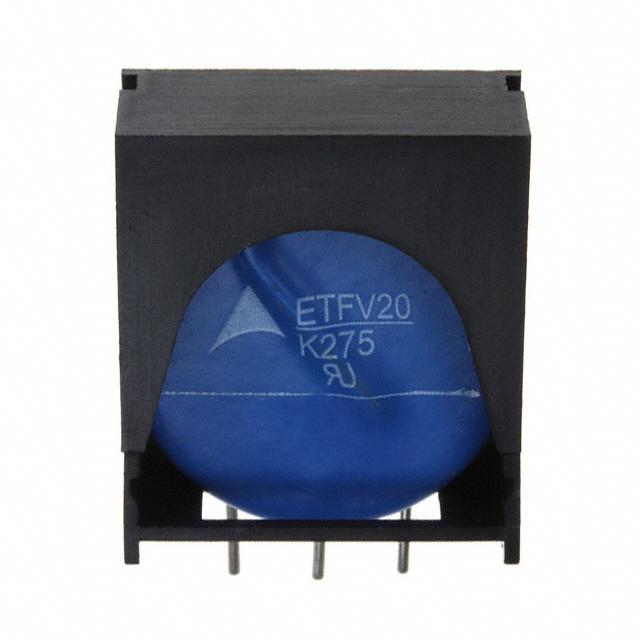

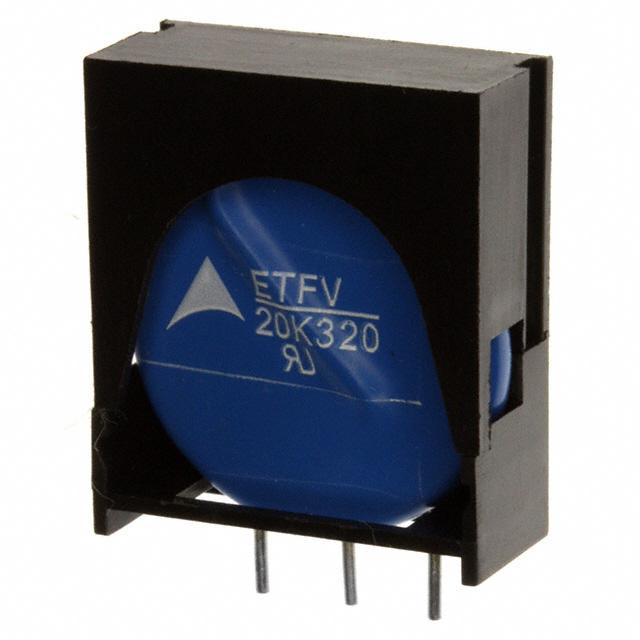

SIOV metal oxide varistors Housed (ThermoFuse) varistors, AdvanceD series Series/Type: ETFV20 Date: February 2010 © EPCOS AG 2010. Reproduction, publication and dissemination of this publication, enclosures hereto and the information contained therein without EPCOS' prior express consent is prohibited. Housed varistors ETFV20 ThermoFuse varistors, ETFV20 series Construction Round varistor element, leaded Coating: epoxy resin, flame-retardant to UL 94 V-0 Terminals: tinned copper wire, metal compound wire Housing: thermoplastic, flame-retardant to UL 94 V-0 Features Wide operating voltage range 130 … 420 VRMS Self-protected under abnormal overvoltage conditions High-energy AdvanceD series E2 Approvals UL Applications Air conditioner, refrigerator, TV, etc. Power meter, inverter, telecom equipment, etc. Transient voltage surge suppressors (TVSS) Delivery mode Bulk (standard) Typical applications General technical data Climatic category Operating temperature Storage temperature Electric strength Response time Please read Cautions and warnings and Important notes at the end of this document. to IEC 60068-1 to CECC 42 000 to CECC 42 000 Page 2 of 10 40/85/56 40 ... + 85 40 ... +125 ≥ 2.5 < 25 °C °C kVRMS ns Housed varistors ETFV20 ThermoFuse varistors, ETFV20 series Electrical specifications and ordering codes Maximum ratings (TA = 85 °C) Ordering code B72220T2131K101 B72220T2141K101 B72220T2151K101 B72220T2171K101 B72220T2211K101 B72220T2231K101 B72220T2251K101 B72220T2271K101 B72220T2301K101 B72220T2321K101 B72220T2351K101 B72220T2381K101 B72220T2421K101 Type (untaped) SIOVETFV20K130E2 ETFV20K140E2 ETFV20K150E2 ETFV20K175E2 ETFV20K210E2 ETFV20K230E2 ETFV20K250E2 ETFV20K275E2 ETFV20K300E2 ETFV20K320E2 ETFV20K350E2 ETFV20K385E2 ETFV20K420E2 VRMS VDC Wmax (2 ms) J 100 110 120 135 160 180 195 215 250 273 273 273 273 Pmax V 170 180 200 225 270 300 320 350 385 420 460 505 560 imax (8/20 µs) A 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 10000 V 130 140 150 175 210 230 250 275 300 320 350 385 420 Vv (1 mA) V 205 220 240 270 330 360 390 430 470 510 560 620 680 ∆Vv (1 mA) % ±10 ±10 ±10 ±10 ±10 ±10 ±10 ±10 ±10 ±10 ±10 ±10 ±10 vc,max (ic) V 340 360 395 455 545 595 650 710 775 840 910 1025 1120 ic Ctyp (1 kHz) pF 1340 1240 1160 1000 835 760 700 630 580 540 500 450 420 W 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 Characteristics (TA = 25 °C) Ordering code B72220T2131K101 B72220T2141K101 B72220T2151K101 B72220T2171K101 B72220T2211K101 B72220T2231K101 B72220T2251K101 B72220T2271K101 B72220T2301K101 B72220T2321K101 B72220T2351K101 B72220T2381K101 B72220T2421K101 Type (untaped) SIOVETFV20K130E2 ETFV20K140E2 ETFV20K150E2 ETFV20K175E2 ETFV20K210E2 ETFV20K230E2 ETFV20K250E2 ETFV20K275E2 ETFV20K300E2 ETFV20K320E2 ETFV20K350E2 ETFV20K385E2 ETFV20K420E2 Please read Cautions and warnings and Important notes at the end of this document. Page 3 of 10 A 100 100 100 100 100 100 100 100 100 100 100 100 100 Housed varistors ETFV20 ThermoFuse varistors, ETFV20 series Dimensional drawings Weight Nominal diameter mm 20 Lead configuration Please read Cautions and warnings and Important notes at the end of this document. Page 4 of 10 VRMS V 130 ... 420 Weight g 6.7 ... 8.3 Housed varistors ETFV20 ThermoFuse varistors, ETFV20 series Reliability data Test Test methods/conditions Varistor voltage The voltage between two terminals with To meet the specified value the specified measuring current applied is called VV (1 mADC @ 0.2 ... 2 s). Clamping voltage The maximum voltage between two terminals with the specified standard impulse current (8/20 µs) applied. To meet the specified value Surge current derating, 8/20 µs CECC 42 000, test C 2.1 |∆V/V (1 mA)| ≤10% (measured in direction of surge current) 100 surge currents (8/20 µs), unipolar, interval 30 s, amplitude corresponding to derating curve for 100 impulses at 20 µs Requirement No visible damage |∆V/V (1 mA)| ≤10% (measured in direction of 100 surge currents (2 ms), unipolar, interval 120 s, amplitude corresponding surge current) to derating curve for 100 impulses at 2 No visible damage ms Surge current derating, 2 ms CECC 42 000, test C 2.1 Abnormal overvoltage test UL1449, limited current abnormal overvoltage test. Apply a high AC voltage to ThermoFuse varistor, the amplitude of overvoltage and current limit will be adopted from UL1449 general instruction in section 37. The specimen will be tested on a softwood surface covered with a double layer of white tissue paper. The specimen is to be loosely draped with a double layer of cheesecloth. The cheesecloth shall cover openings where flame, molten or other particles may be expelled as a result of the test. The test result will be visually inspected. Please read Cautions and warnings and Important notes at the end of this document. Page 5 of 10 Any of these phenomena shall not be observed, or this specimen will be judged as failed part. 1. Emission of flame, molten metal, glowing or flaming particles through any openings (pre-existed or created as a result of the test) in the product. 2. Charring, glowing, or flaming of the supporting surface, tissue paper, or cheesecloth. 3. Ignition of the enclosure. 4. Creation of any openings in the enclosure that result in accessibility of live parts, when judged in accordance with accessibility of live parts, UL1449 section 13. Housed varistors ETFV20 ThermoFuse varistors, ETFV20 series v/i characteristics v = f (i) for explanation of the characteristics refer to "General technical information", chapter 1.6.3 A = Leakage current, B = Protection level } for worst-case varistor tolerances SIOV-ETFV20 ... E2 Please read Cautions and warnings and Important notes at the end of this document. Page 6 of 10 Housed varistors ETFV20 ThermoFuse varistors, ETFV20 series Derating curves Maximum surge current imax = f (tr, pulse train) For explanation of the derating curves refer to "General technical information", section 1.8.1 SIOV-ETFV20 ... E2 Please read Cautions and warnings and Important notes at the end of this document. Page 7 of 10 Housed varistors ETFV20 ThermoFuse varistors, ETFV20 series Cautions and warnings General 1. EPCOS metal oxide varistors are designed for specific applications and should not be used for purposes not identified in our specifications, application notes and data books unless otherwise agreed with EPCOS during the design-in-phase. 2. Ensure suitability of SIOVs through reliability testing during the design-in phase. SIOVs should be evaluated taking into consideration worst-case conditions. 3. For applications of SIOVs in line-to-ground circuits based on various international and local standards there are restrictions existing or additional safety measures required. Storage 1. Store SIOVs only in original packaging. Do not open the package before storage. 2. Storage conditions in original packaging: Storage temperature: 25 °C ... +45 °C, Relative humidity:
