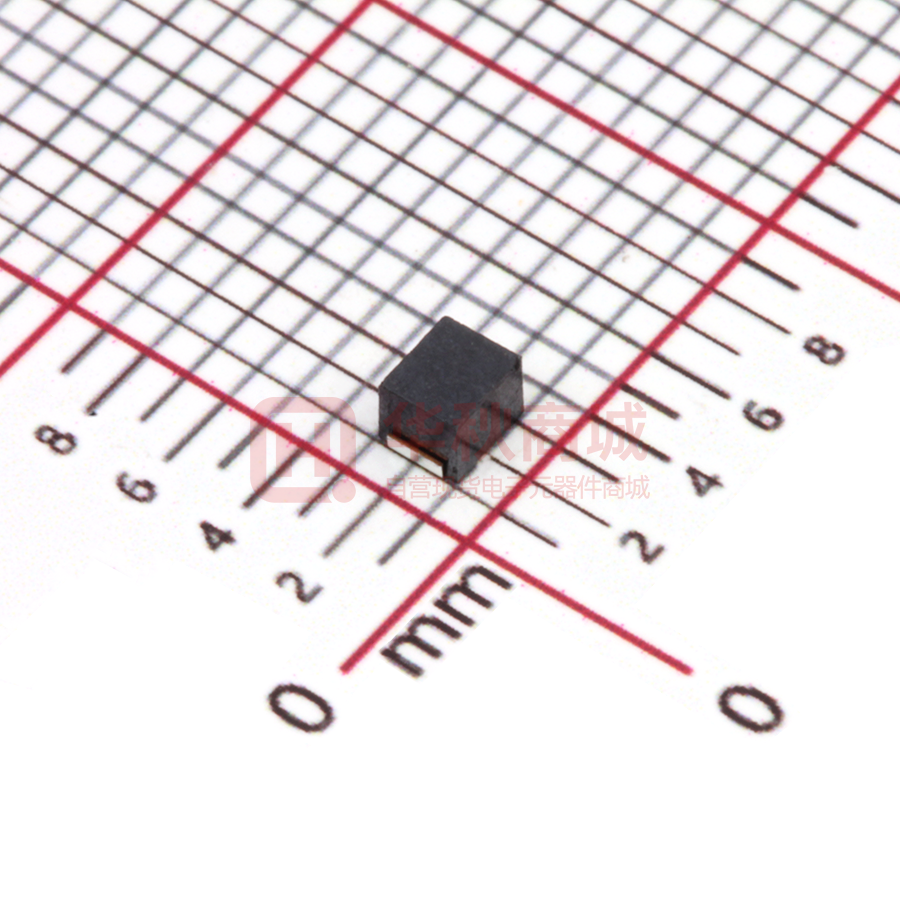

NLV25T-R39J-PF

I N D U C T O R S January 2015 Inductors for Standard Circuits Wound Ferrite NLV-PF Series NLV25-PF Type NLV25-PF 2520 [1008 inch]* * Dimensions Code JIS[EIA] (2/9) I N D U C T O R S REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Please pay sufficient attention to the warnings for safe designing when using these products. REMINDERS The storage period is less than 6 months. Be sure to follow the storage conditions (Temperature: 5 to 40°C, Humidity: 10 to 75% RH or less). If the storage period elapses, the soldering of the terminal electrodes may deteriorate. Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.). Before soldering, be sure to preheat components. The preheating temperature should be set so that the temperature difference between the solder temperature and chip temperature does not exceed 150°C. Soldering corrections after mounting should be within the range of the conditions determined in the specifications. If overheated, a short circuit, performance deterioration, or lifespan shortening may occur. When embedding a printed circuit board where a chip is mounted to a set, be sure that residual stress is not given to the chip due to the overall distortion of the printed circuit board and partial distortion such as at screw tightening portions. Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal design. Carefully lay out the coil for the circuit board design of the non-magnetic shield type. A malfunction may occur due to magnetic interference. Use a wrist band to discharge static electricity in your body through the grounding wire. Do not expose the products to magnets or magnetic fields. Do not use for a purpose outside of the contents regulated in the delivery specifications. The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement equipment, industrial robots) under a normal operation and use condition. The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to society, person or property. If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions set forth in the each catalog, please contact us. (1) Aerospace/Aviation equipment (2) Transportation equipment (cars, electric trains, ships, etc.) (3) Medical equipment (4) Power-generation control equipment (5) Atomic energy-related equipment (6) Seabed equipment (7) Transportation control equipment (8) Public information-processing equipment (9) Military equipment (10) Electric heating apparatus, burning equipment (11) Disaster prevention/crime prevention equipment (12) Safety equipment (13) Other applications that are not considered general-purpose applications When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing protection circuit/device or providing backup circuits in your equipment. 20150105 / inductor_commercial_standard_nlv25-pf_en.fm (3/9) I N D U C T O R S Inductors for Standard Circuits Product compatible with RoHS directive Halogen-free Compatible with lead-free solders Wound Ferrite Overview of NLV25-PF Type FEATURES Resin mold type wound inductor for standard circuits. E-12 Series, wide lineup compatible with J (±5%) tolerance, can be used for applications that need to meet strict L tolerance such as filter circuits. Has excellent inductance temperature characteristics in the operating temperature range. APPLICATION Smart meters, AV equipment, xDSL, electronic devices for communications infrastructure such as mobile base stations, industrial equipment, other PART NUMBER CONSTRUCTION NLV Series name 25 T L×W×H Dimensions (mm) 25 2.5×2.0×1.8 Packaging style T Taping - 010 - Inductance (μH) 010 0.01 R10 0.1 1R0 1 100 10 101 100 J - PF Inductance tolerance J ±5% Internal code PF Compatible with the RoHS Directive, Exemption regulations apply OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT Temperature range Package quantity Operating Storage temperature temperature (pieces/reel) （°C） （°C） NLV25-PF –40 to +105 –40 to +105 2000 Operating temperature range includes self-temperature rise. The Storage temperature range is for after the circuit board is mounted. Individual weight Type （mg） 25 RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://product.tdk.com/en/environment/rohs/ Halogen-free: Indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20150105 / inductor_commercial_standard_nlv25-pf_en.fm (4/9) I N D U C T O R S NLV25-PF Type RECOMMENDED REFLOW PROFILE Preheating Soldering Natural cooling Peak T: Temperature T4 T3 T2 T3 t3 T1 t1 t2 t: Time Preheating Temp. T1 T2 150°C 180°C Time t1 90 to 120s Soldering Temp. Time T3 t2 230°C 40s Peak Temp. T4 255°C Time t3 10s max. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20150105 / inductor_commercial_standard_nlv25-pf_en.fm (5/9) I N D U C T O R S NLV25-PF Type 2±0.1 1.4±0.1 SHAPE & DIMENSIONS 0.5 (0.4) (1.7) (0.4) 1.8±0.1 2.5±0.2 Dimensions in mm 1.5 RECOMMENDED LAND PATTERN 1.0 1.5 1.0 Dimensions in mm Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20150105 / inductor_commercial_standard_nlv25-pf_en.fm (6/9) I N D U C T O R S NLV25-PF Type ELECTRICAL CHARACTERISTICS CHARACTERISTICS SPECIFICATION TABLE L (μH) 0.01 0.012 0.015 0.018 0.022 0.027 0.033 0.039 0.047 0.056 0.068 0.082 0.1 0.12 0.15 0.18 0.22 0.27 0.33 0.39 0.47 0.56 0.68 0.82 1 1.2 1.5 1.8 2.2 2.7 3.3 3.9 4.7 5.6 6.8 8.2 10 12 15 18 22 27 33 39 47 56 68 82 100  Tolerance ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5% Q L, Q measuring frequency Self-resonant frequency DC resistance Rated current Part No. min. 15 15 15 15 15 15 20 20 20 20 20 20 20 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 30 25 25 25 25 25 25 25 25 25 25 20 20 20 20 20 15 (MHz) 100 100 100 100 100 100 100 100 100 100 100 100 100 25.2 25.2 25.2 25.2 25.2 25.2 25.2 25.2 25.2 25.2 25.2 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 7.96 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 2.52 0.796 (MHz)min. 2150 2050 2000 1850 1650 1550 1450 1350 1200 1100 1050 900 800 700 550 500 450 425 400 375 350 325 300 260 245 230 182 135 105 70 55 48 43 42 39 36 33 30 26 24 22 21 20 18 17 16 15 13 12 (ȍ )max. 0.26 0.27 0.29 0.31 0.37 0.4 0.42 0.45 0.5 0.6 0.65 0.75 0.8 0.3 0.35 0.4 0.5 0.55 0.6 0.65 0.68 0.75 0.85 1 1.1 1.2 1.3 1.45 1.55 1.7 1.9 2.1 2.3 2.5 2.7 3.05 3.5 3.8 4.4 4.8 5.5 6.3 7.1 9.5 11.1 12.1 16.6 19 21 (mA)max. 530 500 480 450 420 410 400 380 360 340 320 300 280 550 500 460 430 420 400 375 350 325 300 260 245 230 220 210 200 195 185 180 175 170 165 160 155 150 140 130 125 115 110 90 80 75 70 66 60 NLV25T-010J-PF NLV25T-012J-PF NLV25T-015J-PF NLV25T-018J-PF NLV25T-022J-PF NLV25T-027J-PF NLV25T-033J-PF NLV25T-039J-PF NLV25T-047J-PF NLV25T-056J-PF NLV25T-068J-PF NLV25T-082J-PF NLV25T-R10J-PF NLV25T-R12J-PF NLV25T-R15J-PF NLV25T-R18J-PF NLV25T-R22J-PF NLV25T-R27J-PF NLV25T-R33J-PF NLV25T-R39J-PF NLV25T-R47J-PF NLV25T-R56J-PF NLV25T-R68J-PF NLV25T-R82J-PF NLV25T-1R0J-PF NLV25T-1R2J-PF NLV25T-1R5J-PF NLV25T-1R8J-PF NLV25T-2R2J-PF NLV25T-2R7J-PF NLV25T-3R3J-PF NLV25T-3R9J-PF NLV25T-4R7J-PF NLV25T-5R6J-PF NLV25T-6R8J-PF NLV25T-8R2J-PF NLV25T-100J-PF NLV25T-120J-PF NLV25T-150J-PF NLV25T-180J-PF NLV25T-220J-PF NLV25T-270J-PF NLV25T-330J-PF NLV25T-390J-PF NLV25T-470J-PF NLV25T-560J-PF NLV25T-680J-PF NLV25T-820J-PF NLV25T-101J-PF Rated current: smaller value of either Idc1 or Idc2. Idc1: When based on the inductance change rate (10% below the initial L value) Idc2: When based on the temperature increase (Temperature increase of 20°C by self heating) ○ Measurement equipment Measurement item Product No. 4191A+16092A L, Q 4194A+16085A+16093B Self-resonant frequency 8753C DC resistance VP-2941A ＊ Equivalent measurement equipment may be used. Manufacturer Agilent Technologies Agilent Technologies Panasonic Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20150105 / inductor_commercial_standard_nlv25-pf_en.fm (7/9) I N D U C T O R S NLV25-PF Type ELECTRICAL CHARACTERISTICS L FREQUENCY CHARACTERISTICS GRAPH 1000 101J 820J 680J 560J 470J 390J 330J 270J 220J 180J 150J 120J 100J 8R2J 100 6R8J 5R6J 4R7J 3R9J 3R3J 10 2R7J 2R2J 1R8J Inductance(μH) 1R5J 1R2J 1R0J R82J R68J 1 R56J R47J R39J R33J R27J 0.1 0.01 010J 047J 039J 033J 027J 022J R10J 082J R22J 0.001 0.1 1 10 Frequency(MHz) 068J R18J 018J R15J 015J 012J 056J R12J 100 1000 ○ Measurement equipment Product No. Manufacturer 4291A Agilent Technologies 4294A Agilent Technologies ＊ Equivalent measurement equipment may be used. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20150105 / inductor_commercial_standard_nlv25-pf_en.fm (8/9) I N D U C T O R S NLV25-PF Type ELECTRICAL CHARACTERISTICS Q FREQUENCY CHARACTERISTICS GRAPH 60 056J 50 047J 068J 4R7J 1R8J 150J 082J 3R3J 40 033J 180J R33J R39J 2R7J 3R9J 100J 1R0J Q 6R8J 010J R27J 30 R15J R12J R68J 1R2J 5R6J 120J 8R2J 039J 012J 022J 015J 470J 220J 2R2J 018J 270J 330J 20 390J 560J R10J 027J 820J 680J R22J 101J R18J 1R5J 10 R82J R56J R47J 0 0.1 1 10 Frequency(MHz) 100 1000 ○ Measurement equipment Product No. Manufacturer 4291A Agilent Technologies 4294A Agilent Technologies ＊ Equivalent measurement equipment may be used. Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20150105 / inductor_commercial_standard_nlv25-pf_en.fm (9/9) I N D U C T O R S NLV25-PF Type PACKAGING STYLE REEL DIMENSIONS 2.0±0.5 E Type NLV25-PF A ø180 W1 9 W2 13 N ø60 E 0.5 N * These values are typical values. (1.0) ø13.0±0.5 W1 ø21.0±0.8 W2 A Dimensions in mm TAPE DIMENSIONS P2 P0 K P1 t A Type NLV25-PF A 2.3 B 2.7 B W F E øD0 øD0 1.5+0.1/-0 Dimensions in mm E F P0 P1 P2 W 1.75±0.1 3.50±0.05 4.00±0.10 4.00±0.10 2.00±0.05 8.00±0.30 K 2 t 0.4 Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use. Please note that the contents may change without any prior notice due to reasons such as upgrading. 20150105 / inductor_commercial_standard_nlv25-pf_en.fm
