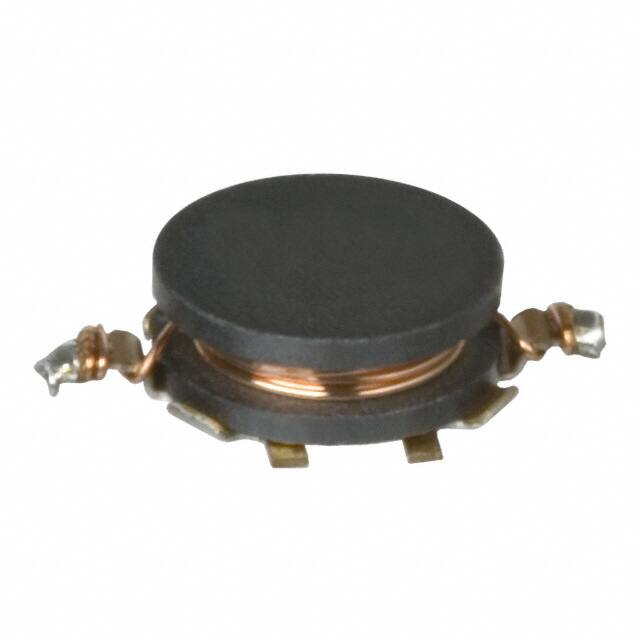

VLP4612T-3R3MR85

(1/1) SMD Inductors(Coils) For Power Line(Wound) Conformity to RoHS Directive VLP Series VLP4612 SHAPES AND DIMENSIONS On the side at which the winding starts 3.0±0.20 Inductance marking 4.6±0.20 1.2max. FEATURES • This is an SMD power inductor for power supplies that has an open magnetic path construction based on a low-height drum core (upright). • User terminals are contact-formed on the bottom of the drum core using copper (finished with tin plating). • It uses crosswise windings and supports large currents. • It is lead-free compatible. • With several variations in drum core height, users can choose the perfect product for their application. APPLICATIONS • LCD modules • Cellular phones • Hard disk drives Dimensions in mm RECOMMENDED PC BOARD PATTERN ø3 .5 1.2 Dimensions in mm ELECTRICAL CHARACTERISTICS Part No. Inductance (µH) VLP4612T-1R0M1R5 VLP4612T-1R8M1R3 VLP4612T-2R5M1R1 VLP4612T-3R3MR85 VLP4612T-4R7MR72 VLP4612T-6R8MR67 VLP4612T-100MR52 VLP4612T-150MR42 VLP4612T-220MR34 1.0 1.8 2.5 3.3 4.7 6.8 10.0 15.0 22.0 ∗ Inductance tolerance (%) ±20% ±20% ±20% ±20% ±20% ±20% ±20% ±20% ±20% Test frequency (kHz) 100 100 100 100 100 100 100 100 100 DC resistance (Ω)max. 0.11 0.14 0.17 0.26 0.28 0.38 0.62 0.96 1.42 Rated current(A)∗ Based on inductance change 2.30 max. 1.70 max. 1.40 max. 0.90 max. 0.88 max. 0.77 max. 0.59 max. 0.45 max. 0.39 max. Based on temperature rise 1.50 typ. 1.30 typ. 1.10 typ. 0.85 typ. 0.72 typ. 0.67 typ. 0.52 typ. 0.42 typ. 0.34 typ. Rated current:The rated current is the smaller of the values given based on the rate of inductance change (10% decrease from the initial value) or the temperature rise (temperature rise of 40°C caused by the heat generated by the product itself). Please note that the current applied must be DC. TYPICAL ELECTRICAL CHARACTERISTICS INDUCTANCE vs. DC SUPERPOSITION CHARACTERISTICS Inductance (µH) 100 220MR34 150MR42 100MR52 6R8MR67 10 4R7MR72 3R3MR85 1 0.1 0 0.5 1 1.5 Idc (A) • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • All specifications are subject to change without notice. 001-04 / 20080822 / e531_vlp46.fm
