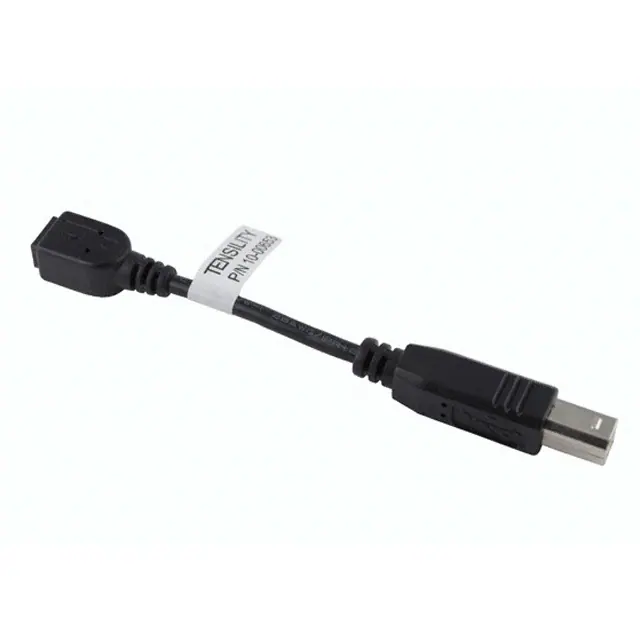

10-00653

PART NUMBER 50-00430 2 50-00427 DESCRIPTION QTY. 1 Connector, USB AB mini receptacle Connector, USB B plug, molding style 1 COMPONENT NOTES 3 30-00088 Wire, 4C, 1PR + 2C, 28 AWG, UL2725, 30V, 80C, 3.6 mm, shielded, VW-1, PVC, 79A, USB 2.0 1 4 24-00059 Overmold, jack, USB mini AB 1 PVC, black 5 24-00021 Overmold, plug, USB B 1 PVC, black 100 ±15 12 ±0.50 3.6 1 5 Drain wire 1 4 5 3 2 3 1 4 2 Drain wire Wiring diagram 50-00430 1 2 3 5 Shell Notes: Cables individually tied and bundled in groups of 10 Functionally equivalent components may be substituted Revision: Date: Description: A 8/24/2011 Initial release A1 1/28/2014 Corrected shield type A2 10/24/2018 Removed label 5 Wire Color Prepared: AW Verified: GL Digitally signed by AW Date: 2018.11.01 10:52:29 -07'00' Digitally signed by GL Date: 2018.11.02 08:38:27 -07'00' Dimensions are in millimeters. Tolerances: 0.5 mm X: X.X: 0.3 mm X.XX: 0.05 mm 4 50-00427 Red White Green Black Drain & Shield 1 2 3 4 Shell Notes: RoHS compliant Function test: no open, no short circuit, no intermittent tel fax Description: Cable, 100 mm, USB mini A receptacle to USB B male, 28 AWG, 30-00088 wire 3 Size: Part number: A 10-00653 Scale: 2 1.541.323.3228 1.541.323.4202 800 web 877.670.7118 tensility.com Sheet 1 of 1 1:1 1 To see a custom version of this cable assembly, call Tensility at 541-323-3228 or email engineering@tensility.com ITEM NO. 1
