Ratings
Voltage: 60 V
Current: 1 A
Waterproof: IP 67
Operating Temperature Range
-40 ~ 85 °C
Materials
1 Insulator: Nylon 66 + 30% glass fiber, black
2 Pin: brass, gold-flashing
3 Shell: brass, nickel plated
4 O-ring: rubber
3
Electrical Requirements
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 10⁸ Ω min
Contact resistance: 10 mΩ or less
1
2
Mechanical Requirements
Insertion force: 0.82 kgf max
Withdrawal force: 0.62 kgf max
Life cycle: 500 mating cycles
Environmental Requirements
Cold test: -25 °C for 2 hours without deformation
Heat test: 85 °C for 16 hours while maintaining minimum 10⁸ Ω
insulation resistance
13.9 ±0.30
6.4
Assembly info
Wire guage: 26 AWG max (Ø0.55 mm)
1.9
A
3
A
0.
65
4
3.8
0.5
6.5
1
4
M5 x 0.5
SECTION A-A
Revision:
A
A1
Date:
8/7/2018
12/10/2018
Description:
Prepared:
Initial release
AG
Verified:
Updated notes
AW
Notes:
Digitally signed by AG
Date: 2018.12.10 15:34:06
-08'00'
Digitally signed by AW
Date: 2018.12.12 09:24:18
-08'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.5 mm
0.3 mm
X.X:
X.XX: 0.05 mm
5
4
RoHS compliant
Function test: no open, no short circuit, no
intermittent
tel
fax
Description:

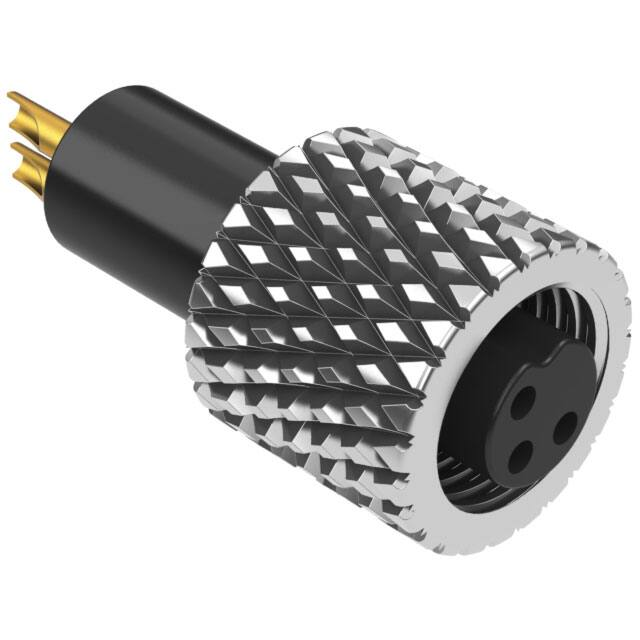

Connector, 3 pin M5 socket, 5xL14.5mm, gold
plated, molding style, solder cup, IP67
3
Size:
Part number:
A
50-00604
Scale:
2
1.541.323.3228
1.541.323.4202
800
web
877.670.7118
tensility.com
3:1
Sheet 1 of 1
1
