Style
M12 Plug
8 pin
A-coding
Ratings
Voltage: 30 V
Current: 2 A
Operating Temperature Range
-40 ~ 85 °C
22 ±1.50
Materials
1 Insulator: TPU, black
2 Pin: C3604 brass, gold plated
3 Shell: C3604 brass, nickel plated
19 ±0.50
5
1.2
2
1
3
Mechanical Requirements
Life cycle: 500 mating cycles minimum
7
4
Environmental Requirements
Salt spray test: 35 °C, relative humidity 90-95%, 5% NaCl
mist for 48 hrs. Wash parts after test. Maintain mechanical
requirements and a contact resistance of less than 10 mΩ.
Waterproof: IP67
8 ±0.30
Electrical Requirements
Dielectric strength: 1 min @ 500 Vac
Insulation resistance: 100 MΩ @ 500 Vdc
Contact resistance: 10 mΩ or less
8.2 ±0.30
6
Front View
Not to Scale
Assembly Info
Wire gauge: 24 AWG max
Spin-locking feature
Slide shell to unlock/lock
3
14.5
1
2
0. 8
M12 x 1.0
Revision:
A
Date:
8/4/2020
Description:
Initial release
Prepared:
AW
Digitally signed by AW
Date: 2020.10.12
13:22:58 -07'00'
Verified:
AG
Digitally signed by AG
Date: 2020.10.14 12:20:48
-07'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.3 mm
X.X:
0.1 mm
X.XX: 0.05 mm
5
4
Notes:
RoHS compliant
Function test: no open, no short circuit, no
intermittent
tel
fax
1.541.323.3228
1.541.323.4202
800
web
877.670.7118
tensility.com
Size: Part number:
Description:

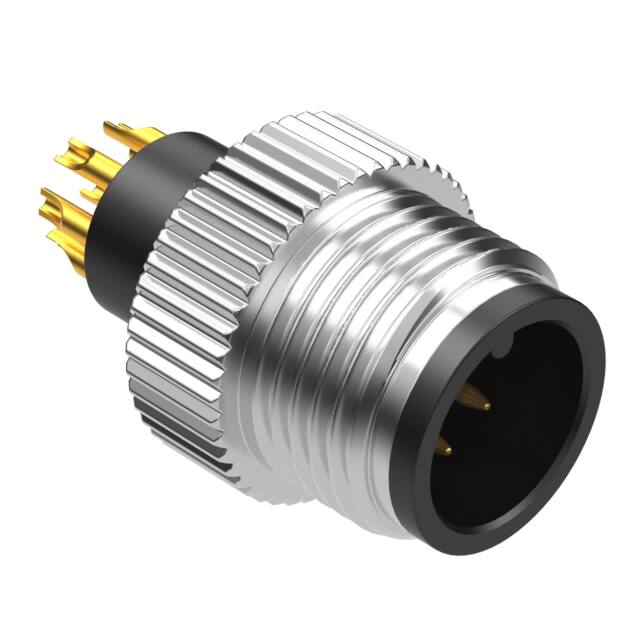

Connector, 8 pin M12 A-code plug, 12xL22mm, gold
50-00976
A
plated, molding style, solder cup, IP67
Scale: 2:1
3
2
Sheet 1 of 1
1
