BAV99-E3-08

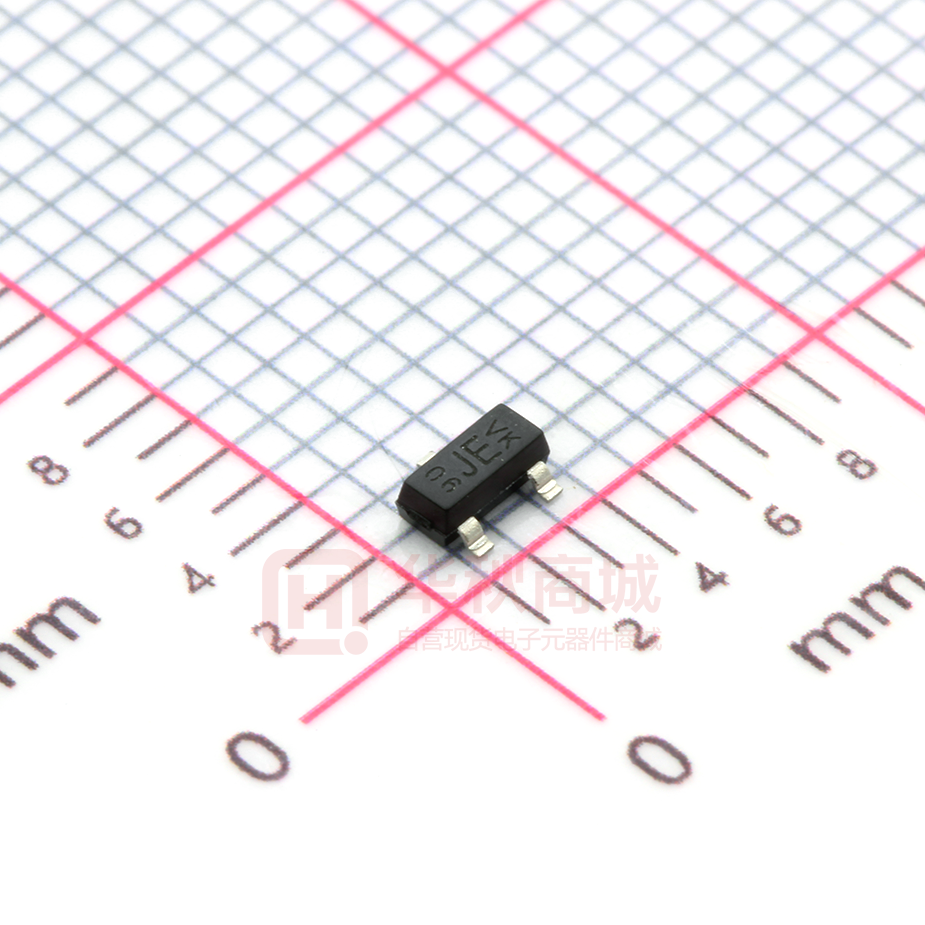

BAV99 www.vishay.com Vishay Semiconductors Small Signal Switching Diode, Dual in Series FEATURES • Fast switching speed 3 • High conductance • Surface mount package ideally suited for automatic insertion 1 • Connected in series 2 • AEC-Q101 qualified available • Base P/N-E3 - RoHS-compliant, commercial grade 18109 • Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified DESIGN SUPPORT TOOLS click logo to get started • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 Models Available MECHANICAL DATA Case: SOT-23 Weight: approx. 8.8 mg Packaging codes / options: 18/10K per 13" reel (8 mm tape), 10K/box 08/3K per 7" reel (8 mm tape), 15K/box PARTS TABLE PART BAV99 ORDERING CODE CIRCUIT CONFIGURATION TYPE MARKING REMARKS Dual serial JE Tape and reel BAV99-E3-08 or BAV99-E3-18 BAV99-HE3-08 or BAV99-HE3-18 ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION Non repetitive peak reverse voltage Repetitive peak reverse voltage = working peak reverse voltage = DC blocking voltage Peak forward surge current tp = 1 s tp = 1 μs SYMBOL VALUE VRM 100 VRRM = VRWM = VR 70 IFSM 1 4.5 UNIT V A Half wave rectification with resistive load and f  50 MHz, on ceramic substrate 10 mm x 8 mm x 0.7 mm IF(AV) Forward current On ceramic substrate 10 mm x 8 mm x 0.7 mm IF 250 Power dissipation On ceramic substrate 10 mm x 8 mm x 0.7 mm Ptot 300 mW Average forward current 150 mA THERMAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER Junction ambient Junction and storage temperature range Operating temperature range TEST CONDITION SYMBOL VALUE UNIT On ceramic substrate 10 mm x 8 mm x 0.7 mm RthJA 430 K/W Tj = Tstg -55 to +150 °C Top -55 to +150 °C Rev. 2.1, 13-Feb-18 Document Number: 85718 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 BAV99 www.vishay.com Vishay Semiconductors ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION SYMBOL MIN. TYP. IF = 1 mA IF = 10 mA Forward voltage IF = 50 mA Reverse current VF MAX. UNIT 0.715 V 0.855 V 1 V IF = 150 mA 1.25 V VR = 70 V 2500 nA 50 μA 30 μA VR = 70 V, Tj = 150 °C IR VR = 25 V, Tj = 150 °C Diode capacitance Reverse recovery time VR = 0, f = 1 MHz CD 1.5 pF IF = 10 mA to iR = 1 mA, VR = 6 V, RL = 100  trr 6 ns TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) IF - Forward Current (mA) 1000 102 D = 0.005 0.01 0.02 0.05 0.1 0.2 100 101 Tj = 100 °C / FM 10 25 °C 100 1 10-1 0.1 tp D= 10-2 10-6 0.01 0 14356 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 VF - Forward Voltage (V) 10-5 10-4 T 10-3 T 10-2 10-1 s 10-0 t 22290 Fig. 1 - Forward Current vs. Forward Voltage tp Fig. 2 - Peak forward current /FM = f (tp) LAYOUT FOR RthJA TEST Thickness: Fiberglass 1.5 mm (0.059 inches) Copper leads 0.3 mm (0.012 inches) 7.5 (0.3) 3 (0.12) 1 (0.4) 2 (0.8) 1 (0.4) 12 (0.47) 15 (0.59) 2 (0.8) 0.8 (0.03) 5 (0.2) 1.5 (0.06) 5.1 (0.2) 17451 Rev. 2.1, 13-Feb-18 Document Number: 85718 2 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 BAV99 www.vishay.com Vishay Semiconductors PACKAGE DIMENSIONS in millimeters (inches): SOT-23 1.15 (0.045) o8 ° 0.2 (0.008) 0.098 (0.004) 0.175 (0.007) 0.1 (0.004) max. 0.550 ref. (0.022 ref.) 0.9 (0.035) 3.1 (0.122) 2.8 (0.110) 0.45 (0.018) 0.35 (0.014) 0.35 (0.014) 0° t 0.5 (0.020) 0.45 (0.018) 0.3 (0.012) 2.6 (0.102) 2.35 (0.093) Foot print recommendation: 1 (0.039) 0.9 (0.035) Document no.: 6.541-5014.01-4 Rev. 8 - Date: 23.Sept.2009 17418 0.9 (0.035) 0.7 (0.028) 2 (0.079) 1.43 (0.056) 1.20 (0.047) 0.45 (0.018) 0.35 (0.014) 1 (0.039) 0.9 (0.035) 0.95 (0.037) 0.95 (0.037) Rev. 2.1, 13-Feb-18 Document Number: 85718 3 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer  ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2017 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 08-Feb-17 1 Document Number: 91000
