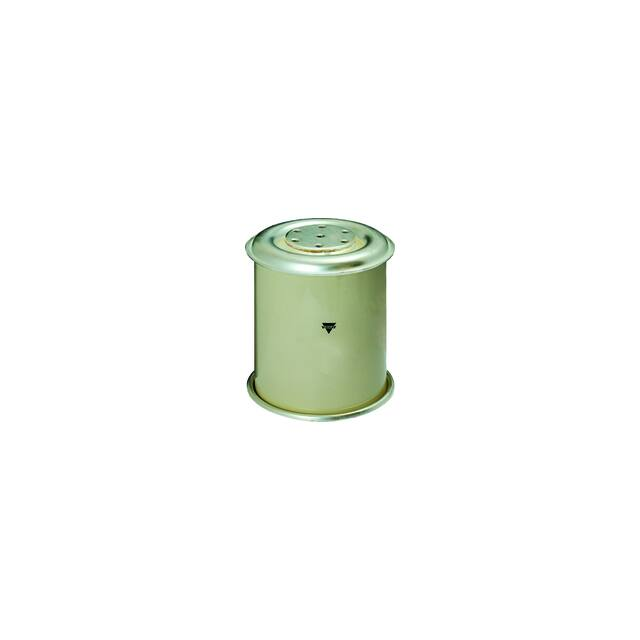

TOSZ 100110 www.vishay.com Vishay Draloric RF Power Barrel Capacitors for Dielectric Heating Equipment, R16 HQ Ceramic Dielectric FEATURES These capacitors feature a Q-factor of greater than 10 000 which makes them ideal in operating frequency range from 0.1 MHz up to 30 MHz where high voltages and currents are present. The TOSZ model can be used as replacement for fixed vacuum capacitors. The construction gives the capacitors an advantage over fixed vacuum capacitors, because there is no possibility of vacuum deterioration. APPLICATIONS Dielectric heating equipments in industrial segment CAPACITANCE RANGE 50 pF QUICK REFERENCE DATA DESCRIPTION VALUE Ceramic Class 1 Ceramic Dielectric Type Voltage (Vp) ± 10 % R16 HQ TOSZ 100110 CERAMIC DIELECTRICS 30 000 R16 High Q (TCC + 100 ppm/K) Min. Capacitance (pF) 50 Max. Capacitance (pF) 50 Mounting CAPACITANCE TOLERANCE Screw terminal RATED VOLTAGE 30 kVp MATERIAL DIELECTRIC STRENGTH TEST Capacitor elements made from class 1 ceramic dielectric with noble metal electrodes. 140 % rated AC voltage (30 000 VRMS, 50 Hz, 5 minutes) Connection terminals: thread terminal, copper / brass, silver plated. RF POWER TEST Allowable torque: M4 thread 3.5 Nm (31 lbf in)  M8 thread 6.0 Nm (53 lbf in) 125 % of rated power, for 5 minutes in a test generator circuit DISSIPATION FACTOR Max. 0.025 % (1 MHz) FINISH Capacitor body completely glazed. INSULATION RESISTANCE Min. 100 000 M (at 25 °C) MARKING Type designator, capacitance value and tolerance, rated peak voltage, ceramic material code, production date code, manufacturer logo, serial no. Revision: 11-Sep-15 OPERATING TEMPERATURE RANGE -55 °C to +100 °C Document Number: 22134 1 For technical questions, contact: powcap@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 TOSZ 100110 www.vishay.com Vishay Draloric SAP PART NUMBER AND ELECTRICAL DATA PART NUMBER CERAMIC CAP. VALUES (pF) RATED VOLTAGE (kVp) RATED POWER (1) (kvar) RATED CURRENT (ARMS) BZ100110WV50036CB1 R16 High Q 50 30 Up to 800 100 Note (1) The surface temperature during operation must not exceed +100 °C DIMENSIONS in millimeters (inches) Ø 101 (3.98 Dia.) 60° 110.0 ± 0.2 (4.331 ± 0.008) 60° 40.0 ± 0.3 (1.575 ± 0.012) M4 threads Center: M8 thread DERATING DIAGRAM 5.65 MHz Ug (kVp) 100 Ig (ARMS) Qg (kvar) 1000 39.75 MHz Ug 10 100 Qg 10 1 Ig 0.1 1 10 100 1 1000 Frequency (MHz) RELATED DOCUMENTS General Information Revision: 11-Sep-15 www.vishay.com/doc?22071 Document Number: 22134 2 For technical questions, contact: powcap@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited to the warranty expressed therein. Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2021 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 09-Jul-2021 1 Document Number: 91000
