IRF840BPBF

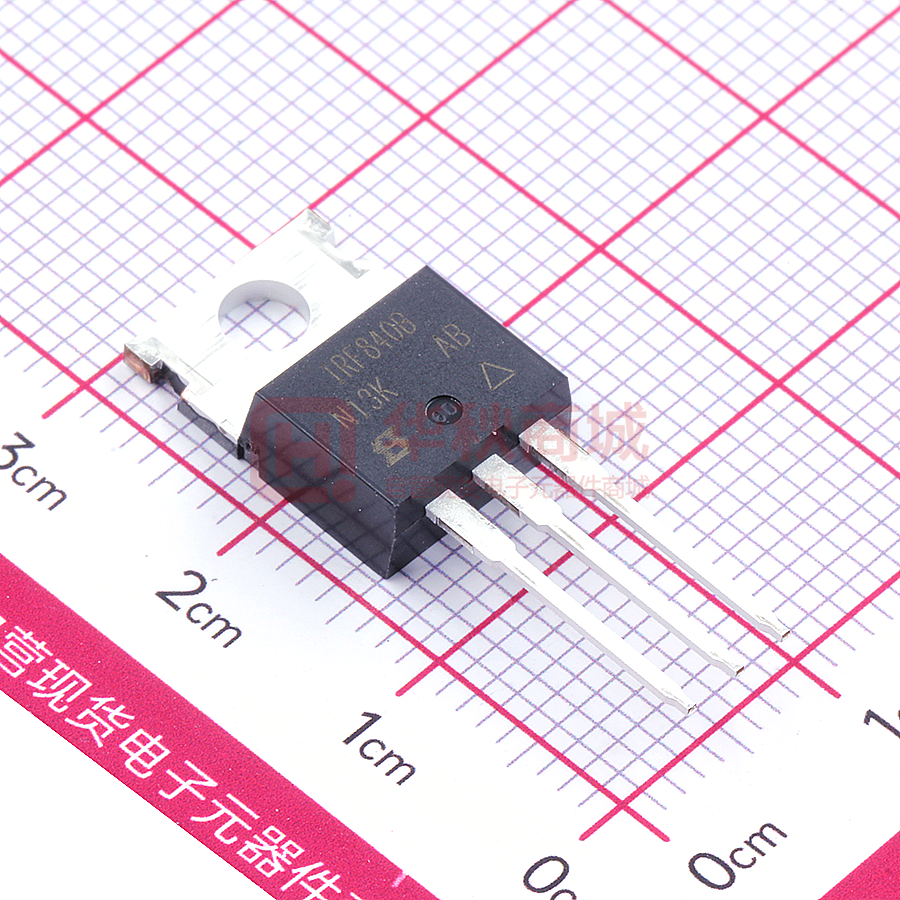

IRF840B www.vishay.com Vishay Siliconix D Series Power MOSFET FEATURES D • Optimal design - Low area specific on-resistance - Low input capacitance (Ciss) Available - Reduced capacitive switching losses - High body diode ruggedness - Avalanche energy rated (UIS) • Optimal efficiency and operation - Low cost - Simple gate drive circuitry - Low figure-of-merit (FOM): Ron x Qg - Fast switching • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 TO-220AB G G D S S N-Channel MOSFET PRODUCT SUMMARY VDS (V) at TJ max. RDS(on) max. (Ω) at 25 °C 550 VGS = 10 V Qg max. (nC) 0.85 Note * This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details 30 Qgs (nC) 4 Qgd (nC) 7 Configuration Single APPLICATIONS • Consumer electronics - Displays (LCD or plasma TV) • Server and telecom power supplies - SMPS • Industrial - Welding - Induction heating - Motor drives • Battery chargers ORDERING INFORMATION Package Lead (Pb)-free Lead (Pb)-free and halogen-free TO-220AB IRF840BPbF IRF840BPbF-BE3 ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER Drain-source voltage Gate-source Voltage Gate-source voltage AC (f > 1 Hz) Continuous drain current (TJ = 150 °C) SYMBOL VDS VGS VGS at 10 V TC = 25 °C TC = 100 °C current a Pulsed drain Linear derating factor Single pulse avalanche energy b Maximum power dissipation Operating junction and storage temperature range Drain-source voltage slope Reverse diode dV/dt d Soldering recommendations (peak temperature) c ID IDM EAS PD TJ, Tstg TJ = 125 °C For 10 s dV/dt LIMIT 500 ± 30 30 8.7 5.5 18 1.25 56 156 -55 to +150 24 0.37 300 UNIT V A W/°C mJ W °C V/ns °C Notes a. Repetitive rating; pulse width limited by maximum junction temperature b. VDD = 50 V, starting TJ = 25 °C, L = 2.3 mH, Rg = 25 Ω, IAS = 7 A c. 1.6 mm from case d. ISD ≤ ID, starting TJ = 25 °C S21-1262-Rev. B, 27-Dec-2021 Document Number: 91521 1 For technical questions, contact: hvm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 IRF840B www.vishay.com Vishay Siliconix THERMAL RESISTANCE RATINGS PARAMETER SYMBOL TYP. MAX. Maximum junction-to-ambient RthJA - 62 Maximum junction-to-case (drain) RthJC - 0.8 UNIT °C/W SPECIFICATIONS (TJ = 25 °C, unless otherwise noted) PARAMETER SYMBOL TEST CONDITIONS MIN. TYP. MAX. UNIT Static Drain-source breakdown voltage VDS temperature coefficient Gate-source threshold voltage (N) VDS VGS = 0 V, ID = 250 μA 500 - - V ΔVDS/TJ Reference to 25 °C, ID = 250 μA - 0.58 - V/°C VGS(th) VDS = VGS, ID = 250 μA 3 - 5 V Gate-source leakage IGSS VGS = ± 30 V - - ± 100 nA Zero gate boltage drain current IDSS VDS = 500 V, VGS = 0 V - - 1 VDS = 400 V, VGS = 0 V, TJ = 125 °C - - 10 - 0.70 0.85 Ω S Drain-source on-state resistance Forward transconductance a RDS(on) VGS = 10 V ID = 4 A gfs VDS = 20 V, ID = 4 A - 3 - VGS = 0 V, VDS = 100 V, f = 1 MHz - 527 - - 52 - - 8 - - 46 - - 64 - μA Dynamic Input capacitance Ciss Output capacitance Coss Reverse transfer capacitance Crss Effective output capacitance, energy related b Co(er) Effective output capacitance, time related c Co(tr) pF VDS = 0 V to 400 V, VGS = 0 V Total gate charge Qg Gate-source charge Qgs Gate-drain charge Turn-on delay time Rise time Turn-off delay time - 15 30 - 4 - Qgd - 7 - td(on) - 13 26 tr - 16 32 - 17 34 - 11 22 - 1.8 - - - 8 - - 32 - - 1.2 - 308 - ns - 1.8 - μC - 11 - A td(off) Fall time tf Gate input resistance Rg VGS = 10 V ID = 4 A, VDS = 400 V VDD = 400 V, ID = 4 A Rg = 9.1 Ω, VGS = 10 V f = 1 MHz, open drain nC ns Ω Drain-Source Body Diode Characteristics Continuous source-drain diode current IS Pulsed diode forward current ISM Diode forward voltage VSD Reverse recovery time trr Reverse recovery charge Qrr Reverse recovery current IRRM MOSFET symbol showing the integral reverse p - n junction diode D A G TJ = 25 °C, IS = 4 A, VGS = 0 V TJ = 25 °C, IF = IS = 4 A, dI/dt = 100 A/μs, VR = 20 V S V Notes a. Repetitive rating; pulse width limited by maximum junction temperature b. Coss(er) is a fixed capacitance that gives the same energy as Coss while VDS is rising from 0 % to 80 % VDSS c. Coss(tr) is a fixed capacitance that gives the same charging time as Coss while VDS is rising from 0 % to 80 % VDSS S21-1262-Rev. B, 27-Dec-2021 Document Number: 91521 2 For technical questions, contact: hvm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 IRF840B www.vishay.com Vishay Siliconix TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 3 TOP 15 V 14 V 13 V 12 V 11 V 10 V 9.0 V 8.0 V 7.0 V 6.0 V 16 12 TJ = 25 °C RDS(on), Drain-to-Source On Resistance (Normalized) ID, Drain-to-Source Current (A) 20 8 4 2.5 2 1.5 1 VGS = 10 V 0.5 0 0 5 10 15 20 25 ID = 4 A 0 - 60 - 40 - 20 0 30 VDS, Drain-to-Source Voltage (V) Fig. 4 - Normalized On-Resistance vs. Temperature Fig. 1 - Typical Output Characteristics 1000 TOP 15 V 14 V 13 V 12 V 11 V 10 V 9.0 V 8.0 V 7.0 V 6.0 V 5.0 V 12 9 Ciss TJ = 150 °C Capacitance (pF) ID, Drain-to-Source Current (A) 15 6 VGS = 0 V, f = 1 MHz Ciss = Cgs + Cgd, Cds Shorted Crss = Cgd Coss = Cds + Cgd Coss 100 Crss 10 3 0 1 0 5 10 15 20 25 30 0 VDS, Drain-to-Source Voltage (V) 100 200 300 400 500 VDS, Drain-to-Source Voltage (V) Fig. 5 - Typical Capacitance vs. Drain-to-Source Voltage Fig. 2 - Typical Output Characteristics 20 24 VGS, Gate-to-Source Voltage (V) ID, Drain-to-Source Current (A) 20 40 60 80 100 120 140 160 TJ, Junction Temperature (°C) 16 12 8 TJ = 150 °C 4 TJ = 25 °C VDS = 400 V VDS = 250 V VDS = 100 V 20 16 12 8 4 0 0 0 5 10 15 20 VGS, Gate-to-Source Voltage (V) Fig. 3 - Typical Transfer Characteristics S21-1262-Rev. B, 27-Dec-2021 25 0 5 10 15 20 25 Qg, Total Gate Charge (nC) Fig. 6 - Typical Gate Charge vs. Gate-to-Source Voltage Document Number: 91521 3 For technical questions, contact: hvm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 IRF840B www.vishay.com Vishay Siliconix 10 ISD, Reverse Drain Current (A) 100 ID, Drain Current (A) TJ = 150 °C TJ = 25 °C 10 1 8 6 4 2 VGS = 0 V 0 0.1 0.2 0.4 0.6 0.8 1 1.2 1.4 25 1.6 VSD, Source-Drain Voltage (V) 50 75 100 125 150 TJ, Case Temperature (°C) Fig. 7 - Typical Source-Drain Diode Forward Voltage Fig. 9 - Maximum Drain Current vs. Case Temperature 100 625 Operation in this area limited by RDS(on) 100 μs 1 1 ms Limited by R DS(on)* 10 ms 0.1 TC = 25 °C TJ = 150 °C Single Pulse VDS, Drain-to-Source Breakdown Voltage (V) ID, Drain Current (A) 600 10 575 550 525 500 BVDSS Limited 0.01 475 1 10 100 1000 VDS, Drain-to-Source Voltage (V) * VGS > minimum VGS at which RDS(on) is specified - 60 - 40 - 20 0 20 40 60 80 100 120 140 160 TJ, Junction Temperature (°C) Fig. 8 - Maximum Safe Operating Area Fig. 10 - Typical Drain-to-Source Voltage vs. Temperature Normalized Effective Transient Thermal Impedance 1 Duty Cycle = 0.5 0.2 0.1 0.05 0.1 0.02 Single Pulse 0.01 0.0001 0.001 0.01 0.1 1 Pulse Time (s) Fig. 11 - Normalized Thermal Transient Impedance, Junction-to-Case S21-1262-Rev. B, 27-Dec-2021 Document Number: 91521 4 For technical questions, contact: hvm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 IRF840B www.vishay.com Vishay Siliconix RD VDS QG 10 V VGS D.U.T. RG QGS + - VDD QGD VG 10 V Pulse width ≤ 1 µs Duty factor ≤ 0.1 % Charge Fig. 12 - Switching Time Test Circuit Fig. 16 - Basic Gate Charge Waveform Current regulator Same type as D.U.T. VDS 90 % 50 kΩ 12 V 0.2 µF 0.3 µF 10 % VGS + D.U.T. td(on) - VDS td(off) tf tr VGS 3 mA Fig. 13 - Switching Time Waveforms IG ID Current sampling resistors L Vary tp to obtain required IAS VDS Fig. 17 - Gate Charge Test Circuit D.U.T RG + - IAS V DD 10 V 0.01 Ω tp Fig. 14 - Unclamped Inductive Test Circuit VDS tp VDD VDS IAS Fig. 15 - Unclamped Inductive Waveforms S21-1262-Rev. B, 27-Dec-2021 Document Number: 91521 5 For technical questions, contact: hvm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 IRF840B www.vishay.com Vishay Siliconix Peak Diode Recovery dV/dt Test Circuit + D.U.T. Circuit layout considerations • Low stray inductance • Ground plane • Low leakage inductance current transformer + - - Rg • • • • + dV/dt controlled by Rg Driver same type as D.U.T. ISD controlled by duty factor “D” D.U.T. - device under test + - VDD Driver gate drive P.W. Period D= P.W. Period VGS = 10 Va D.U.T. lSD waveform Reverse recovery current Body diode forward current dI/dt D.U.T. VDS waveform Diode recovery dV/dt Re-applied voltage Inductor current VDD Body diode forward drop Ripple ≤ 5 % ISD Note a. VGS = 5 V for logic level devices Fig. 18 - For N-Channel Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package/tape drawings, part marking, and reliability data, see www.vishay.com/ppg?91521. S21-1262-Rev. B, 27-Dec-2021 Document Number: 91521 6 For technical questions, contact: hvm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Package Information www.vishay.com Vishay Siliconix TO-220-1 A E F D H(1) Q ØP 3 2 L(1) 1 M* L b(1) C b e J(1) e(1) MILLIMETERS DIM. INCHES MIN. MAX. MIN. MAX. A 4.24 4.65 0.167 0.183 b 0.69 1.02 0.027 0.040 b(1) 1.14 1.78 0.045 0.070 c 0.36 0.61 0.014 0.024 D 14.33 15.85 0.564 0.624 E 9.96 10.52 0.392 0.414 e 2.41 2.67 0.095 0.105 e(1) 4.88 5.28 0.192 0.208 F 1.14 1.40 0.045 0.055 H(1) 6.10 6.71 0.240 0.264 J(1) 2.41 2.92 0.095 0.115 L 13.36 14.40 0.526 0.567 L(1) 3.33 4.04 0.131 0.159 ØP 3.53 3.94 0.139 0.155 Q 2.54 3.00 0.100 0.118 ECN: E21-0621-Rev. D, 04-Nov-2021 DWG: 6031 Note • M* = 0.052 inches to 0.064 inches (dimension including protrusion), heatsink hole for HVM Document Number: 66542 1 For technical questions, contact: hvm@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Revison: 04-Nov-2021 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer's technical experts. Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited to the warranty expressed therein. Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of any of the products, services or opinions of the corporation, organization or individual associated with the third-party website. Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website or for that of subsequent links. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2022 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 01-Jan-2022 1 Document Number: 91000
