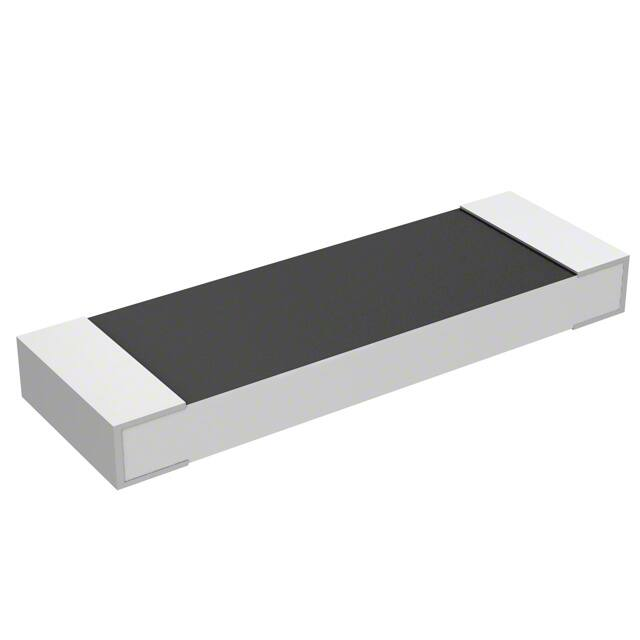

RCWPM Jumper (Military M32159) Vishay Dale Thick Film Chip Resistors, Zero Ohm Jumper, Military/Established Reliability MIL-PRF-32159 Qualified, Type RCZ FEATURES • Fully conforms to the requirements of MIL-PRF-32159 • Established reliability - verified failure rate; M level • Operating temperature range is - 55 °C to + 150 °C • 100 % group A screening per MIL-PRF-32159 • Termination style B - tin/lead wraparound over nickel barrier • For MIL-PRF-55342 chip resistors, see Vishay Dale’s RCWPM (Military M/D55342) datasheet • Halogen-free according to IEC 61249-2-21 definition STANDARD ELECTRICAL SPECIFICATIONS VISHAY DALE MODEL POWER RATING P70 °C W CURRENT RATING A MAXIMUM RESISTANCE  MIL-PRF-32159 STYLE MIL SPEC. SHEET TERM. CASE SIZE RCWPM-0502-99 RCZ0502 01 B 0502 0.05 1.3 30m RCWPM-550-99 RCZ0505 02 B 0505 0.100 2.2 20m RCWPM-5100-99 RCZ1005 03 B 1005 0.20 2.8 25m RCWPM-5150-99 RCZ1505 04 B 1505 0.15 2.1 35m RCWPM-7225-99 RCZ2208 05 B 2208 0.225 2.5 35m RCWPM-575-99 RCZ0705 06 B 0705 (1) 0.15 2.7 20m RCWPM-1206-99 RCZ1206 07 B 1206 0.25 3.2 25m RCWPM-2010-99 RCZ2010 08 B 2010 0.80 5.7 25m RCWPM-2512-99 RCZ2512 09 B 2512 1.0 6.3 25m RCWPM-1100-99 RCZ1010 10 B 1010 0.50 5.0 20m RCWPM-0402-99 RCZ0402 11 B 0402 0.04 1.2 30m RCWPM-0603-99 RCZ0603 12 B 0603 0.07 1.5 30m RCWPM-0302-99 RCZ0302 13 B 0302 0.035 1.1 30m Note • DSCC has created a series of drawings to support the need for zero ohm jumper product. Vishay Dale is listed as a resource on these drawings as follows: VISHAY DALE MODEL TERM. MAXIMUM RESISTANCE m MAX. CURRENT RATING A MAXIMUM WORKING VOLTAGE V 03011 RCWPM0201..99 B 50 0.5 30 03012 RCWPM0302..99 B 20 1.1 15 03014 RCWPM0402..99 B 25 1.2 30 88032 RCWPM0502..99 B 20 1.3 40 03013 RCWPM0603..99 B 25 1.5 50 03002 RCWPM0550..99 B 25 2.2 40 90048 RCWPM0575..99 B 20 2.7 50 90049 RCWPM5100..99 B 30 2.8 75 94011 RCWPM1206..99 B 20 3.2 100 90092 RCWPM5150..99 B 40 2.1 125 87011 RCWPM1100..99 B 20 5.0 75 90047 RCWPM7225..99 B 40 2.5 175 03015 RCWPM2010..99 B 40 5.7 150 03016 RCWPM2512..99 B 40 6.3 200 DSCC DRAWING NUMBER These drawings can be viewed at: www.dscc.dla.mil/Programs/MilSpec/ListDwgs.asp?DocType=DSCCdwg. Note (1) MIL case size 0705 and EIA case size 0805 are dimensionally the same. Document Number: 31028 Revision: 28-Oct-10 For technical questions, contact: ff2aresistors@vishay.com www.vishay.com 1 RCWPM Jumper (Military M32159) Vishay Dale Thick Film Chip Resistors, Zero Ohm Jumper, Military/Established Reliability MIL-PRF-32159 Qualified, Type RCZ GLOBAL PART NUMBER INFORMATION Part Number (MIL-PRF-32159): M32159B02MWB (preferred part number format) M 3 2 1 5 9 B 0 2 M W B MIL STYLE TERMINATION STYLE SPEC SHEET FAILURE RATE PACKAGING M32159 B = Pre-tinned nickel barrier, wraparound (see Standard Electrical Specifications table) C = Non-ER M = Military grade, high reliability TP = Tin/lead, T/R (full) S3 = Tin/lead, T/R (1000 pieces) UL = Tin/lead, T/R, single lot date code WB = Tin/lead, tray WL = Tin/lead, tray, single lot date code S2 = Tin/lead, T/R (500 pieces) S6 = Tin/lead, T/R (300 pieces) Part Number (DSCC Drawings): RCWPM5100WB99 R C W P GLOBAL MODEL RCWPM0201 RCWPM0302 RCWPM0402 RCWPM0502 RCWPM0550 RCWPM0575 RCWPM0603 RCWPM1100 RCWPM1206 RCWPM2010 RCWPM2512 RCWPM5100 RCWPM5150 RCWPM7225 M 5 1 0 0 W B 9 9 PACKAGING SPECIAL TP = Tin/lead, T/R (full) S3 = Tin/lead, T/R (1000 pieces) UL = Tin/lead, T/R, single lot date code WB = Tin/lead, tray WL = Tin/lead, tray, single lot date code S2 = Tin/lead, T/R (500 pieces) S6 = Tin/lead, T/R (300 pieces) 99 = 0  Jumper DIMENSIONS in inches (millimeters) D C B A VISHAY DALE MODEL MIL. MIL-PRF-32159 SPEC. STYLE SHEET E A (LENGTH) B (WIDTH) C (HEIGHT) D (TOP TERM) E (BOTTOM TERM) RCWPM-0502-99 RCZ0502 01 0.055 ± 0.005 (1.40 ± 0.13) 0.023 ± 0.003 (0.58 ± 0.08) 0.015 ± 0.003 (0.38 ± 0.08) 0.010 ± 0.005 (0.25 ± 0.13) 0.015 ± 0.005 (0.38 ± 0.13) RCWPM-550-99 RCZ0505 02 0.055 ± 0.005 (1.40 ± 0.13) 0.050 ± 0.005 (1.27 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) 0.010 ± 0.005 (0.25 ± 0.13) 0.015 ± 0.005 (0.38 ± 0.13) RCWPM-5100-99 RCZ1005 03 0.105 ± 0.005 (2.67 ± 0.13) 0.050 ± 0.005 (1.27 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) 0.015 ± 0.005 (0.38 ± 0.13) 0.015 ± 0.005 (0.38 ± 0.13) RCWPM-5150-99 RCZ1505 04 0.155 ± 0.005 (3.94 ± 0.13) 0.050 ± 0.005 (1.27 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) 0.015 ± 0.005 (0.38 ± 0.13) 0.015 ± 0.005 (0.38 ± 0.13) RCWPM-7225-99 RCZ2208 05 0.230 ± 0.005 (5.84 ± 0.13) 0.075 ± 0.005 (1.91 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) RCWPM-575-99 RCZ0705 06 0.080 ± 0.005 (2.03 ± 0.13) 0.050 ± 0.005 (1.27 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) 0.016 ± 0.008 (0.41 ± 0.20) 0.015 ± 0.005 (0.38 ± 0.13) RCWPM-1206-99 RCZ1206 07 0.125 ± 0.005 (3.18 ± 0.13) 0.063 ± 0.005 (1.60 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) 0.015 ± 0.005 (0.38 ± 0.13) 0.015 ± 0.005 (0.38 ± 0.13) RCWPM-2010-99 RCZ2010 08 0.197 ± 0.006 (5.00 ± 0.15) 0.098 ± 0.005 (2.49 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) RCWPM-2512-99 RCZ2512 09 0.250 ± 0.006 (6.35 ± 0.15) 0.124 ± 0.005 (3.15 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) www.vishay.com 2 For technical questions, contact: ff2aresistors@vishay.com Document Number: 31028 Revision: 28-Oct-10 RCWPM Jumper (Military M32159) Thick Film Chip Resistors, Zero Ohm Jumper, Military/Established Vishay Dale Reliability MIL-PRF-32159 Qualified, Type RCZ DIMENSIONS in inches (millimeters) D C B A MIL. MIL-PRF-32159 SPEC. STYLE SHEET VISHAY DALE MODEL E A (LENGTH) B (WIDTH) C (HEIGHT) D (TOP TERM) E (BOTTOM TERM) RCWPM-1100-99 RCZ1010 10 0.105 ± 0.005 (2.67 ± 0.13) 0.100 ± 0.005 (2.54 ± 0.13) 0.020 ± 0.005 (0.51 ± 0.13) 0.015 ± 0.005 (0.38 ± 0.13) 0.015 ± 0.005 (0.38 ± 0.13) RCWPM-0402-99 RCZ0402 11 0.039 ± 0.003 (0.99 ± 0.08) 0.020 ± 0.003 (0.51 ± 0.08) 0.013 ± 0.003 (0.33 ± 0.08) 0.010 ± 0.005 (0.25 ± 0.13) 0.010 ± 0.005 (0.25 ± 0.13) RCWPM-0603-99 RCZ0603 12 0.063 ± 0.005 (1.60 ± 0.13) 0.032 ± 0.005 (0.81 ± 0.13) 0.018 ± 0.005 (0.46 ± 0.13) 0.012 ± 0.005 (0.30 ± 0.13) 0.015 ± 0.005 (0.38 ± 0.13) RCWPM-0302-99 RCZ0302 13 0.034 ± 0.004 (0.86 ± 0.10) 0.021 ± 0.003 (0.53 ± 0.08) 0.013 ± 0.003 (0.33 ± 0.08) 0.007 ± 0.005 (0.18 ± 0.13) 0.008 ± 0.005 (0.20 ± 0.13) 0.024 ± 0.002 (0.61 ± 0.05) 0.012 ± 0.002 (0.30 ± 0.05) 0.009 ± 0.002 (0.23 ± 0.05) 0.006 ± 0.003 (0.15 ± 0.08) 0.006 + 0.002 - 0.004 (0.15 + 0.05 - 0.10) RCWPM-0201-99 Rated Power in % DERATING CURVE 120 100 80 CAGE CODE: 91637 and SH903 60 40 20 0 - 55 - 25 0 25 50 75 100 125 150 175 70 Ambient Temperature in °C MECHANICAL SPECIFICATIONS Resistive element Encapsulation Substrate Conductive metal Epoxy 96 % alumina Termination Solder-coated nickel barrier Solder finish Tin/lead solder alloy Document Number: 31028 Revision: 28-Oct-10 For technical questions, contact: ff2aresistors@vishay.com www.vishay.com 3 Legal Disclaimer Notice Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. Document Number: 91000 Revision: 11-Mar-11 www.vishay.com 1
