TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
www.vishay.com
Vishay Semiconductors

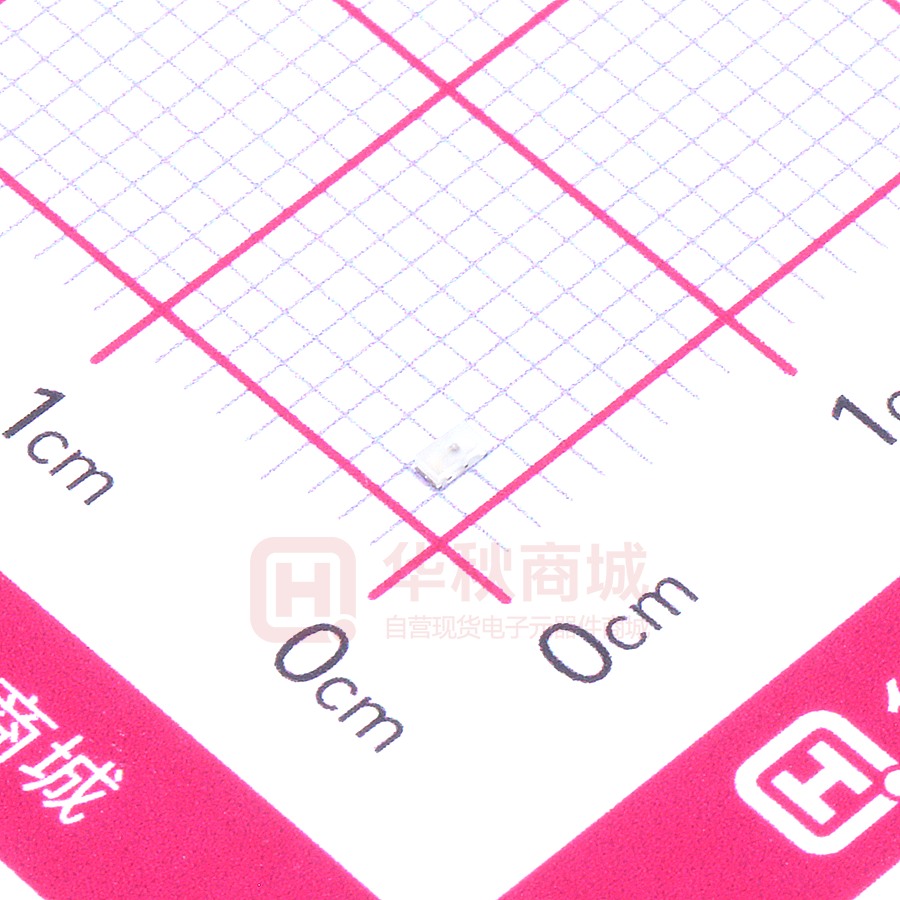

Standard 0603 SMD LED
FEATURES
• Smallest SMD package 0603 with exceptional
brightness
1.6 mm x 0.8 mm x 0.6 mm (L x W x H)
• High reliability lead frame based
• Temperature range -40 °C to +100 °C
• Footprint compatible to 0603 chipled
• Wavelength 570 nm (green), 561 nm (pure
green), 589 nm (yellow), 606 nm (orange),
633 nm (red)
18562
DESCRIPTION
• AllnGaP and GaN technology
The new 0603 LED series have been designed in the
smallest SMD package. This innovative 0603 LED
technology opens the way to
• Viewing angle: extremely wide 160°
• Grouping parameter: luminous intensity, wavelength
• smaller products of higher performance
• Available in 8 mm tape
• more design in flexibility
• Compatible to IR reflow soldering
• enhanced applications
• Preconditioning according to JEDEC® level 2
The 0603 LED is an obvious solution for small-scale, high
power products that are expected to work reliability in an
arduous environment.
• AEC-Q101 qualified
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
PRODUCT GROUP AND PACKAGE DATA
APPLICATIONS
• Product group: LED
• Backlight keypads
• Package: SMD 0603
• Navigation systems
• Product series: standard
• Cellular phone displays
• Angle of half intensity: ± 80°
• Displays for industrial control systems
• Automotive features
• Miniaturized color effects
• Traffic displays
PARTS TABLE
PART
COLOR
LUMINOUS
INTENSITY
(mcd)
at IF
(mA)
MIN. TYP. MAX.
WAVELENGTH
(nm)
at IF
(mA)
MIN. TYP. MAX.
FORWARD
VOLTAGE
(V)
at IF
(mA)
TECHNOLOGY
MIN. TYP. MAX.
TLMS1100-GS08 (1)
Red
32
63
-
20
627
633
639
20
1.8
2.1
2.4
20
AlInGaP
TLMS1100-GS15
Red
32
63
-
20
627
633
639
20
1.8
2.1
2.4
20
AlInGaP
TLMS1101-GS08 (1)
Red
50
-
125
20
627
633
639
20
1.8
2.1
2.4
20
AlInGaP
TLMS1101-GS15
Red
50
-
125
20
627
633
639
20
1.8
2.1
2.4
20
AlInGaP
TLMO1100-GS08 (1)
Orange
50
80
-
20
600
606
609
20
1.8
2.1
2.4
20
AlInGaP
TLMO1100-GS15
Orange
50
80
-
20
600
606
609
20
1.8
2.1
2.4
20
AlInGaP
TLMY1100-GS08 (1)
Yellow
50
80
-
20
580
589
595
20
1.8
2.1
2.4
20
AlInGaP
TLMY1100-GS015
Yellow
50
80
-
20
580
589
595
20
1.8
2.1
2.4
20
AlInGaP
TLMG1100-GS08 (1)
Green
12.5
35
-
20
564
570
575
20
1.8
2.1
2.4
20
AlInGaP
TLMG1100-GS15
Green
12.5
35
-
20
564
570
575
20
1.8
2.1
2.4
20
AlInGaP
TLMP1100-GS08 (1)
Pure green
6.3
15
-
20
551
561
566
20
1.8
2.1
2.4
20
AlInGaP
TLMP1100-GS15
Pure green
6.3
15
-
20
551
561
566
20
1.8
2.1
2.4
20
AlInGaP
Note
• Will be changed from GS08 (3000 pcs per reel) to GS15 (5000 pcs per reel)
Rev. 3.3, 18-Jul-2022
Document Number: 83173
1
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
www.vishay.com
Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
PARAMETER
TEST CONDITION
SYMBOL
VALUE
VR
12
V
Tamb ≤ 75 °C
IF
30
mA
tp ≤ 10 μs
IFSM
0.5
A
PV
90
mW
Reverse voltage (1)
DC forward current
Surge forward current
Power dissipation
Junction temperature
UNIT
Tj
+120
°C
Operating temperature range
Tamb
-40 to +100
°C
Storage temperature range
Tstg
-40 to +100
°C
According to Vischay specification
Tsd
+260
°C
Mounted on PC board (pad size > 5 mm2)
RthJA
480
K/W
Soldering temperature
Thermal resistance junction to ambient
Note
(1) Driving the LED in reverse direction is suitable for short term application
OPTICAL AND ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
TLMS110., RED
PARAMETER
TEST CONDITION
PART
TLMS1100
SYMBOL
TYP.
MAX.
32
63
-
50
-
125
UNIT
Luminous intensity
IF = 20 mA
Dominant wavelength
IF = 20 mA
λd
627
633
639
nm
Peak wavelength
IF = 20 mA
λp
-
645
-
nm
TLMS1101
lV
MIN.
mcd
Angle of half intensity
IF = 20 mA
ϕ
-
± 80
-
°
Forward voltage
IF = 20 mA
VF
1.8
2.1
2.4
V
VR = 6 V
IR
-
-
10
μA
VR = 0 V, f = 1 MHz
Cj
-
15
-
pF
Reverse current
Junction capacitance
OPTICAL AND ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
TLMO1100, ORANGE
TEST CONDITION
SYMBOL
MIN.
TYP.
MAX.
UNIT
Luminous intensity
PARAMETER
IF = 20 mA
lV
50
80
-
mcd
Dominant wavelength
IF = 20 mA
λd
600
606
609
nm
Peak wavelength
IF = 20 mA
λp
-
610
-
nm
Angle of half intensity
IF = 20 mA
ϕ
-
± 80
-
°
Forward voltage
IF = 20 mA
VF
1.8
2.1
2.4
V
Reverse current
Junction capacitance
VR = 6 V
VR = 0 V, f = 1 MHz
Cj
IR
-
-
10
-
15
-
pF
OPTICAL AND ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
TLMY1100, YELLOW
PARAMETER
TEST CONDITION
SYMBOL
MIN.
TYP.
MAX.
UNIT
mcd
Luminous intensity
IF = 20 mA
lV
50
80
-
Dominant wavelength
IF = 20 mA
λd
580
589
595
nm
Peak wavelength
IF = 20 mA
λp
-
591
-
nm
Angle of half intensity
IF = 20 mA
ϕ
-
± 80
-
°
Forward voltage
IF = 20 mA
VF
1.8
2.1
2.4
V
VR = 6 V
IR
-
-
10
μA
VR = 0 V, f = 1 MHz
Cj
-
15
-
pF
Reverse current
Junction capacitance
Rev. 3.3, 18-Jul-2022
Document Number: 83173
2
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
www.vishay.com
Vishay Semiconductors
OPTICAL AND ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
TLMG1100, GREEN
TEST CONDITION
SYMBOL
MIN.
TYP.
MAX.
UNIT
Luminous intensity
PARAMETER
IF = 20 mA
lV
12.5
35
-
mcd
Dominant wavelength
IF = 20 mA
λd
564
570
575
nm
Peak wavelength
IF = 20 mA
λp
-
572
-
nm
Angle of half intensity
IF = 20 mA
ϕ
-
± 80
-
°
Forward voltage
IF = 20 mA
VF
1.8
2.1
2.4
V
VR = 6 V
IR
-
-
10
μA
VR = 0 V, f = 1 MHz
Cj
-
15
-
pF
Reverse current
Junction capacitance
OPTICAL AND ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
TLMP1100, PURE GREEN
TEST CONDITION
SYMBOL
MIN.
TYP.
MAX.
UNIT
Luminous intensity
PARAMETER
IF = 20 mA
lV
6.3
15
-
mcd
Dominant wavelength
IF = 20 mA
λd
551
561
566
nm
Peak wavelength
IF = 20 mA
λp
-
562
-
nm
Angle of half intensity
IF = 20 mA
ϕ
-
± 80
-
°
Forward voltage
IF = 20 mA
VF
1.8
2.1
2.4
V
Reverse current
VR = 6 V
IR
-
-
10
μA
VR = 0 V, f = 1 MHz
Cj
-
15
-
pF
Junction capacitance
LUMINOUS INTENSITY/FLUX CLASSIFICATION
GROUP
LUMINOUS INTENSITY IV (mcd)
MIN.
MAX.
Pa
4
6.3
Pb
5
8
Qa
6.3
10
Qb
8
12.5
Ra
10
16
Rb
12.5
20
Sa
16
25
Sb
20
32
Ta
25
40
Tb
32
50
Ua
40
63
Ub
50
80
100
Va
63
Vb
80
125
Wa
100
160
Wb
125
200
Note
• Luminous intensity is tested at a current pulse duration of 25 ms.
The above type numbers represent the order groups which include only a few brightness groups. Only one group will be shipped on each
reel (there will be no mixing of two groups on each reel).
In order to ensure availability, single brightness groups will not be orderable.
In a similar manner for colors where wavelength groups are measured and binned, single wavelength groups will be shipped in any one reel.
In order to ensure availability, single wavelength groups will not be orderable
Rev. 3.3, 18-Jul-2022
Document Number: 83173
3
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
www.vishay.com
Vishay Semiconductors
COLOR CLASSIFICATION
DOM. WAVELENGTH (nm)
GROUP
PURE GREEN
GREEN
YELLOW
ORANGE
MIN.
MAX.
MIN.
MAX.
MIN.
MAX.
MIN.
1
551
554
564
566
-
-
-
MAX.
-
2
554
557
566
569
580
583
600
603
3
557
560
569
572
583
586
603
606
4
560
563
572
575
586
589
606
609
5
563
566
-
-
589
592
609
612
6
-
-
-
-
592
595
-
-
Note
• Wavelengths are tested at a current pulse duration of 25 ms and an accuracy of ± 1 nm
GROUP NAME ON LABEL
LUMINOUS INTENSITY GROUP
Q
HALFGROUP
WAVELENGTH
b
4
Note
• One packing unit/tape contains only one classification group of luminous intensity, color and forward voltage.
Only one single classification groups is not available.
The given groups are not order codes, customer specific group combinations require marketing agreement.
No color subgrouping for super red
TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
2nd line
IV rel - Relative Luminous Intensity
IF - Forward Current (mA)
35
30
25
20
15
10
5
0
0
19108
20
40
60
80
100
120
Tamb - Ambient Temperature (°C)
Fig. 1 - Forward Current vs. Ambient Temperature
Rev. 3.3, 18-Jul-2022
20°
30°
θ0°
40°
θ90°
1.0
50°
0.9
60°
0.8
70°
ϕ - Angular Displacement
2nd line
Axis0°Title10°
40
80°
0.6
0.4
0.2
0
1st line
2nd line
Fig. 2 - Relative Luminous Intensity vs. Angular Displacement
Document Number: 83173
4
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
www.vishay.com
Vishay Semiconductors
Axis Title
1.0
10000
0.7
1000
0.6
1st line
2nd line
2nd line
Irel - Relative Intensity
0.8
0.5
0.4
100
0.3
0.2
0.1
0
IV rel - Relative Luminous Intensity
10
red
0.9
red
1
0.1
0.01
10
1
540 560 580 600 620 640 660 680 700 720 740 760
λ - Wavelengths (nm)
2nd line
100
Fig. 6 - Relative Luminous Intensity vs. Forward Current
Fig. 3 - Relative Intensity vs. Wavelength
2.0
red
I Vrel - Relative Luminous Intensity
4
IF = 20 mA
3
2
1
0
-1
-2
-3
IF = 20 mA
red
1.6
1.2
0.8
0.4
d
- Change of Dom. Wavelength (nm)
10
IF - Forward Current (mA)
19113
-4
- 20
0
20
40
60
80
Tamb - Ambient Temperature (°C)
19086
0.0
- 20
100
Fig. 4 - Change of Dominant Wavelength vs. Ambient Temperature
20
40
60
80
100
Fig. 7 - Relative Luminous Intensity vs. Ambient Temperature
2.2
100
red
V F - Forward Voltage (V)
red
IF - Forward Current (mA)
0
Tamb - Ambient Temperature (°C)
19091
10
1
1.0
19103
1.5
2.0
2.5
VF - Forward Voltage (V)
3.0
Fig. 5 - Forward Current vs. Forward Voltage
Rev. 3.3, 18-Jul-2022
I F = 20 mA
2.1
2.0
1.9
1.8
1.7
1.6
- 20
19098
0
20
40
60
80
100
Tamb - Ambient Temperature (°C)
Fig. 8 - Forward Voltage vs. Ambient Temperature
Document Number: 83173
5
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
www.vishay.com
Vishay Semiconductors
1.2
10
1.0
I rel - Relative Intensity
orange
I Vrel- Relative Luminous Intensity
orange
0.8
0.6
0.4
0.2
1
0.1
0.01
0.0
560
580
600
620
640
2.0
I Vrel - Relative Luminous Intensity
8
IF = 20 mA
orange
6
4
2
0
-2
-4
d
- Change of Dom. Wavelength (nm)
100
Fig. 12 - Relative Luminous Intensity vs. Forward Current
Fig. 9 - Relative Intensity vs. Wavelength
-6
- 20
0
20
40
60
80
19081
V F - Forward Voltage (V)
10
1.5
2.0
2.5
3.0
VF - Forward Voltage (V)
Fig. 11 - Forward Current vs. Forward Voltage
Rev. 3.3, 18-Jul-2022
0.8
0.4
0
20
40
60
80
100
Tamb - Ambient Temperature (°C)
Fig. 13 - Relative Luminous Intensity vs. Ambient Temperature
orange
19099
1.2
0.0
- 20
100
1
1.0
1.6
19088
Fig. 10 - Change of Dominant Wavelength vs. Ambient Temperature
IF = 20 mA
orange
100
Tamb - Ambient Temperature (°C)
IF - Forward Current (mA)
10
IF - Forward Current (mA)
19109
λ - Wavelength (nm)
9510885-1
1
660
2.40
orange
2.35
2.30
2.25
2.20
2.15
2.10
2.05
2.00
1.95
1.90
1.85
1.80
- 20
0
19093
IF = 20 mA
20
40
60
80
100
Tamb - Ambient Temperature (°C)
Fig. 14 - Forward Voltage vs. Ambient Temperature
Document Number: 83173
6
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
www.vishay.com
Vishay Semiconductors
1.2
10
yellow
I Vrel - Relative Luminous Intensity
IF = 20 mA
Irel - Relative Intensity
1.0
0.8
0.6
0.4
0.2
1
0.1
0.01
0.0
550
570
590
610
630
1
650
10
Fig. 15 - Relative Intensity vs. Wavelength
100
IF - Forward Current (mA)
19114
λ - Wavelength (nm)
9510881-4
Fig. 18 - Relative Luminous Intensity vs. Forward Current
2.0
IVrel - Relative Luminous Intensity
8
IF = 20 mA
yellow
6
4
2
0
-2
-4
IF = 20 mA
yellow
1.6
1.2
0.8
0.4
d
- Change of Dom. Wavelength (nm)
yellow
-6
- 20
19085
0
20
40
60
80
Tamb - Ambient Temperature (°C)
0.0
- 20
100
19092
Fig. 16 - Change of Dominant Wavelength vs. Ambient Temperature
V F - Forward Voltage (V)
IF - Forward Current (mA)
yellow
1
1.0
19104
1.5
2.0
2.5
VF - Forward Voltage (V)
3.0
Fig. 17 - Forward Current vs. Forward Voltage
Rev. 3.3, 18-Jul-2022
20
40
60
80
100
Fig. 19 - Relative Luminous Intensity vs. Ambient Temperature
100
10
0
Tamb - Ambient Temperature (°C)
2.40
2.35
2.30
2.25
2.20
2.15
2.10
2.05
2.00
1.95
1.90
1.85
1.80
- 20
19097
yellow
0
20
IF = 20 mA
40
60
80
100
Tamb - Ambient Temperature (°C)
Fig. 20 - Forward Voltage vs. Ambient Temperature
Document Number: 83173
7
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
www.vishay.com
Vishay Semiconductors
Axis Title
1.0
10000
0.7
1000
0.6
1st line
2nd line
2nd line
Irel - Relative Intensity
0.8
0.5
0.4
100
0.3
0.2
0.1
0
I Vrel - Relative Luminous Intensity
10
green
0.9
green
1
0.1
0.01
10
1
500 520 540 560 580 600 620 640 660 680 700
λ - Wavelengths (nm)
2nd line
Fig. 21 - Relative Intensity vs. Wavelength
100
Fig. 24 - Relative Luminous Intensity vs. Forward Current
2.4
10
IF = 20 mA
8
green
I Vrel - Relative Luminous Intensity
green
6
4
2
0
-2
-4
IF = 20 mA
2.0
1.6
1.2
0.8
0.4
d
- Change of Dom. Wavelength (nm)
10
IF - Forward Current (mA)
19112
-6
- 20
0
20
40
60
80
Tamb - Ambient Temperature (°C)
19084
0.0
- 20
100
19089
Fig. 22 - Change of Dominant Wavelength vs.
Ambient Temperature
V F - Forward Voltage (V)
I F - Forward Current (mA)
green
1
1.0
19102
1.5
2.0
2.5
VF - Forward Voltage (V)
3.0
Fig. 23 - Forward Current vs. Forward Voltage
Rev. 3.3, 18-Jul-2022
20
40
60
80
100
Fig. 25 - Relative Luminous Intensity vs. Ambient Temperature
100
10
0
Tamb - Ambient Temperature (°C)
2.40
green
2.35
2.30
2.25
2.20
2.15
2.10
2.05
2.00
1.95
1.90
1.85
1.80
- 20
0
19096
IF = 20 mA
20
40
60
80
100
Tamb - Ambient Temperature (°C)
Fig. 26 - Forward Voltage vs. Ambient Temperature
Document Number: 83173
8
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
www.vishay.com
Vishay Semiconductors
Axis Title
10000
1.0
1000
0.8
0.6
100
0.4
0.2
0
I Vrel - Relative Luminous Intensity
10
Pure green
1st line
2nd line
2nd line
Irel - Relative Luminous Intensity
1.2
550
530
570
590
1
10
100
IF - Forward Current (mA)
19111
Fig. 27 - Relative Intensity vs. Wavelength
Fig. 30 - Relative Luminous Intensity vs. Forward Current
2.4
10
8
I Vrel - Relative Luminous Intensity
I F = 20 mA
pure green
6
4
2
0
-2
-4
d
- Change of Dom. Wavelength (nm)
0.1
610
λ - Wavelength (nm)
2nd line
-6
- 20
0
20
40
60
80
V F - Forward Voltage (V)
pure green
10
1
1.0
1.5
2.0
2.5
3.0
VF - Forward Voltage (V)
Fig. 29 - Forward Current vs. Forward Voltage
Rev. 3.3, 18-Jul-2022
1.2
0.8
0.4
0
20
40
60
80
Tamb - Ambient Temperature (°C)
100
Fig. 31 - Relative Luminous Intensity vs. Ambient Temperature
100
19101
1.6
19087
Fig. 28 - Change of Dominant Wavelength vs. Ambient Temperature
IF = 20 mA
pure green
2.0
0.0
- 20
100
Tamb - Ambient Temperature (°C)
19083
I F - Forward Current (mA)
1
0.01
10
510
pure green
2.40
pure green
2.35
2.30
2.25
2.20
2.15
2.10
2.05
2.00
1.95
1.90
1.85
1.80
- 20
0
20
19095
IF = 20 mA
40
60
80
100
Tamb - Ambient Temperature (°C)
Fig. 32 - Forward Voltage vs. Ambient Temperature
Document Number: 83173
9
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
www.vishay.com
Vishay Semiconductors
REEL DIMENSIONS in millimeters
Not indicated tolerances ± 0.05
Drawing-No.: 9.800-5086.01-4
Issue: 1; 29.04.04
Material: black static dissipative
19043
GS08: MOQ = 3000 pcs on one reel
GS15: MOQ = 5000 pcs on one reel
(MOQ = minimum order quantity)
Rev. 3.3, 18-Jul-2022
Document Number: 83173
10
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
www.vishay.com
Vishay Semiconductors
0.75 ± 0.05
0.2 ± 0.02
TAPE DIMENSIONS in millimeters
1.75 ± 0.05
C
A
Polarity
Technical drawings
according to DIN
specifications
Not indicated tolerances ± 0.05
Material: Conductive black PC
4 ± 0.1
2 ± 0.05
0.95 ± 0.05
Ø 0.5 ± 0.05
1.75 ± 0.1
Direction of pulling out
4 ± 0.1
Ø 1.5 + 0.1
3.5 ± 0.05
+ 0.3
8 - 0.1
Drawing-No.: 9.700-5290.01-4
Issue: 3; 24.09.13
Rev. 3.3, 18-Jul-2022
Document Number: 83173
11
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
www.vishay.com
Vishay Semiconductors
PACKAGE DIMENSIONS in millimeters
A
0.3
Package identification
0.3
1.6 ± 0.1
Bare copper,
no solder joint area
not intended for soldering
C
0.8 ± 0.1
0.6 ± 0.05
0.5
No solder joint area,
not intended for soldering
Technical drawings
according to DIN
specifications
Drawing-No.: 6.541-5056.01-4
Issue: 3; 20.01.2022
Not indicated tolerances ± 0.1
Note
• Solder joints are only formed on the bottom of the component and solder filet will not be observable on the sides of the component
Rev. 3.3, 18-Jul-2022
Document Number: 83173
12
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS110., TLMO1100, TLMY1100, TLMG1100, TLMP1100
www.vishay.com
Vishay Semiconductors
SOLDERING PROFILE
RECOMMENDED METHOD OF STORAGE
IR Reflow Soldering Profile for lead (Pb)-free Soldering
Preconditioning acc. to JEDEC Level 2
300
Temperature (°C)
max. 260 °C
245 °C
255
255 °C
240 °C
217 °C
250
• Storage temperature 10 °C to 30 °C
• Storage humidity ≤ 60 % RH max.
200
max. 30 s
After more than 1 year under these conditions moisture
content will be too high for reflow soldering.
150
max. 100 s
max. 120 s
100
max. Ramp Up 3 °C/s
50
In case of moisture absorption, the devices will recover to
the former condition by drying under the following condition:
max. Ramp Down 6 °C/s
0
0
Dry box storage is recommended as soon as the aluminum
bag has been opened to prevent moisture absorption. The
following conditions should be observed, if dry boxes are
not available:
50
100
19470-4
150
Time (s)
200
250
300
max. 2 cycles allowed
Fig. 33 - Vishay Lead (Pb)-free Reflow Soldering Profile
(acc. to J-STD-020C)
DRY PACKING
192 h at 40 °C + 5 °C / - 0 °C and < 5 % RH (dry air /
nitrogen) or
96 h at 60 °C + 5 °C and < 5 % RH for all device containers
or
24 h at 100 °C + 5 °C not suitable for reel or tubes.
An EIA JEDEC standard JESD22-A112 level 2 label is
included on all dry bags.
The reel is packed in an anti-humidity bag to protect the
devices from absorbing moisture during transportation and
storage.
Aluminum bag
Label
Reel
15973
17028
FINAL PACKING
The sealed reel is packed into a cardboard box. A secondary
cardboard box is used for shipping purposes.
HANDLING REMARK
Since a ChipLED is very tiny and light, it can become more
vulnerable to sticking on the cover tape during the assembly
process. Therefore it is highly recommended to consider
precautionary actions addressing the triboelectric effect as
described in the application note: “How to Avoid ChipLEDs
Sticking to Cover Tape During Automated Tape-and-Reel
Assembly” (www.vishay.com/doc?84998).
Rev. 3.3, 18-Jul-2022
Example of JESD22-A112 level 2 label
ESD PRECAUTION
Proper storage and handling procedures should be followed
to prevent ESD damage to the devices especially when they
are removed from the antistatic shielding bag. Electrostatic
sensitive devices warning labels are on the packaging.
VISHAY SEMICONDUCTORS STANDARD
BAR CODE LABELS
The Vishay Semiconductors standard bar code labels are
printed at final packing areas. The labels are on each
packing unit and contain Vishay Semiconductors specific
data.
Document Number: 83173
13
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay's knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer's responsibility to validate that a particular product
with the properties described in the product specification is suitable for use in a particular application. Parameters provided in
datasheets and / or specifications may vary in different applications and performance may vary over time. All operating
parameters, including typical parameters, must be validated for each customer application by the customer's technical experts.
Product specifications do not expand or otherwise modify Vishay's terms and conditions of purchase, including but not limited
to the warranty expressed therein.
Hyperlinks included in this datasheet may direct users to third-party websites. These links are provided as a convenience and
for informational purposes only. Inclusion of these hyperlinks does not constitute an endorsement or an approval by Vishay of
any of the products, services or opinions of the corporation, organization or individual associated with the third-party website.
Vishay disclaims any and all liability and bears no responsibility for the accuracy, legality or content of the third-party website
or for that of subsequent links.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2022 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 01-Jan-2022
1
Document Number: 91000
工商网监
湘ICP备2023018690号
