TLMS1000, TLMO1000, TLMY1000
www.vishay.com
Vishay Semiconductors

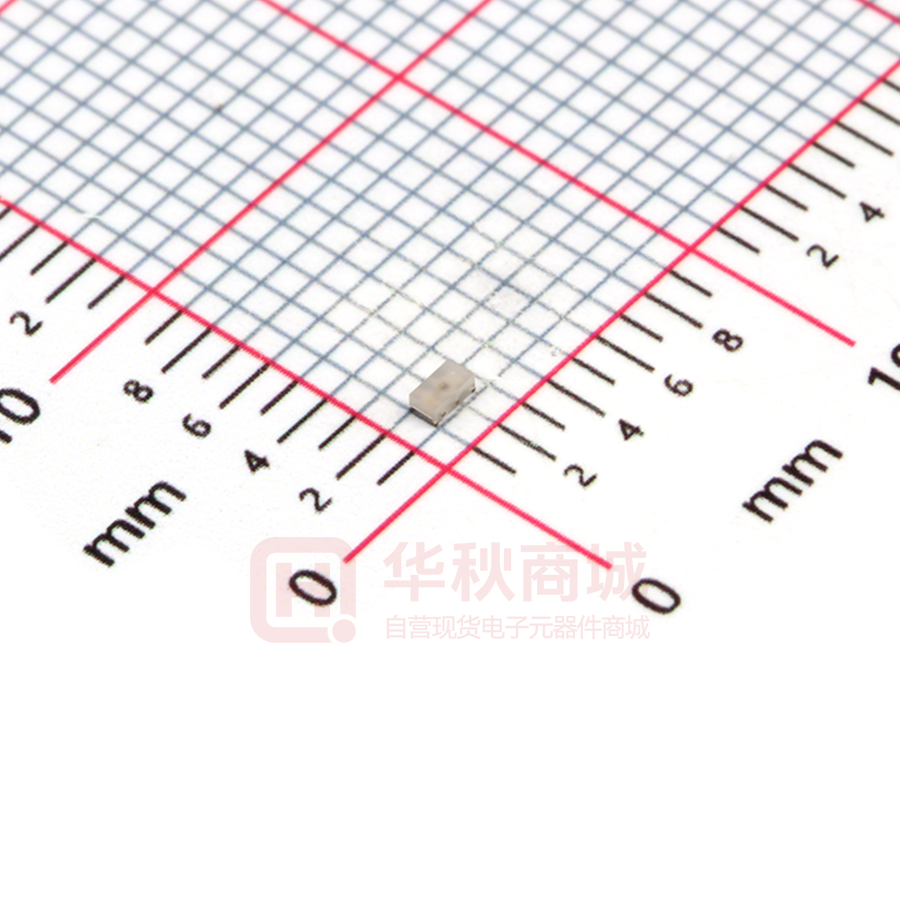

Low Current 0603 SMD LED
FEATURES
• Smallest SMD package 0603 with exceptional
brightness 1.6 mm x 0.8 mm x 0.6 mm
(L x W x H)
• High reliability lead frame based
• Temperature range -40 °C to +100 °C
• Footprint compatible to 0603 chipled
• Wavelength 633 nm (red), 606 nm (orange),
587 nm (yellow)
18562
DESCRIPTION
• AllnGaP technology
The new 0603 LED series have been designed in the
smallest SMD package. This innovative 0603 LED
technology opens the way to
• Compatible to IR reflow soldering
• Viewing angle: Extremely wide 160°
• Grouping parameter: luminous intensity, wavelength
• Smaller products of higher performance
• Available in 8 mm tape
• More design in flexibility
• Preconditioning according to JEDEC® level 2
• Enhanced applications
• AEC-Q101 qualified
The 0603 LED is an obvious solution for small-scale, high
power products that are expected to work reliability in an
arduous environment.
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
PRODUCT GROUP AND PACKAGE DATA
APPLICATIONS
• Product group: LED
• Backlight keypads
• Package: SMD 0603
• Navigation systems
• Product series: low current
• Cellular phone displays
• Angle of half intensity: ± 80°
• Displays for industrial control systems
• Automotive features
• Miniaturized color effects
• Traffic displays
PARTS TABLE
PART
COLOR
LUMINOUS INTENSITY
WAVELENGTH
FORWARD VOLTAGE
at IF
at IF
at IF
(mcd)
(nm)
(V)
TECHNOLOGY
(mA)
(mA)
(mA)
MIN. TYP.
MAX.
MIN. TYP. MAX.
MIN. TYP. MAX.
TLMS1000-GS08 (1)
Red
1.8
4
-
2
624
628
636
2
-
1.8
2.6
2
AlInGaP
TLMS1000-GS15
Red
1.8
4
-
2
624
628
636
2
-
1.8
2.6
2
AlInGaP
TLMO1000-GS08 (1) Soft orange
3.55
7.5
-
2
600
605
609
2
-
1.8
2.6
2
AlInGaP
TLMO1000-GS15
3.55
7.5
-
2
600
605
609
2
-
1.8
2.6
2
AlInGaP
Soft orange
TLMY1000-GS08 (1)
Yellow
3.55
7.5
-
2
580
588
595
2
-
1.8
2.6
2
AlInGaP
TLMY1000-GS15
Yellow
3.55
7.5
-
2
580
588
595
2
-
1.8
2.6
2
AlInGaP
Note
(1) Will be changed from GS08 (3000 pcs per reel) to GS15 (5000 pcs per reel)
Rev. 2.3, 18-Jul-2022
Document Number: 83172
1
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS1000, TLMO1000, TLMY1000
www.vishay.com
Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified)
TLMS1000, TLMO1000, TLMY1000
PARAMETER
TEST CONDITION
SYMBOL
VALUE
VR
12
V
Tamb ≤ 95 °C
IF
15
mA
tp ≤ 10 μs
Reverse voltage (1)
DC Forward current
Surge forward current
UNIT
IFSM
0.1
A
Power dissipation
PV
40
mW
Junction temperature
Tj
120
°C
Operating temperature range
Tamb
-40 to +100
°C
Storage temperature range
Tstg
-40 to +100
°C
Acc. Vishay spec
Tsd
260
°C
Mounted on PC board (pad size > 5 mm2)
RthJA
500
K/W
Soldering temperature
Thermal resistance junction to ambient
Note
(2) Driving the LED in reverse direction is suitable for short term application
OPTICAL AND ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
TLMS1000, RED
PARAMETER
TEST CONDITION
SYMBOL
MIN.
TYP.
MAX.
UNIT
Luminous intensity
IF = 2 mA
IV
1.8
4
-
mcd
Dominant wavelength
IF = 2 mA
λd
624
628
636
nm
Peak wavelength
IF = 2 mA
λp
-
640
-
nm
Angle of half intensity
IF = 2 mA
ϕ
-
± 80
-
°
Forward voltage
IF = 2 mA
VF
-
1.8
2.6
V
Reverse current
VR = 6 V
IR
-
-
10
μA
VR = 0 V, f = 1 MHz
Cj
-
15
-
pF
Junction capacitance
OPTICAL AND ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
TLMO1000, SOFT ORANGE
PARAMETER
TEST CONDITION
SYMBOL
MIN.
TYP.
MAX.
UNIT
Luminous intensity
IF = 2 mA
IV
3.55
7.5
-
mcd
Dominant wavelength
IF = 2 mA
λd
600
605
609
nm
Peak wavelength
IF = 2 mA
λp
-
610
-
nm
Angle of half intensity
IF = 2 mA
ϕ
-
± 80
-
°
Forward voltage
IF = 2 mA
VF
-
1.8
2.6
V
VR = 6 V
IR
-
-
10
μA
VR = 0 V, f = 1 MHz
Cj
-
15
-
pF
Reverse current
Junction capacitance
OPTICAL AND ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
TLMY1000, YELLOW
PARAMETER
TEST CONDITION
SYMBOL
MIN.
TYP.
MAX.
UNIT
Luminous intensity
IF = 2 mA
IV
3.55
7.5
-
mcd
Dominant wavelength
IF = 2 mA
λd
580
588
595
nm
Peak wavelength
IF = 2 mA
λp
-
591
-
nm
Angle of half intensity
IF = 2 mA
ϕ
-
± 80
-
°
Forward voltage
IF = 2 mA
VF
-
1.8
2.6
V
VR = 6 V
IR
-
-
10
μA
VR = 0 V, f = 1 MHz
Cj
-
15
-
pF
Reverse current
Junction capacitance
Rev. 2.3, 18-Jul-2022
Document Number: 83172
2
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS1000, TLMO1000, TLMY1000
www.vishay.com
Vishay Semiconductors
COLOR CLASSIFICATION
DOMINANT WAVELENGTH (nm)
GROUP
YELLOW
ORANGE
MIN.
MAX.
MIN.
MAX.
2
580
583
600
603
3
583
586
602
605
4
586
589
604
607
5
589
592
606
609
6
592
595
Note
• Wavelengths are tested at a current pulse duration of 25 ms and an accuracy of ± 1 nm
LUMINOUS INTENSITY CLASSIFICATION
LUMINOUS INTENSITY (mcd)
GROUP
MIN.
MAX.
G1
1.80
2.24
G2
2.24
2.80
H1
2.80
3.55
H2
3.55
4.50
J1
4.50
5.60
J2
5.60
7.10
K1
7.10
9.00
K2
9.00
11.20
L1
11.20
14.00
L2
14.00
18.00
Note
• Luminous intensity is tested at a current pulse duration of 25 ms and an accuracy of ± 11 %.
The above type numbers represent the order groups which include only a few brightness groups. Only one group will be shipped on each
reel (there will be no mixing of two groups on each reel).
In order to ensure availability, single brightness groups will not be orderable.
In a similar manner for colors where wavelength groups are measured and binned, single wavelength groups will be shipped in any one reel.
In order to ensure availability, single wavelength groups will not be orderable
TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified)
2nd line
IV rel - Relative Luminous Intensity
IF - Forward Current (mA)
20
15
10
5
20°
30°
θ0°
40°
θ90°
1.0
50°
0.9
60°
0.8
70°
ϕ - Angular Displacement
2nd line
Axis0°Title10°
25
80°
0
0
20
40
60
80
100
120
Tamb - Ambient Temperature (°C)
0
1st line
2nd line
Fig. 1 - Forward Current vs. Ambient Temperature
Fig. 2 - Relative Luminous Intensity vs. Angular Displacement
Rev. 2.3, 18-Jul-2022
0.6
0.4
0.2
Document Number: 83172
3
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
TLMS1000, TLMO1000, TLMY1000
www.vishay.com
Vishay Semiconductors
Axis Title
1.0
10000
10
0.9
1000
0.6
1st line
2nd line
2nd line
Irel - Relative Intensity
0.7
0.5
0.4
100
0.3
0.2
I F - Forward Current (mA)
red
0.8
1
0.1
0
0.1
10
1
540 560 580 600 620 640 660 680 700 720 740 760
λ - Wavelengths (nm)
2nd line
2
2.5
3
Fig. 6 - Forward Current vs. Forward Voltage
10
6
IVrel - Relative Luminous Intensity
Δ λ d - Change of Dom. Wavelength (nm)
Fig. 3 - Relative Intensity vs. Angular Displacement
red
4
2
0
-2
-4
- 20
0
20
40
60
80
red
0.6
0.4
0.2
0
- 0.2
- 0.4
- 0.6
- 0.8
-1
0.1
19135
1
1
10
IF - Forward Current (mA)
Fig. 7 - Relative Luminous Intensity vs. Forward Current
10
IF - Forward Current (mA)
Fig. 5 - Dominant Wavelength vs. Forward Current
Rev. 2.3, 18-Jul-2022
0.1
I Vrel - Relative Luminous Intensity
1
1
19129
Fig. 4 - Change of Dominant Wavelength vs.
Ambient Temperature
0.8
red
0.01
0.1
100
Tamb - Ambient Temperature (°C)
19138
λ d - Dominant Wavelength (nm)
1.5
VF - Forward Voltage (V)
19132
19142
2.4
2.2
red
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
- 20
0
IF = 2 mA
20
40
60
80
100
Tamb - Ambient Temperature (°C)
Fig. 8 - Relative Luminous Intensity vs. Ambient Temperature
Document Number: 83172
4
For technical questions, contact: LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
