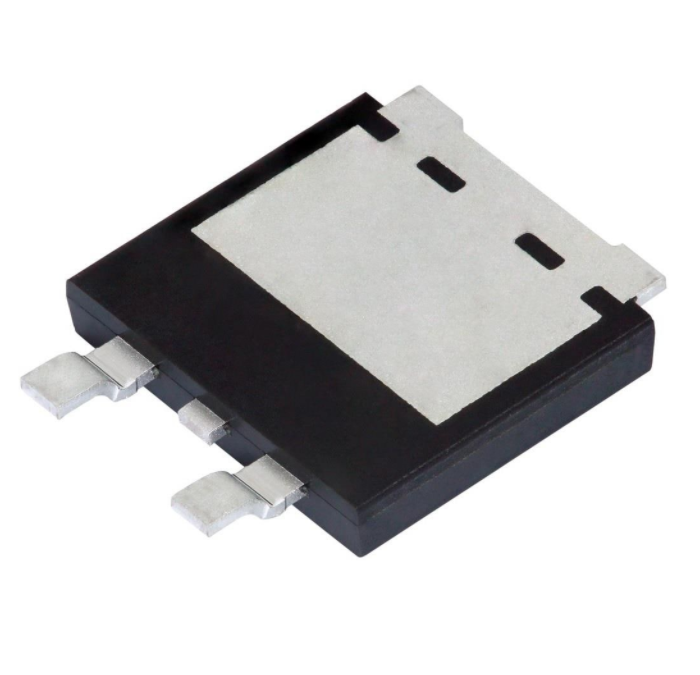

V40DL45 www.vishay.com Vishay General Semiconductor Low-Voltage TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = 0.26 V at IF = 5 A FEATURES eSMP® Series SMPD (TO-263AC) • Trench MOS Schottky technology Available • Very low profile - typical height of 1.7 mm • Ideal for automated placement K • Low forward voltage drop, low power losses • High efficiency operation • Meets MSL level 1, per LF maximum peak of 260 °C 1 2 Top View Bottom View J-STD-020, • AEC-Q101 qualified available - Automotive ordering code; base P/NHM3 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 Anode 1 K Anode 2 Cathode TYPICAL APPLICATIONS ADDITIONAL RESOURCES For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. 3D 3D 3D Models MECHANICAL DATA PRIMARY CHARACTERISTICS IF(AV) 40 A VRRM 45 V IFSM 240 A VF at IF = 40 A (TA = 125 °C) 0.53 V TJ max. 150 °C Package SMPD (TO-263AC) Circuit configuration Single Case: SMPD (TO-263AC) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade Base P/NHM3_X - halogen-free, RoHS-compliant, and AEC-Q101 qualified (“_X” denotes revision code e.g. A, B,.....) Terminals: matte tin plated leads, solderable per J-STD-002 and JESD 22-B102 M3 suffix meets JESD 201 class 2 whisker test, HM3 suffix meets JESD 201 class 2 whisker test Polarity: as marked MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER Maximum repetitive peak reverse voltage Maximum average forward rectified current (fig. 1) Peak forward surge current 10 ms single half sine-wave superimposed on rated load Operating junction and storage temperature range SYMBOL V40DL45 UNIT VRRM 45 V IF(AV) (1) 40 A IFSM 240 A TJ, TSTG -40 to +150 °C Revision: 22-Jan-2020 Document Number: 87790 1 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 V40DL45 www.vishay.com Vishay General Semiconductor ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER TEST CONDITIONS SYMBOL TYP. MAX. 0.38 - IF = 5 A IF = 20 A TA = 25 °C IF = 40 A Instantaneous forward voltage VF (1) IF = 5 A TA = 125 °C IF = 20 A IF = 40 A TA = 25 °C VR = 45 V Reverse current IR (2) TA = 125 °C 0.47 - 0.58 0.66 0.26 - 0.38 - 0.53 0.61 - 5 36 125 UNIT V mA Notes (1) Pulse test: 300 μs pulse width, 1 % duty cycle (2) Pulse test: pulse width ≤ 5 ms THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER Typical thermal resistance SYMBOL V40DL45 RθJC 0.9 RθJA (1)(2) 45 UNIT °C/W Notes (1) The heat generated must be less than the thermal conductivity from junction-to-ambient: dP /dT < 1/R D J θJA (2) Free air, without heatsink ORDERING INFORMATION (Example) PREFERRED P/N UNIT WEIGHT (g) PREFERRED PACKAGE CODE BASE QUANTITY DELIVERY MODE V40DL45-M3/I 0.54 I 2000/reel 13" diameter plastic tape and reel V40DL45HM3_A/I (1) 0.54 I 2000/reel 13" diameter plastic tape and reel Note (1) AEC-Q101 qualified 45 RthJA = RthJC = 0.9 °C/W 40 Average Power Loss (W) Average Forward Rectified Current (A) RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted) 35 30 25 20 15 RthJA = 45 °C/W 10 5 0 0 25 50 75 100 125 Case Temperature (°C) Fig. 1 - Forward Current Derating Curve 150 28 26 24 22 20 18 16 14 12 10 8 6 4 2 0 D = 0.8 D = 0.5 D = 1.0 D = 0.3 D = 0.2 T D = 0.1 D = tp/T 0 5 10 15 20 25 30 35 tp 40 45 Average Forward Current (A) Fig. 2 - Forward Power Loss Characteristics Revision: 22-Jan-2020 Document Number: 87790 2 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 V40DL45 www.vishay.com Vishay General Semiconductor TJ = 150 °C 10 1000 TJ = 125 °C 1st line 2nd line 2nd line Instantaneous Forward Current (A) 10000 TJ = 100 °C 1 100 TJ = 25 °C TJ = -40 °C 0.1 10 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 Transient Thermal Impedance (°C/W) Axis Title 100 100 Junction to Ambient 10 1 0.1 0.01 0.1 Instantaneous Forward Voltage (V) 1 10 100 t - Pulse Duration (s) Fig. 3 - Typical Instantaneous Forward Characteristics Fig. 6 - Typical Transient Thermal Impedance Axis Title 50 10000 100 10 1000 TJ = 100 °C TJ = 150 °C TJ = 125 °C 1 0.1 TJ = 25 °C 0.01 TJ = -40 °C 100 0.001 10 10 20 30 40 50 60 70 80 90 100 Percent of Rated Peak Reverse Voltage (%) Thermal Resistance (°C/W) 2nd line Instantaneous Reverse Current (mA) 1000 Epoxy printed circiut board FR4 copper thickness = 70 μm 45 40 35 30 25 S(cm 2) 20 1 2 3 4 5 6 7 8 9 Copper Pad Areas (cm 2) Fig. 4 - Typical Reverse Characteristics Fig. 7 - Thermal Resistance Junction-to-Ambient vs. Copper Pad Areas Junction Capacitance (pF) 10 000 TJ = 25 °C f = 1.0 MHz Vsig = 50 mVp-p 1000 100 0.1 1 10 100 Reverse Voltage (V) Fig. 5 - Typical Junction Capacitance Revision: 22-Jan-2020 Document Number: 87790 3 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 V40DL45 www.vishay.com Vishay General Semiconductor PACKAGE OUTLINE DIMENSIONS in inches (millimeters) SMPD (TO-263AC) 0.402 (10.20) 0.386 (9.80) 0.059 (1.50) REF. 0.071 (1.80) 0.063 (1.60) 0.020 (0.52) 0.011 (0.27) 0.048 (1.21) 0.032 (0.81) 0.354 (8.99) 0.338 (8.59) 0.509 (12.93) 0.485 (12.33) 0 to 0.01 (0 to 0.254) 0.069 (1.74) 0.053 (1.34) 0.063 (1.60) 0.047 (1.20) 0.020 (0.52) 0.011 (0.27) 0.052 (1.23) 0.028 (0.72) 0.200 NOM. (5.08) Mounting Pad Layout 0.420 (10.66) MIN. 0.339 (8.60) 0.323 (8.20) 0.276 (7.00) 0.260 (6.60) 0.330 REF. (8.38) 0.194 (4.93) NOM. 0.604 (15.33) 0.525 (13.33) 0.120 (3.05) REF. 0.080 (2.03) MIN. 0.105 (2.67) 0.095 (2.41) Revision: 22-Jan-2020 Document Number: 87790 4 For technical questions within your region: DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. © 2019 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED Revision: 01-Jan-2019 1 Document Number: 91000 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Vishay: V40DL45-M3/I V40DL45HM3_A/I
