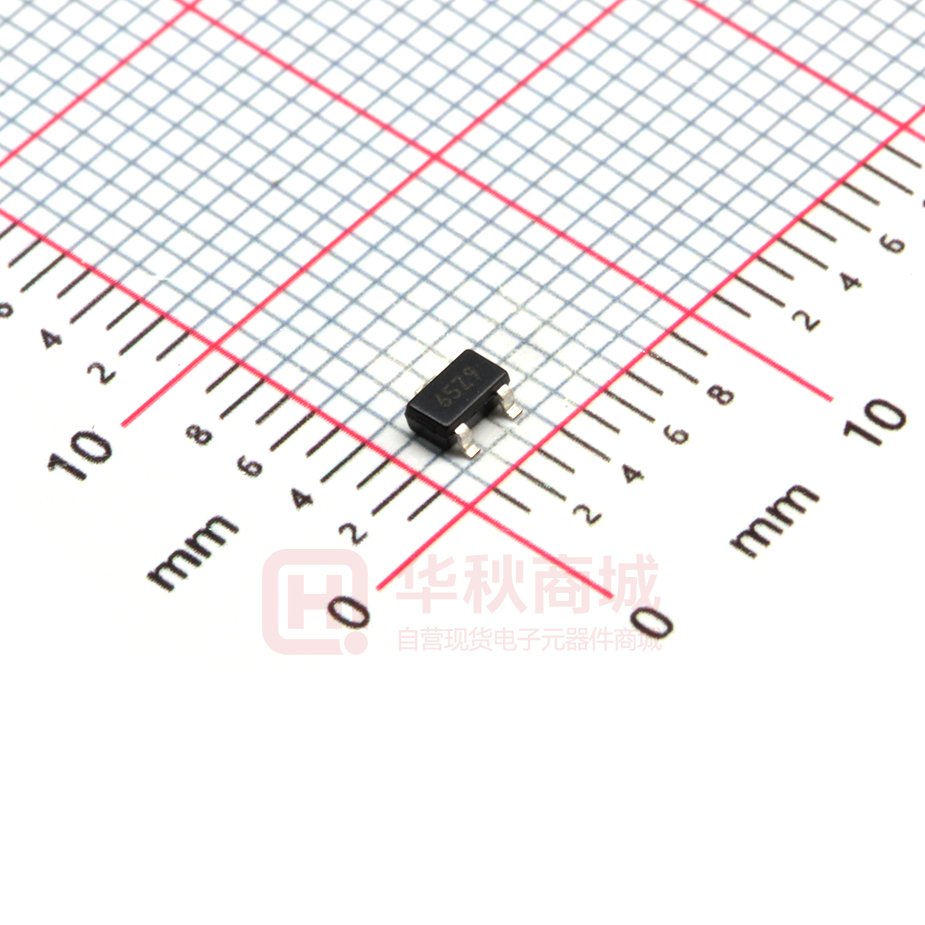

XC6206P302MR-G

ETR0305_002 ■GENERAL DESCRIPTION The XC6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The XC6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The currrent limiter's foldback circuit also operates as a short protect for the output current limiter and the output pin. Output voltage can be set internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V. SOT-23, SOT-89, TO-92 and USP-6B packages are available. ■APPLICATIONS ■FEATURES ●Battery powered equipment CMOS ●Reference voltage sources Maximum Output Current : 250mA (5.0V type) Dropout Voltage : 250mV @ 100mA (3.0V type) ●Cameras, video cameras Maximum Operating Voltage : 6.0V ●Portable AV systems Output Voltage Range : 1.2V ~ 5.0V (0.1V increments) ●Mobile phones Highly Accurate : Fixed voltage accuracy ±2% (+30mV@VOUT2.0V) Low Power Consumption : 1.0μA (TYP.) Operating Temperature Range : -40OC ~ 85 OC Low ESR Capacitor : Ceramic capacitor compatible Current Limit Circuit Built-in Ultra Small Package : SOT-23 (250mW) SOT-89 (500mW) TO-92 (300mW) USP-6B (100mW) ■TYPICAL APPLICATION CIRCUIT ■TYPICAL PERFORMANCE CHARACTERISTICS 1/17 XC6206 Series ■PIN CONFIGURATION *The dissipation pad for the USP-6B package should be solder-plated in recommended mount pattern and metal masking so as to enhance mounting strength and heat release. If the pad needs to be connected to other pins, it should be connected to the pin number 4 (VIN). (TOP VIEW) ■PIN ASSIGNMENT SOT-23 PIN NUMBER SOT-89/TO-92 (T) USP-6B 1 2 3 - 1 3 2 - TO-92 (L) 2 4 6 1, 3, 5 2 1 3 - PIN NAME FUNCTIONS VSS VIN VOUT NC Ground Power Input Output No Connection ■PRODUCT CLASSIFICATION ●Ordering Information XC6206P ①②③④⑤ DESIGNATOR DESCRIPTION SYMBOL ①② Output Voltage 12~50 ③ Accuracy ④ Packages ⑤ Device Orientation * +1% accuracy can be set at VOUT(T) > 2.0V. 2/17 2 1* M P D T L R L H B DESCRIPTION : e.g. VOUT: 3.0V→①=3, ②=0 : Within + 2% (within +30mV when VOUT1.8V: 1mA≦IOUT≦100mA VOUT(T)1.8V: IOUT=100mA VOUT(T)1.5V, accuracy is +2%. When VOUT(T)2.0V 4/17 XC6206 Series ■ELECTRICAL CHARACTERISTICS (Continued) ●Electrical Characteristics Chart PARAMETER SETTING VOLTAGE VOUT(T) 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 5.0 E-1 E-2 E-3 E-4 E-5 E-6 OUTPUT VOLTAGE MAX. OUTPUT CURRENT LOAD REGULATION DROPOUT VOLTAGE 1 DROPOUT VOLTAGE 2 SHORT CURRENT IOUTMAX (mA) MIN. UVOUT (mV) MAX. Vdif1 (mV) TYP. MAX. Vdif2 (mV) TYP. MAX. Ishort (mA) TYP. 2% ACCURACY 1% ACCURACY VOUT(E) (V) VOUT(E) (V) MIN. MAX. 1.170 1.270 1.370 1.470 1.568 1.666 1.764 1.862 1.960 2.058 2.156 2.254 2.352 2.450 2.548 2.646 2.744 2.842 2.940 3.038 3.136 3.234 3.332 3.430 3.528 3.626 3.724 3.822 3.920 4.018 4.116 4.214 4.312 4.410 4.508 4.606 4.704 4.802 4.900 1.230 1.330 1.430 1.530 1.632 1.734 1.836 1.938 2.040 2.042 2.244 2.346 2.448 2.550 2.652 2.754 2.856 2.958 3.060 3.162 3.264 3.366 3.468 3.570 3.672 3.774 3.876 3.978 4.080 4.182 4.284 4.386 4.488 4.590 4.692 4.794 4.896 4.998 5.100 MIN. MAX. 60 40 Not Available 80 45 460 400 350 300 250 200 150 760 650 590 510 450 410 390 700 960 580 860 450 810 180 155 780 1.980 2.079 2.178 2.277 2.376 2.475 2.574 2.673 2.772 2.871 2.970 3.069 3.168 3.267 3.366 3.465 3.564 3.663 3.762 3.861 3.960 4.059 4.158 4.257 4.356 4.455 4.554 4.653 4.752 4.851 4.950 2.020 2.121 2.222 2.323 2.424 2.525 2.626 2.727 2.828 2.929 3.030 3.131 3.232 3.333 3.434 3.535 3.636 3.737 3.838 3.939 4.040 4.141 4.242 4.343 4.444 4.545 4.646 4.747 4.848 4.949 5.050 130 120 50 100 370 350 710 150 55 60 200 75 350 250 680 100 65 70 250 60 320 200 630 50 290 175 600 75 80 5/17 XC6206 Series ■TEST CIRCUITS Circuit ① Circuit ② 6/17 XC6206 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (1) Output Voltage vs. Output Current (2) Current Limit Topr=25℃ Topr=25℃ Topr=25℃ 7/17 XC6206 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (3) Output Voltage vs. Input Voltage (4) Dropout Voltage vs. Output Current 8/17 XC6206 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (5) Supply Current vs. Input Voltage (6) Output Voltage vs. Ambient Temperature 9/17 XC6206 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (7) Output Voltage vs. Ambient Temperature (8) Input Transient Response 1 Time (0.4ms / div) Time (0.4ms / div) 10/17 Time (0.4ms / div) Time (0.4ms / div) Time (0.4ms / div) Time (0.4ms / div) XC6206 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (9) Input Transient Response 2 Time (2ms / div) Time (2ms / div) Time (2ms / div) Time (2ms / div) Time (2ms / div) Time (2ms / div) Time (1ms / div) Time (1ms / div) (10) Load Transient Response Time (1ms / div) 11/17 XC6206 Series ■TYPICAL PERFORMANCE CHARACTERISTICS (Continued) (11) Ripple Rejection Rate 12/17 XC6206 Series ■PACKAGING INFORMATION ●SOT-23 ●USP-6B ●SOT-89 ●TO-92 Cross Section Diagram 断面図 *The pin number 1 is larger than the other pins 13/17 XC6206 Series ■PACKAGING INFORMATION (Continued) ●USP-6B Reference Pattern Layout 14/17 ●USP-6B Reference Metal Mask Design XC6206 Series ■MARKING RULE ●SOT-23, SOT-89 3 ① ② ①Represents product number MARK PRODUCT SERIES 6 XC6206P***** ③ ④ 1 ②Represents 3 pins regulator 2 MARK VOLTAGE＝0.1 ~ 3.0V VOLTAGE＝3.1 ~ 6.0V SOT-23 (TOP VIEW) 1 ④ 2 SOT-89 (TOP VIEW) 6 ③Represents output voltage MARK VOLTAGE (V) ③ ① ② 5 3 0 1 2 3 4 5 6 7 8 9 A B C D E PRODUCT SERIES 1.2 1.3 1.4 1.5 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0 4.1 4.2 4.3 4.4 4.5 XC6206P***** MARK - F H K L M N P R S T U V X Y Z OUTPUT VOLTAGE (V) 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 4.6 4.7 4.8 4.9 5.0 - - ④Represents production lot number 0 to 9, A to Z repeated. (G, I, J, O, Q, W excepted) *No character inversion used. 15/17 XC6206 Series ■MARKING RULE (Continued) ①②Represents product number MARK ① ●USP-6B PRODUCT SERIES ② 0 6 ③Represents 3 pins regulator MARK XC6206P***D* PRODUCT SERIES P USP-6B (TOP VIEW) XC6206P***D* ④⑤Represents output voltage MARK OUTPUT VOLTAGE(V) ④ ⑤ 3 5 3 0 PRODUCT SERIES 3.3 5.0 XC6206P33*D* XC6206P50*D* ⑥Represents production lot number 0 to 9, A to Z repeated. (G, I, J, O, Q, W excepted) *No character inversion used. ● TO-92 ①Represents type of regulator TO-92 (L Type) TO-92 (T Type) (TOP VIEW) (TOP VIEW) MARK PRODUCT SERIES P XC6206P***** ②③Represents output voltage MARK VOLTAGE (V) ② ③ 3 3 3.3 5 0 5 PRODUCT SERIES XC6206P33*** XC6206P50*** ④Represents detect voltage accuracy MARK 1 2 DETECT VOLTAGE ACCURACY Within±1% Within±2% PRODUCT SERIES XC6206P**1** XC6206P**2** ⑤Represents least significant digit of the production year MARK PRODUCTION YEAR 3 2003 4 2004 ⑥Represents production lot number 0 to 9, A to Z repeated. (G, I, J, O, Q, W excepted) *No character inversion used. 16/17 XC6206 Series 1. The products and product specifications contained herein are subject to change without notice to improve performance characteristics. Consult us, or our representatives before use, to confirm that the information in this datasheet is up to date. 2. We assume no responsibility for any infringement of patents, patent rights, or other rights arising from the use of any information and circuitry in this datasheet. 3. Please ensure suitable shipping controls (including fail-safe designs and aging protection) are in force for equipment employing products listed in this datasheet. 4. The products in this datasheet are not developed, designed, or approved for use with such equipment whose failure of malfunction can be reasonably expected to directly endanger the life of, or cause significant injury to, the user. (e.g. Atomic energy; aerospace; transport; combustion and associated safety equipment thereof.) 5. Please use the products listed in this datasheet within the specified ranges. Should you wish to use the products under conditions exceeding the specifications, please consult us or our representatives. 6. We assume no responsibility for damage or loss due to abnormal use. 7. All rights reserved. No part of this datasheet may be copied or reproduced without the prior permission of TOREX SEMICONDUCTOR LTD. 17/17
