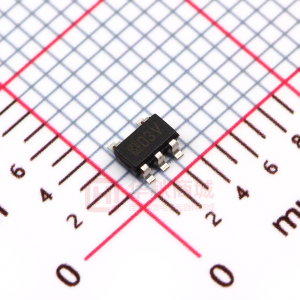

XC9104

XC9103/04/05 Series ! Ceramic Capacitors Compatible ! Input Voltage Range: 0.9V~10.0V ! Output Voltage Externally Set-up ! Oscillation Frequency: 300kHz, 180kHz (±15%) ! PWM Control (XC9103) PWM/PFM Automatic Switching Control (XC9104) PWM/PFM Manual Switching Control (XC9105) ! SOT-25 / USP-6B Package " GENERAL DESCRIPTION The XC9103/9104/9105 series are PWM, PWM/PFM auto switching /manual switching controlled multi-functional step-up DC/DC converter controllers. Output will be stable no matter which load capacitors are used but should a low ESR capacitor be used, RSENSE of about 0.1Ω will be required and phase compensation will be achieved. This makes the use of ceramic capacitors much easier and allows for lower output ripple and reduced PCB area requirements. Tantalum and electrolytic capacitors can also be used, in which case, RSENSE becomes unnecessary. With 0.9V of standard voltage supply internal, and using externally connected components, output voltage can be set up freely within a range of 1.5V to 30V. With 300kHz or 180kHz frequencies, the size of the external components can be reduced. Oscillation frequencies of 100kHz and 500kHz are also available as custom-designed products. The XC9103 series are PWM controlled. Control switches from PWM to PFM during light loads with the XC9104 and the series is highly efficient from light loads to large output currents. By using external signals, control of the XC9105 can be alternated between PWM and PWM/PFM automatic switching and so, control suited to the application can be selected. A current limiter circuit is built in to the IC (except with the 100kHz and 500kHz version) and monitors the ripple voltage on the FB pin. Operation is shut down when the ripple voltage is more than 250mV(180kHz version). The operations of the IC can be returned to normal with a toggle of the CE pin or by turning the power supply back on. Ceramic Cap. Compatible Step-Up DC/DC Converters June 25, 2003 Ver. 6 " APPLICATIONS # PDAs # Cellular Phones # Palmtop Computers # Portable Audio Systems # Various Multi-function Power Supplies " FEATURES Input Voltage Range: Power Supply Voltage Range: Output Voltage Range: 0.9V ~ 10V 1.8V ~ 10V 1.5V ~ 30V Set up freely with a standard voltage supply of 0.9V (±2.0%) & external components 300, 180kHz ±15% 100, 500kHz available as semi-custom Oscillation Frequency: Output Current: Controls: more than 400mA (VIN=1.8V, VOUT=3.3V) PWM (XC9103) PWM/PFM auto-switching (XC9104) PWM/PFM manual switching (XC9105) High Efficiency: Stand-by Current: Load Capacitors: Current Limiter Function: 85% (TYP.) ISTB=1.0µA (MAX.) Low ESR capacitors compatible Operates when ripple voltage =250mV (180kHz version) Also available without current limiter (100kHz and 500kHz types are available only without current limiter) Packages : SOT-25 / USP-6B " TYPICAL APPLICATION CIRCUIT " TYPICAL PERFORMANCE CHARACTERISTICS XC9105D093MR VOUT=3.3V, CL=20uF When PWM/PFM Automatic Switching Tr: XP161A1355PR RSENSE:100m Ω for Ceramic CL SD: MA737 RFB1: 120k Ω CFB: 47pF RFB2: 45k Ω 1 2 Ceramic CL 10µF for 200mA 10µFx2 for 400mA 3 CE (CE/PWM) 4 5 100 L: 10µH 80 Efficiency EFFI (%) 1.8V 2.7V VIN 0.9V~ VOUT=3.3V IOUT=400mA 60 1.2V 40 VIN=0.9V 1.5V Nch Power MOS FET XP161A1355 20 0 0.1 1 10 100 Output Current IOUT (mA) 1000 Semiconductor Ltd. 1 XC9103/04/05 Series " PIN CONIGURATION Ceramic Cap. Compatible Step-Up DC/DC Converters " PIN ASSIGNMENT PIN NUMBER SOT-25 USP-6B PIN NAME FB VDD CE CE FUNCTION Output Resistor Connection Supply Voltage Chip Enable (Operates in "H" level) 5 4 1 2 3 6 5 4 1 2 3 4 5 - 6 2 4 3 1 5 1 2 3 Serves as both PWM/PFM switching pin (/PWM) and CE pin for XC9105 GND EXT NC Ground External Transistor Connection No Connection SOT-25 (TOP VIEW) [SOT-23-5] USP-6B (TOP VIEW) " ORDERING INFORMATION XC9103123456 XC9103 Series: PWM Control XC9104123456 XC9104 Series: PWM/PFM automatic switching control (Same as XC9103 Series) With Current Limiter Without Current Limiter (D type : 100kHz, 500kHz Only) FB Voltage Oscillation Frequency: 300kHz 100kHz 180kHz 500kHz (D type only) Package: SOT-25 (1 reel = 3000 pcs.) USP-6B (1 reel = 3000 pcs.) Embossed Tape: Standard Feed Reverse Feed 1 2 3 4 5 6 B D 09 3 1 2 5 M D R L XC9105123456 XC9105 Series: PWM/PFM manual switching control (Same as XC9103 Series) " PACKAGING INFORMATION $ SOT-25 (SOT-23-5) $ USP-6B 2.0 + 0.15 (0.45) 0.5+0.1 (0.05) φ (0.27) 0.005+0.002 (0.27) 1 0.45) 1 2 3 6 5 4 1.8+0.15 (0.27) 45 O ( (0.45) (0.45) (0.125) 45 O 45 O 45 A A’ O (0.65)+0.15 -0.05 1 0.7+0.03 5-0.2+0.05 3 2 4 5 00.1+0.03 0.2+0.05 1 6 1 1 1 1.0+0.1 0.25+0.1 . 0.25+0.1 2 1 0.5+0.1 0.5+0.1 1.6+0.15 Semiconductor Ltd. (0.05) -0.005 +0.01 AAA AAA XC9103/04/05 Series " ABSOLUTE MAXIMUM RATINGS Ceramic Cap. Compatible Step-Up DC/DC Converters Ta = 25OC PARAMETER VDD pin Voltage FB pin Voltage CE pin Voltage EXT pin Voltage EXT pin Current Power Dissipation Operating Ambient Temperature Storage Temperature Pd SYMBOL VDD FB VCE VEXT IEXT/ SOT-25 USP-6B Topr Tstg RATINGS -0.3 ~ 12 -0.3 ~ 12 -0.3 ~ 12 -0.3 ~ VDD + 0.3 ±100 150 100 -40 ~ +85 -40 ~ +125 O O UNITS V V V V mA mW C C " BLOCK DIAGRAM FB Current Ripple Detect and FB Phase Compensation VDD PWM Comparator Error Amp. Vref with Soft Start, CE CE(/PWM) Note: PWM/PFM Controller Ramp Wave Generator, OSC Buffer, Driver EXT GND FB, CE : CMOS INPUT EXT : CMOS OUTPUT 3 Semiconductor Ltd. XC9103/04/05 Series " ELECTRICAL CHARACTERISTICS XC9103B092MR, XC9104B092MR, XC9105B092MR XC9103D092MR, XC9104D092MR, XC9105D092MR Ceramic Cap. Compatible Step-Up DC/DC Converters (FOSC=180 (kHz) Ta=25OC PARAMETER Output Voltage Output Voltage Range FB Control Voltage *1 Power Supply Voltage Range Operation Start Voltage *1 Oscillation Start Voltage Operation Holding Voltage Supply Current 1 Supply Current 2 Stand-by Current Oscillation Frequency Maximum Duty Ratio PWM Duty Ratio *3 Overcurrent SENSE Voltage SYMBOL VOUT VOUTSET VFB VDD VST1 VST2 VHLD IDD1 IDD2 ISTB FOSC MAXDTY PFMDTY VLMT No Load CONDITIONS VIN=VOUTSET× 0.6, VDD=3.3V IOUT=10mA, Using 2SD1628 MIN. 3.234 1.5 0.882 1.8 TYP. 3.300 0.900 45 17 180 81 28 250 MAX. 3.366 30.0 0.918 10 0.9 0.8 0.7 64 24 1.0 207 87 36 330 UNITS V V V V V V V µA µA µA kHz % % mV CIRCUIT 1 2 4 3 4 3 4 4 5 4 4 1 6 1 1 5 5 1 1 4 4 5 5 5 5 Recommended Circuit using 2SD1628, IOUT=1.0mA No external connections CE connected to VDD, Voltage applied, FB=0V Recommended Circuit using 2SD1628, IOUT=1.0mA Same as VST2, VDD=3.300V Same as IDD1, FB=1.2V Same as IDD1, CE=0V Same as IDD1 Same as IDD1 (XC9104B/D, 9105B/D) Step input to FB ( Pulse width:2.0 µS or more) EXT = Low level voltage (XC9103B, 9104B, 9105B) Recommended Circuit using XP161A1355 153 75 20 170 Efficiency Soft-start Time CE "High" Voltage CE "Low" Voltage *2 *2 PWM "High" Voltage PWM "Low" Voltage EXT "High" ON Resistance EXT "Low" ON Resistance CE "High" Current CE "Low" Current FB "High" Current FB "Low" Current EFFI TSS VCEH VCEL VPWMH VPWML REXTH REXTL ICEH ICEL IFBH IFBL 85 5.0 10.0 VDD - 1.0 24 16 36 24 0.1 -0.1 0.1 -0.1 20.0 0.20 0.65 - % mS V V V V Ω Ω µA µA µA µA Same as IDD1 Same as IDD1 IOUT=1.0mA IOUT=1.0mA (XC9105B/D) (XC9105B/D) VDD - 0.2 - Same as IDD1, VEXT=VOUT-0.4V Same as IDD1, VEXT=0.4V Same as IDD2, CE=VDD Same as IDD2, CE=0V Same as IDD2, FB=VDD Same as IDD2, FB=0V Test Conditions: Unless otherwise stated, CL: ceramic capacitor, recommended MOS FET should be connected. VOUT=3.30 (V), VIN=2.00 (V), IOUT=170 (mA) " NOTES *1 *2 Although the IC starts step-up operations from a VDD of 0.8V, the output voltage and oscillation frequency are stabilized at VDD ≥ 1.8V. Therefore, a VDD of more than 1.8V is recommended when VDD is supplied from VIN or other power sources. With the XC9105 series, the CE pin also serves as a PWM/PFM switching pin. In operation, PWM control is selected when the voltage at the CE pin is more than VDD -0.2V. On the other hand, PWM/PFM automatic switching control at a duty = 25% is selected when the voltage at the CE pin is less than VDD -1.0V and more than VCEH. The overcurrent limit circuit of this IC is designed to monitor the ripple voltage so please select your external components carefully to prevent VLMT being reached under low temperature conditions as well as normal operating conditions. Following current limiter circuit operations, which in turn causes the IC's operations to stop, the operations of the IC can be returned to normal with a toggle of the CE pin or by turning the power supply back on. *3 4 Semiconductor Ltd. XC9103/04/05 Series Ceramic Cap. Compatible Step-Up DC/DC Converters " ELECTRICAL CHARACTERISTICS (Continued) XC9103B093MR, XC9104B093MR, XC9105B093MR XC9103D093MR, XC9104D093MR, XC9105D093MR (FOSC=300 (kHz) Ta=25OC PARAMETER Output Voltage Output Voltage Range FB Control Voltage *1 Power Supply Voltage Range Operation Start Voltage *1 Oscillation Start Voltage Operation Holding Voltage Supply Current 1 Supply Current 2 Stand-by Current Oscillation Frequency Maximum Duty Ratio PWM Duty Ratio *3 Overcurrent SENSE Voltage SYMBOL VOUT VOUTSET VFB VDD VST1 VST2 VHLD IDD1 IDD2 ISTB FOSC MAXDTY PFMDTY VLMT CONDITIONS VIN=VOUTSET× 0.6, VDD=3.3V IOUT=10mA, Using 2SD1628 MIN. 3.234 1.5 0.882 1.8 TYP. 3.300 0.900 62 16 MAX. 3.366 30.0 0.918 10 0.9 0.8 0.7 88 22 1.0 345 87 40 380 UNITS V V V V V V V µA µA µA kHz % % mV CIRCUIT 1 2 4 3 4 3 4 4 5 4 4 1 6 1 1 5 5 1 1 4 4 5 5 5 5 Recommended Circuit using 2SD1628, IOUT=1.0mA No external connections CE connected to VDD, Voltage applied, FB=0V Recommended Circuit using 2SD1628, IOUT=1.0mA Same as VST2, VDD=3.300V Same as IDD1, FB=1.2V Same as IDD1, CE=0V Same as IDD1 Same as IDD1 No Load (XC9104B/D, 9105B/D) Step input to FB ( Pulse width:2.0 µS or more) EXT = Low level voltage (XC9103B, 9104B, 9105B) Recommended Circuit using XP161A1355 Same as IDD1 Same as IDD1 IOUT=1.0mA IOUT=1.0mA Same as IDD1, VEXT=0.4V Same as IDD2, CE=VDD Same as IDD2, CE=0V Same as IDD2, FB=VDD Same as IDD2, FB=0V (XC9105B/D) (XC9105B/D) - 255 75 24 220 300 81 32 300 Efficiency Soft-start Time CE "High" Voltage CE "Low" Voltage *2 *2 PWM "High" Voltage PWM "Low" Voltage EXT "High" ON Resistance EXT "Low" ON Resistance CE "High" Current CE "Low" Current FB "High" Current FB "Low" Current EFFI TSS VCEH VCEL VPWMH VPWML REXTH REXTL ICEH ICEL IFBH IFBL 5.0 0.65 VDD - 0.2 - 85 10.0 24 16 - 20.0 0.20 VDD - 1.0 36 24 0.1 -0.1 0.1 -0.1 % mS V V V V Ω Ω µA µA µA µA Same as IDD1, VEXT=VOUT-0.4V Test Conditions: Unless otherwise stated, CL: ceramic, recommended MOS FET should be connected. VOUT=3.30 (V), VIN=2.00 (V), IOUT=170 (mA) " NOTES *1 *2 Although the IC starts step-up operations from a VDD of 0.8V, the output voltage and oscillation frequency are stabilized at VDD ≥ 1.8V. Therefore, a VDD of more than 1.8V is recommended when VDD is supplied from VIN or other power sources. With the XC9105 series, the CE pin also serves as a PWM/PFM switching pin. In operation, PWM control is selected when the voltage at the CE pin is more than VDD -0.2V. On the other hand, PWM/PFM automatic switching control at a duty = 25% is selected when the voltage at the CE pin is less than VDD -1.0V and more than VCEH. The overcurrent limit circuit of this IC is designed to monitor the ripple voltage so please select your external components carefully to prevent VLMT being reached under low temperature conditions as well as normal operating conditions. Following current limiter circuit operations, which in turn causes the IC's operations to stop, the operations of the IC can be returned to normal with a toggle of the CE pin or by turning the power supply back on. *3 5 Semiconductor Ltd. XC9103/04/05 Series Ceramic Cap. Compatible Step-Up DC/DC Converters " TYPICAL APPLICATION CIRCUIT RSENSE CFB RFB2 1 2 CL 3 CE (CE/PWM) SD L VIN VOUT RFB1 Rb Cb 5 Nch Power MOS FET 4 When obtaining VDD from a source other than VOUT, please insert a capacitor CIN between the VDD pin and the GND pin in order to provide stabler operations. Please wire CL & CIN between the VOUT/VDD pin and the GND pin. Strengthen the wiring sufficiently. Insert Rb and CB when using a bipolar NPN Transistor. " HOW TO USE SCE SPWM ON or OFF ON OFF CONDITIONS Chip Disable Duty=25%, PWM/PFM automatic switching PWM VDD RM1 CE/PWM RM2 SPWM SCE ON OFF OFF By using external signals, the control of the XC9105 series can be switched between PWM control and PWM/PFM automatic switching control. By inputting a voltage of more than VDD -0.2V to the CE/PWM pin, PWM control can be selected. On the other hand, PWM/PFM automatic switching control can be selected by inputting a voltage of less than VDD -1.0V. With the XC9105, by connecting resistors of the same value (RM1, RM2) as shown in the diagram to the left, it is possible to obtain chip disable with SCE ON and, SPWM ON or OFF, PWM/PFM auto switching at Duty=25% with SCE OFF & SPWM ON, & PFM control with both switches OFF. Note: When operating at VDD -1.8V and below (stepping-up from VIN=0.9V), it is necessary to pull-up to VDD in order to allow the CE/PWM pin reach the VCEH voltage level. Please make sure that the IC is in PWM control (SPWM=OFF) when operations start. If SPWM is ON, there are times when chip enable might not operate. * Please select your external components carefully (refer to the page 8). 6 Semiconductor Ltd. XC9103/04/05 Series " NOTE ON HOW TO USE B TYPE Ceramic Cap. Compatible Step-Up DC/DC Converters When applying voltage to VDD through CE pin with the series' B type product, the limiter circuit may operate when a power supply is on, and the operation may not start. In this case, as the right circuit indicates, please connect a resistor and a capacitor with the CE pin. By the time constant, the CE pin will be chip enable after VDD rise so that IC will be in the stable condition. Please set time constant equal to 10ms by the following equation. FB EXT Time constant : τ (s) = R (Ω) x C (F) VDD [ Example of Equation ] τ (s) = R (Ω) x C (F) R = 100kΩ, C = 0.1µF GND R CE/PWM C = 100kΩ x 0.1µF = 10ms " OPERATIONAL DESCRIPTION The XC9103/04/05 series are step-up DC/DC converter controller ICs with built-in high speed, low ON resistance drivers. Error Amplifier is designed to monitor the output voltage, comparing the feedback voltage (FB) with the reference voltage Vref. In response to feedback of a voltage lower than the reference voltage Vref, the output voltage of the error amp. decreases. This circuit generates the internal reference clock. The Ramp Wave Generator generates a saw-tooth waveform based on outputs from the OSC Generator. The PWM comparator compares outputs from the Error Amp. and saw-tooth waveform. When the voltage from the Error Amp's output is low, the external switch will be set to ON. This circuit generates PFM pulses. The PWM/PFM automatic switching mode switches between PWM and PFM automatically depending on the load. The PWM/PFM automatic switching mode is selected when the voltage of the CE pin is less than VDD - 1.0V, and the control switches between PWM and PFM automatically depending on the load. PWM/PFM control turns into PFM control when threshold voltage becomes lower than voltage of error amps. PWM control mode is selected when the voltage of the CE pin is more than VDD - 0.2V. Noise is easily reduced with PWM control since the switching frequency is fixed. The series is suitable for noise sensitive portable audio equipment as PWM control can suppress noise during operation and PWM/PFM switching control can reduce consumption current during light load in stand-by. The reference voltage, Vref (FB pin voltage)=0.9V, is adjusted and fixed by laser trimming (for output voltage settings, please refer to the notes on page 8). To protect against inrush current, when the power is switched on, and also to protect against voltage overshoot, soft-start time is set internally to 10ms. It should be noted, however, that this circuit does not protect the load capacitor (CL) from inrush current. With the Vref voltage limited and depending upon the input to the error amps, the operation maintains a balance between the two inputs of the error amps and controls the EXT pin's ON time so that it doesn't increase more than is necessary. This function controls the operation and shutdown of the IC. When the voltage of the CE pin is 0.2V or less, the mode will be disable, the channel's operations will stop and the EXT1 pin will be kept at a low level (the external N-type MOSFET will be OFF). When the IC is in a state of disable, current consumption will be no more than 1.0µA. When the CE pin's voltage is 0.65V or more, the mode will be enable and operations will recommence. Semiconductor Ltd. 7 XC9103/04/05 Series " FUNCTIONAL SETTINGS < Output Voltage Setting> Ceramic Cap. Compatible Step-Up DC/DC Converters Output voltage can be set by adding external split resistors. Output voltage is determined by the following equation, based on the values of RFB1 and RFB2. The sum of RFB1 and RFB2 should normally be 2 M Ω or less. VOUT = 0.9 x (RFB1 + RFB2) / RFB2 The value of CFB1, speed-up capacitor for phase compensation, should result in fzfb = 1/(2 π × CFB × RFB1) equal to 5 to 30kHz. Adjustments are required depending on the application, value of inductance (L), and value of load capacity (CL). fzfb = 30kHz (L=10µH) fzfb = 20kHz (L=22µH) fzfb = 10kHz (L=47µH) [ Example of Equation ] RFB1 : 120kΩ CFB : 47pF 68pF 130pF RFB2 : 45kΩ (fzfb = 30kHz, L = 10µH) (fzfb = 20kHz, L = 22µH) (fzfb = 10kHz, L = 47µH) < The use of ceramic capacitor CL > The circuit of the XC9103/04/05 series is organized by a specialized circuit which reenacts negative feedback of both voltage and current. Also by insertion of approximately 100mΩ of a low and inexpensive sense resistor as current sense, a high degree of stability is possible even using a ceramic capacitor, a condition which used to be difficult to achieve. Compared to a tantalum condenser, because the series can be operated in a very small capacity, it is suited to use of the ceramic capacitor which is cheap and small. < External Components > Tr: *When a MOSFET is used : XP161A1355PR (TOREX Nch. Power MOSFET) Note* : As the breakdown voltage of XP161A1355 is 8V, take care with the power supply voltage. With output voltages over 6V, use the XP161A1265 with a breakdown voltage of 12V. VST1: XP161A1355 PR =1.2V (max.) XP161A1265PR = 1.5V (max.) *When a NPN Tr. Is used : 2SD1628 (Sanyo) Rb Cb : 500Ω (adjust with Tr's HSE or load) : 2200pF (ceramic type) Cb ≤ 1 / (2π × Rb× FOSC × 0.7) SD: L, CL: L: CL: MA2Q737 (Schottky type, MATSUSHITA) When using ceramic type 22µH (SUMIDA CDRH5D28, FOSC = 100, 180kHz) 10µH (SUMIDA CDRH5D18, FOSC = 300, 500kHz) 10V 10µF (ceramic type, TAIYO YUDEN LMK325BJ106ML)) Use the formula below when step-up ratio and output current is large. CL = (CL standard value) x (IOUT(mA) / 300mA x VOUT / VIN) RSENSE: 100mΩ (FOSC = 180, 300, 500kHz) 50mΩ (FOSC = 100kHz) CL: L: Tantalum Type 22µH (SUMIDA CDRH5D28, FOSC = 300kHz) 47µH (SUMIDA CDRH5D28, FOSC = 100, 180kHz) Except when IOUT(mA) / 100mA × VOUT / VIN > 2 → 22µH 10µH (SUMIDA CDRH5D18, FOSC = 500kHz) CL: 16V 47µF (tantalum type NICHICHEMI 16MCE476MD2) Use the formula below when step-up ratio and output current is large. CL = (CL standard value) × (IOUT(mA) / 300mA × VOUT / VIN) RSENSE: CL: L: Not required, but short out the wire. AL Electrolytic Type 22µH (SUMIDA CDRH5D28, FOSC = 300kHz) 47µH (SUMIDA CDRH5D28, FOSC = 100, 180kHz) Except when IOUT(mA) / 100mA × VOUT / VIN > 2 → 22µH CL: RSENSE: CFB: 16V 100µF (AL electrolytic type) + 10V 2.2µF (ceramic type) Strengthen appropriately when step-up ratio and output current is large. Not required, but short out the wire. Set up so that fzfb = 100kHz. 8 Semiconductor Ltd. XC9103/04/05 Series Ceramic Cap. Compatible Step-Up DC/DC Converters " TEST CIRCUITS CIRCUIT 1 SD L A Tr VIN CIN CE GND FB RFB2 OSC EXT VDD CFB RFB1 RSENSE CIRCUIT 4 VOUT RP CP A CL V OSC EXT VDD FB GND CDD RL CE A CIRCUIT 2 CIRCUIT 5 A EXT VDD FB GND A SD L A Tr CIN VIN RB C CE E A A RSENSE CB OSC EXT CE GND VDD FB RFB2 CFB RFB1 A CL V RL CIRCUIT 6 CIRCUIT 3 SD L A Tr CIN VIN RB RSENSE EXT V DD CFB RFB1 0.1uF CB OSC EXT CE GND VDD FB RFB2 CFB RFB1 A CL V CE GND FB RFB2 RL 9 Semiconductor Ltd. XC9103/04/05 Series " TYPICAL PERFORMANCE CHARACTERISTICS (1) Output Voltage vs. Output Current XC9103D092MR (PWM,180kHz,3.3V) L=22mH(CDRH5D28),CL=20mF(ceramic) SD:MA2Q737 Tr:XP161A1355P 2.0V Ceramic Cap. Compatible Step-Up DC/DC Converters XC9104D092MR (PWM/PFM,180kHz,3.3V) L=22µH(CDRH5D28),CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P 3.5 Output Voltage VOUT(V) 3.4 3.3 3.2 3.1 3.0 0.1 3.5 Output Voltage VOUT(V) 3.4 3.3 2.0V VIN=0.9V 1.2V 1.8V 1.5V VIN=0.9V 3.2 3.1 3.0 1.8V 1.2V 1.5V 1 10 100 1000 0.1 1 10 100 1000 Output Current I OUT(mA) Output Current IOUT(mA) XC9103D093MR (PWM,300kHz,3.3V) 3.5 Output Voltage VOUT(V) 3.4 3.3 3.2 VIN=0.9V 1.2V 1.8V 1.5V L=10µH(CDRH5D18),CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P XC9104D093MR (PWM/PFM,300kHz,3.3V) L=10µH(CDRH5D18),CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P 3.5 2.7V Output Voltage VOUT(V) 2.0V 3.4 3.3 3.2 3.1 3.0 VIN=0.9V 1.2V 1.5V 1.8V 3.1 3.0 0.1 1 10 100 1000 0.1 1 10 100 1000 Output Current IOUT(mA) Output Current IOUT(mA) XC9103D091MR (PWM,100kHz,3.3V) L=22µH(CDRH5D28),CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P XC9104D091MR (PWM/PFM,100kHz,3.3V) L=22µH(CDRH5D28),CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P 3.5 Output Voltage VOUT(V) Output Voltage VOUT(V) 2.0V 3.5 3.4 3.3 3.2 2.0V 3.4 3.3 3.2 VIN=0.9V 1.2V 1.8V 1.5V VIN=0.9V 1.2V 1.8V 1.5V 3.1 3.0 0.1 1 10 100 Output Current IOUT(mA) 1000 3.1 3.0 0.1 1 10 100 Output Current IOUT(mA) 1000 10 Semiconductor Ltd. XC9103/04/05 Series (1) Output Voltage vs. Output Current (Contd.) XC9103D095MR (PWM,500kHz,3.3V) L=10µH(CDRH5D18), CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P Ceramic Cap. Compatible Step-Up DC/DC Converters XC9104D095MR (PWM/PFM,500kHz,3.3V) L=10µH(CDRH5D18), CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P 3.5 Output Voltage VOUT(V) 3.4 3.3 3.5 2.0V Output Voltage VOUT(V) 2.0V 3.4 3.3 VIN=0.9V 1.2V VIN=0.9V 3.2 3.1 3.0 0.1 1 10 100 1.8V 1.2V 1.5V 3.2 3.1 3.0 1.5V 1.8V 1000 0.1 Output Current I OUT(mA) 1 10 100 Output Current I OUT(mA) 1000 XC9103D092MR (PWM,180kHz,3.3V) L=22µH(CDRH5D28),CL=47µF(tantalum) SD:MA2Q737, Tr:XP161A1355P XC9104D092MR (PWM/PFM,180kHz,3.3V) L=22µH(CDRH5D28), CL=47µF(tantalum) SD:MA2Q737, Tr:XP161A1355P 3.5 Output Voltage VOUT(V) 3.4 3.3 3.2 VIN=0.9V 1.2V 1.5V 1.8V 3.5 Output Voltage VOUT(V) 2.0V 2.0V 3.4 3.3 VIN=0.9V 3.2 3.1 3.0 1.2V 1.8V 1.5V 3.1 3.0 0.1 1 10 100 Output Current IOUT(mA) 1000 0.1 1 10 100 1000 Output Current I OUT(mA) XC9103D093MR (PWM,300kHz,3.3V) L=22µH(CDRH5D28), CL=94µF(tantalum) SD:MA2Q737, Tr:XP161A1355P XC9104D093MR (PWM/PFM,300kHz,3.3V) L=22µH(CDRH5D28), CL=94µF(tantalum) SD:MA2Q737, Tr:XP161A1355P 3.5 Output Voltage VOUT(V) 3.4 3.3 3.2 3.1 3.0 0.1 3.5 Output Voltage VOUT(V) 2.0V 2.0V 3.4 3.3 3.2 VIN=0.9V 1.2V 1.8V 1.5V VIN=0.9V 1.2V 1.8V 3.1 3.0 1 10 100 1000 0.1 1 10 100 1000 Output Current I OUT(mA) Output Current I OUT(mA) Semiconductor Ltd. 11 XC9103/04/05 Series (2) Efficiency vs. Output Current XC9103D092MR (PWM,180kHz,3.3V) L=22µH(CDRH5D28),CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P Ceramic Cap. Compatible Step-Up DC/DC Converters XC9104D092MR (PWM/PFM,180kHz,3.3V) L=22µH(CDRH5D28), CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P 100 2.0V 100 2.0V Efficiency EFFI(%) Efficiency EFFI(%) 80 60 VIN=0.9V 1.8V 80 60 40 20 0 VIN=0.9V 1.8V 1.2V 1.5V 40 1.2V 1.5V 20 0 0.1 1 10 100 1000 Output Current IOUT(mA) 0.1 1 10 100 1000 Output Current IOUT(mA) XC9103D093MR (PWM,300kHz,3.3V) L=10µH(CDRH5D18), CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P XC9104D093MR (PWM/PFM,300kHz,3.3V) L=10µH(CDRH5D18),CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P 100 2.0V Efficiency EFFI(%) Efficiency EFFI(%) 80 60 40 20 0 0.1 1 10 100 1000 Output Current IOUT(mA) 1.2V VIN=0.9V 1.8V 1.5V 100 80 60 2.7V 1.2V 1.8V 1.5V 40 VIN=0.9V 20 0 0.1 1 10 100 1000 Output Current IOUT(mA) XC9103D091MR (PWM,100kHz,3.3V) L=22µH(CDRH5D28), CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P XC9104D091MR (PWM/PFM,100kHz,3.3V) L=22µH(CDRH5D28), CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P 100 80 60 2.0V 100 2.0V Efficiency EFFI(%) Efficiency EFFI(%) 80 60 VIN=0.9V 1.8V 1.5V VIN=0.9V 1.8V 1.5V 40 20 0 0.1 1 10 1.2V 40 1.2V 20 0 100 1000 0.1 1 10 100 1000 Output Current IOUT(mA) Output Current IOUT(mA) 12 Semiconductor Ltd. XC9103/04/05 Series (2) Efficiency vs. Output Current (Contd.) XC9103D095MR (PWM,500kHz,3.3V) L=10µH(CDRH5D18), CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P Ceramic Cap. Compatible Step-Up DC/DC Converters XC9104D095MR (PWM/PFM,500kHz,3.3V) L=10µH(CDRH5D18), CL=20µF(ceramic) SD:MA2Q737, Tr:XP161A1355P 100 2.0V Efficiency EFFI(%) Efficiency EFFI(%) 80 60 1.8V 40 20 0 0.1 1 10 100 1000 Output Current IOUT(mA) 1.2V 1.5V 100 2.0V 80 60 VIN=0.9V 1.8V 1.5V 40 1.2V 20 0 0.1 1 10 100 1000 Output Current I OUT(mA) XC9103D092MR (PWM,180kHz,3.3V) L=22µH(CDRH5D28),CL=47µF(tantalum) SD:MA2Q737, Tr:XP161A1355P XC9104D092MR (PWM/PFM,180kHz,3.3V) L=22µH(CDRH5D28), CL=47µF(tantalum) SD:MA2Q737, Tr:XP161A1355P 100 80 60 40 100 80 60 VIN=0.9V 1.2V 2.0V 2.0V Efficiency EFFI(%) 1.2V VIN=0.9V 1.8V 1.5V Efficiency EFFI(%) 1.8V 40 1.5V 20 0 0.1 1 10 100 1000 Output Current I OUT(mA) 20 0 0.1 1 10 100 1000 Output Current I OUT(mA) XC9103D093MR (PWM,300kHz,3.3V) L=22µH(CDRH5D28),CL=94µF(tantalum) SD:MA2Q737, Tr:XP161A1355P XC9104D093MR (PWM/PFM,300kHz,3.3V) L=22µH(CDRH5D28), CL=94µF(tantalum) SD:MA2Q737, Tr:XP161A1355P 100 2.0V 100 2.0V Efficiency EFFI(%) 80 60 40 20 0 0.1 1 10 100 1000 0.1 1 10 100 1000 Output Current IOUT(mA) Output Current IOUT(mA) 1.2V VIN=0.9V 1.8V 1.5V Efficiency EFFI(%) 80 60 1.8V 40 20 0 VIN=0.9V 1.2V 1.5V 13 Semiconductor Ltd. XC9103/04/05 Series (3) Load Transient Response XC9103D092MR(PWM,180kHz,3.3V) VIN=1.98V, CL=20µF(ceramic), IOUT=100µA→100mA Ceramic Cap. Compatible Step-Up DC/DC Converters XC9103D092MR(PWM,180kHz,3.3V) VIN=1.98V, CL=20µF(ceramic), IOUT=100µA→100mA 3.5 Output Voltage VOUT(V) 3.4 Output Voltage 500 Output Current IOUT(mA) Output Voltage VOUT(V) 400 300 200 100mA Output Current 3.5 3.4 Output Voltage 500 400 300 200 100mA 3.3 3.2 3.1 100µA 3.3 3.2 3.1 100µA Output Current 100 0 Time (1.0msec/div) 100 0 Time (2.0msec/div) 3.0 3.0 XC9104D092MR(PWM/PFM,180kHz,3.3V) VIN=1.98V, CL=20µF(ceramic), IOUT=100µA→100mA XC9104D092MR(PWM/PFM,180kHz,3.3V) VIN=1.98V, CL=20µF(ceramic), IOUT=100µA→100mA 3.5 Output Voltage VOUT(V) 3.4 Output Voltage 500 Output Current IOUT(mA) Output Voltage VOUT(V) 400 300 200 100mA 3.5 3.4 Output Voltage 500 400 300 200 100mA 100µA Output Current 3.3 3.2 3.1 100µA Output Current 3.3 3.2 3.1 3.0 Time (2.0msec/div) 100 0 Time (1.0msec/div) 100 0 3.0 XC9103D093MR(PWM,300kHz,3.3V) VIN=1.98V, CL=20µF(ceramic), IOUT=100µA→100mA XC9103D093MR(PWM,300kHz,3.3V) VIN=1.98V, CL=20µF(ceramic), IOUT=100µA→100mA 3.5 Output Voltage VOUT(V) 3.4 Output Voltage 500 Output Current IOUT(mA) Output Voltage VOUT(V) 400 300 200 100mA 3.5 3.4 Output Voltage 500 400 300 200 100mA 3.3 3.2 3.1 100µA Output Current 3.3 3.2 3.1 100µA Output Current 100 0 Time (1.0msec/div) 100 0 Time (10.0msec/div) 3.0 3.0 14 Semiconductor Ltd. Output Current IOUT(mA) Output Current IOUT(mA) Output Current IOUT(mA) XC9103/04/05 Series (3) Load Transient Response (Contd.) XC9104D093MR(PWM/PFM,300kHz,3.3V) VIN=1.98V, CL=20µF(ceramic), IOUT=100µA→100mA Ceramic Cap. Compatible Step-Up DC/DC Converters XC9104D093MR(PWM/PFM,300kHz,3.3V) VIN=1.98V, CL=20µF(ceramic), IOUT=100µA→100mA 3.5 Output Voltage VOUT(V) 3.4 Output Voltage 500 Output Current IOUT(mA) 400 300 200 100mA 3.5 Output Voltage VOUT(V) 3.4 Output Voltage 500 400 300 200 100mA 100µA Output Current 3.3 3.2 3.1 100µA Output Current 3.3 3.2 3.1 3.0 Time (10.0msec/div) 100 0 Time (1.0msec/div) 100 0 3.0 XC9103D092MR(PWM,180kHz,3.3V) VIN=1.98V, CL=47µF(tantalum), IOUT=100µA→100mA XC9103D092MR(PWM,180kHz,3.3V) VIN=1.98V, CL=47µF(tantalum), IOUT=100µA→100mA 3.5 Output Voltage VOUT(V) 3.4 Output Voltage 500 Output Current IOUT(mA) 400 300 200 100mA 3.5 Output Voltage VOUT(V) 3.4 Output Voltage 500 400 300 200 100mA 100µA Output Current 3.3 3.2 3.1 100µA Output Current 3.3 3.2 3.1 3.0 Time (4.0msec/div) 100 0 Time (1.0msec/div) 100 0 3.0 XC9104D092MR(PWM/PFM,180kHz,3.3V) VIN=1.98V, CL=47µF(tantalum), IOUT=100µA→100mA XC9104D092MR(PWM/PFM,180kHz,3.3V) VIN=1.98V, CL=47µF(tantalum), IOUT=100µA→100mA 3.5 Output Voltage VOUT(V) 3.4 Output Voltage 500 Output Current IOUT(mA) 400 300 200 100mA 3.5 Output Voltage VOUT(V) 3.4 Output Voltage 500 400 300 200 100mA 3.3 3.2 3.1 100µA Output Current 3.3 3.2 3.1 100µA Output Current 100 0 Time (1.0msec/div) 100 0 Time (4.0msec/div) 3.0 3.0 15 Semiconductor Ltd. Output Current IOUT(mA) Output Current IOUT(mA) Output Current IOUT(mA) XC9103/04/05 Series (4) Output Voltage vs. Power Supply Voltage XC9105D092MR (180kHz,3.3V) L=22µH(CDRH5D28), CL=20µF(ceramic) SD:MA2Q737, TXP161A1355P Ceramic Cap. Compatible Step-Up DC/DC Converters (5) Supply Current 1 vs. Power Supply Voltage XC9105D092MR(180kHz) 300 Supply Current 1 IDD1(µA) 250 200 Ta=25ΟC 85OC 3.40 Output Voltage VOUT(V) 3.35 -40OC 3.30 85OC Ta=25OC 150 100 -40OC 3.25 VIN=1.98V IOUT=170mA 50 0 3.20 0 2 4 6 8 10 0 2 4 6 8 10 Supply Voltage VDD(V) Supply Voltage VDD(V) (6) Supply Current 2 vs. Power Supply Voltage XC9105D092MR(180kHz) 50 Supply Current 2 IDD2(µA) 40 Ta=25OC (7) Stand-by Current vs. Power Supply Voltage XC9105D092MR(180kHz) 2.0 Stand-by Current ISTB (µA) 1.5 85OC 30 85OC 1.0 20 10 0 0 2 4 6 8 10 Supply Voltage VDD(V) -40OC 0.5 Ta=25, -40OC 0.0 0 2 4 6 8 10 Supply Voltage VDD(V) (8) Oscillation Frequency vs. Power Supply Voltage XC9105D092MR(180kHz) Oscillation Frequency FOSC(kHz) (9) Maximum Duty Ration vs. Power Supply Voltage XC9105D092MR(180kHz) Maximum Duty Ratio PFMDTY(%) 100 300 85OC Ta=25OC 200 90 -40OC -40OC 100 Ta=25OC 80 85OC 0 0 2 4 6 8 10 Supply Voltage VDD(V) 70 0 2 4 6 8 10 Supply Voltage VDD(V) 16 Semiconductor Ltd. Semiconductor Ltd. XC9103/04/05 Series (10) PFM Duty Ratio vs. Power Supply Voltage XC9105D092MR(180kHz) 40 PFM Duty Ratio PFMDTY (%) 35 85OC Ceramic Cap. Compatible Step-Up DC/DC Converters (11) Overcurrent SENSE Voltage vs. Power Supply Voltage XC9105D092MR(180kHz) Overcurrent SENSE Voltage VLMT (mV) Ta=25OC 350 300 30 25 20 15 10 0 2 4 6 8 10 Supply Voltage VDD(V) Ta=25OC -40OC 250 200 150 0 2 4 6 8 10 Supply Voltage VDD(V) (12) Soft Start Time vs. Power Supply Voltage XC9105D092MR(180kHz) 20 Soft Start Time Tss(ms) -40OC Ta=25 C O (13) CE "H" "L" Voltage vs. Power Supply Voltage XC9105D092MR(180kHz) 1.0 0.8 Ta=25OC 15 CE"H", "L" Voltage VDEH, L (V) 0.6 0.4 0.2 0.0 0 2 4 6 10 85OC -40OC 85OC 5 0 0 2 4 6 8 10 Supply Voltage VDD(V) 8 10 Supply Voltage VDD(V) (14) PWM "H" "L" Voltage vs. Power Supply Voltage XC9105D092MR(180kHz) VD 0.0 D -0.2 85OC (15) EXT "H" ON Resistance vs. Power Supply Voltage XC9105D092MR(180kHz) PWM"H", "L" Voltage VPWMH, L (V) EXT "H" ON Resistance REXTH (Ω) 50 40 Ta=25OC Ta=25OC -0.4 -0.6 -40OC 30 85OC 20 -40OC -0.8 -1.0 0 2 4 6 8 10 Supply Voltage VDD(V) 10 0 0 2 4 6 8 10 Supply Voltage VDD(V) 17 Semiconductor Ltd. XC9103/04/05 Series (16) EXT "L" ON Resistance vs. Power Supply Voltage XC9105D092MR(180kHz) 50 Ceramic Cap. Compatible Step-Up DC/DC Converters (17) Operation Start Voltage vs. Ambient Temperature XC9105D092MR (180kHz,3.3V) L=22µH(CDRH5D28),CL=20µF(ceramic) SD:MA2Q737, Tr:2SD1628G EXT "L" ON Resistance REXTL (Ω) 1.2 Operation Start Voltage VST1 (V) 1.0 0.8 0.6 0.4 0.2 0.0 0 2 4 6 8 10 Supply Voltage VDD(V) -40 -20 0 20 40 60 80 100 Ambient Temperature Ta ( OC) IOUT=1mA 40 30 Ta=25OC 20 10 -40OC 85OC 0 (18) Operation Hold Voltage vs. Ambient Temperature XC9105D092MR (180kHz,3.3V) L=22µH(CDRH5D28), CL=20µF(ceramic) SD:MA2Q737, Tr:2SD1628G (19) Oscillation Start Voltage vs. Ambient Temperature XC9105D092MR (180kHz,3.3V) 1.0 0.8 0.6 0.4 0.2 0.0 -40 -20 0 20 40 60 80 100 Ambient Temperature Ta ( OC) Operation Hold Voltage VHLD (V) 0.8 Oscillation Start Voltage VST2 (V) 0.6 0.4 0.2 IOUT=1mA 0.0 -40 -20 0 20 40 60 80 100 Ambient Temperature Ta ( OC) (20) Supply Current 1 vs. Power Supply Voltage XC9105D093/095MR(300,500kHz) 600 Supply Current 1 IDD1 (µA) 500 400 300 200 300kHz Ta=25OC (21) Supply Current 2 vs. Power Supply Voltage XC9105D093/095MR(300,500kHz) 50 Supply Current 2 IDD2 (µA) 40 30 500kHz 20 10 0 300kHz Ta=25OC 500kHz 100 0 0 2 4 6 8 Supply Voltage VDD(V) 10 0 2 4 6 8 10 Supply Voltage VDD(V) 18 Semiconductor Ltd. XC9103/04/05 Series (22) Oscillation Frequency vs. Power Supply Voltage XC9105D093/095MR (300,500kHz) 600 500 400 300 300kHz 200 100 0 0 2 4 6 8 10 Supply Voltage VDD(V) Ta=25OC Ceramic Cap. Compatible Step-Up DC/DC Converters (23) Maximum Duty Ratio vs. Power Supply Voltage XC9105D093/095MR(300,500kHz) Ta=25OC Oscillation Frequency FOSC (kHz) 500kHz Maximum Duty Ratio PFMDTY (%) 100 90 300kHz 80 500kHz 70 0 2 4 6 8 10 Supply Voltage VDD(V) (24) PFM Duty Ratio vs. Power Supply Voltage XC9105D093/095MR(300,500kHz) Ta=25OC 40 PFM Duty Ratio PFMDTY (%) 500kHz 35 30 25 20 15 10 0 2 4 6 8 10 Supply Voltage VDD(V) 300kHz 19 Semiconductor Ltd.
