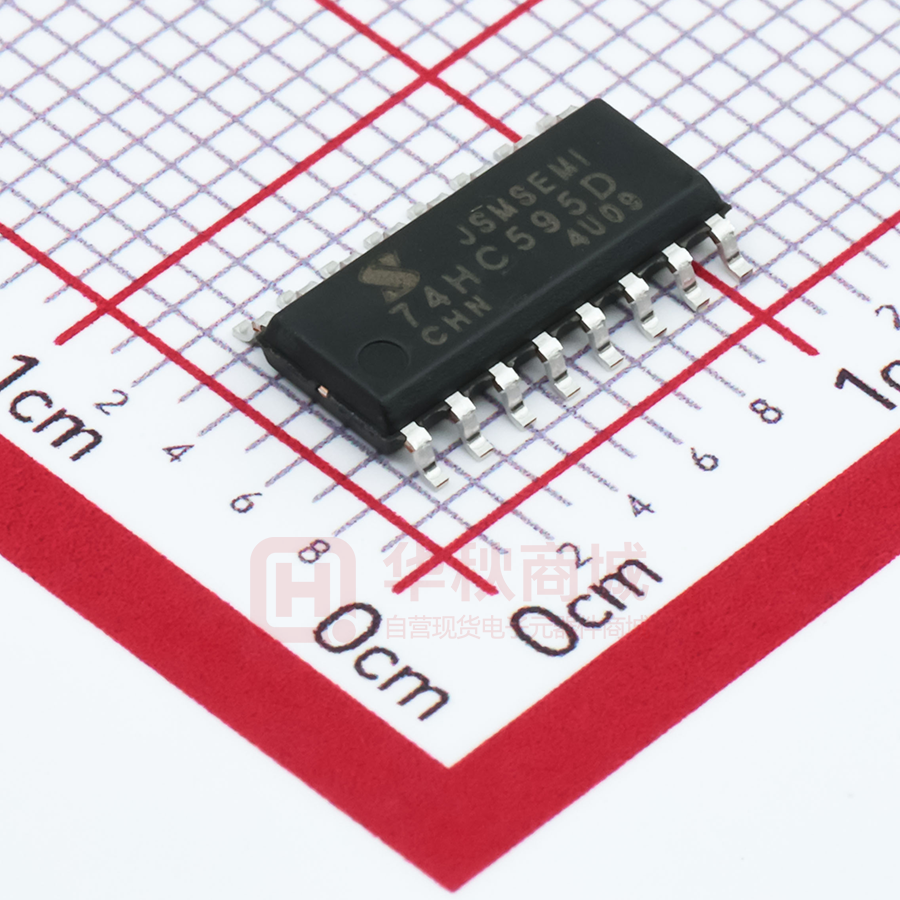

74HC595D

74HC595D CMOS Digital Integrated Circuits Silicon Monolithic 74HC595D 1. Functional Description • 8-Bit Shift Register/Latch (3-state) 2. General The 74HC595D is a high speed 8-BIT SHIFT REGISTER/LATCH fabricated with silicon gate C2MOS technology. It achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The 74HC595D contains an 8-bit static shift register which feeds an 8-bit storage register. Shift operation is accomplished on the positive going transition of the SCK input. The output register is loaded with the contents of the shift register on the positive going transition of the RCK input. Since RCK and SCK signal are independent, parallel outputs can be held stable during the shift operation. And, since the parallel outputs are 3-state, it can be directly connected to 8-bit bus. This register can be used in serial-to-parallel conversion, data receivers, etc. All inputs are equipped with protection circuits against static discharge or transient excess voltage. 3. Features (1) High speed: fMAX = 55 MHz (typ.) at VCC = 5 V (2) Low power dissipation: ICC = 4.0 µA (max) at Ta = 25 (3) Balanced propagation delays: tPLH ≈ tPHL (4) Wide operating voltage range: VCC(opr) = 2.0 V to 6.0 V 4. Packaging SOIC16 Start of commercial production ©2016 Toshiba Corporation 1 2016-02 2016-12-27 Rev.4.0 74HC595D 5. Pin Assignment 6. Marking 7. IEC Logic Symbol ©2016 Toshiba Corporation 2 2016-12-27 Rev.4.0 74HC595D 8. Truth Table X: Don't care 9. Timing Chart ©2016 Toshiba Corporation 3 2016-12-27 Rev.4.0 74HC595D 10. System Diagram 11. Absolute Maximum Ratings (Note) Characteristics Symbol Note Rating Unit Supply voltage VCC -0.5 to 7.0 V Input voltage VIN -0.5 to VCC + 0.5 V VOUT -0.5 to VCC + 0.5 V IIK ±20 mA Output diode current IOK ±20 mA Output current (QH') IOUT ±25 mA Output voltage Input diode current Output current (QA to QH) VCC/ground current ±35 ICC Power dissipation PD Storage temperature Tstg (Note 1) ±75 mA 500 mW -65 to 150  Note: Exceeding any of the absolute maximum ratings, even briefly, lead to deterioration in IC performance or even destruction. Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings and the operating ranges. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc). Note 1: PD derates linearly with -8 mW/ above 85  ©2016 Toshiba Corporation 4 2016-12-27 Rev.4.0 74HC595D 12. Operating Ranges (Note) Characteristics Symbol Test Condition Rating Unit Supply voltage VCC  2.0 to 6.0 V Input voltage VIN  0 to VCC V Output voltage VOUT  0 to VCC V Operating temperature Topr  -40 to 125  Input rise and fall times tr,tf  0 to 50 µs Note: The operating ranges must be maintained to ensure the normal operation of the device. Unused inputs must be tied to either VCC or GND. ©2016 Toshiba Corporation 5 2016-12-27 Rev.4.0 74HC595D 13. Electrical Characteristics 13.1. DC Characteristics (Unless otherwise specified, Ta = 25 ) Characteristics High-level input voltage Low-level input voltage High-level output voltage Symbol VIH VIL VOH Test Condition   VIN = VIH or VIL IOH = -20 µA VCC (V) Min Typ. Max Unit 2.0 1.50   V 4.5 3.15   6.0 4.20   2.0   0.50 4.5   1.35 6.0   1.80 2.0 1.9 2.0  4.5 4.4 4.5  6.0 5.9 6.0  High-level output voltage QH' IOH = -4 mA 4.5 4.18 4.31  IOH = -5.2 mA 6.0 5.68 5.80  High-level output voltage QA to QH IOH = -6 mA 4.5 4.18 4.31  IOH = -7.8 mA 6.0 5.68 5.80  IOL = 20 µA 2.0  0.0 0.1 4.5  0.0 0.1 Low-level output voltage VOL VIN = VIH or VIL 6.0  0.0 0.1 Low-level output voltage QH' IOL = 4 mA 4.5  0.17 0.26 IOL = 5.2 mA 6.0  0.18 0.26 Low-level output voltage QA to QH IOL = 6 mA 4.5  0.17 0.26 IOL = 7.8 mA V V V 6.0  0.18 0.26 IOZ VIN = VIH or VIL VOUT = VCC or GND 6.0   ±0.5 µA Input leakage current IIN VIN = VCC or GND 6.0   ±0.1 µA Quiescent supply current ICC VIN = VCC or GND 6.0   4.0 µA 3-state output OFF-state leakage current ©2016 Toshiba Corporation 6 2016-12-27 Rev.4.0 74HC595D 13.2. DC Characteristics (Unless otherwise specified, Ta = -40 to 85 ) Characteristics High-level input voltage Low-level input voltage High-level output voltage Symbol VIH VIL VOH Test Condition   VIN = VIH or VIL IOH = -20 µA VCC (V) Min Max Unit 2.0 1.50  V 4.5 3.15  6.0 4.20  2.0  0.50 4.5  1.35 6.0  1.80 2.0 1.9  4.5 4.4  6.0 5.9  High-level output voltage QH' IOH = -4 mA 4.5 4.13  IOH = -5.2 mA 6.0 5.63  High-level output voltage QA to QH IOH = -6 mA 4.5 4.13  IOH = -7.8 mA 6.0 5.63  IOL = 20 µA 2.0  0.1 4.5  0.1 6.0  0.1 Low-level output voltage VOL VIN = VIH or VIL V V V Low-level output voltage QH' IOL = 4 mA 4.5  0.33 IOL = 5.2 mA 6.0  0.33 Low-level output voltage QA to QH IOL = 6 mA 4.5  0.33 IOL = 7.8 mA 6.0  0.33 ±5.0 µA 3-state output OFF-state leakage current IOZ VIN = VIH or VIL VOUT = VCC or GND 6.0  Input leakage current IIN VIN = VCC or GND 6.0  ±1.0 µA Quiescent supply current ICC VIN = VCC or GND 6.0  40.0 µA ©2016 Toshiba Corporation 7 2016-12-27 Rev.4.0 74HC595D 13.3. DC Characteristics (Unless otherwise specified, Ta = -40 to 125 ) Characteristics High-level input voltage Low-level input voltage High-level output voltage Symbol VIH VIL VOH Test Condition   VIN = VIH or VIL IOH = -20 µA VCC (V) Min Max Unit 2.0 1.50  V 4.5 3.15  6.0 4.20  2.0  0.50 4.5  1.35 6.0  1.80 2.0 1.9  4.5 4.4  6.0 5.9  High-level output voltage QH' IOH = -4 mA 4.5 3.7  IOH = -5.2 mA 6.0 5.2  High-level output voltage QA to QH IOH = -6 mA 4.5 3.7  IOH = -7.8 mA 6.0 5.2  IOL = 20 µA 2.0  0.1 4.5  0.1 6.0  0.1 Low-level output voltage VOL VIN = VIH or VIL V V V Low-level output voltage QH' IOL = 4 mA 4.5  0.4 IOL = 5.2 mA 6.0  0.4 Low-level output voltage QA to QH IOL = 6 mA 4.5  0.4 IOL = 7.8 mA 6.0  0.4 ±10.0 µA 3-state output OFF-state leakage current IOZ VIN = VIH or VIL VOUT = VCC or GND 6.0  Input leakage current IIN VIN = VCC or GND 6.0  ±1.0 µA Quiescent supply current ICC VIN = VCC or GND 6.0  160.0 µA ©2016 Toshiba Corporation 8 2016-12-27 Rev.4.0 74HC595D 13.4. Timing Requirements (Unless otherwise specified, Ta = 25 , Input: tr = tf = 6 ns) Characteristics Minimum pulse width (SCK, RCK) Minimum pulse width (SCLR) Minimum setup time (SI-SCK) Minimum setup time (SCK - RCK) Minimum setup time (SCLR -RCK) Minimum hold time Minimum removal time (SCLR) Clock frequency ©2016 Toshiba Corporation Symbol Test Condition tw(L),tw(H) See 14. AC Waveform, Fig. 14.2 tw(L) tS tS tS th trem See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 f  9 VCC (V) Limit Unit 2.0 75 ns 4.5 15 6.0 13 2.0 75 4.5 15 6.0 13 2.0 50 4.5 10 6.0 9 2.0 75 4.5 15 6.0 13 2.0 100 4.5 20 6.0 17 2.0 0 4.5 0 6.0 0 2.0 50 4.5 10 6.0 9 2.0 6 4.5 30 6.0 35 ns ns ns ns ns ns MHz 2016-12-27 Rev.4.0 74HC595D 13.5. Timing Requirements (Unless otherwise specified, Ta = -40 to 85 , Input: tr = tf = 6 ns) Characteristics Minimum pulse width (SCK, RCK) Minimum pulse width (SCLR) Minimum setup time (SI-SCK) Minimum setup time (SCK - RCK) Minimum setup time (SCLR -RCK) Minimum hold time Minimum removal time (SCLR) Clock frequency ©2016 Toshiba Corporation Symbol Test Condition tw(L),tw(H) See 14. AC Waveform, Fig. 14.2 tw(L) tS tS tS th trem See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 f  10 VCC (V) Limit Unit 2.0 95 ns 4.5 19 6.0 16 2.0 95 4.5 19 6.0 16 2.0 65 4.5 13 6.0 11 2.0 95 4.5 19 6.0 16 2.0 125 4.5 25 6.0 21 2.0 0 4.5 0 6.0 0 2.0 65 4.5 13 6.0 11 2.0 5 4.5 25 6.0 28 ns ns ns ns ns ns MHz 2016-12-27 Rev.4.0 74HC595D 13.6. Timing Requirements (Unless otherwise specified, Ta = -40 to 125 , Input: tr = tf = 6 ns) Characteristics Minimum pulse width (SCK, RCK) Minimum pulse width (SCLR) Minimum setup time (SI-SCK) Minimum setup time (SCK - RCK) Minimum setup time (SCLR -RCK) Minimum hold time Minimum removal time (SCLR) Clock frequency Symbol Test Condition tw(L),tw(H) See 14. AC Waveform, Fig. 14.2 tw(L) tS tS tS th trem See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 See 14. AC Waveform, Fig. 14.2 f  VCC (V) Limit Unit 2.0 110 ns 4.5 22 6.0 19 2.0 110 4.5 22 6.0 19 2.0 75 4.5 15 6.0 13 2.0 110 4.5 22 6.0 19 2.0 150 4.5 30 6.0 26 2.0 0 4.5 0 6.0 0 2.0 75 4.5 15 6.0 13 2.0 4 4.5 20 6.0 24 ns ns ns ns ns ns MHz 13.7. AC Characteristics (Unless otherwise specified, CL = 15 pF, VCC = 5 V, Ta = 25 , Input: tr = tf = 6 ns) Characteristics Symbol Test Condition Min Typ. Max Unit ns Output transition time (QH') tTLH,tTHL See 14. AC Waveform, Fig. 14.1  4 8 Propagation delay time (SCK-QH') tPLH,tPHL See 14. AC Waveform, Fig. 14.1  12 21 Propagation delay time(SCLR-QH') tPHL See 14. AC Waveform, Fig. 14.1  15 30 Maximum clock frequency fMAX 35 55  ©2016 Toshiba Corporation  11 MHz 2016-12-27 Rev.4.0 74HC595D 13.8. AC Characteristics (Unless otherwise specified, Ta = 25 , Input: tr = tf = 6 ns) Characteristics Symbol Output transition time (Qn) tTLH,tTHL Output transition time (QH') tTLH,tTHL Propagation delay time (SCK-QH') tPLH,tPHL Propagation delay time (SCLR -QH') tPHL Propagation delay time (RCK-Qn) Note tPLH,tPHL Test Condition CL (pF) VCC (V) Min Typ. Max Unit See 14. AC Waveform, Fig. 14.1 50 2.0  25 60 ns 4.5  7 12 6.0  6 10 See 14. AC Waveform, Fig. 14.1 50 2.0  30 75 4.5  8 15 6.0  7 13 2.0  45 125 4.5  15 25 6.0  13 21 2.0  60 175 4.5  18 35 6.0  15 30 2.0  60 150 4.5  20 30 6.0  17 26 2.0  75 190 4.5  25 38 6.0  22 32 2.0  45 135 4.5  15 27 6.0  13 23 2.0  60 175 4.5  20 35 6.0  17 30 2.0  30 150 4.5  15 30 6.0  14 26 2.0 6 17  4.5 30 50  6.0 35 59  See 14. AC Waveform, Fig. 14.1 50 See 14. AC Waveform, Fig. 14.1 50 See 14. AC Waveform, Fig. 14.1 50 150 Output enable time tPZL,tPZH RL = 1 kΩ 50 150 Output disable time Maximum clock frequency tPLZ,tPHZ RL = 1 kΩ fMAX Input capacitance CIN Power dissipation capacitance CPD 50  (Note 1) 50 ns ns ns ns ns ns MHz   3  pF   41  pF Note 1: CPD is defined as the value of the internal equivalent capacitance which is calculated from the operating current consumption without load. Average operating current can be obtained by the equation. ICC(opr) = CPD × VCC × fIN + ICC ©2016 Toshiba Corporation 12 2016-12-27 Rev.4.0 74HC595D 13.9. AC Characteristics (Unless otherwise specified, Ta = -40 to 85 , Input: tr = tf = 6 ns) Characteristics Symbol Output transition time (Qn) tTLH,tTHL Output transition time (QH') tTLH,tTHL Propagation delay time (SCK-QH') tPLH,tPHL Propagation delay time (SCLR -QH') tPHL Propagation delay time (RCK-Qn) tPLH,tPHL Test Condition CL (pF) VCC (V) Min Max Unit See 14. AC Waveform, Fig. 14.1 50 2.0  75 ns 4.5  15 6.0  13 See 14. AC Waveform, Fig. 14.1 50 2.0  95 4.5  19 6.0  16 2.0  155 4.5  31 6.0  26 2.0  220 4.5  44 6.0  37 2.0  190 4.5  38 6.0  32 2.0  240 4.5  48 6.0  41 2.0  170 4.5  34 6.0  29 2.0  220 4.5  44 6.0  37 2.0  190 4.5  38 6.0  33 2.0 5  4.5 25  6.0 28  See 14. AC Waveform, Fig. 14.1 50 See 14. AC Waveform, Fig. 14.1 50 See 14. AC Waveform, Fig. 14.1 50 150 Output enable time tPZL,tPZH RL = 1 kΩ 50 150 Output disable time Maximum clock frequency ©2016 Toshiba Corporation tPLZ,tPHZ fMAX RL = 1 kΩ 50  13 50 ns ns ns ns ns ns MHz 2016-12-27 Rev.4.0 74HC595D 13.10. AC Characteristics (Unless otherwise specified, Ta = -40 to 125 , Input: tr = tf = 6 ns) Characteristics Symbol Output transition time (Qn) tTLH,tTHL Output transition time (QH') tTLH,tTHL Propagation delay time (SCK-QH') tPLH,tPHL Propagation delay time (SCLR -QH') tPHL Propagation delay time (RCK-Qn) tPLH,tPHL Test Condition CL (pF) VCC (V) Min Max Unit See 14. AC Waveform, Fig. 14.1 50 2.0  90 ns 4.5  18 6.0  15 See 14. AC Waveform, Fig. 14.1 50 2.0  115 4.5  23 6.0  20 2.0  240 4.5  48 6.0  31 2.0  265 4.5  53 6.0  45 2.0  265 4.5  53 6.0  45 2.0  285 4.5  57 6.0  48 2.0  225 4.5  45 6.0  38 2.0  265 4.5  53 6.0  45 2.0  225 4.5  45 6.0  38 2.0 4  4.5 20  6.0 24  See 14. AC Waveform, Fig. 14.1 50 See 14. AC Waveform, Fig. 14.1 50 See 14. AC Waveform, Fig. 14.1 50 150 Output enable time tPZL,tPZH RL = 1 kΩ 50 150 Output disable time Maximum clock frequency ©2016 Toshiba Corporation tPLZ,tPHZ fMAX RL = 1 kΩ 50  14 50 ns ns ns ns ns ns MHz 2016-12-27 Rev.4.0 74HC595D 14. AC Waveform Fig. 14.1 tTLH, tTHL, tPLH, tPHL Fig. 14.2 tw, ts, th, trem ©2016 Toshiba Corporation 15 2016-12-27 Rev.4.0 74HC595D Package Dimensions Unit: mm Weight: 0.15 g (typ.) Package Name(s) Nickname: SOIC16 ©2016 Toshiba Corporation 16 2016-12-27 Rev.4.0 74HC595D RESTRICTIONS ON PRODUCT USE • Toshiba Corporation, and its subsidiaries and affiliates (collectively "TOSHIBA"), reserve the right to make changes to the information in this document, and related hardware, software and systems (collectively "Product") without notice. • This document and any information herein may not be reproduced without prior written permission from TOSHIBA. Even with TOSHIBA's written permission, reproduction is permissible only if reproduction is without alteration/omission. • Though TOSHIBA works continually to improve Product's quality and reliability, Product can malfunction or fail. Customers are responsible for complying with safety standards and for providing adequate designs and safeguards for their hardware, software and systems which minimize risk and avoid situations in which a malfunction or failure of Product could cause loss of human life, bodily injury or damage to property, including data loss or corruption. Before customers use the Product, create designs including the Product, or incorporate the Product into their own applications, customers must also refer to and comply with (a) the latest versions of all relevant TOSHIBA information, including without limitation, this document, the specifications, the data sheets and application notes for Product and the precautions and conditions set forth in the "TOSHIBA Semiconductor Reliability Handbook" and (b) the instructions for the application with which the Product will be used with or for. Customers are solely responsible for all aspects of their own product design or applications, including but not limited to (a) determining the appropriateness of the use of this Product in such design or applications; (b) evaluating and determining the applicability of any information contained in this document, or in charts, diagrams, programs, algorithms, sample application circuits, or any other referenced documents; and (c) validating all operating parameters for such designs and applications. TOSHIBA ASSUMES NO LIABILITY FOR CUSTOMERS' PRODUCT DESIGN OR APPLICATIONS. • PRODUCT IS NEITHER INTENDED NOR WARRANTED FOR USE IN EQUIPMENTS OR SYSTEMS THAT REQUIRE EXTRAORDINARILY HIGH LEVELS OF QUALITY AND/OR RELIABILITY, AND/OR A MALFUNCTION OR FAILURE OF WHICH MAY CAUSE LOSS OF HUMAN LIFE, BODILY INJURY, SERIOUS PROPERTY DAMAGE AND/OR SERIOUS PUBLIC IMPACT ("UNINTENDED USE"). Except for specific applications as expressly stated in this document, Unintended Use includes, without limitation, equipment used in nuclear facilities, equipment used in the aerospace industry, medical equipment, equipment used for automobiles, trains, ships and other transportation, traffic signaling equipment, equipment used to control combustions or explosions, safety devices, elevators and escalators, devices related to electric power, and equipment used in finance-related fields. IF YOU USE PRODUCT FOR UNINTENDED USE, TOSHIBA ASSUMES NO LIABILITY FOR PRODUCT. For details, please contact your TOSHIBA sales representative. • Do not disassemble, analyze, reverse-engineer, alter, modify, translate or copy Product, whether in whole or in part. • Product shall not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable laws or regulations. • The information contained herein is presented only as guidance for Product use. No responsibility is assumed by TOSHIBA for any infringement of patents or any other intellectual property rights of third parties that may result from the use of Product. No license to any intellectual property right is granted by this document, whether express or implied, by estoppel or otherwise. • ABSENT A WRITTEN SIGNED AGREEMENT, EXCEPT AS PROVIDED IN THE RELEVANT TERMS AND CONDITIONS OF SALE FOR PRODUCT, AND TO THE MAXIMUM EXTENT ALLOWABLE BY LAW, TOSHIBA (1) ASSUMES NO LIABILITY WHATSOEVER, INCLUDING WITHOUT LIMITATION, INDIRECT, CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES OR LOSS, INCLUDING WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF OPPORTUNITIES, BUSINESS INTERRUPTION AND LOSS OF DATA, AND (2) DISCLAIMS ANY AND ALL EXPRESS OR IMPLIED WARRANTIES AND CONDITIONS RELATED TO SALE, USE OF PRODUCT, OR INFORMATION, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, ACCURACY OF INFORMATION, OR NONINFRINGEMENT. • Do not use or otherwise make available Product or related software or technology for any military purposes, including without limitation, for the design, development, use, stockpiling or manufacturing of nuclear, chemical, or biological weapons or missile technology products (mass destruction weapons). Product and related software and technology may be controlled under the applicable export laws and regulations including, without limitation, the Japanese Foreign Exchange and Foreign Trade Law and the U.S. Export Administration Regulations. Export and re-export of Product or related software or technology are strictly prohibited except in compliance with all applicable export laws and regulations. • Please contact your TOSHIBA sales representative for details as to environmental matters such as the RoHS compatibility of Product. Please use Product in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS. ©2016 Toshiba Corporation 17 2016-12-27 Rev.4.0
