C-49U

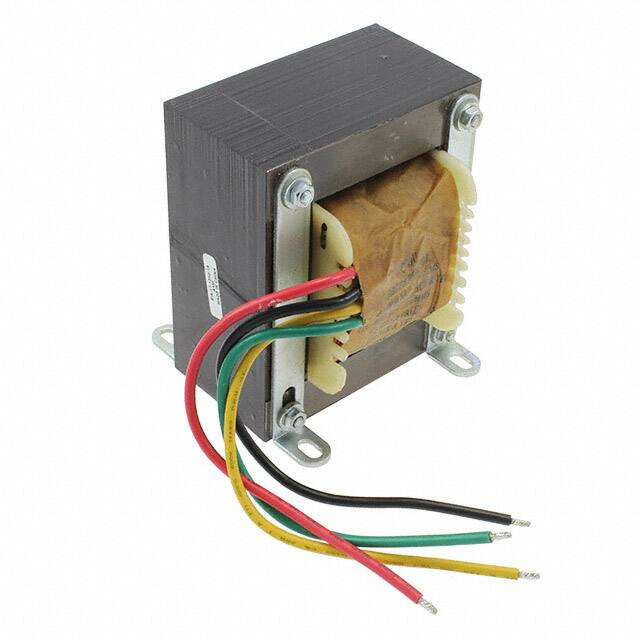

Inductors C-49U Description: Smoothing chokes are power supply filter chokes having a core with an air gap which prevents saturation at maximum current. Hipot to 1500 VRMS between winding and core for safety. Electrical Specifications (@25C): Current Inductance †† Resistance DC Amps* Henries* Ohms 5.0/10.0 0.032/0.008§ 0.19/0.05 RED BLK A YEL GRN †† = Inductance tolerance -20%, + 50 % § = Split winding Dimensions: Unit: In inches A B C D E 4.250 3.50 3.625 2.750 3.062 MTG SLOTS, .203 X .375 B REF Weight: 8.0 lbs. C Schematic: RED E YEL BLK GRN *For 0.032H at 5Amp, connect to RED to GRN, Jumper BLK to YEL For 0.008H at 10Amps, connect to RED to YEL, Jumper RED to BLK and YEL to GRN RoHS Compliance: As of manufacturing date February 2005, all standard products meet the requirements of 2011/65/EU, known as the RoHS initiative. D * Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics’ website for the most current version. Web: www.TriadMagnetics.com Phone 951-277-0757 Fax 951-277-2757 460 Harley Knox Blvd. Perris, California 92571 Publish Date: December 4, 2013
