MECHATRO N I C D R I V E W I T H S T E P P E R M O T O R
P A Nd r ive
PD- 1 1 6 0
57/60mm | NEMA23/24
Stepper Motor with
Controller / Driver
0.55 - 3.1Nm / 48V
sensOstep™ Encoder
Serial Interface
c o o l S t e p™
sensorless closed loop current control
load detection
M A IN CH A R AC T ER IS T IC S
INFO

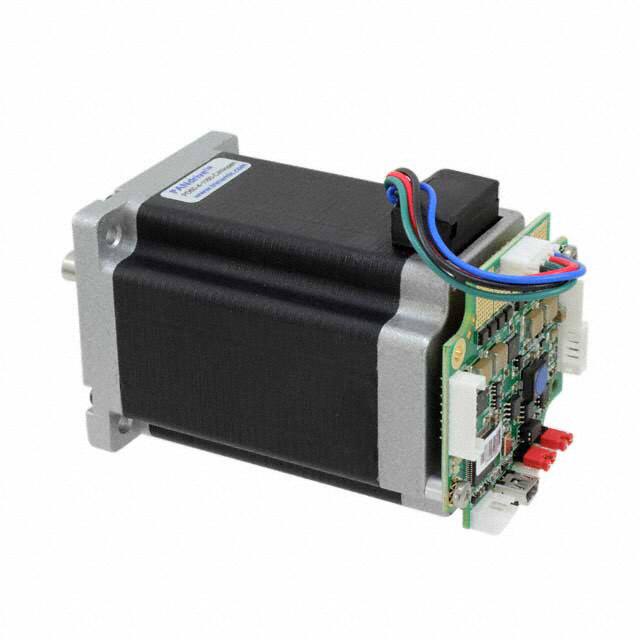

The PANdrive PD57-1160 and PD60-1160 family is a mechatronic
solution including a 57mm or 60mm flange motor, a controller board and a sensOstep™ encoder. It can be controlled via
ELECTRICAL
DATA
MOTOR DATA
INTERFACE
• Supply voltage 9V to 51V
• flange size 57/60mm | NEMA23/24
• USB, RS485, CAN
serial interface or operated in standalone mode. Power supply,
• step&direction interface
external encoder, interface and I/Os can be connected with JST
• inputs for ref. & stop switches
connectors.
• 4 general purpose I/Os
With the advanced stallGuard2™ the motor load can be
• incremental a/b/n encoder interface
detected with high resolution. The outstanding coolStep™
FEATURES
• up to 256 times microstepping
technology for sensorless load dependent current control allows
• memory for 2048 TMCL™ commands
efficient motor operation.
• stallGuard2™ sensorless load detection
The PC based software development environment TMCL-IDE for
• coolStep™ sensorless load dependent current control
the Trinamic Motion Control Language TMCL™ can be down-
• microPlyer™ 16 to 256 times microstepping
interpolation
loaded free of charge from the TRINAMIC website.
PD-1160
• integrated absolute sensOstep™ encoder
with 1024 ppr.
Stop
+5V
switches
• automatic ramp generation in hardware
TMCL
Memory
SPI
• on the fly alteration of motion parameters
SPI
USB
Power
Energy
Efficient
Driver
Driver
TMC262
RS485
µC
CAN
I/Os
SPI
TMC429
Motion
Controller
7
Encoder
a/b/n
S/D
TMC262
with
coolStep™
MOSFET
Driver
Stage
Step
SOFTWARE
Motor
• PC-based (Windows) application development software TMCL-IDE downloadable
S/D
S/D
SPI
9… 51V DC
• standalone operation using TMCL or remote
controlled operation
sensOstep™
• ready for CANopen
Encoder
TMCM-1160
OTHER
• RoHS compliant
• size 60 x 60mm2
ORDER CODE
DESCRIPTION
PD57-1-1160
0.55 Nm / QMot motor QSH5718-41-28-055
PD57-2-1160
1.01 Nm / QMot motor QSH5718-51-28-101
PD60-3-1160
2.10 Nm / QMot motor QSH6018-65-28-210
PD60-4-1160
3.10 Nm / QMot motor QSH6018-86-28-310
PD-1160-CABLE
Cable loom including all neccessary cables (single ended)
www.trinamic.com – for detailed information and datasheets
