MOTION C O N T R O L L E R F O R S T E P P E R A N D P I E Z O M O T O R S
I N T E G R A T E D C I R C U ITS
TM C 4 57
Step per and Piezo Mo tor C ontroll er (S-sh ape Ramps) with Enc oder Int erface, e asyPID™ Feedbac k Control and Inte grated S equencer
M A IN CH A R AC T ER IS T IC S
INFO
The TMC457 is a high-end single axis micro stepping motion controller for 2-phase bipolar stepper motors, piezo motors (Piezo LEGS®). Via step / direction interface 3-phase stepper motors can also be controlled (requires additional TMC332). It adds to any microcontroller or processor with SPI interface. It is intended for applications, where a precise and fast, jerk-free motion profile is desired. The TMC457 supports linear and S-shaped velocity ramps. It’s chopSync™ feature allows high speed movement avoiding resonances. An encoder can be added for extremely quick and precise positioning using the internal hardware PID regulator easyPID™ and for increased reliability / fault detection. For maximum flexibility all motion control parameters (target position, target velocity, acceleration, deceleration and bow) can be changed on-the-fly at any time during motion.
+1.5V +3.3V
• S-shaped and linear ramps with on-the-fly alteration of all parameters • programmable high resolution sequencer with (12bit, 8192 entry) micro step LUT table • integrated sequencer • incr. encoder interface with flexible up- and down scaling to match drive resolution • fast and stable easyPID™ PID controller • 32 bit registers “from mHz to MHz” • reference switch processing • virtual stop sw. (programmable soft limits) • position pulse output to trigger ext. events • synchronization of multiple axis via step/direction input • integrated chopSync™ for high velocities • analog high resolution motor driver control via external dual -low cost- 12 bit DAC • energy saving by automatic load angle dependent current control
one capacitor per supply pin
100n
+1.5V
GND
100n
+3.3V
RES
RES
I
TMC457
CLK
ELECTRICAL DATA INTERFACE
• 3.3V IO/ 1.5V core • SPI interface to microcontroller • step / direction output (with progr. timing) • stallGuard™ interface for TMC246/TMC249 family stepper motor drivers
CLK
I
ENABLE
I
Interface Section
Motion profile generation
S-Ramp generator
Sequencer
O
NSCS
STEP_OUT
I
Host CPU SPI Interface
SCK
I
SDI
I
SPI bus interface
Register Block
target
v
SDO
O
Trapezoid Ramp generator
Pulse generator
Output Pulse generator
STEP/ DIR
O
DIR_OUT
O
XSTEP_OUT
O
HIRES_OUT
Step/Dir Output
O
STDBY_OUT
NINT
O
Interrupt control
control & status
Position Counter
Microstep RAM 8192*12
O
POSCOMP
O
Position compare
2 phase stepper & piezo sequencer
O
PHA PHB
O
O
O
Optional Step/ Dir Input
STEP_IN
I
DIR_IN
I
STEP DIR Prescaler
easyPID PID controller
O
I
O
NCS_DAC SCK_DAC SDO_DAC_A SDO_DAC_B PZO_EN
Classic stepper driver Analog control of Stepper / Piezo via DAC (LTC2622) TMC246 / TMC249 stepper driver
PACKAGE
• FBGA144 package 13 x 13 mm² • RoHS compliant
PID Stop / Reference Switches Optional Incremental Encoder
STOPL
I
TMC24x SPI interface
O
O
I
STOPR
I
Stop input processing & virtual stop switches
I
NCS_DRV SCK_DRV SDO_DRV SDI_DRV NANA_SPI
Encoder
quadrature decoder
Encoder Scaler & Counter
ChopSync
O
ChopClk
ENC_A ENC_B ENC_N
synchronized chopper clock
10 mm
I
I
I
OR DE R C O DE
D E S C RI P T I ON

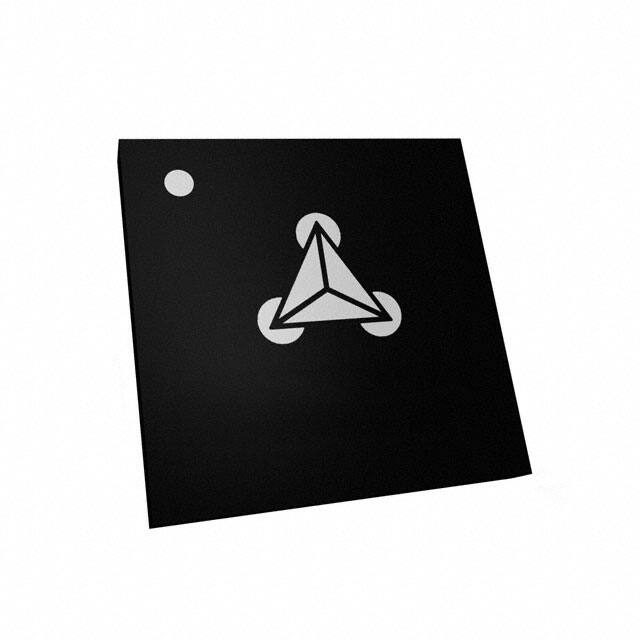

TMC457-BC Related product: TMC457-Eval
1-axis motion controller with encoder feedback, FBGA144 package
Evaluation board for TMC457
www.trinamic.com – for detailed information and datasheets
