POWER DRIVER FOR BLDC/PMSM MOTORS
INTEGRATED CIRCUITS
TMC6200 DATASHEET
Universal high voltage BLDC/PMSM/Servo MOSFET 3-halfbridge gate-driver with in line motor current
sensing. External MOSFETs for up to 100A motor current.
APPLICATIONS
PMSM FOC drives and BLDC motors
Industrial Drives
Factory Automation
Lab Automation
Robotics
CNC machines
Textile Machines
Pumps
Surveillance Cameras
Home Automation
Printers
FEATURES
AND
BENEFITS
3-phase motors up to 100A coil current (external MOSFETs)
Voltage Range 8 … 60V DC
Gate Drive Programmable 0.5A / 1A / 1.5A
Full Protection and Diagnostics via SPI interface
3 Floating Sense Amplifiers with programmable gain (5, 10, 20)
Gate Off Drive with 1Ω (LS) / 1.3Ω (HS) safe hold off resistance
SPI & Stand-Alone operation
Charge Pump for 100% Duty Cycle operation
Optional BBM break-before-make logic for single line control
Programmable Short and Overload current threshold and retry
Programmable Control Interface with 3 line or 6 line drive
Full Protection & Diagnostics
Compact Size TQFP48 package
Double Pin Distance for safe operation at high voltage
BLOCK DIAGRAM
TRINAMIC Motion Control GmbH & Co. KG
Hamburg, Germany
DESCRIPTION
The TMC6200 is a high-power gate-driver
for PMSM servo or BLDC motors. Using
six external MOSFETs and two or three
sense resistors, it integrates the full high
voltage part of a PMSM drive system for
12V, 24V or 48V, including in-line current
sense amplifiers with programmable
amplification. It can drive a wide range
of motors from Watt to Kilowatt.
Software controlled drive strength allows
in-system EME optimization. Programmable safety features like short detection
and overtemperature thresholds together
with an SPI interface for diagnostics
allow robust and reliable designs. With
the TMC6200, a minimum number of
external components is required to build
a rugged drive with full protection and
diagnostics.
TMC6200 DATASHEET (Rev. 1.05 / 2019-NOV-12)
2
APPLICATION EXAMPLES: PMSM AND BLDC MOTORS
The TMC6200 scores with integration of the complete high-voltage part for FOC controlled PMSM drivers. On
the control side, it mates with sophisticated FOC TMC467x and TMC867x family controller chips, or with any
microcontroller. Its versatile interface matches simple BLDC drives with minimum requirements on the µC
PWM, as well as advanced PMSM control algorithms. The small form factor and easy-to-use package of the
TMC6200 keeps costs down and allows for miniaturized layouts. Extensive support at the chip, board, and
software levels enables rapid design cycles and fast time-to-market with competitive products. High
integration and reliability deliver cost savings in related systems such as power supplies and cooling.
MINIATURIZED CPU BASED DESIGN FOR BLDC OR PMSM
Gate CTRL
PWM
DIAG
High-Level
Interface
SPI
(optional)
CPU
TMC6200
ADC
M
Encoder
/ Hall
Current Sense
A CPU with internal BLDC or sine wave PWM
unit drives the gate control lines based on
encoder or hall sensor feedback. The current
sensor outputs become sampled by the µC
integrated ADC. Use of SPI is not required,
unless more sophisticated diagnostics is
desired.
HIGH PERFORMANCE FOC SERVO DESIGN FOR PMSM
Gate CTRL
PWM
High-Level
Interface
CPU
SPI
TMC467x
ADC
Current
Sense
TMC6200
M
SPI
Encoder
/ Hall
When using one of the TRINAMIC FOC
controllers, the CPU is completely offloaded
from time-intensive regulation loop tasks,
and software design shrinks to initialization
and target parameter setting. The TMC6200
optimally complements a TMC467x family
controller.
The TMC6200-EVAL is part of TRINAMICs
universal evaluation board system which
provides a convenient handling of the
hardware as well as a user-friendly
software tool for evaluation. The
TMC6200 evaluation board system
consists
of
three
parts:
LANDUNGSBRÜCKE
(base
board),
ESELSBRÜCKE (connector board including
several test points), and TMC6200-EVAL,
plus a TMC4671-EVAL FOC controller.
ORDER CODES
Order code
TMC6200-TA
TMC6200-TA-T
TMC6200-BOB

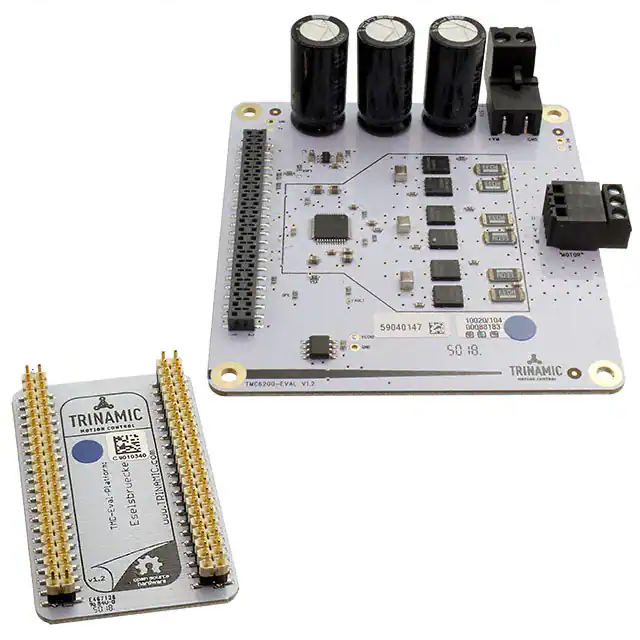

TMC6200-EVAL
LANDUNGSBRÜCKE
ESELSBRÜCKE
www.trinamic.com
PN
00-0169
00-0169-T
40-0164
40-0162
40-0167
40-0098
Description
Three phase gate-driver for external MOSFETs; TQFP48
-T denotes tape on reel packed devices
Break out board board with TMC6200.
Evaluation board for TMC6200.
Baseboard for TMC6200-EVAL and further boards.
Connector board for plug-in evaluation board system.
Size [mm2]
7 x 7 (body)
38
85
85
61
x
x
x
x
36
80
55
38
TMC6200 DATASHEET (Rev. 1.05 / 2019-NOV-12)
3
Table of Contents
1
1.1
2
GENERAL CONFIGURATION REGISTERS ..........22
CURRENT SENSE AMPLIFIERS .....................27
6.1
6.2
6.3
7
SPI DATAGRAM STRUCTURE .........................18
SPI SIGNALS ................................................19
TIMING .........................................................20
REGISTER MAPPING .......................................21
5.1
6
STANDARD APPLICATION CIRCUIT ................10
EXTERNAL GATE VOLTAGE REGULATOR ..........11
ZERO STANDBY CURRENT ..............................12
MOSFETS AND SLOPE CONTROL ..................13
TUNING THE MOSFET BRIDGE .....................15
SPI INTERFACE ................................................18
4.1
4.2
4.3
5
PACKAGE OUTLINE .......................................... 7
SIGNAL DESCRIPTIONS ................................... 7
SAMPLE CIRCUITS ..........................................10
3.1
3.2
3.3
3.4
3.5
4
CONTROL INTERFACES ..................................... 6
PIN ASSIGNMENTS ........................................... 7
2.1
2.2
3
7.2
PRINCIPLES OF OPERATION ......................... 4
SETTLING TIME .............................................27
CURRENT AMPLIFIER OFFSET ........................28
CHOICE OF SENSE RESISTORS .......................31
DIAGNOSTICS AND PROTECTION .............32
7.1
TEMPERATURE SENSORS ................................32
www.trinamic.com
SHORT PROTECTION ...................................... 32
8
EXTERNAL RESET ............................................. 34
9
CLOCK OSCILLATOR AND INPUT ............... 34
9.1
9.2
USING THE INTERNAL CLOCK ........................ 34
USING AN EXTERNAL CLOCK ......................... 34
10
ABSOLUTE MAXIMUM RATINGS ............ 35
11
ELECTRICAL CHARACTERISTICS ............ 35
11.1
11.2
11.3
12
12.1
12.2
12.3
12.4
12.5
13
13.1
13.2
OPERATIONAL RANGE ................................... 35
DC AND TIMING CHARACTERISTICS .............. 36
THERMAL CHARACTERISTICS.......................... 40
LAYOUT CONSIDERATIONS..................... 41
EXPOSED DIE PAD ........................................ 41
WIRING GND .............................................. 41
WIRING BRIDGE SUPPLY .............................. 41
SUPPLY FILTERING........................................ 41
LAYOUT EXAMPLE ......................................... 42
PACKAGE MECHANICAL DATA ................ 44
DIMENSIONAL DRAWINGS TQFP48-EP ....... 44
PACKAGE CODES ........................................... 45
14
DISCLAIMER ................................................. 46
15
ESD SENSITIVE DEVICE............................ 46
16
TABLE OF FIGURES .................................... 47
17
REVISION HISTORY ................................... 47
TMC6200 DATASHEET (Rev. 1.05 / 2019-NOV-12)
1
4
Principles of Operation
The TMC6200 is a MOSFET gate driver for three phase PMSM and BLDC motors. Ideally suited for
applications in the range of 12V to 48V, it supports motor power ratings from 1 Watt to 1kW. It
complements with TRINAMICs TMC467x & TMC867x families of three phase motor controller ICs.
Internal break-before-make timing is provided for the ease-of-use in combination with simple
microcontrollers for PWM generation. Integrated current sense amplifiers eliminate costly sense
amplifiers required for FOC controllers (recommended use for applications up to 10A, use external
precision amplifiers for higher current with low sense resistor values), while bringing the benefit of
in-line current sensing. A complete set of protection and diagnostic functions makes the power stage
more rugged than a discrete setup.
THE TMC6200 OFFERS TWO BASIC MODES OF OPERATION:
MODE 1: Stand-alone driver with pin configuration
Enable this mode by tying low pin SPE. The interface pins allow a number of different settings for
BBM generation and sense amplifier amplification control.
MODE 2: SPI controlled
This mode allows detailed control over the protection, diagnostic and control features, e.g. for tuning
overcurrent detection. Enable this mode by tying high pin SPE.
+VM
100n
VS
VSA
Gate Voltage
Regulator
12VOUT
100n
CE
VCP
Charge Pump
CU
12VOUT
4.7µ
HS
5VOUT
5V Regulator
IW
USENSE
+
VCC_IO
UL
pd
VH
pd
VL
pd
WH
pd
WL
pd
B.Dwersteg, ©
TRINAMIC 2014
Break before
Make logic
HS
IV
N
LS
RS
VOFS
RP
LS
IV
DIE PAD
CURW
CURV
pd
Current Sense
Figure 1.1 Standalone application using differential sensing
www.trinamic.com
HSW
WSENSE
250k
Enable
CB
W
+
VOFS
+VIO
HS
IU
0
LSV
CW
500k
CURU
1
RS
RP
12VOUT
Configuration
interface
HSV
VSENSE
+
5VOUT
DRV_EN
CSN / IDRV0
SCK / IDRV1
SDI / AMPLx10
SDO / SINGLE
SPE
Driver Strength [IDRV1 IDRV0]:
00: 0.5A 01: 0.5/1A, 10: 1A, 11: 1.5A
Sense Amplification 0: 5, 1: 10
0: xH/xL individual gate control
1: xH=Polarity, xL=Enable control
Diagnostics
(Short circuit,
Temperature)
3 Phase
Motor
CB
V
VOFS
VCP
FAULT
CV
12VOUT
IT
pd
GNDA
UH
VCP
TMC6200
24MHz Oscillator
LSU
IT
OTP memory
CLK_IN
Diagnostic Output
RS
RP
LS
100n
Chopper Control
dual line LS+HS,
or single line
(HS=polarity, LS=enable)
CB
HSU
U
VOFS
2.2µ
3.3V or 5V +VIO
I/O voltage
470n
IT
VCP
100n
16V
CPI
22n
100V
CPO
+VM
LSW
S
