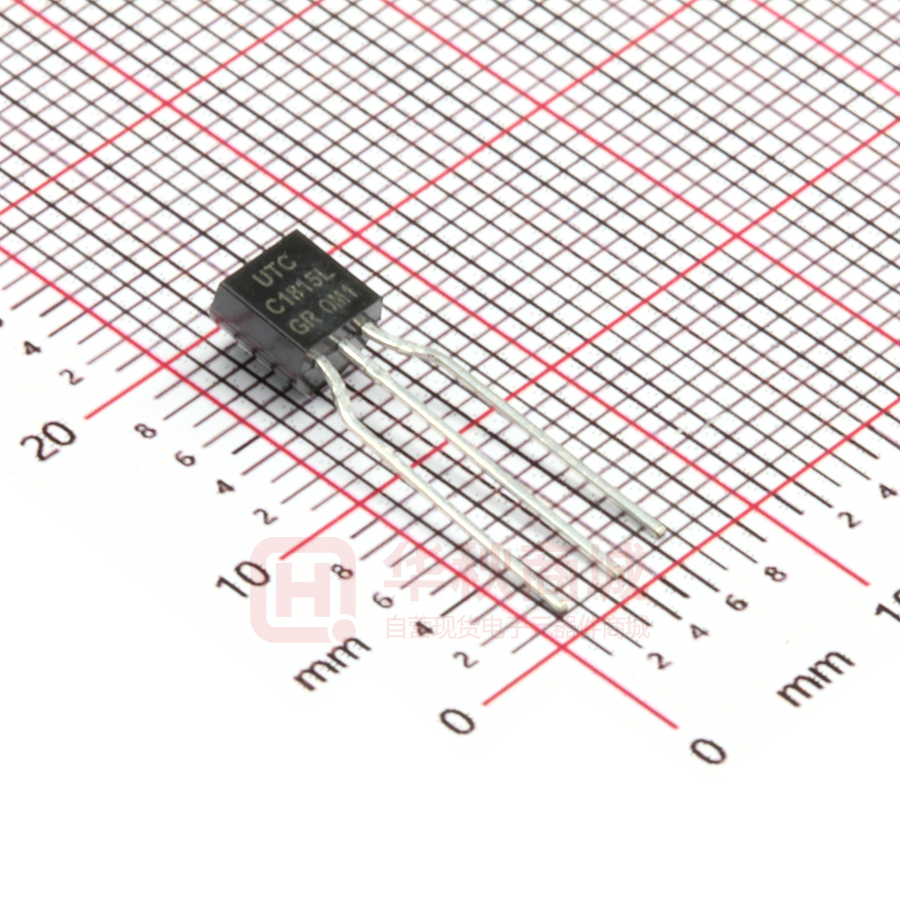

2SC1815L-GR-T92-B

UNISONIC TECHNOLOGIES CO., LTD 2SC1815 NPN SILICON TRANSISTOR AUDIO FREQUENCY AMPLIFIER HIGH FREQUENCY OSC NPN TRANSISTOR  FEATURES * Collector-Emitter voltage: BVCEO=50V * Collector current up to 150mA * High hFE linearity * Complimentary to UTC 2SA1015  SYMBOL  ORDERING INFORMATION Ordering Number Lead Free Halogen Free 2SC1815L-xx-T92-B 2SC1815G-xx-T92-B 2SC1815L-xx-T92-K 2SC1815G-xx-T92-K Note: Pin Assignment: E: Emitter C: Collector B: Base  Package TO-92 TO-92 Pin Assignment 1 2 3 E C B E C B Packing Tape Box Bulk MARKING www.unisonic.com.tw Copyright © 2015 Unisonic Technologies Co., Ltd 1 of 4 QW-R201-006.N 2SC1815  NPN SILICON TRANSISTOR ABSOLUTE MAXIMUM RATING (TA=25°C, unless otherwise specified ) PARAMETER Collector-Base Voltage Collector-emitter voltage Emitter-Base Voltage Collector Current Base Current SYMBOL VCBO VCEO VEBO IC IB PD RATINGS 60 50 5 150 50 625 UNIT V V V mA mA mW SYMBOL θJC RATINGS 80 UNIT °C/W Power Dissipation (TA=25°C) Junction Temperature TJ +125 °C Storage Temperature TSTG -55 ~ +125 °C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  THERMAL DATA PARAMETER Junction to Case  ELECTRICAL CHARACTERISTICS (TA=25°C, unless otherwise specified) PARAMETER Collector Cut-off Current Emitter Cut-off Current Collector-Emitter Saturation Voltage Base-Emitter Saturation Voltage DC Current Gain Current Gain Bandwidth Product Output Capacitance  SYMBOL ICBO IEBO VCE(SAT) VBE(SAT) hFE1 hFE2 fT Cob TEST CONDITIONS VCB=60V, IE=0 VEB=5V, IC=0 IC=100mA, IB=10mA IC=100mA, IB=10mA VCE=6V, IC=2mA VCE=6V, IC=150mA VCE=10V, IC=50mA VCB=10V, IE=0, f=1MHz MIN TYP 0.1 70 25 80 2.0 MAX 100 100 0.25 1.0 700 3.0 UNIT nA nA V V MHz pF CLASSIFICATION OF hFE1 RANK RANGE O 70~140 Y 120~240 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw GR 200~400 BL 350~700 2 of 4 QW-R201-006.N 2SC1815  NPN SILICON TRANSISTOR TYPICAL CHARACTERISTICS UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 4 QW-R201-006.N 2SC1815  NPN SILICON TRANSISTOR TYPICAL CHARACTERISTICS(Cont.) UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 4 of 4 QW-R201-006.N
