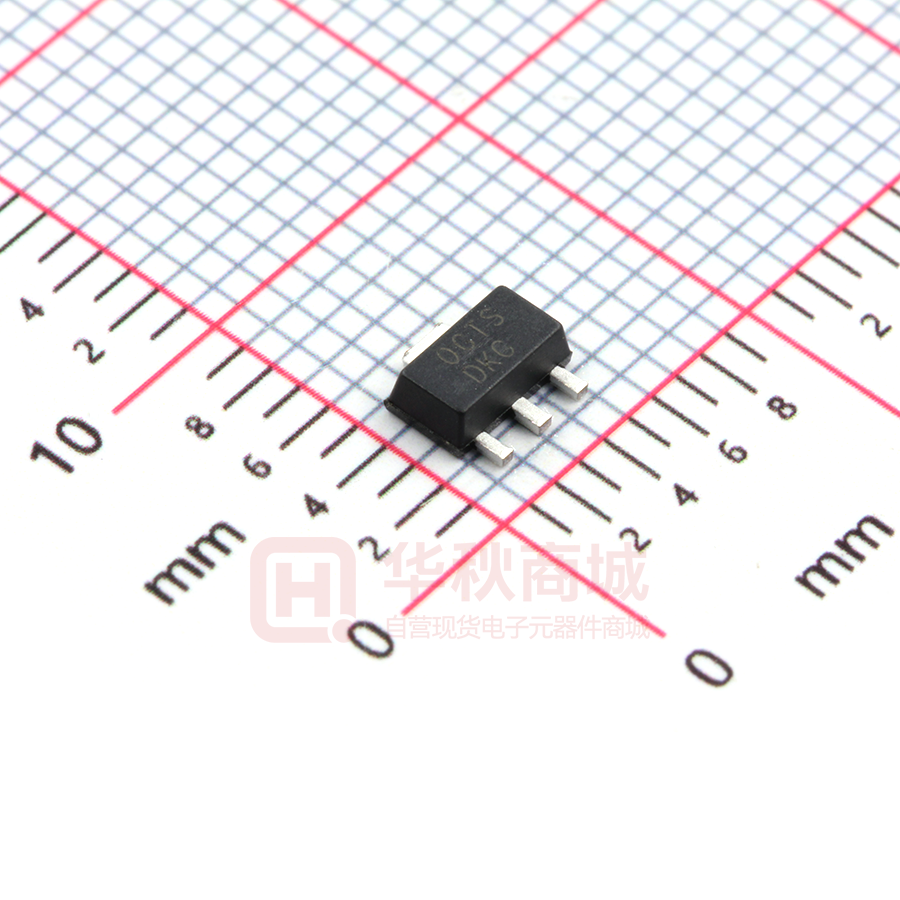

2SC4672G-B-AB3-R

UNISONIC TECHNOLOGIES CO., LTD 2SC4672 NPN SILICON TRANSISTOR LOW FREQUENCY TRANSISTOR (50V,2A)  DESCRIPTION The UTC 2SC4672 is a low frequency transistor. Excellent DC current gain characteristics.  FEATURES *Low Saturation Voltage, Typically VCE(SAT)=0.1V at IC / IB=1A / 50mA *Excellent DC Current Gain Characteristics  ORDERING INFORMATION Order Number 2SC4672G-x-AB3-R Note: Pin Assignment: B: Base C: Collector  Package SOT-89 Pin Assignment 1 2 3 B C E Packing Tape Reel E: Emitter MARKING www.unisonic.com.tw Copyright © 2015 Unisonic Technologies Co., 1 of 2 QW-R208-004.F 2SC4672  NPN SILICON TRANSISTOR ABSOLUATE MAXIUM RATINGS (TA= 25°C, unless otherwise specified) PARAMETER SYMBOL RATINGS UNIT Collector to Base Voltage VCBO 60 V Collector to Emitter Voltage VCEO 50 V Emitter to Base Voltage VEBO 6 V Collector Current IC 2 A Collector Current (Pulse) (Note 1) ICP 5 A Collector Dissipation PC 500 mW Junction Temperature TJ +150 °C Storage Temperature TSTG -40 ~ +150 °C Note: 1.Single pulse, PW=10ms 2.Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  ELECTRICAL CHARACTERISTICS (TA= 25°C, unless otherwise specified) PARAMETER SYMBOL TEST CONDITIONS Collector-Base Breakdown Voltage BVCBO IC =50A Collector-Emitter Breakdown Voltage BVCEO IC =1mA Emitter-Base Breakdown Voltage BVEBO IE =50A Collector Cutoff Current ICBO VCB=60V Emitter Cutoff Current IEBO VEB=5V Collector-Emitter Saturation Voltage VCE(SAT) IC /IB=1A/50mA (Note) DC Current Transfer Ratio hFE VCE=2V, IC =0.5A (Note) Transition Frequency fT VCE=2V, IE =-0.5A, f=100MHz Output Capacitance COB VCB=10V, IE =0A,f=1MHz Note : Measured using pulse current. ■ MIN 60 50 6 TYP 0.1 120 MAX 0.1 0.1 0.35 400 210 25 UNIT V V V A A V MHz pF CLASSIFICATION OF hFE RANK RANGE A 120 ~ 240 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw B 200 ~ 400 2 of 4 QW-R208-004.F 2SC4672 TYPICAL CHARACTERISTICS S.O.A IC MAX.(Pulsed) S 1m mS 10 DC Current Gain, hFE IC MAX (Continuous) IC, Collector Current (A)  NPN SILICON TRANSISTOR DC Collector-Emitter Voltage, VCE(V) 140 120 100 80 60 40 20 0 0.001 0.01 0.1 Collector Current, IC (A) 1 UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 3 of 4 QW-R208-004.F 2SC4672 NPN SILICON TRANSISTOR U T C a s s u m e s n o re s p o n s ib ility fo r e q u ip m e n t fa ilu re s th a t re s u lt fro m u s in g p ro d u c ts a t v a lu e s th a t exceed, even m om entarily, rated values (such as m axim um ratings, operating condition ranges, or other param eters) listed in products specifications of any and all U TC products described or contained herein . U TC products are not designed for use in life support appliances, devices or system s w here m alfunction of these products can be reasonably expe cted to result in personal injury . R eproduction in w hole or in part is prohibited w ithout the prior w ritten consent of the copyright ow ner. T he inform ation presented in th is d o cu m e n t d o e s n o t fo rm p a rt o f a n y q u o ta tio n o r co n tra ct, is b e lie ve d to b e a ccu ra te a n d re lia b le and m ay be changed w ithout notice . UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 4 of 4 QW-R208-004.F
