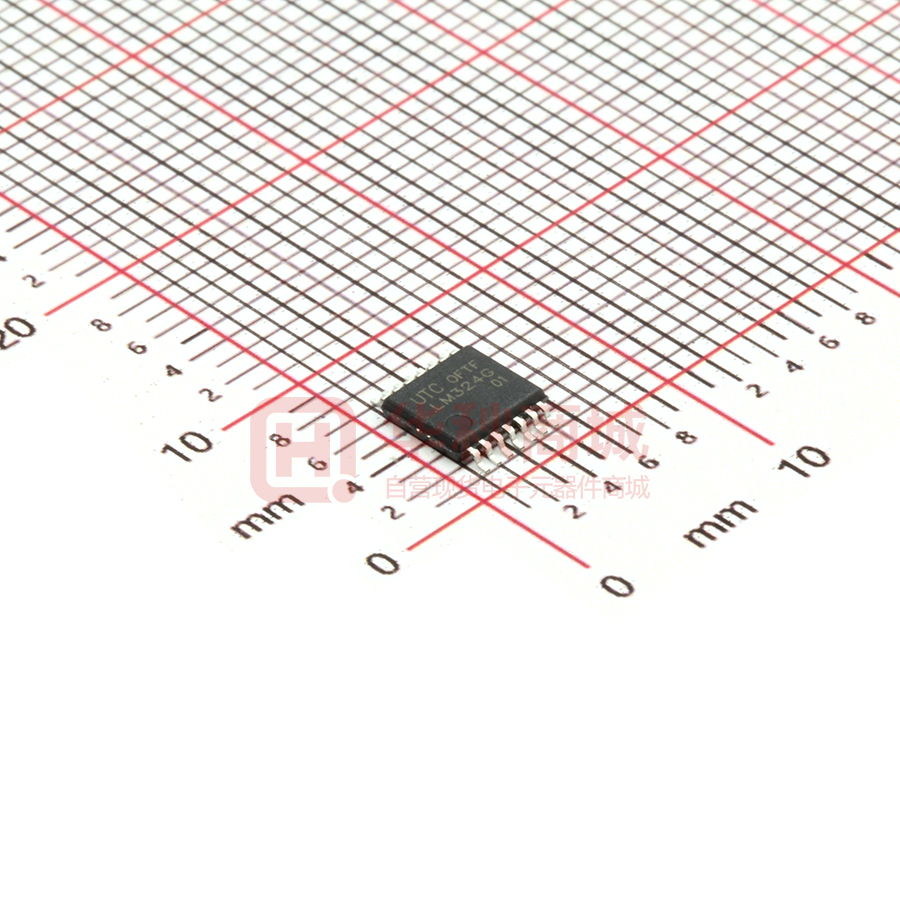

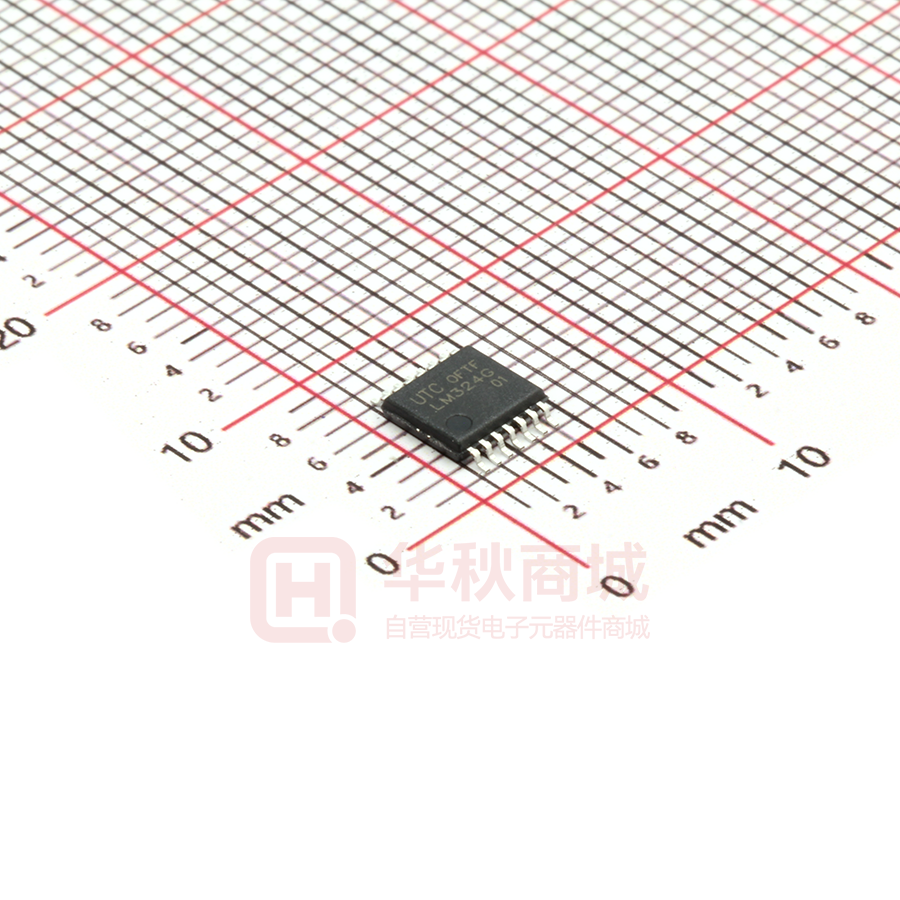

LM324G-P14-R

UNISONIC TECHNOLOGIES CO., LTD LM324 LINEAR INTEGRATED CIRCUIT QUAD OPERATIONAL AMPLIFIERS  DESCRIPTION The UTC LM324 consists of four independent, high gain internally frequency compensated operational amplifiers which are designed specifically to operated from a single power supply over a wide voltage range. Operation from split power supplies is also possible. Application areas include transducer amplifier, DC gain blocks and all the conventional OP amp circuits which now can be easily implemented in single power supply system.  FEATURES *Internally frequency compensated for unity gain. *Large DC voltage gain :100dB. *Wide operating supply range (VCC=3V~40V). *Input common-mode voltage includes ground. *Large output voltage swing: From 0V to Vcc-1.5V. *Power drain suitable for battery operation.  ORDERING INFORMATION Ordering Number Lead Free Halogen-Free LM324L-D14-T LM324G-D14-T LM324L-S14-R LM324G-S14-R LM324L-P14-R LM324G-P14-R  Package Packing DIP-14 SOP-14 TSSOP-14 Tube Tape Reel Tape Reel MARKING DIP-14 www.unisonic.com.tw Copyright © 2017 Unisonic Technologies Co., Ltd SOP-14 / TSSOP-14 1 of 5 QW-R105-006.N LM324  LINEAR INTEGRATED CIRCUIT PIN DESCRIPTION OUT 1 1 14 OUT 4 IN 1(-) 2 13 IN 4(-) IN 1(+) 3 12 IN 4(+) Vcc 4 IN 2(+) 5 10 IN 3(+) IN 2(-) 6 9 IN 3(-) OUT 2  11 GND 7 8 OUT 3 BLOCK DIAGRAM Only one section Vcc IN (-) Output IN (+) GND UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 2 of 5 QW-R105-006.N LM324  LINEAR INTEGRATED CIRCUIT ABSOLUTE MAXIMUM RATINGS PARAMETER Supply Voltage Differential Input Voltage Input Voltage RATINGS UNIT ±20 V ±40 V -0.3 ~ +40 V DIP-14 800 mW Power Dissipation PD SOP-14 580 mW TSSOP-14 460 mW Operating Temperature TOPR -20 ~ +85 C Storage Temperature TSTG -40 ~ +150 C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied.  SYMBOL VCC VI(DIFF) VIN ELECTRICAL CHARACTERISTICS (VCC=5.0V, All voltage referenced to GND unless otherwise specified.) PARAMETER SYMBOL Input Offset Voltage VI(OFF) Input Offset Current Input Bias Current Input Common Mode Voltage II(OFF) II(BIAS) VI(CM) Power Supply Current ICC Large Signal Voltage Gain GV Output Voltage Swing Common Mode Rejection Ratio Power Supply Rejection Ratio Channel Separation Short Circuit Current to Ground VO(H) VO(L) CMRR PSRR CS ISC ISOURCE Output Current Differential Input Voltage ISINK TEST CONDITIONS VCM=0V toVCC-1.5V VO(P)=1.4V, RS=0 VCC=30V RL=∞, VCC=30V VCC=5V VCC=15V, RL≧2K VO(P)=1V ~ 11V VCC=30V, RL=2K VCC=30V, RL=10K VCC=5V, RL>10K 0 25 26 27 65 65 f=1KHZ ~ 20KHZ VI(+)=1V, VI(-)=0V VCC=15V, VO(P)=2V VI(+)=0V, VI(-)=1V VCC=15V, VO(P)=2V VI(+)=0V, VI(-)=1V VCC=15V, VO(P)=200mV VI(DIFF) UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw MIN TYP VCC-1.5 1.0 0.7 MAX UNIT 5.0 mV 50 250 nA nA V mA mA 3.0 1.2 100 V/mV 28 5 75 100 120 40 V V mV dB dB dB mA 20 60 20 40 mA 10 13 mA 12 45 μA VCC V 3 of 5 QW-R105-006.N LM324 LINEAR INTEGRATED CIRCUIT TYPICAL CHARACTERISTICS  Input Current Input Voltage Range 100 80 Negative 10 Input Current (nA) Input Voltgae,VIN (±V) 15 Positive 5 VCC=+30V 60 VCC=+15V 40 VCC=+5V 20 0 0 0 10 5 -50 15 -25 0 25 Supply Current 40 50 75 100 Temperature (°C) Supply Voltage (± V) Voltage Gain 160 VCC IC RL=20kΩ 120 2 Voltgae Gain (dB) Supply Current (mA) 3 TA=0~+85°C 1 RL=2kΩ 80 40 TA=-40°C 0 0 0 10 20 30 Supply Voltage 40 0 7.5 (V) 15 22.5 Supply Voltage (V) Open Loop Frequency response Common-Mode Rejection Ratio 120 120 VCC 100 100 100MΩ 0.1µF 80 VCC=+7.5V VEE=-7.5V 80 VIN CMRR (dB) Voltage Gain (dB) 30 VCC/2 60 40 100kΩ 100Ω 40 VCC=30V VCC=15V +7.5V 60 100Ω VIN 20 20 100kΩ -7.5V 0 0 10 0 10 1 10 2 10 3 10 4 5 10 6 10 10 7 Frequency (Hz) UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 10 2 10 3 10 4 10 5 10 6 Frequency (Hz) 4 of 5 QW-R105-006.N LM324 LINEAR INTEGRATED CIRCUIT TYPICAL CHARACTERISTICS(cont.) Output Swing (VP-P) Output Refference VCC (V) Output Voltage (V) Output voltgae (mV) Input Voltage (V)  UTC assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all UTC products described or contained herein. UTC products are not designed for use in life support appliances, devices or systems where malfunction of these products can be reasonably expected to result in personal injury. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. UNISONIC TECHNOLOGIES CO., LTD www.unisonic.com.tw 5 of 5 QW-R105-006.N
