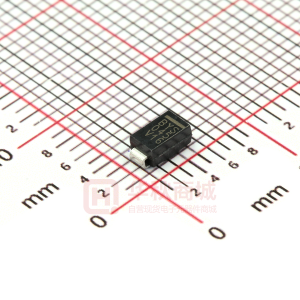

BYS10-45

BYS10-25 thru BYS10-45 Vishay General Semiconductor Surface Mount Schottky Barrier Rectifier FEATURES • Low profile package • Ideal for automated placement • Guardring for overvoltage protection • Low power losses, high efficiency • Very low switching losses • High surge capability DO-214AC (SMA) • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C • Solder dip 260 °C, 40 s • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC TYPICAL APPLICATIONS For use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications. MECHANICAL DATA Case: DO-214AC (SMA) Epoxy meets UL 94V-0 flammability rating Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102 E3 suffix for consumer grade, meets JESD 201 class 1A whisker test, HE3 suffix for high reliability grade (AEC Q101 qualified), meets JESD 201 class 2 whisker test Polarity: Color band denotes the cathode end PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. 1.5 A 25 V to 45 V 40 A 0.50 V 150 °C MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) PARAMETER Device marking code Maximum repetitive peak reverse voltage Maximum average forward rectified current Peak forward surge current single half sine-wave superimposed on rated load Junction and storage temperature range 8.3 ms 10 ms VRRM IF(AV) IFSM TJ, TSTG SYMBOL BYS10-25 BYS 025 25 BYS10-35 BYS 035 35 1.5 40 30 - 65 to + 150 BYS10-45 BYS 045 45 V A A °C UNIT Document Number: 86013 Revision: 21-Jan-08 For technical questions within your region, please contact one of the following: PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com www.vishay.com 1 BYS10-25 thru BYS10-45 Vishay General Semiconductor ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER Maximum instantaneous forward voltage (1) Maximum DC reverse current (1) Note: (1) Pulse test: 300 µs pulse width, 1 % duty cycle TEST CONDITIONS 1.0 A VRRM TJ = 25 °C TJ = 100 °C SYMBOL VF IR BYS10-25 BYS10-35 500 500 10 BYS10-45 UNIT mV µA mA THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) PARAMETER Maximum thermal resistance - junction lead Maximum thermal resistance - junction ambient Notes: (1) Mounted on epoxy-glass hard tissue (2) Mounted on epoxy-glass hard tissue, 50 mm2 35 µm Cu (3) Mounted on Al-oxide-ceramic (Al2O3), 50 mm2 35 µm Cu SYMBOL RθJL RθJA BYS10-25 BYS10-35 25 150 (1) 125 (2) 100 (3) BYS10-45 UNIT °C/W °C/W ORDERING INFORMATION (Example) PREFERRED P/N BYS10-45-E3/TR BYS10-45-E3/TR3 BYS10-45HE3/TR (1) BYS10-45HE3/TR3 (1) Note: (1) Automotive grade AEC Q101 qualified UNIT WEIGHT (g) 0.064 0.064 0.064 0.064 PREFERRED PACKAGE CODE TR TR3 TR TR3 BASE QUANTITY 1800 7500 1800 7500 DELIVERY MODE 7" diameter plastic tape and reel 13" diameter plastic tape and reel 7" diameter plastic tape and reel 13" diameter plastic tape and reel RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted) PR - Max. Reverse Power Dissipation (W) 7 BYS10-45 6 1000 Reverse Current (mA) 5 BYS10-35 4 3 2 1 RthJA = 100 K/W 0 0 40 80 120 160 200 RthJA = 25 K/W BYS10-25 100 10 VR = VRRM 1 0.1 0 40 80 120 160 200 Junction Temperature (°C) Junction Temperature (°C) Figure 1. Max. Reverse Power Dissipation vs. Junction Temperature www.vishay.com 2 Figure 2. Max. Reverse Current vs. Junction Temperature For technical questions within your region, please contact one of the following: PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com Document Number: 86013 Revision: 21-Jan-08 BYS10-25 thru BYS10-45 Vishay General Semiconductor 2.0 VR = VRRM, Half Sine-Wave, RthJA = 25 K/W 100 Average Forward Current (A) 1.6 TJ = 150 °C 1.2 BYS10-25 0.8 BYS10-35 0.4 BYS10-45 0 0 40 80 120 160 200 Forward Current (A) 10 1 TJ = 25 °C 0.1 0.01 0 0.4 0.8 1.2 1.6 2.0 Ambient Temperature (°C) Forward Voltage (V) Figure 3. Max. Average Forward Current vs. Ambient Temperature Figure 5. Max. Forward Current vs. Forward Voltage 2.0 100 VR = 0 V, Half Sine-Wave 1.6 Transient Thermal Impedance (°C/W) 200 Average Forward Current (A) 10 1.2 100 K/W 0.8 125 K/W RthJA = 25 K/W 1 0.4 150 K/W 0 0 40 80 120 160 0.1 0.01 0.1 1 10 100 Ambient Temperature (°C) t - Heating Time (s) Figure 4. Max. Average Forward Current vs. Ambient Temperature Figure 6. Diode Capacitance vs. Reverse Voltage PACKAGE OUTLINE DIMENSIONS in inches (millimeters) DO-214AC (SMA) Cathode Band Mounting Pad Layout 0.066 (1.68) MIN. 0.074 (1.88) MAX. 0.065 (1.65) 0.049 (1.25) 0.110 (2.79) 0.100 (2.54) 0.177 (4.50) 0.157 (3.99) 0.012 (0.305) 0.006 (0.152) 0.060 (1.52) MIN. 0.208 (5.28) REF. 0.090 (2.29) 0.078 (1.98) 0.060 (1.52) 0.030 (0.76) 0.008 (0.203) 0 (0) 0.208 (5.28) 0.194 (4.93) Document Number: 86013 Revision: 21-Jan-08 For technical questions within your region, please contact one of the following: PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com www.vishay.com 3 Legal Disclaimer Notice Vishay Disclaimer All product specifications and data are subject to change without notice. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in any other disclosure relating to any product. Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by law. The product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein, which apply to these products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless otherwise expressly indicated. Customers using or selling Vishay products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Vishay for any damages arising or resulting from such use or sale. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. Product names and markings noted herein may be trademarks of their respective owners. Document Number: 91000 Revision: 18-Jul-08 www.vishay.com 1
