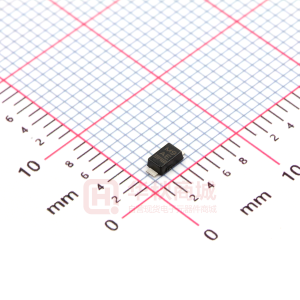

SMF5V0A-M

SMF5V0A-M to SMF51A-M www.vishay.com Vishay Semiconductors Surface Mount ESD Protection Diodes FEATURES • • • • • 20278 17249 1 2 • • • 22623 MARKING (example only) Bar = cathode marking YY = type code (see table below) XX = date code • • • • • • For surface mounted applications Low-profile package Optimized for LAN protection applications Ideal for ESD protection of data lines in accordance with IEC 61000-4-2 (IEC 801-2) Ideal for EFT protection of data lines in accordance with IEC 61000-4-4 (IEC 801-4) ESD-protection acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge Low incremental surge resistance, excellent clamping capability 200 W peak pulse power capability with a 10/1000 μs waveform, repetition rate (duty cycle): 0.01 % Very fast response time High temperature soldering guaranteed: 260 °C/10 s at terminals e3 - Sn AEC-Q101 qualified Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC Halogen-free according to IEC 61249-2-21 definiton ORDERING INFORMATION SMF5V0A-M-xx 08 = 3K per 7" reel (8 mm tape), 30K/box 18 = 10K per 13" reel (8 mm tape), 50K/box Environmental suffix -M- defines halogen-free Part number PACKAGE DATA DEVICE NAME SMF5V0A-M SMF6V5A-M SMF7V0A-M SMF7V5A-M SMF8V0A-M SMF8V5A-M SMF9V0A-M SMF10A-M SMF11A-M SMF12A-M SMF13A-M SMF14A-M SMF15A-M SMF16A-M SMF17A-M SMF18A-M SMF20A-M SMF22A-M SMF24A-M Rev. 1.1, 30-Nov-11 SMF PACKAGE NAME TYPE CODE NE NK NM NP NR NT NV NX NZ OE OG OK OM OP OR OT OV OX OZ 15 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals WEIGHT MOLDING COMPOUND FLAMMABILITY RATING MOISTURE SENSITIVITY SOLDERING CONDITIONS LEVEL Document Number: 83355 1 For technical questions, contact: ESDprotection@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 XX YY SMF5V0A-M to SMF51A-M www.vishay.com PACKAGE DATA DEVICE NAME SMF26A-M SMF28A-M SMF30A-M SMF33A-M SMF36A-M SMF40A-M SMF43A-M SMF45A-M SMF48A-M SMF51A-M SMF PACKAGE NAME TYPE CODE PE PG PK PM PP PR PT PV PX PZ 15 mg UL 94 V-0 MSL level 1 (according J-STD-020) 260 °C/10 s at terminals WEIGHT MOLDING COMPOUND FLAMMABILITY RATING MOISTURE SENSITIVITY SOLDERING CONDITIONS LEVEL Vishay Semiconductors ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER Peak pulse current Peak pulse power Peak forward surge current ESD immunity Thermal resistance Forward clamping voltage Operating temperature Storage temperature TEST CONDITIONS tp = 10/1000 μs waveform acc. IEC 61000-4-5 tp = 8/20 μs waveform acc. IEC 61000-4-5 tp = 10/1000 μs waveform acc. IEC 61000-4-5 8.3 ms single half sine-wave Contact discharge acc. IEC 61000-4-2; 10 pulses Air discharge acc. IEC 61000-4-2; 10 pulses Mounted on epoxy glass PCB with 3 mm x 3 mm, Cu pads ( 40 μm thick) IF = 12 A Junction temperature SYMBOL IPPM PPP IFSM VESD RthJA VF TJ TSTG VALUE see “Electrical Characteristics” 1000 200 20 ± 30 ± 30 180 3.5 - 55 to + 150 - 55 to + 150 UNIT A W W A kV kV K/W V °C °C ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PART NUMBER REVERSE BREAKDOWN VOLTAGE at IT, tp  5 ms VBR MIN. (V) SMF5V0A-M SMF6V0A-M SMF6V5A-M SMF7V0A-M SMF7V5A-M SMF8V0A-M SMF8V5A-M SMF9V0A-M SMF10A-M SMF11A-M SMF12A-M SMF13A-M SMF14A-M SMF15A-M SMF16A-M SMF17A-M SMF18A-M Rev. 1.1, 30-Nov-11 6.40 6.67 7.22 7.78 8.33 8.89 9.44 10 11.1 12.2 13.3 14.4 15.6 16.7 17.8 18.9 20 REVERSE REVERSE TEST WORKING CURRENT CURRENT VOLTAGE at VRWM IT (mA) 10 10 10 10 1 1 1 1 1 1 1 1 1 1 1 1 1 VRWM (V) 5 6 6.5 7 7.5 8 8.5 9 10 11 12 13 14 15 16 17 18 IR (μA) 400 400 250 100 50 25 10 5 2.5 2.5 2.5 1 1 1 1 1 1 MAXIMUM REVERSE PEAK PULSE CLAMPING CAPACITANCE PROTECTION CURRENT VOLTAGE at VR = 0 V, PATHS tp = 10/1000 μs at IPPM f = 1 MHz IPPM (A) 21.7 19.4 17.9 16.7 15.5 14.7 13.9 13.5 11.8 11 10.1 9.3 8.6 8.2 7.7 7.2 5.8 VC (V) 9.2 10.3 11.2 12 12.9 13.6 14.4 15.4 17 18.2 19.9 21.5 23.2 24.4 26 27.6 29.2 CD TYP. (pF) 1030 1010 850 750 730 670 660 620 570 460 440 420 370 350 340 310 305 Nchannel 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Document Number: 83355 2 For technical questions, contact: ESDprotection@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SMF5V0A-M to SMF51A-M www.vishay.com Vishay Semiconductors MAXIMUM REVERSE PEAK PULSE CLAMPING CAPACITANCE PROTECTION CURRENT VOLTAGE at VR = 0 V, PATHS tp = 10/1000 μs at IPPM f = 1 MHz IPPM (A) 6.2 5.6 5.1 4.8 4.4 4.1 3.8 3.4 3.1 2.9 2.8 2.6 2.4 VC (V) 32.4 35.5 38.9 42.1 45.4 48.4 53.3 58.1 64.5 69.4 72.7 77.4 82.4 CD TYP. (pF) 207 265 240 225 210 205 190 180 165 160 155 150 145 Nchannel 1 1 1 1 1 1 1 1 1 1 1 1 1 ELECTRICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PART NUMBER REVERSE BREAKDOWN VOLTAGE at IT, tp  5 ms VBR MIN. (V) SMF20A-M SMF22A-M SMF24A-M SMF26A-M SMF28A-M SMF30A-M SMF33A-M SMF36A-M SMF40A-M SMF43A-M SMF45A-M SMF48A-M SMF51A-M 22.2 24.4 26.7 28.9 31.1 33.3 36.7 40 44.4 47.8 50 53.3 56.7 REVERSE REVERSE TEST WORKING CURRENT CURRENT VOLTAGE at VRWM IT (mA) 1 1 1 1 1 1 1 1 1 1 1 1 1 VRWM (V) 20 22 24 26 28 30 33 36 40 43 45 48 51 IR (μA) 1 1 1 1 1 1 1 1 1 1 1 1 1 TYPICAL CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) 10 IPPM - Peak Pulse Current, % IRSM PPP - Peak Pulse Power (kW) Non-repetitive pulse waveform shown in fig. 3 TA = 25 °C 150 tr =10 µs TJ = 25 °C pulse width (td) is defined as the point where the peak current decays to 50 % of IPPM 100 Peak value IPPM Half value IPPM IPPM 2 1 50 10/100 s waveform as defined by R.E.A. 0.1 0.1 µs 1.0 µs 10 µs 100 µs 1.0 ms 10 ms 17250 0 0 17252 td 1 2 t - Time (ms) 3 4 td - Pulse Width (s) Fig. 1 - Peak Pulse Power Rating Fig. 3 - Pulse Waveform Peak Pulse Power (PPP) or Current (IPPM) Derating in Percentage (%) 100 75 50 25 0 0 25 50 75 100 125 150 175 200 17251 TA - Ambient Temperature Fig. 2 - Pulse Derating Curve Rev. 1.1, 30-Nov-11 Document Number: 83355 3 For technical questions, contact: ESDprotection@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SMF5V0A-M to SMF51A-M www.vishay.com PACKAGE DIMENSIONS in millimeters (inches): SMF Vishay Semiconductors 0.85 (0.033) 0.35 (0.014) 0.25 (0.010) 0.05 (0.002) 0.1 (0.004) 5 1.9 (0.075) 1.7 (0.067) 1.2 (0.047) 0.8 (0.031) 0 (0.000) Detail Z enlarged 1.08 (0.043) 2.9 (0.114) 2.7 (0.106) 3.9 (0.154) 3.5 (0.138) 0.88 (0.035) Foot print recommendation: 1.3 (0.051) 1.3 (0.051) Created - Date: 15. February 2005 Rev. 3 - Date: 13. March 2007 Document no.:S8-V-3915.01-001 (4) 17247 1.4 (0.055) 2.9 (0.114) Rev. 1.1, 30-Nov-11 Document Number: 83355 4 For technical questions, contact: ESDprotection@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 5 SMF5V0A-M to SMF51A-M www.vishay.com BLISTERTAPE DIMENSIONS in millimeters (inches) Vishay Semiconductors PS Document-No.: S8-V-3717.02-001 (3) 18513 Rev. 1.1, 30-Nov-11 Document Number: 83355 5 For technical questions, contact: ESDprotection@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 SMF5V0A-M to SMF51A-M www.vishay.com Vishay Semiconductors Pin 1 - Location LLP1713 Top view Pad layout - view from top seen at bottom side Pin 1 - Location LLP2513 Top view Pad layout - view from top seen at bottom side Pin 1 - Location LLP3313 Top view Pad layout - view from top seen at bottom side Rev. 1.1, 30-Nov-11 Document Number: 83355 6 For technical questions, contact: ESDprotection@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000 Legal Disclaimer Notice www.vishay.com Vishay Disclaimer ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE. Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other disclosure relating to any product. Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular product with the properties described in the product specification is suitable for use in a particular application. Parameters provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed therein. Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining applications or for any other application in which the failure of the Vishay product could result in personal injury or death. Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners. Material Category Policy Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (EEE) - recast, unless otherwise specified as non-compliant. Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU. Revision: 12-Mar-12 1 Document Number: 91000
